Synthesis and antioxidant activity of two novel tetraphenolic compounds derived from toluhydroquinone and tertiary butylhydroquinone

Z.W. Jiang, X.C. Weng^*, Y. Huang, J.P. Hou and X.Y. Liao

School of Life Sciences, Shanghai University, Shanghai 200444, China

*Corresponding author: wxch@staff.shu.edu.cn

1. INTRODUCTIONTOP

Food lipids are very susceptible to oxidative processes in the presence of catalytic systems such as light, heat, enzymes, metals, and metalloproteins, resulting in adverse changes in sensory quality, nutritional value and chemical composition (Shahidi and Zhong, 2010). The addition of synthetic antioxidants is the most convenient and effective way to retard lipid oxidation and thus prevent food deterioration. Tertiary butylhydroquinone (TBHQ) and some sterically hindered phenolics are very effective primary antioxidants at room or moderate temperatures and widely used in the food industry. However, these low molecular weight antioxidants tend to lose their effectiveness during high-temperature food processing like deep frying and baking, because of chemical degradation, volatilization and steam distillation (Hamama and Nawar, 1991; Marmesat et al., 2010). Thus, relatively high molecular weight antioxidants are preferably used to overcome physical loss and to enhance thermal stability under high temperatures. Novel antioxidants derived from TBHQ, i.e., lauryl TBHQ, lauryl tert-butylated quinone and 1,1-di-(2′,5′-dihydroxy-4′-tertbutylphenyl)ethane, have been found to exert stronger antioxidant activity than TBHQ at temperatures higher than 140 °C (Zhang et al., 2004; Li et al., 2006). In this paper, two novel tetraphenolic compounds were prepared by the acid-catalyzed condensation reaction of glyoxal with toluhydroquinone (THQ) or TBHQ, respectively. The antioxidant properties of these compounds were also studied.

2. MATERIALS AND METHODSTOP

2.1. Materials and chemicalsTOP

THQ and 2,2-diphenyl-1-picrylhydrazyl (DPPH) were purchased from Sigma-Aldrich Co. TBHQ, silica gel and other chemicals were purchased from Shanghai Chemical Reagent Co. All chemicals were of analytical grade and used without further purification. Thin-layer chromatographic (TLC) plates were prepared by coating 0.5 mm silica gel F254 onto 2.5×7.5 cm glass plates and then activated by heating in an oven for thirty minutes at 110 °C.

2.2. Preparation of compound 1TOP

A mixture of THQ (12.41 g, 0.10 mol), glyoxal (40%, 1.20 mL, 0.01 mol), phosphoric acid (85%, 0.68 mL, 0.01 mol) and isopropanol (25 mL) was stirred and heated to reflux. Nitrogen was bubbled to remove the air in the reaction system during refluxing. After 24 h of reaction, the mixture was evaporated under vacuum and the residue was washed with hot water (250 mL×3) followed by an ethyl acetate/n-hexane mixture (1:1, 25 mL). The pure product was obtained by recrystallization from ethanol and dried under vacuum.

2.3. Preparation of compound 2TOP

A mixture of TBHQ (16.62 g, 0.10 mol), glyoxal (40%, 1.20 mL, 0.01 mol), phosphoric acid (85%, 0.68 mL, 0.01 mol) and isopropanol (25 mL) was stirred and heated to reflux. Nitrogen was bubbled to remove any air in the reaction system during refluxing. After 24 h of reaction, the mixture was evaporated under vacuum and the residue was washed with boiling water (250 mL×3) followed by chloroform (25 mL). The pure product was obtained by recrystallization from ethanol and dried under vacuum.

2.4. Analytical determination for the characterization of the compoundsTOP

¹H and ¹³C NMR spectra were recorded with a Bruker AVANCE 500MHz spectrometer; chemical shifts were reported in ppm using TMS as internal standard. IR spectra were recorded on Nicolet FT-IR spectrometer. UV spectra were recorded with a Varian Cary 100 Bio UV-Vis spectrophotometer. Fluorescence spectra were recorded with a Perkin-Elmer LS55 luminescence spectrometer. High-resolution ESI mass spectrometry was performed with Bruker APEXIII 7.0 TESLA FTMS. Analytical TLC was performed on 0.25 mm pre-coated silica gel plates.

2.5. Rancimat testTOP

The antioxidant activities of THQ, TBHQ and two newly synthesized compounds were measured according to a published method (Proestos et al., 2006). Samples of lard oil (3 g) containing 0.02% compounds were subjected to oxidation. The air flow rate was fixed at 20 L/h, and the temperature was controlled at 100, 120 and 140 °C, respectively. Induction periods (IP), the period of time until a sudden acceleration of the oxidative process is reached (Silva et al., 2001), were recorded automatically. The IP of lard oil containing different concentrations (0.01%, 0.02%, 0.04% and 0.08%) of compounds 1 and 2 were also determined at 120 °C, while the air flow was kept at 20 L/h. The protection factors (PF) were calculated according to the following formula:

PF=IP sample/IP control.

The lard oil without the addition of antioxidant served as the control. The lard oil applied in this method was rendered in the laboratory from fresh pig fat tissue.

2.6. DPPH radical scavenging assayTOP

The free radical scavenging activities of the compounds were assayed according to the previously reported method with some modification (Shimada, et al., 1992; Tseng, et al., 2008). Aliquots of 0.5 mL of sample solution of different concentrations (1.5 to 48 μg·mL⁻¹) in ethanol was mixed with 2.5 mL of DPPH (0.1 mM in ethanol). The mixture was shaken vigorously and left to stand for 30 min in the dark, and the absorbance was then measured at 517 nm against a blank. The antioxidant activity was calculated using the following equation:

Scavenging activity (%)=[ΔA517 of control–ΔA517 of sample)/ΔA517 of control]×100.

EC₅₀ is defined as the concentration of substrate that causes a 50% loss in the DPPH activity (Molyneux, 2004). It is calculated from the graph plotted as scavenging activity against compound concentration.

2.7. Reducing powerTOP

The reducing power of each compound was determined according to the method of Oyaizu (1986). Briefly, 1.0 mL of different sample concentrations (1.5–48 μg·mL⁻¹) was mixed with 2.5 mL of a 0.2 M phosphate buffer (pH 6.6) and 2.5 mL of a 1% (w/v) solution of potassium ferricyanide. The mixture was incubated at 50 °C for 20 min. After that, 2.5 mL of 10% (w/v) trichloroacetic acid were added, and the mixture was centrifuged at 3000 rpm for 10 min. A 2.5 mL aliquot of the upper layer was combined with 2.5 mL of distilled water and 0.5 mL of 0.1% (w/v) ferric chloride, and the absorbance was measured at 700 nm against a blank. A higher absorbance indicates a higher reducing power. The EC₅₀ value is the effective concentration at which the absorbance was 0.5 for reducing power and was obtained by interpolation from linear regression analysis.

2.8. Statistical analysisTOP

The results were presented as mean±standard error of the mean. Statistical comparisons were made using SPSS version 16.0 for Windows. One-way analysis of variance (ANOVA) was used to identify significant differences (P≤0.05).

3. RESULTS AND DISCUSSIONTOP

3.1. Characterization of compound 1 and 2TOP

Compounds 1 and 2 were obtained as white flocculent crystals. R_f values of compound 1 and 2 were 0.45 and 0.58 respectively (Chloroform/ethanol, 9:1). Their UV spectra were very similar showing two broad absorption bands in the range of 200–330 nm. A strong fluorescence peak of compounds 1 and 2, located at λex/λem=332.1/344.16 nm and 331.57/343.96 nm respectively, were observed in the fluorescence spectrum. With regard to compound 1, its IR spectra showed bands for hydroxyl groups (3509 cm⁻¹) and aromatic rings (1508, 1461 cm⁻¹). The ¹H NMR spectrum of compound 1 exhibited a phenolic hydroxyl proton signal at 7.744 ppm, two aromatic proton signals at 6.590 and 6.895 ppm, two doublets of proton signals with a vicinal coupling constant of 6.5 Hz at 4.929 and 6.785 ppm, and a methyl proton signal at 2.125 ppm. The ¹³C NMR spectrum of compound 1 exhibited 9 carbon signals, including six aromatic carbon signals, a methyl carbon signal and two methine signals. From the NMR data, it could be deduced that the molecular formula of compound 1 is C₃₂H₂₈O₈. Since its HRMS also showed [M+Na]⁺ at m/z 563.1664 (calcd. for C₃₂H₂₈Na₁O₈ 563.1676), its structure was further confirmed. The IR, ¹H NMR and ¹³C NMR spectrum characters of compound 2 were very similar to those of compound 1 as shown in Table 1, except for the difference caused by tert-butyl substituents. The HRMS data of compound 2 (calcd. for C₄₄H₅₂Na₁O₈ [M+Na]⁺ 731.3554, found 731.3558) was also in good agreement with its NMR result. Based on the above evidence, compounds 1 and 2 were determined to be two novel tetraphenolic compounds bearing four hydroxyphenyl groups.

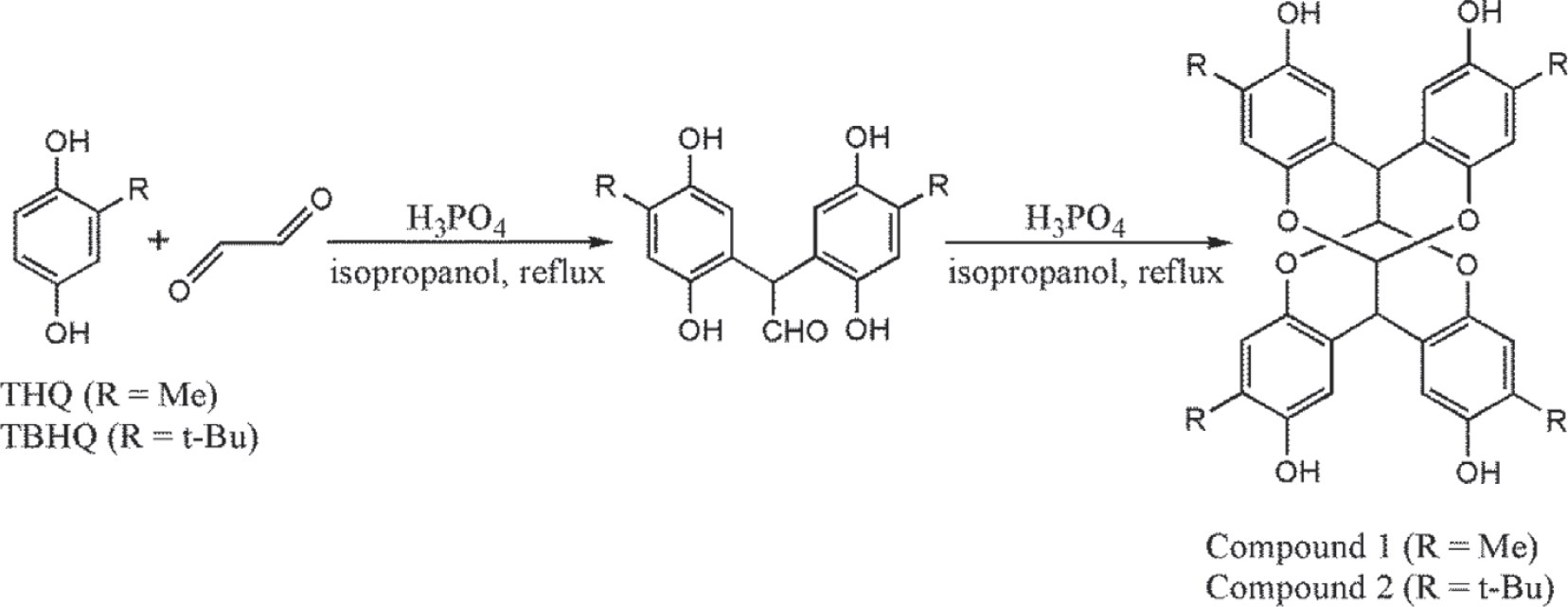

Tetraphenolic compounds are important chemical products which can be used as starting materials for the preparation of multifunctional epoxy resins for coatings and electronic applications (Bauer and Dangayach, 1992; Li, 1992). The condensation reaction of glyoxal with a phenol or alkylphenol is a conventional method for preparing tetraphenolic compounds. In our study, novel compounds containing eight phenolic hydroxyl groups were expected to be prepared from the condensation reaction of glyoxal with a molar excess of alkyl-substituted hydroquinone by analogy. But it turned out that the intermediate was unable to react further with THQ or TBHQ due to steric hindrance, and an acetylation reaction occurred between two intermediate molecules as shown in Scheme 1. It can be inferred that the hydroxyl groups at the meta-position of the methyl or tertiary butyl substituent acted as a nucleophile, which attacked the positively charged carbon of carbonyl groups and pushed one of the double bond electrons onto oxygen to give it a negative charge. Then the negatively charged oxygen attacked the proton (H⁺) to form a hemiacetal. Since the hemiacetal was unstable, it was accessible to react further to form acetal. As a result, compounds 1 and 2 were finally isolated. The percent yield was about 10%, which was calculated by the isolated yield divided by the theoretical yield. The reaction of glyoxal with alkyl-substituted hydroquinones provided a new approach to the synthesis of tetraphenolic compounds.

3.2. Antioxidant activity in Rancimat testTOP

The effect of antioxidants on the oxidative stability of lard oil was evaluated by PF. As shown in Table 2, there was a good positive correlation between the PF of samples and temperatures. It indicated that the oxidative stability of lard oil was more sensitive to antioxidants at higher temperatures because of accelerated lipid oxidation. With regard to the protection against lipid oxidation, the performance of compounds decreased as follows: compound 2>TBHQ>compound 1>THQ (100 and 120 °C). When the temperature was controlled at 140 °C, the performance of both compounds 1 and 2 (PF of 8.05 and 9.54, respectively) were superior to that of TBHQ with 7.10 (P≤0.01). The results revealed that polyphenols with a relatively higher molecular weight are preferably used to delay lipid oxidation during the high temperature processing of fats and oils. The effectiveness of THQ and TBHQ was relatively low, which could be attributed to their partial decomposition or volatilization. Table 3 shows the increase in PF with increasing concentrations of compounds 1 and 2, from 5.20 to 7.88 and from 5.87 to 9.93, respectively (120 °C). Compound 2 exhibited stronger antioxidant activity than compound 1 (P≤0.01). We inferred that bulky tert-butyl substituents in the position ortho of phenolic hydroxyl groups enhanced the stability of phenoxy radicals and thus increased the oxidative stability of lard oil. Although compounds 1 and 2 exhibited stronger antioxidant activity, it would be difficult for them to be declared legal for use as food additives. Therefore, we intend to investigate their toxicological properties in the next stage, including acute oral toxicity in rats, sub-acute oral toxicity in rats and intra-peritoneal toxicity in mice.

3.3. DPPH radical scavenging activityTOP

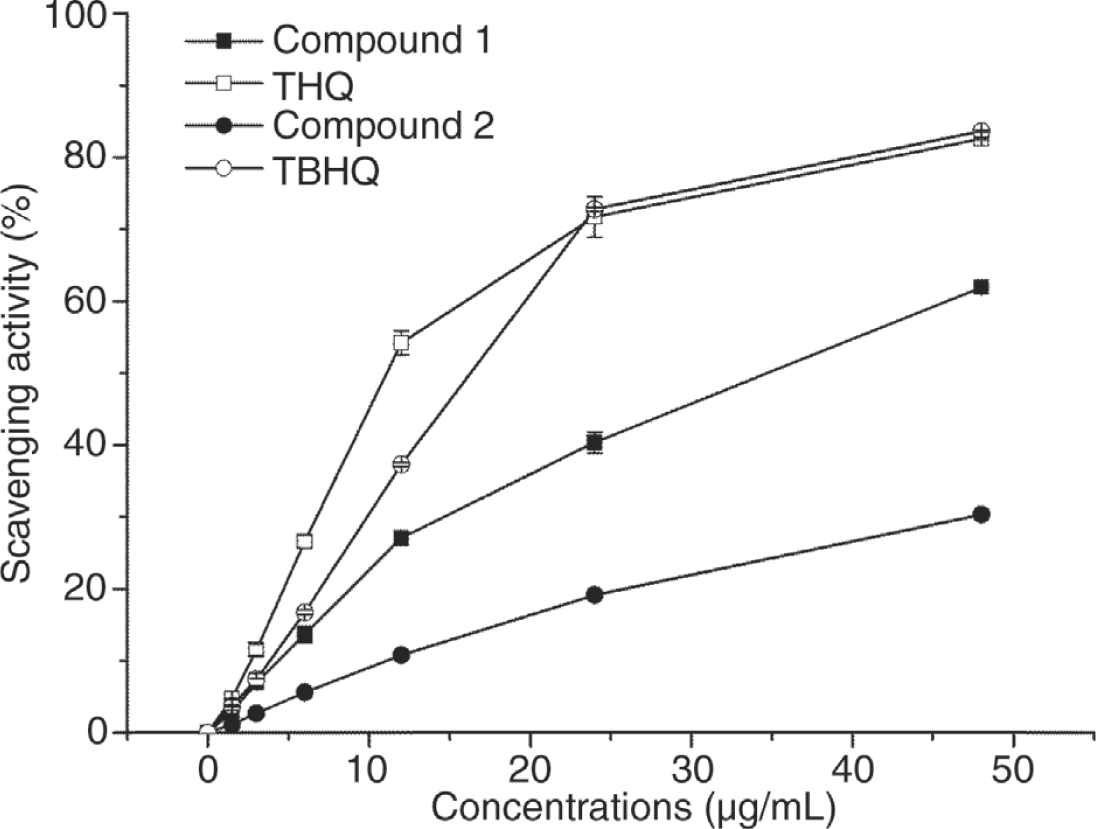

The scavenging activity of antioxidants on DPPH radicals rapidly increased from 1.5 to 12 μg/mL (Figure 1). At 12 μg·mL⁻¹, the scavenging activities were 54.2%, 37.3% 27.1% and 10.8% for THQ, TBHQ, compound 1 and 2, respectively. The EC₅₀ of THQ, TBHQ, and compounds 1 and 2 were 12.43, 15.32, 31.64 and 106.95 μg·mL⁻¹, respectively. In conclusion, the DPPH radical scavenging activity of these compounds followed the following order: THQ>TBHQ>compound 1>compound 2. The order was opposite to the results of the Rancimat test indicating that the DPPH radical scavenging activity of a compound did not correlate with its ability to inhibit lipid oxidation. There are three main reasons for this: firstly, with the same mass percentage concentration, the phenolic hydroxyl group content in the samples of compounds 1 and 2 is less than half that of THQ and TBHQ, respectively. Secondly, DPPH radicals are long-lived nitrogen radicals that are artificially generated and bear no similarity to the highly reactive and transient peroxyl radicals which are involved in lipid oxidation (Huang et al., 2005). Therefore, compounds 1 and 2 may react slowly with DPPH, although they could react rapidly with peroxyl radicals. Thirdly, alkyl substituents also exert an influence on the DPPH radical scavenging activity of the compounds. As a result, the assay has some limitations for evaluating the antioxidant activity of polyphenols in food systems.

3.4. Reducing powerTOP

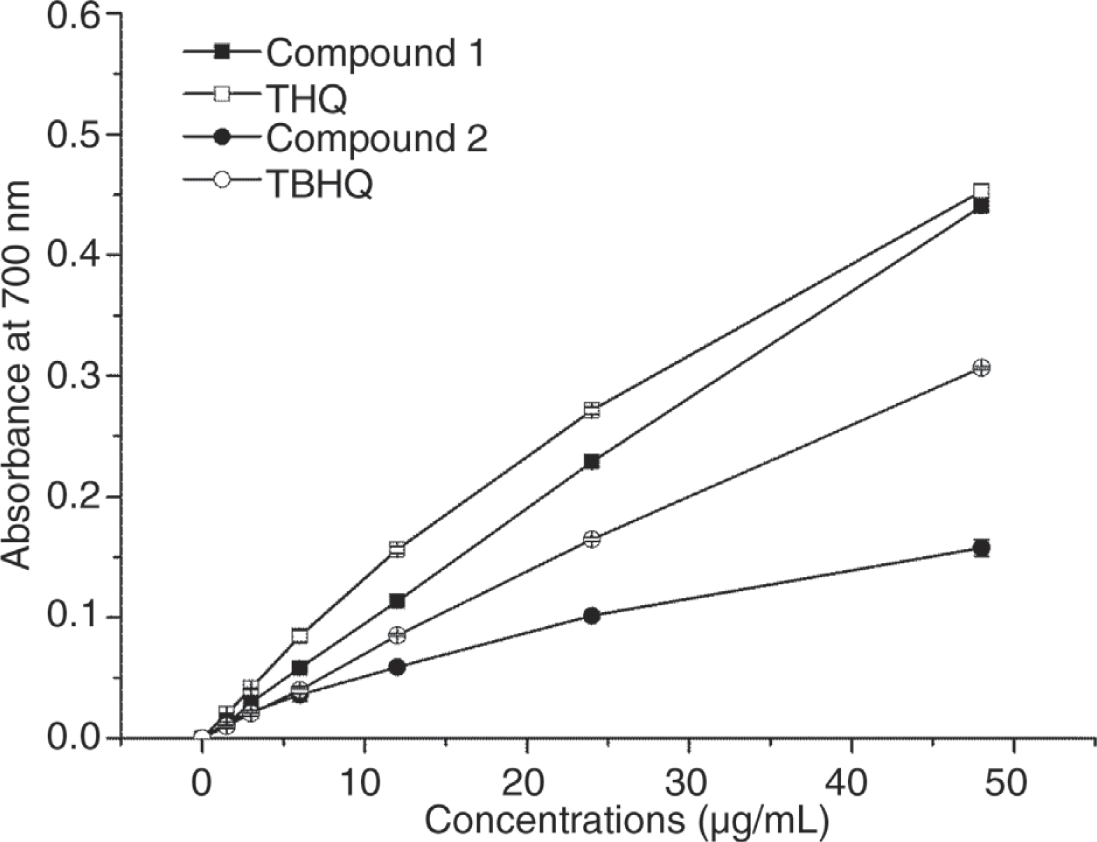

The reducing powers of THQ, TBHQ and two newly synthesized compounds are shown in Figure 2. The reducing power of the four compounds increased significantly with increasing concentrations. At 48 μg·mL⁻¹, THQ and compound 1 showed moderate reducing powers of 0.45 and 0.44, respectively, whereas the reducing powers of TBHQ and compound 2 were 0.31 and 0.16, respectively. The EC₅₀ values for the reducing power of THQ, TBHQ, compound 1 and 2 were 58.61, 98.57, 60.54 and 393.47 μg·mL⁻¹, respectively. The reducing power decreased as follows: THQ>compound 1>TBHQ>compound 2. The Results show that methyl and tert-butyl substituents exert different degrees of influence on the electron-donating abilities of the compounds. The reducing power was also related to the phenolic hydroxyl group content in the samples investigated.

ACKNOWLEDGMENTSTOP

The authors wish to thank Dr. H.M. Deng at the Instrumental Analysis and Research Center of Shanghai University for NMR spectra recording and the Shanghai Mass Spectrometry Center for HRMS analyses.
