The effect of commercial enzyme preparation-assisted maceration on the yield, quality, and bioactivity of essential oil from waste carrot seeds (Daucus carota L.)

K. B. Śmigielski^a,*, M. Majewska^a, A. Kunicka-Styczyńska^b, R. Gruska^c and Ł. Stańczyk^d

^aInstitute of Food Chemistry

^bInstitute of Fermentation Technology and Microbiology

^cInstitute of Chemical Technology of Food

^dInstitute of Technical Biochemistry Faculty of Biotechnology and Food Science, Lodz University of Technology, Stefanowskiego 4/10, 90-924 Lodz, Poland

*Corresponding author: krzysztof.smigielski@p.lodz.pl

1. INTRODUCTIONTOP

Essential oils are mixtures of volatile organic compounds obtained by steam distillation, hydro-distillation, or cold pressing. Along with their olfactory qualities, they also have some cytotoxic properties: antibacterial, antiviral, antifungal, insecticidal, and antiparasitic (Burt 2004), and sometimes even anticarcinogenic. They do not themselves carry a risk of genotoxicity, so they are safe for consumers (Bakkali et al., 2008). Because of these properties, essential oils are often used in perfumery, cosmetics, and food, and even in medicine and aromatherapy (Roldán-Gutiérrez et al., 2008).

An example of an essential oil with such a range of applications is carrot seed essential oil. It is used mainly in the food industry as a flavoring for soups, concentrates, grape wine, and nonalcoholic beverages, and also in the cosmetic and fragrance industry as a fixative (Saad et al., 1995; Surburg and Panten, 2006). It has fungicidal and antibacterial properties (Batt et al., 1983; Dwivedi et al., 1991; Giraud-Robert, 2005; Kilibarda et al., 1996; Staniszewska et al., 2005), and it has also been proven to be a hypotensive agent and a cardiac and central nervous system depressant (Saad et al., 1995).

Carrot seed essential oil is obtained by means of hydro-distillation of ground waste seeds. The extraction of this oil, similar to the extraction of essential oils from other plants with endogenous oil bodies, is often difficult as the structure of plant tissue inhibits the migration of the extractant (water) and the release of intracellular metabolites (Pinelo and Meyer, 2008). Due to these difficulties, new technologies are sought to improve the extraction process. Enzymes which catalyze the hydrolysis of glycosidic bonds in plants (mainly cellulases, hemicellulases, and pectinases) can be used for this purpose (Puri et al., 2012). It has been found that such enzymes, as well as proteinases, facilitate the release of bioactive compounds (Pinelo and Meyer, 2008), speed up extraction, and reduce the consumption of energy and extraction solvent (Puri et al., 2012), which makes the process environmentally friendly. For the same reasons, it is advisable to pretreat plant material with enzymatic hydrolysis prior to essential oil extraction.

This study presents a method of plant material pretreatment prior to hydro-distillation, leading to a higher yield of essential oil and reduced production costs. The experiment involved the pretreatment of waste carrot seeds (Daucus carota L.) var. Koral with commercial enzyme preparations.

2. MATERIALS AND METHODSTOP

2.1. MaterialsTOP

Waste carrot seeds which lost their ability to germinate were obtained from a local producer (W. Legutko Breeding and Seed Company, Wielkopolska, Poland).

Three lipases (Lipex^® and two lipases produced by Rhizomucor miehei and Aspergillus niger), pectate lyase (XPect^®), amylase (Stainzyme^®), cellulase (Celluclean^®), and serine protease (Esperase^®) (Novozymes, Bagsvaerd, Denmark) were donated by UNIVAR. The fourth, a noncommercial lipase, (specially prepared mycelium of Mucor circinelloides) was obtained from the Institute of Technical Biochemistry, Lodz University of Technology.

2.2. Essential oil extractionTOP

2.2.1. Seed preparationTOP

Carrot seeds (100.0 g) were ground in a buhr mill and homogenized in 450.0 mL of water at 20.0 °C for 5.0 min using an MPW–324 homogenizer (Mechanika Precyzyjna, Warsaw, Poland).

2.2.1.1. Enzymatic pretreatmentTOP

2.2.2. Hydro-distillationTOP

Plant material prepared according to step 2.2.1. (control sample – OeA) or 2.2.1.1. (OeB – sample pretreated with Esperase^®) was placed in a 2 L flask, to which 550.0 mL of water was added. Hydro-distillation was performed in triplicate for 5.0 h in a hydro-distillation apparatus providing very good separation of phases through an odorless operation (Śmigielski et al., 2009).

2.3. Physicochemical properties of carrot seed essential oilTOP

The refractive index of the carrot seed essential oil obtained by hydro-distillation from the control and enzyme-pretreated carrot seeds was measured using an Abbemat refractometer (Dr. Kernchen); optical rotation was measured using an Autopol IV polarimeter (Rudolph Research).

2.4. GC-MS analysisTOP

The equipment used in the study consisted of a Trace GC Ultra gas chromatograph coupled with a DSQ II mass spectrometer from Thermo Electron Corporation, an Rtx-1ms capillary column from Restek (60 m long, internal diameter of 0.25 mm, film thickness of 0.25 μm). Signals from two detectors (FID, MS) were simultaneously collected using an MS-column flow splitter from SGE. The following parameters and conditions used were: programmed temperature 50–(3 min)–300 °C (30 min), temperature gradient 4 °C·min⁻¹, injector temperature (SSL) 280 °C, detector temperature (FID) 300 °C, carrier gas – helium, carrier gas flow rate at a constant pressure of 200 kPa, split of 1:20. The parameters of the mass spectrometer were as follows: ionization energy 70 eV, ion source temperature 200 °C, full scan mode in the mass range of 33–420. The flavor compounds in carrot essential oil were identified by GC–MS according to the mass fragmentation pattern and spectral comparison with standards from the NIST, Wiley 8^th edition and Adams Libraries as well as by comparison of retention indices with data from the NIST, Wiley 8^th edition, Adams Libraries, and the Pherobase (http://www.pherobase.com/).

2.5. Near-infrared spectroscopyTOP

The spectrophotometer used was an FT-IR Nicolet 6700; number of sample scans 32, collection length 15.76 sec, resolution 8.000, levels of zero filling 1, number of scan points 8480, number of FFT points 16,384, laser frequency 15,798.3 cm⁻¹, interferogram peak position 4096, apodization–Happ-Genzel, phase correction–Mertz, number of background scans 32, background gain 1.0, wave range (wavenumber) 11,000–4000 cm⁻¹, detector–InGaAs, beam splitter: CaF_2, source–white light. The supplied software OMNIC and TQ Analyst were used for both the control of the spectrophotometer’s work and the analysis of the obtained results.

2.6. Assessment of the antimicrobial activity of the essential oilTOP

2.6.1. Microorganism cultivation and inoculum preparationTOP

The following strains were used in the study: the Gram-positive bacteria Bacillus subtilis ATCC 6633 and Staphylococcus aureus ATCC 1803; the Gram-negative bacteria Escherichia coli ATCC 1627 and Pseudomonas aeruginosa ATCC 1555; the yeast Candida sp. LOCK 0008; and the molds A. niger LOCK 0436 and Penicillium expansum LOCK 0535. The microorganisms were obtained from the American Type Culture Collection ATCC and the Center of Industrial Microorganisms Collection of the Institute of Fermentation Technology and Microbiology, Lodz University of Technology, Poland, WDCM 105. The stock cultures of bacteria were maintained on Trypticase Soy Agar (TSA, Oxoid) slants, while those of the yeast and molds on Sabouraud Dextrose Agar (SDA, bioMerieux) slants at 4 °C. Before each experiment, the strains were twice subcultured in Trypticase Soy Broth (TSB, Oxoid) and Sabouraud Dextrose Liquid Broth (SDLB, bioMerieux). Inoculated broths of B. subtilis were incubated at 30 °C for 24 h, and those of E. coli, S. aureus, and P. aeruginosa at 37 °C for 24 h. Broths inoculated with yeast and molds were incubated at 25 °C for 24–72 h. Freshly prepared slant cultures were used for the experiments. An inoculum of each strain was prepared in a standard saline solution (0.85% NaCl) and adjusted to a final concentration of approximately 10⁷ CFU·mL⁻¹.

2.6.2. Antimicrobial test conditionsTOP

The antimicrobial activity of the essential oils was estimated by the impedimetric method using a Bactometer M64 (bioMerieux). The procedure was as follows: 0.1 mL of a standardized inoculum of the tested strain was placed in a Bactometer well containing a chemical agent at the tested concentration and a growth medium, adjusted to a final volume of 1 mL. The essential oils were added in the concentration range of 50 to 400 μL·mL⁻¹ at 50 μL increments for P. aeruginosa, from 1 to 15 μL·mL⁻¹ at 1 μL increments for B. subtilis, S. aureus, E. coli, A. niger and P. expansum and from 0.1 to 1 μL·mL⁻¹ at 0.1 μL increments for Candida sp. B. subtilis, S. aureus, and P. aeruginosa strains were cultivated in GPM (General Purpose Medium) and the E. coli strain in EM (Entero Medium); yeast and molds were grown in YMM (Yeast Moulds Medium). GPM, EM, and YMM media are designated for the impedimetric evaluation of specified microorganisms by the manufacturer of the Bactometer, bioMerieux. Cell suspensions of 0.1 mL in 0.9 mL of the appropriate medium served as positive controls. Negative controls were bacteria and yeast/mold cultures with 0.5 μg·mL⁻¹ of Novobiocin and 0.2 μg·mL⁻¹ of cycloheximide, respectively. The microorganisms were incubated for 72 h at their optimal growth temperatures as indicated above. After incubation in the Bactometer, each culture was checked for microorganism viability by streaking on Plate Count Agar (PCA, bioMerieux). Plates were incubated for 72 h for bacteria and 120 h for yeast and molds at the optimal growth temperatures of particular microorganisms.

Minimal inhibitory concentration (MIC) was calculated as the minimal concentration of a chemical agent inhibiting microbial growth in Bactometer wells (all microorganisms were grown on PCA plates simultaneously).

All experiments were conducted in triplicate.

2.7. Sensory assessmentTOP

Sensory assessment was based on a forced-choice test (Baryłko-Pikielna and Matuszewska, 2009). The respondents were asked to decide which of the coded essential oils (i.e., the essential oil from seeds pretreated with Esperase^® or the essential oil from the control sample) was lighter and smelled more similar to the essential oil from carrot seeds obtained by another research team via the classical method. The analysis took place in a special sensory evaluation laboratory.

2.8. Statistical evaluationTOP

2.8.1. The Taguchi methodTOP

The optimization of the enzymatic pretreatment of waste carrot seeds prior to hydro-distillation was performed according to the Taguchi experimental design approach, which allows for reducing costs and time consumption by evaluating several process factors at the same time with the smallest number of experimental runs based on a table known as the orthogonal array (Cukor et al., 2011; Chen et al., 2011; Tadayon et al., 2012; Benito-Román et al., 2011).

For the problem under consideration, a L9 orthogonal array (Statistica 7.0) was adopted, consisting of 9 systems. The following factors which may influence enzyme activity were identified as critical: enzyme preparation loading (0.5; 1.0; 2.0 mL·100.0 g⁻¹ seed), time (0.5; 2.0; 18.0 h), solution pH (7.0; 10.5; 12.0), and temperature (25.0; 35.0; 45.0 °C). The parameters of carrot seed enzymatic modification prior to hydro-distillation were optimized in terms of the levels of the above factors. The aim of optimization was to determine such levels of these factors that would ensure the highest efficiency of hydro-distillation, with oil yield chosen as the output factor. The study was randomized to avoid systematic errors and all the experiments were carried out in triplicate. The signal-to-noise ratio (S/N ratio, Eta) was calculated from the experimental data using a loss function, which gave a function transforming repetitive data to other values and was used as a measure of the variation present in the experiment. The characteristics of the maximum desired value were adopted and optimization was done by calculating the S/N ratio (Eta) (controllable factors/confounders) according to the formula:

where n is the number of iterations and y_i is the value of the output variable (the yield of the isolated essential oil).

The theoretical amount of essential oil was calculated for the determined optimum process conditions on the basis of the expected S/N ratio.

3. RESULTS AND DISCUSSIONTOP

3.1. Selection of enzyme typeTOP

The aim of this study was to develop an effective method of essential oil extraction which provides higher efficiency due to enzymatic hydrolysis. For this purpose, screening was performed on eight different enzyme preparations: four lipases (from M. circinelloides, R. miehei, and A. niger, as well as Lipex^®), which are thought to cleave ester bonds both in cuticle polyesters and cell membrane phospholipids, as well as glycosidic bonds in cell wall polysaccharides; two preparations which degrade the cell wall and its main components, cellulose and pectin: Celluclean classic^® cellulase hydrolyzing β-1,4-glycosidic bonds in cellulose and XPect^® pectinase hydrolyzing α-1-4 linked polygalactosyluronic acid; Esperase^® serine protease cleaving peptide bonds present in cell membrane proteins, and Stainzyme^® amylase hydrolyzing endo-1,4 bonds in starch, both in amylose and amylopectin.

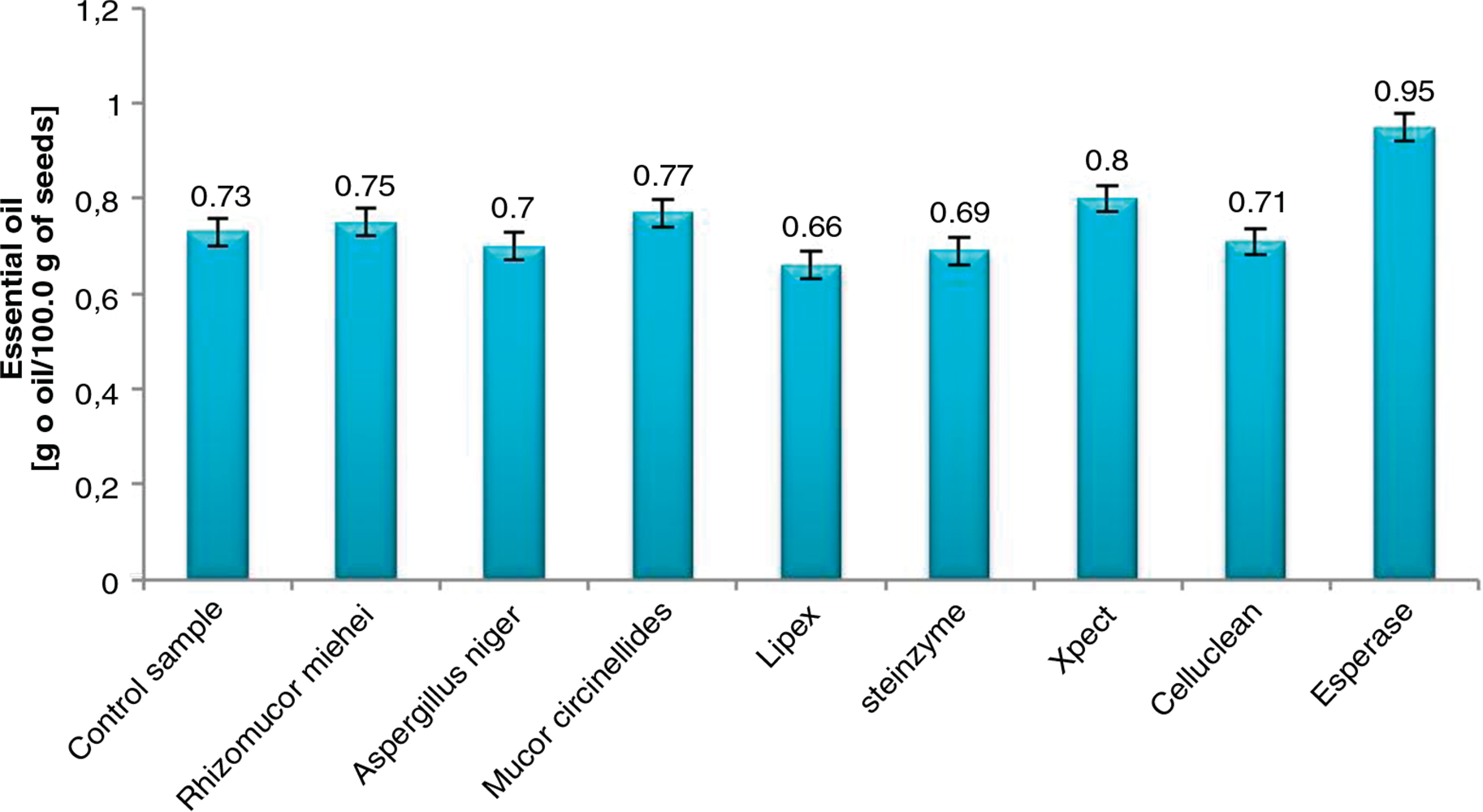

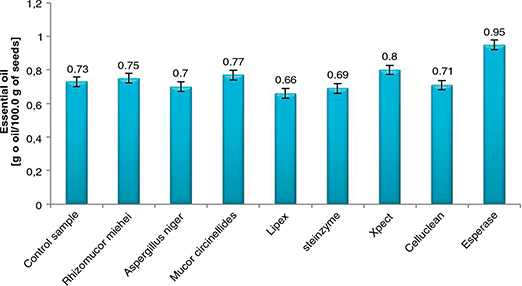

Carrot seeds were subjected to the action of these eight enzyme preparations at a concentration of 1.0 g·100.0 g⁻¹ of seeds for 18 hours under conditions suggested by the manufacturer. The results of the screening are shown in Figure 1.

Only three of the eight enzyme preparations investigated, M. circinelloides lipase, XPect^® pectinase, and Esperase^® protease, significantly influenced the efficiency of the essential oil extraction. The highest yield, higher by nearly 30% than that of the control sample, was afforded by Esperase^®, so this preparation was chosen for further studies.

3.2. Optimization of the process for enzyme-assisted hydro-distillationTOP

The selection of appropriate conditions to ensure the optimum activity of the enzyme preparations used for the treatment of plant material, is a key step because the effectiveness of enzymatic digestion influences the efficiency of essential oil extraction. The application of the Taguchi method for the optimization of enzymatic processing conditions considerably accelerated this step.

Following the results of preliminary screening, Esperase^® protease was investigated with a view to optimize its processing conditions. The results obtained from 9 experiments conducted in triplicate according to the L₉ orthogonal array are presented in Table 1.

The ANOVA statistical analysis at a significance level of p = 0.05 showed that all input factors influenced the yield of carrot seed essential oil, with pH being the most significant one (contribution of 44.83%) (Table 2).

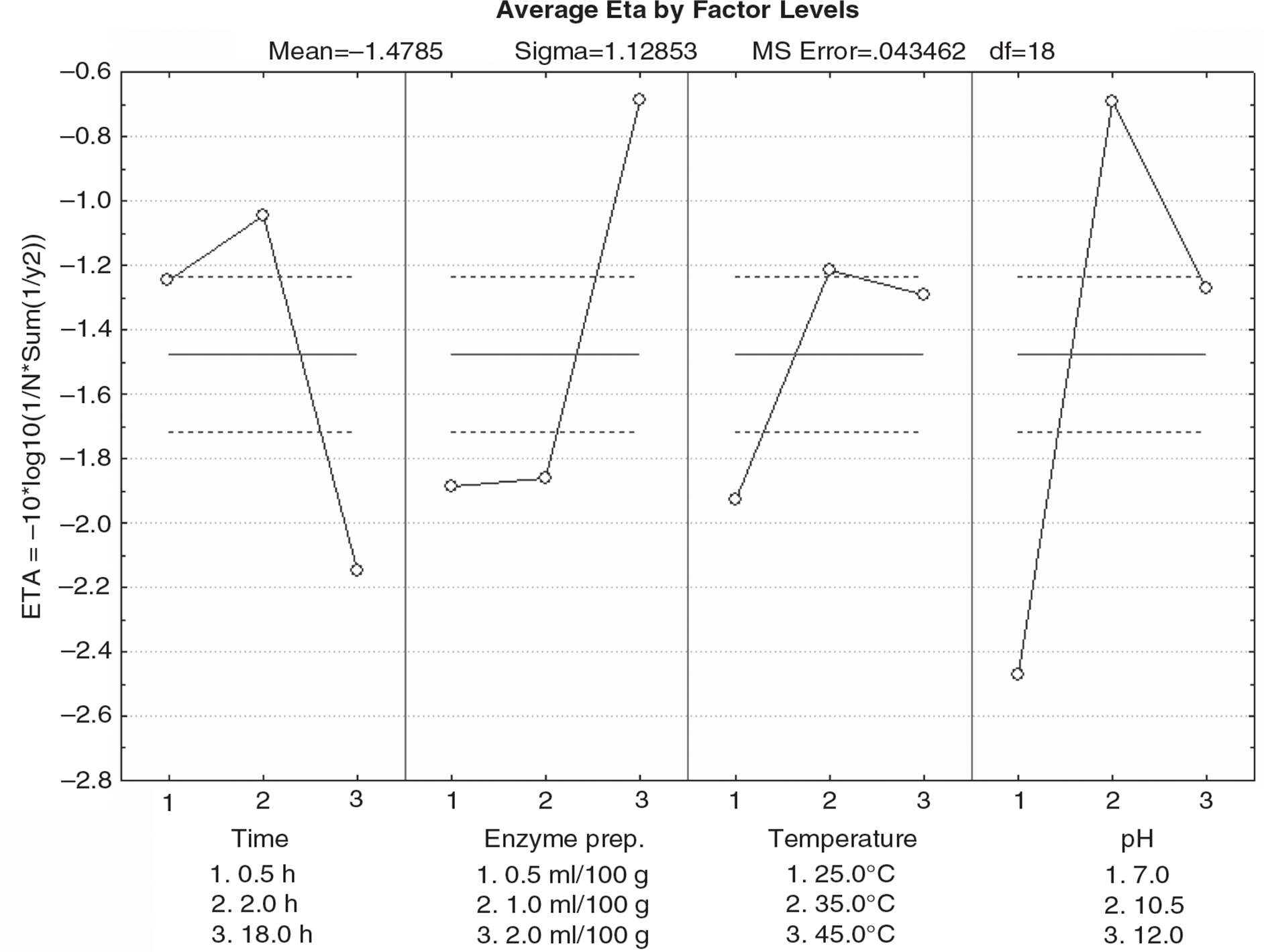

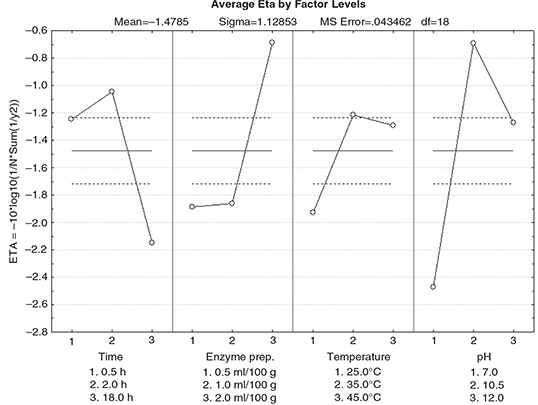

The results of the statistical analysis of the relationship between input factor levels and mean Eta values (3 replicates) are visually presented in Fig. 2. The optimum levels of input parameters adopted for enzyme-pretreated carrot seeds were as follows: time 2.0 h, pH 10.5, temperature 35 °C and an enzyme preparation loading of 2.0 mL·100.0 g⁻¹ of seeds.

The theoretical amount of OeB was calculated for the determined optimum process conditions on the basis of the expected S/N ratio. The S/N value under optimal conditions is 0.800612, hence y_i = 1.096 from equation (1).

To verify the optimum levels of input parameters, 3 experiments were performed, showing the yield of OeB (1.08 ± 0.004 g·100 g⁻¹) to be approximately 48% higher than that of OeA (0.73 ± 0.001 g·100 g⁻¹).

3.3. Physicochemical properties of carrot seed essential oilsTOP

The specific rotation and refractive index of the obtained essential oils did differ significantly, according to the Mann-Whitney test. Essential oil from the control sample revealed a specific rotation of −8.038 ± 0.0453 and a refractive index of n^D₂₀: 1.488635, while the corresponding figures for the essential oil from enzyme-pretreated seeds were −6.606 ± 0.031 and n^D₂₀: 1.488982, respectively. Commercially available essential oils from carrot seeds are not standardized in terms of refractive index and optical rotation, and there is little information about these parameters in the literature (Özcan and Chalchat, 2007; Pigulevskii and Kovaleva, 1955; Pigulevskii et al., 1965).

3.4. Organoleptic observationsTOP

Essential oil from the control sample was a clear, oily liquid, amber-yellow in color, characterized by a heavy herbal-earthy scent.

Essential oil from enzymatically pretreated carrot seeds was slightly lighter. Its scent was characteristic of essential oils from this kind of plant material; however, a slightly sour note was present.

3.5. Characterization of flavor compounds in carrot seed essential oilsTOP

75 (OeB) to 86 (OeA) chemical compounds were identified in the essential oils, which corresponded to 97.59% (OeA) and 98.95% (OeB) of their total composition. The composition of the essential oils was compared using a statistical tool (Mann-Whitney test) (StatSoft electronic manual, 2012, www.statsoft.com).

The content of the main compound, carotol, differed among the essential oils and was significantly increased (by 13%) by enzymatic hydrolysis (OeA: 40.80–OeB: 46.17%). The action of serine protease not only cleaves peptide bonds but also ester linkages (Topf et al., 2001), releasing carotol from its possible combinations with proteins. It is also possible that the degradation of protein quaternary structure increases the availability of carotol and facilitates its extraction.

Given that there was no other significant change in the concentration of oxygenated sesquiterpenes, this statistically significant increase in carotol content suggests that differences in the content of other compounds are likely to result from the enhanced extraction of this terpenoid, which changes the proportions in the chemical composition of the oil. Hence, a subsequent decrease in the percentage fractions of all analyzed groups of compounds (except for oxygenated sesquiterpenes) can be noted. Some statistically significant changes were observed for oxygenated monoterpenes: geraniol (OeA: 0.71–OeB: 0.42) and terpinen-4-ol (OeA: 0.95–OeB: 0.29); and sesquiterpenes: alpha-amorphene (OeA: 0.47–OeB: 0.22) and (Z)-beta-farnesene (OeA: 0.56–OeB: 0.47).

3.6. Similarity of the oils as determined by NIRS analysisTOP

Near-infrared spectroscopy (NIRS) was applied to compare the essential oils OeA and OeB. Despite some differences observed in the composition of the essential oil from enzyme-pretreated carrot seeds, as revealed by the statistical analysis (Table 3), the high correlation coefficient obtained (86.29%) indicates very high similarity of the quantitative contents of the main chemical compounds in the essential oils studied.

3.7. Antimicrobial activityTOP

The antimicrobial activity of the essential oils derived from carrot seeds is shown in Table 4. Both essential oils showed significantly higher activity against the tested Gram-positive bacteria (B. subtilis, S. aureus) than against Gram-negative bacteria (E. coli, P. aeruginosa), which is characteristic of all essential oils, possibly due to the existence of an outer membrane surrounding the cell walls of Gram-negative bacteria, limiting the diffusion of hydrophobic substances, such as oils, through the lipopolysaccharide layer of the wall (Burt, 2004).

The growth of Gram-positive bacteria was inhibited at concentrations of 2–5 μL·mL⁻¹, with the activity of OeB against S. aureus (5 μL·mL⁻¹) being lower than that of OeA (2 μL·mL⁻¹). The lower activity of OeB against bacteria in the genus Staphylococcus is associated with a significantly reduced content of camphene and linalool, which are compounds with high biostatic activity (Alma et al., 2004; Soković et al., 2010). Their reduced content may also lower the activity of the essential oil from carrot seeds pretreated with Esperase^® against Gram-negative bacteria.

On the other hand, OeB showed greater antifungal activity than OeA, which may result from the increased amount of carotol, which is a potent fungicide (Abad et al., 2007) with an efficiency comparable to that of commercial agents such as Funaben T (Jasicka-Misiak et al., 2004), and limonene (Omran et al., 2011). The activity of OeB against both molds (2 μL·mL⁻¹) is 2.5 times greater than that of the control sample (5 μL·mL⁻¹), while the sensitivity of Candida sp. to the tested essential oils remains the same, and is the highest among all the tested microorganisms (MIC 0.6 μL·mL⁻¹).

These results show carrot seed essential oil to have good fungistatic activity against yeasts in the genus Candida and Gram-positive bacteria. Tavares and others (2008) and Maxia and others (2009) emphasized the antifungal properties of the essential oil obtained from the umbels of D. carota L. subsp. halophilus and D. carota L. subsp. carota, respectively.

4. CONCLUSIONSTOP

It was proven that the use of M. circinelloides lipase, Xpect pectinase and Esperase^® serine protease prior to the hydro-distillation of carrot seeds results in an increased efficiency of essential oil extraction, with the highest yield afforded by Esperase^®.

The optimal conditions for the enzymatic pretreatment of carrot seeds were selected by means of the Taguchi method. It was shown that the use of the enzyme preparation Esperase^® to treat waste carrot seeds prior to hydro-distillation under the optimal conditions (2.0 h; pH 10.5; 35 °C; enzyme preparation loading of 2.0 mL·100.0 g⁻¹ seeds) improves the diffusion of the extractant and increases the efficiency of essential oil extraction by 48%. The presented method is free from defects typical of conventionally applied methods associated with insufficient degradation of plant tissue, which is especially important in the case of raw materials that contain small amounts of oil or are not readily available. What needs to be emphasized is the fact that the content of carotol in the enzyme-pretreated essential oil is higher by 13% than in the control sample.

The essential oil obtained from enzyme-pretreated carrot seeds has good antifungal properties (with its activity against molds being 2.5 times higher than that of the control sample) and lower bacteriostatic activity against Gram-negative bacteria. Its qualitative composition is similar to that of the control sample, as confirmed by NIRS analysis (a correlation coefficient of 86.29%); hence, it can be used in the food industry as a flavoring , and in pharmaceutical and cosmetic preparations.
