The use of artificial neural network modeling to represent the process of concentration by molecular distillation of omega-3 from squid oil

P. Rossi^a,*, M.F. Gayol^a, C. Renaudo^a, M.C. Pramparo^a, V. Nepote^b and N.R. Grosso^c

^aFacultad de Ingeniería, Universidad Nacional de Río Cuarto, Río Cuarto, Córdoba, Argentina

^bICTA, Facultad de Ciencias Exactas, Físicas y Naturales (UNC), IMBIV-CONICET, Córdoba, Argentina

^cQuímica Biológica, Facultad de Ciencias Agropecuarias (UNC), IMBIV-CONICET, Córdoba, Argentina

*Corresponding author: prossi@ing.unrc.edu.ar

1. INTRODUCTIONTOP

Molecular distillation is based on the evaporation of components from a mixture, usually in the form of a falling film, produced by contact with a heated surface, followed by subsequent condensation on a cold surface. Thus, molecular distillation or short-path distillation is a special type of ultra-high vacuum distillation that takes place in special equipment where the distance between the evaporation and condensation surfaces is shorter than its mean free path. This technology is useful for the separation, purification and concentration of thermo labile substances with low vapor pressure (Pramparo et al., 2008).

The main feature of this operation is the operative pressure (10-0.1 Pa). Under these conditions, the relative volatility of components increases and temperature decreases, allowing for the separation of compounds at lower temperatures. The molecules that leave the evaporation surface suffer no collisions before their condensation (Setyawan et al., 2011). Unlike conventional distillation where the equilibrium of evaporation-condensation is established, molecular distillation where the molecules that leave the evaporation surface travel a short distance before their condensation so they access the condenser surface without delay. Because of this molecular distillation condition, the evaporation rates are very high, reducing the residence time of molecules during the process. Under these two conditions, a short residence time and low temperature, the thermal decomposition of the components does not take place and separation occurs at technologically acceptable rates (Setyawan et al., 2011; Posada et al., 2007).

The degree of separation that is achieved by a molecular distillation process is not an exclusive function of the relative volatilities of the compounds, since transport resistances and the interfacial resistance characteristic of the molecular kinetic play an important role in the performance of this operation. When the liquid evaporates, the vapor-liquid interface is cooled and, for mixtures, the composition of the most volatile components decreases in the interface. This leads to the formation of driving forces for mass, diffusive, and heat transfers (Vansant, 1994).

The detailed mathematical description of the phenomena that occur in this operation generates a complex mathematical resolution, resulting in numerous studies aimed at finding the best model for this process. With regard to the mathematical description of molecular distillation with phenomenological models, many advances have been reported, ranging from the modeling of a conventional falling film evaporator to specific molecular distillators derived from the first ones. Lutisan et al. (2002) showed that the existence of concentration and temperature gradients in the liquid phase decreases the separation efficiency. Ferron and Bandarkar (1991) worked on mass and heat transfer in a liquid film on a centrifugal conical evaporator. Tovars et al. (2012) provided comparative results of efficiency and performance between falling film molecular distillation and centrifugal molecular distillation equipment. In addition, advances in the non-ideality of the vapor phase were published by Hu et al. (2013). The effect of pressure on the molecular distillation process has been analyzed by Hu et al. (2013) using the Boltzmann distribution and the Maxwell function for the velocity of molecules in the vapor phase.

Given the mathematical complexity of the phenomenological model that this operation represents, new solution techniques have been studied, including Artificial Neural Networks (ANN) (Bulsari, 1995). An ANN is a set of simple elements that are interconnected and use these connections to send information through the network. The network is primarily composed of 1) processing elements or neurons, 2) inputs to neurons, 3) weights of connections, 4) activation functions, and 5) transfer output functions. The processing elements of the ANN are distributed in layers: an input layer which receives the input variables; hidden layers where neurons have no contact with external elements, and an output layer which receives the information processed in the previous layers and also provides the answers for which it was trained (Haykin, 2009).

Depending on how the elements in the different layers are connected and the direction of sequential information flow among layers, networks are classified as feed-forward networks and recurrent networks. In feed-forward networks, unidirectional signals flow from the input layer to the output layer, i.e. data are sent to neurons from the transfer layer to the next layer, but they do not send data to neurons in the same layer. In recurrent networks, the signal moves in two directions and the output of some neurons is forwarded to another neuron or neurons that belong to previous layers (Shao et al., 2007).

ANN have provided an alternative to classical computing for those problems where traditional methods have not provided convincing results, or solutions for complex problems where all phenomena taking place cannot be incorporated into a mathematical model. ANN may have different applications from image and voice processing, pattern recognition, and planning and adaptive interfaces for human/machine systems to signal filtering, prediction, control, and optimization of phenomena. Shao et al. (2007) obtained promising results in optimizing the operation of molecular distillation for recovering tocopherols from the deodorized distillate of rapeseed oil through the artificial neural network modeling.

Fish oils are a rich source of polyunsaturated fatty acids called omega-3. These kinds of fatty acids have an essential role in the human diet since they have the ability to prevent diseases such as cardiovascular, cancer, Alzheimer, and arthritis. Particularly in fish oils, there are two omega-3 fatty acids, 5,8,11,14,17-eicosapentaenoic acid (EPA, 20:5ω3) and 4,7,10,13,16,19-docosahexaenoic acid (DHA, 22:6ω3) that are functional constituents of importance for the physiology of the human body (Swanson, 2012).

Rossi et al. (2011) optimized the separation process of omega-3 fatty acid ethyl esters obtained from calamari oils using molecular distillation. The separation process was conducted in two stages where operation temperatures ranged from 100 to 120 °C in the first stage and from 120 to 140 °C in the second stage. A mathematical model based on the mass transfer phenomena that takes place in isothermal separation of the components was developed. The Langmuir-Knudsen constitutive equation was used to represent evaporation kinetics. The mathematical model was numerically solved and validated by experimental data in the operating region studied.

There is no information available in the literature on modeling of the molecular distillation operation through the artificial neural network to obtain a concentration of omega 3 fatty acids from squid oil. The objective of this study was to create a predictive model using artificial neural network techniques to represent the concentration process by molecular distillation of omega-3 compounds such as the ester ethylics of EPA and DHA obtained from squid oil. Another objective of this study was to analyze the performance of two different alternatives of ANN modeling; one of them is a model that represents all variables in the process and the other is a global model that simulates only input and output variables of the process.

2. METHODSTOP

2.1. Description of the processTOP

To construct and validate the ANN predictive model experimental data were used from Rossi et al. (2011) along with theoretical concepts based on phenomenological laws.

Squid oil is composed primarily of triglycerides whose fatty acids can be separated by a transesterification reaction with ethyl alcohol whose resulting product is the ethyl ester of the fatty acid (EE). Rossi et al. (2011) reported the EE composition squid Illex argentinus oil analyzed by gas chromatography. In that study, several fatty acids in significant amounts were detected. The chromatography of the feeding sample showed four groups of peaks that mean 70% of the total total mixture. The four groups are the 22% group of palmitic acid-EE (PA-EE), the 18% group of oleic acid-EE (OA-EE), the 13,3% group of EPA-EE (EPA-EE), and the 16% group of DHA-EE (DHA-EE). To simplify the modeling, the fatty acids were grouped into four classes with similar chain lengths. The remaining 30% is mostly a mixture of organic compounds of high molecular weight. With these compounds, a new group was defined, a group of diglyceride of palmitic and oleic acids which is assumed to have properties similar to the ones of high molecular weight compounds.

Rossi et al. (2011) also reported that the general procedure of the concentration of EPA-EE and DHA-EE by molecular distillation in two consecutive stages. In Stage I, a separation of ethyl esters of the lightest fatty acids occurs, mainly palmitic and oleic acid esters, which exit through the distillate stream. The heaviest components remain as a residue of Stage I and feed the second stage. At this stage, the omega-3 esters, EPA and DHA, evaporate and are recovered in the distillate while heavy residual compounds remain in the residue of Stage II. The operative variables of the distillation process are the evaporation temperatures of Stage I T¹ (evaporation temperature of Stage 1) and stage II T² (evaporation temperature of Stage 2).

2.2. ANN modelingTOP

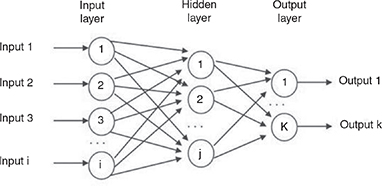

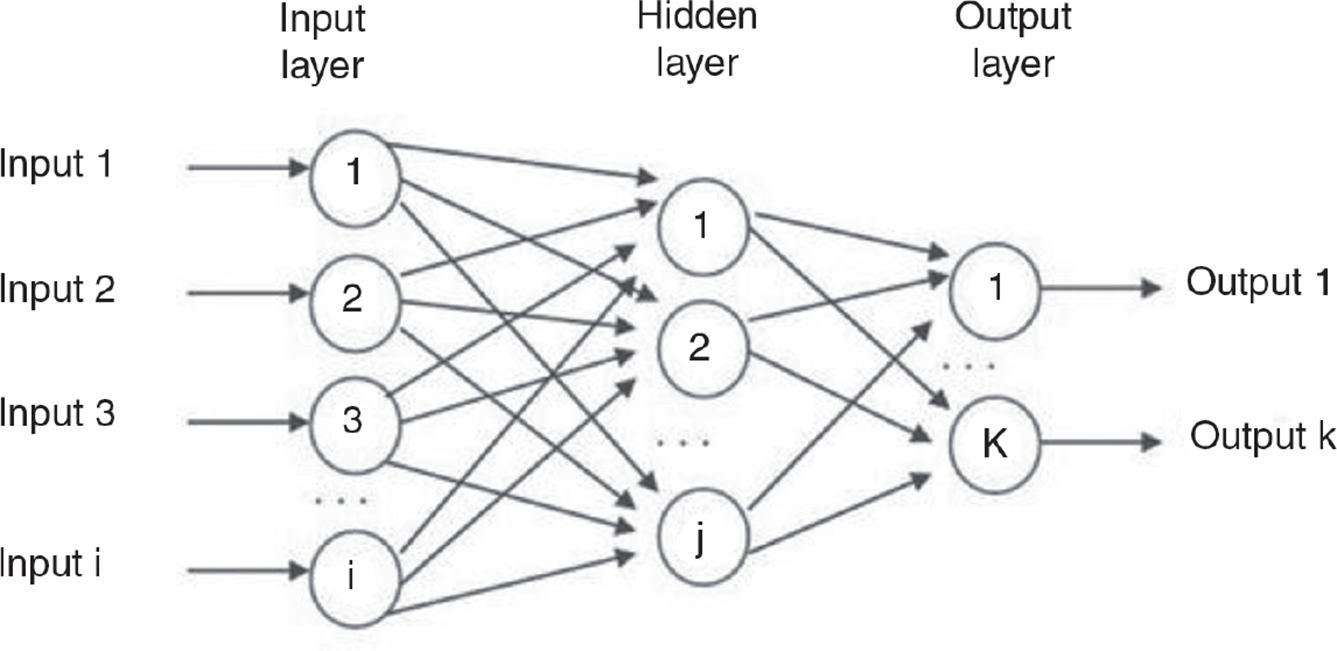

The processing elements of the neural network model used are an input layer, a hidden layer, and an output layer. Interconnections among the different layers can be seen in Figure 1. The number of neurons per layer is chosen according to the numbers of input and output variables and available data.

The development of networks has two stages, the training phase where experimental data are used to make the network imitate the physical phenomenon, and the test phase where real critical values and network approximation values are compared. The training phase occurs due to the learning ability of the ANN. Network learning is a process for fixing the ANN free parameters through a continuous stimulation in the environment where the system is located. For a given ANN topology, it is possible to work with different forms of learning which increase their applications (Haykin, 2009).

In this study, the network used in the simulation of the process was the multilayer perceptron network with the back-propagation supervised learning method (Haykin, 2009). For the practical application of the ANN, the Neural Network toolbox from the software suite MATLAB 8.2 (Mathworks, 2013) was used. This toolbox allows for the modeling of several network topologies with different learning styles. Experimental data and phenomenological concepts were used to construct and to validate the ANN predictive model.

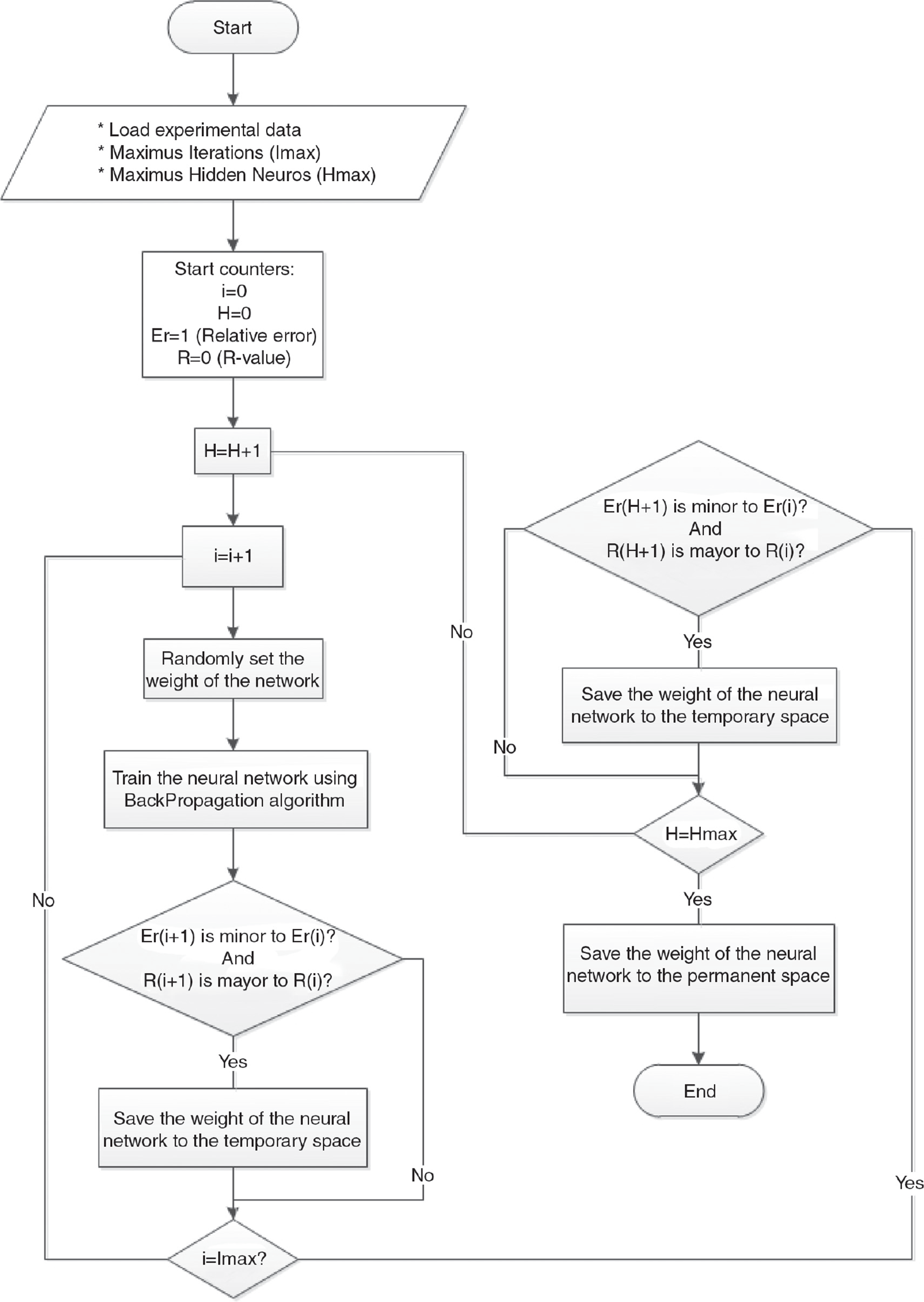

Algorithms are used to model ANN. An algorithm consists of an initial loop where the neuron number of the hidden layer is fixed and looks for the best training adjusted to the experimental data. A second loop contains the first loop and includes the variation in neuron number in the hidden layer. Finally, the results of the algorithm are the optimum number of the hidden layer with the corresponding best training. The flow sheet of the algorithm used to model the process of concentration of omega-3 compounds by molecular distillation for obtaining the optimum number of neurons in the hidden layer with its corresponding best training are shown in Figure 2. An algorithm was developed to find the predictive model of the best performance. This algorithm finds the best training to fit to the experimental data. Training was carried out through a series of successive trainings in the feed forward phase. The search for the best training was carried out in two stages: first stage one, which aims the best training for a fixed number of hidden neurons, and a second stage seeks the best training with varying the number of hidden neurons.

For the process for concentrating omega-3, it was necessary to model two stages of molecular distillation. Two alternatives for modeling ANN were tried: Alternative A (global model) that models the overall process of the two stages as a single process without the intervention of internal current values and Alternative B (staged model), which consists of the development of an ANN model for each stage of molecular distillation, which is simulated under sequential structure modeling.

Both alternatives work with a multilayered network. The neurons in the hidden layer allow a nonlinear mapping of the system. The number of neurons in the input layer is equal to the number of independent variables in the input of each ANN model, and the number of neurons in the output layer corresponds to the number of output variables resulting from each ANN model.

The function of the hidden layer is the hyperbolic tangent sigmoid transfer function (1):

The results achieved by the global ANN model were confronted with the experimental data reported by Rossi et al. (2011). For this purpose, Relative Error (2) was defined as the difference between the experimental data and the results obtained by the global model ANN and the correlation coefficient (R-value) (3) coefficient between the outputs of the ANN model (relationship between the flow of the distillation of stage 2 and the mass composition of omega-3 in the distillation of stage 2) and targets (experimental data) was used to choose the best alternative. The number of neurons in the hidden layer which are the most appropriate in each model are shown in Table 1.

Where Y_exp is the experimental data; Y_ANN is the results obtained by the ANN model ŷ is the experimental media value defined as (4).

Table 1. Variables and parameters involved in the artificial neural network

	Alternative A: Global model	Alternative B: Individual model
		Stage I	Stage II
Input	T1 T2	T1	T2
Output
		–	–
	D1/F D2/F	D1/F	D2/F
Number of layers	3	3	3
Number of neurons in the hidden layer	10	6	10
Hidden layer function	Tansig	Tansig	Tansig
Where Dj/F: Flow of the distillated stream of the j-stage respect to the flow of the feed stream; Tk: Temperature of evaporation of the stage k, [°C]; XiDj: Mass composition of i-compound in the distillated stream of the j-stage, [g g−1].

The input data corresponding to temperature # 1 and 2 (T¹ and T²) and the output data corresponding to the distillation flow and feeding compound ratio (D¹/F and D²/F) and mass fractions of the ethyl ester of fatty acids (X¹ and X²) are presented in Table 2. The experimental data of the molecular distillation experiment were 40 Pa pressure, 150 rpm rotor speed, 60 °C feed temperature, and evaporating temperatures between 100 and 120 °C for the first stage and 120 and 140 °C for the second stage (Rossi et al., 2011).

3. RESULTS AND DISCUSSIONTOP

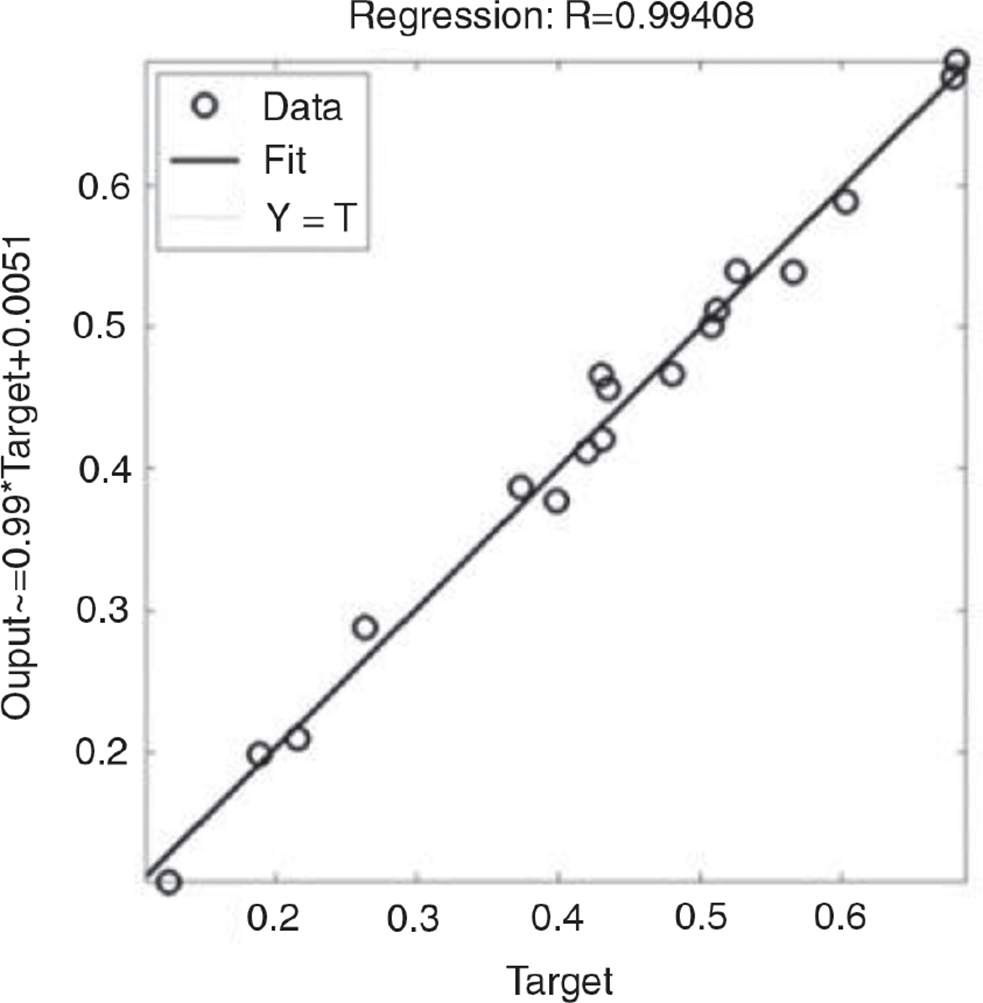

The linear regression between targets and outputs of the global ANN model used to train the network are shown in Figure 3. Between the alternatives proposed for modeling ANN, the Alternative A had a higher correlation coefficient (R = 0.994) and better approximation to the theoretical model than the Alternative B (R = 0.883). Therefore, the model that best represents the process of molecular distillation operation for obtaining a concentrate of omega-3 fatty acids from squid oil is the Alternative A (global model).

Tables 2 and 3 present the percentages of the ratio of the distillation flow of stage 2 to the feeding flow obtained by the global ANN model and the percentages obtained by the ANN model of the omega-3 mass in the distilled phase of stage 2 to the feeding mass also obtained by the global ANN model. An error margin of less than 10% was observed between the global ANN model and the experimental data.

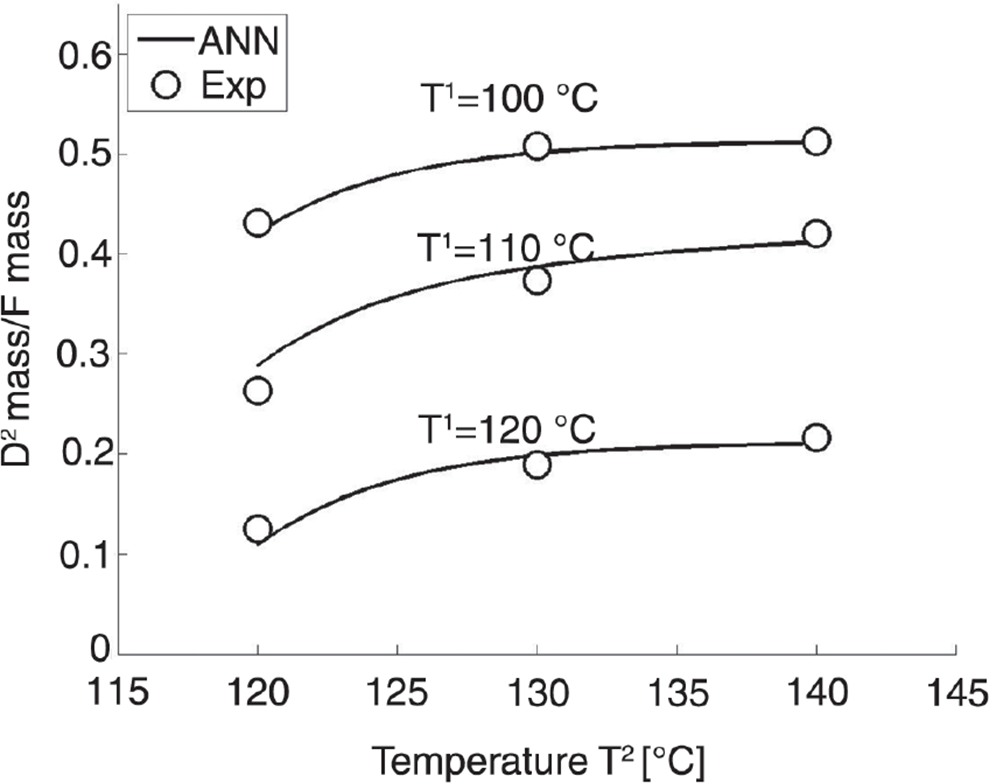

The relation of % D²/F obtained by the global ANN model, with respect to the temperature of step 2 (T²) when the stage 1 (T¹) temperature is parametric is shown in Figure 4. It was observed that the flow rate of distillate exhibited an inverse relationship to T¹ and a direct relationship to T².

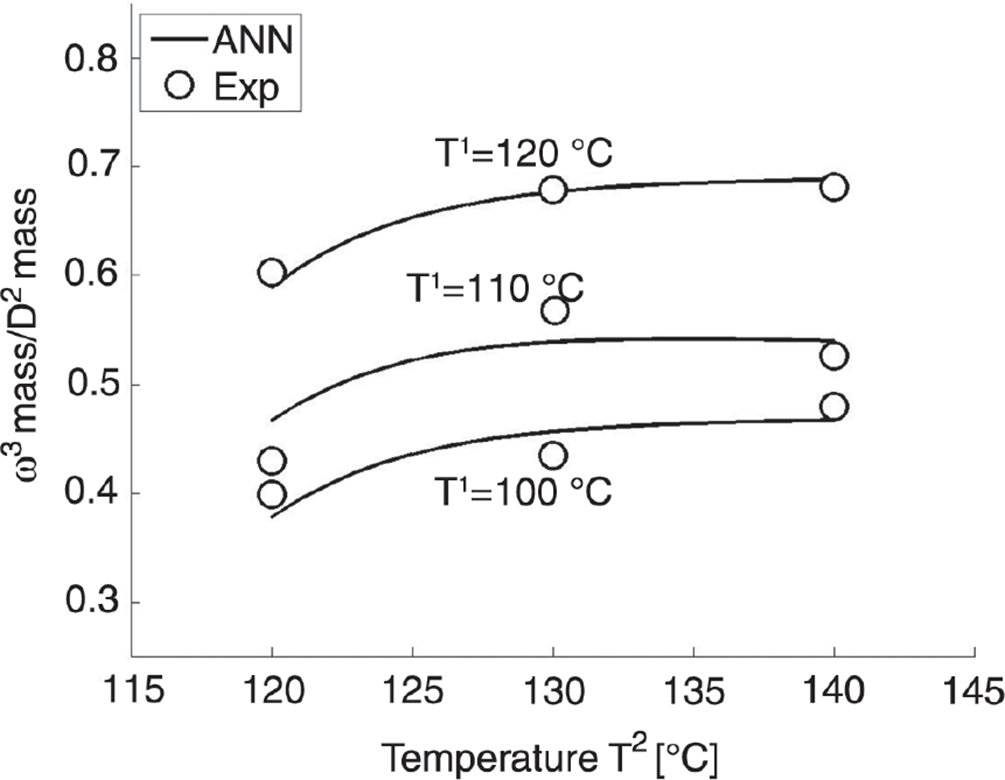

The behavior of X^D2ω3, obtained by the global ANN model, with respect to the temperature of step 2 (T²) and parametric in the temperature of stage 1 (T¹) is presented in Figure 5. It was observed that the mass composition of omega-3 in the distillate stream showed a direct relationship to the temperatures T¹ and T². The Operative variables considered in this study were T¹ and T². T¹ presented a compromise situation between the purity of omega-3 and quantity of product. Instead, T² showed an increasing trend of X^D2ω3. T² was restricted to 140 °C due to the presence of thermo labile compounds such as EPA and DHA omega-3 fatty acids that generate undesired changes in the final product (Liang and Hwang, 2000).

Theoretical concepts based on phenomenological laws were very important for the construction of the ANN structure. Numerous studies (Pramparo et al., 2008; Liñan et al., 2012; Oterhals et al., 2010) showed that the molecular distillation phenomenon presents a constant and uniform behavior for all operative variables, where there is no oscillating or erratic behavior. This kind of model correctly describes the nonlinear behavior of the molecular distillation phenomenon but it has the disadvantage of requiring experimental data for validation and verification, only. The rigorous phenomenological modeling of molecular distillation provides significant information regarding the performance of the operation and the physical phenomena that take place (Liñan et al., 2012; Hu et al., 2013). The phenomenological modelling of the molecular distillation contributes with important information about the performance of the equipment operation and the physical phenomenon that occurs during the process. This kind of modelling involves a great mathematical complexity; and also, the phenomenological modelling can estimate the influence of every operative variable and how those variables affect the yield of the process (Lutisan et al., 2002).

Rigorous phenomenological models can predict the influence that each of the operative variables has and describe the phenomenon that takes place on the inside of the equipment or how the variables affect the performance of the process (Liñan et al., 2012; Hu et al., 2013). However, this kind of model cannot predict the behavior of certain functional variables of the equipment, such as the shake mechanism (roller-wiper), without considerably increasing the mathematical complexity. On the other hand, an ANN model does not give any kind of information about the particular phenomenon, but, with an appropriate training of the network, it can predict the effects of variables, such as the speed of the shake mechanism (Shao et al., 2007; Li et al., 2011). In addition, the artificial neural network constitutes a useful tool for modelling the process of molecular distillation with great precision but it needs a great amount the experimental data and does not give information about a determined effect (Shao et al., 2007; Haykin, 2009; Lima et al., 2011). The use of methods that combine both models for molecular distillation could be an interesting alternative to take advantages from both models.

There are other alternatives to phenomenological models like surface response, fuzzy logic, and genetic algorism, among others, that have a great adaptation capability to the phenomena even for those that are nonlinear, do not require previous knowledge of the phenomena; and do not need great mathematical complexity. ANN also has these advantages (Shao et al., 2007; Lima et al., 2011; Li et al., 2011).

4. CONCLUSIONSTOP

Modeling with artificial neural networks allows for the prediction of the behavior of a molecular distillation process in two stages to concentrate the ethyl esters of omega-3 fatty acids. In addition, the knowledge about the phenomenological concept obtained from the modeling with artificial neural networks were useful for selecting different parameters necessary for building the ANN model.

ACKNOWLEDGEMENTSTOP

The authors wish to thank CONICET (Consejo Nacional de Investigaciones Científicas y Técnicas) for supporting this research and the Secretaría de Ciencia, Tecnología e Innovación, Gobierno de la Provincia de Chubut, for their contribution and interest in this subject.
