Kinetics of enzymatic hydrolysis of methyl ricinoleate

T.S.V.R. Neeharika^a, P. Lokesh^a, K.N. Prasanna Rani^a,*, T. Prathap Kumar^b and R.B.N. Prasad^a

^aCentre for Lipid Research, CSIR-Indian Institute of Chemical Technology, Hyderabad – 500007

^bChemical Engineering Division, CSIR-Indian Institute of Chemical Technology, Hyderabad – 500007

*Corresponding author: knpr@iict.res.in

1. INTRODUCTIONTOP

Global castor seed production is around one million tons per year and India is the major producer and exporter of castor oil (with over three-quarters of the global yield). The seed production is estimated to be over 8,30,000 tons per year on average. Castor oil is the only commercial source of unsaturated hydroxyl acid (12-hydroxy-cis-9-octadecenoic acid), which is ricinoleic acid to the extent of 85–90% and is the feedstock for many of the useful industrial chemicals. Ricinoleic acid has 18 carbons on its backbone with one hydroxyl group on the 12^th carbon atom and it also has a cis double bond between the 9^th and 10^th carbon atoms. Castor oil is mostly used in the form of its modified derivatives such as dehydrated, hydrogenated, alkoxylated, sulphated and the halogenated derivatives (Patel et al., 2004). Castor oil is also used in a wide range of cosmetics, toiletries, transparent soaps and in lubricating formulations. Many of the industrial castor-based chemicals are made either with castor oil/castor fatty acids or mostly its methyl esters as such, containing 85–90% ricinoleic content.

Generally methyl ricinoleate is obtained by alcoholysis of castor oil, followed by fractional distillation of the crude esters and further purification by low temperature crystallization. Berdeaux et al. (1997) isolated methyl ricinoleate from castor oil methyl esters by countercurrent distribution using hexane and aq. methanol to give 98.5% pure methyl ricinoleate with 86.5% yield. This process seems quite tedious as extraction was carried out 12 times.

An enriched ricinoleic content with more hydroxyl value is an added advantage in the preparation of many useful industrial products with enhanced desired properties. The major advantage of this process is that methyl ricinoleate (Rao et al., 2009) upon hydrolysis yields ricinoleic acid with less impurities and can be a potential candidate as a raw material for different industrial applications. When methyl ricinoleate is used as a raw material for the preparation of potential industrial products the end products will have much less impurities because the feed material is of the highest purity, whereas using castor oil as starting material has a few disadvantages such as the formation of estolides and the fact that the purification of ricnoleic acid is a tedious process. Therefore, in order to overcome these limitations, this study is focused on using methyl ricinoleate for the preparation of ricinoleic acid. This is a simple process where we have no impurities.

Previous investigations reveal a meagre study on the hydrolysis of castor oil methyl esters or methyl ricinoleate for the preparation of ricinoleic acid; the literature shows data on the hydrolysis of castor oil using different enzymes. Rathod and Pandit (2009) studied the hydrolysis of castor oil using Aspergillus oryzae, at room temperature with a 3:1 oil to water ratio. Kulkarni and Pandit (2005) also used the same enzyme, but adopted a different contacting pattern for enzyme interaction by suspending the enzyme in isooctane at different time intervals and then determining the residual activity. The authors claimed that the rate of reaction was considerably improved by the addition of a solvent. Goswami et al. (2013) reviewed triacylglycerol acylhydrolase lipase for the hydrolysis of vegetable oil and studied castor oil in particular. They statistically showed that interactions between any two parameters involving pH, enzyme concentration and buffer concentration become significant in the presence of a nonionic surfactant named Span 80. Also Goswami et al. (2009a) applied response surface methodology for the hydrolysis of castor oil using Candida rugosa lipase.

Yamamoto and Fujiwaran (1995) examined the optimal hydrolytic conditions for the hydrolysis of castor oil using the lipase from Pseudomonas sp. f-B-24 (lipase PC) and reported the apparent K_m and V_max for the system as 416 g.L⁻¹ and 110 μmol·mg⁻¹·min⁻¹ respectively. Rao et al. (1990) studied lipolysed castor oil in situ using homogenized castor seed at small scale and large scale (Rao and Paulose 1992). Goswami et al. (2009b) examined the reusability of lipase for the hydrolysis of castor oil in the presence of Candida rugosa lipase.

Lakshminarayana et al. (1984) used a conventional high pressure splitting process for the hydrolysis of castor oil. They reported a 92% split in 8 h and 96% in 10 h at 40 kg·cm⁻² and 20 kg·cm⁻². They claimed that splitting at 20 kg·cm⁻² gave minimal amounts of dienoic acids. Puthli et al. (2006) investigated various parameters such as time, reusability of enzymes, non-aqueous phase ratio, effects on interfacial area and effect of enzyme dosing for the hydrolysis of castor oil.

Sharon et al. (1999) used a highly stable lipase from Pseudomonas aeruginosa for hydrolyzing castor oil with 300U crude and partially-purified lipase. Partially purified lipase hydrolyzed 81% castor oil within a period of 96 h where as crude lipase hydrolyzed only 63% castor oil in 216 h. Three different lipases such are Porcein pancrease, Candida cylindracea, and Candida rugosa were tested for the hydrolysis of castor oil by Yang et al. (1999) for the mass production of ricinoleic acid. Gamayurova et al. (2013) proposed a method for hydrolysis without emulsifiers, simplifying the process of isolating the product, but with a lower yield of 47%. Neeharika et al. (2014) applied an experimental design for the hydrolysis of enriched castor oil methyl esters.

Generally ricinoleic acid is obtained from castor oil through hydrolysis, usually carried out under basic conditions and further purified. Industrially, ricinoleic acid is manufactured by saponification or fractional distillation of hydrolyzed castor oil. This study provides an alternative and simple enzymatic method for the production of ricinoleic acid with high purity through the hydrolysis of methyl ricinoleate. In addition, this study determines the kinetics for the enzymatic hydrolysis of methyl ricinoleate with a view to examine the influence of operation variables like reaction time, enzyme concentration and temperature using Candida antarctica lipase B as a catalyst.

2. MATERIALS AND METHODSTOP

2.1 MaterialsTOP

The methyl ricinoleate used in the experiments was 100% pure with a hydroxyl value of 172.1, and saponification value of 167.1. Immobilized Candida antarctica lipase B (Novozym 435, specific activity 7000 PLU/g) was provided by Novozymes A/S (Bagsvaerd, Denmark). All the chemicals such as methanol, ethyl acetate, potassium hydroxide, and phenolphthalein indicator, were of analytical grade procured from M/s. Sd Fine Chem. Pvt. Ltd., Mumbai. A phosphate buffer of 7.5 pH was prepared in the laboratory.

2.2 MethodsTOP

The fatty acid composition of methyl ricinoleate was analyzed using a Gas Chromatograph Agilent 6890 series equipped with a flame ionization detector in accordance with the AOCS official method Ce 1e-91. The stationary phase used was a capillary column, HP1 MS (i.d. 0.25mm, length 30m). The oven temperature was programmed from 150 to 300 °C at 5 °C per minute with nitrogen at a flow rate of 35 mL·min⁻¹. The injector and detector temperatures were maintained at 280 and 300 °C, respectively. The area percentage was recorded using an HP Chem Station Data System. The methyl ricinoleate was found to be 100% pure. Acid value and saponification value were determined as per AOCS official methods Cd 3d-63 and Cd 3-25 (AOCS 2004a and AOCS 2004b).

Method for Preparation of Methyl Ricinoleate:

The enrichment of castor oil methyl esters was carried out according to the procedure explained by Rao et al., 2009. Castor oil was subjected to transesterification using methanol and NaOH and later the obtained castor oil methyl esters were subjected to liquid liquid extraction by combining with an organic medium and an aqueous polar solvent. This results in both aqueous and organic layers. The aqueous layer is the source for enriched castor oil methyl esters and the organic layer contains non-hydroxy fatty acids. The methyl ricinoleate obtained by desolventizing the aqueous polar phase was found to be 100% pure.

2.3. Experimental ProcedureTOP

Methyl ricinoleate was hydrolyzed using Candida antarctica lipase in the presence of required amounts of phosphate buffer (2:1) (v/w). The reaction mixture was incubated for 6 h at 60 °C. Samples were drawn at regular intervals of time to monitor the progress of the reaction. Samples were filtered, neutralized with water, dried and analyzed. The ricinoleic acid in the product was estimated by the determination of the acid value. 0.5 g of ricinoleic acid obtained by enzymatic hydrolysis were subjected to titration against a 0.1 N KOH solution and its acid value was estimated and was used for calculating the hydrolysis percentage.

The percentage hydrolysis was calculated using the following formula:

Where AV is the acid value and SV is the saponification value

Different sets of experiments were carried out using different operating conditions to arrive at optimum process conditions. The first set of experiments were carried out by varying time from 30 min to 6 h, while maintaining the other reaction parameters constant i.e., 4% enzyme concentration, buffer to methyl ricinoleate ratio 2:1 (v/w) and temperature 60 °C. A second set of experiments was carried out at temperatures ranging from 40 to 60 °C, while maintaining other reaction parameters constant i.e., 4% enzyme concentration, buffer to methyl ricinoleate ratio 2:1 (v/w), time period of 6 h. The third set of experiments was carried out at enzyme concentrations ranging from 2 to 5% by keeping a fixed buffer to methyl ricinoleate ratio of 2:1(v/w) and 60 °C.

2.4. Statistical analysisTOP

The experiments were carried out in duplicate for experimental error estimation and the data was analyzed by a paired Student’s t-test to evaluate the level of statistical significance. A p-value of less than 0.05 was considered significant. A p-value of 0.04896 was obtained which was considered as significant.

2.5. Kinetic ModelTOP

For the present reaction system, one substrate first-order reversible model was considered (Knezevic et al. 1998). The reaction mechanism for the kinetic model involving the reversible reaction is as follows:

The reaction rate equation is expressed as:

where C_A, C_C and C_D denote the concentration of methyl ricinoleate, concentration of ricinoleic acid and the concentration of methanol formed during the reaction, respectively. C_B is the amount of water which was not considered for developing the kinetic model. k₁ and k₂ are kinetic rate constants for the forward and backward reactions, respectively.

As C_A=C_A0 (1–X_A) (where X_A is the conversion of methyl ricinoleate and C_A0 is the initial concentration of methyl ricinoleate), and C_C=C_D=C_A0–C_A=C_A0 X_A, substituting these in Eq. 2, and simplifying we get:

At equilibrium, and X_A=X_E, and from Eq. 3, we get:

By substituting the value of k₂ in Eq. 3 and rearranging the terms, we get:

Integration of Eq. 5 yields

The conversion as a function of time can be deduced from Eq. 6 as follows:

Where

Rearranging the terms gives rate constant

3. RESULTS AND DISCUSSIONTOP

Optimization of the hydrolysis of methyl ricinoleate was carried out using Candida antarctica lipase by studying the effect of various parameters such as time, temperature, and enzyme concentration.

3.1. Effect of Reaction TimeTOP

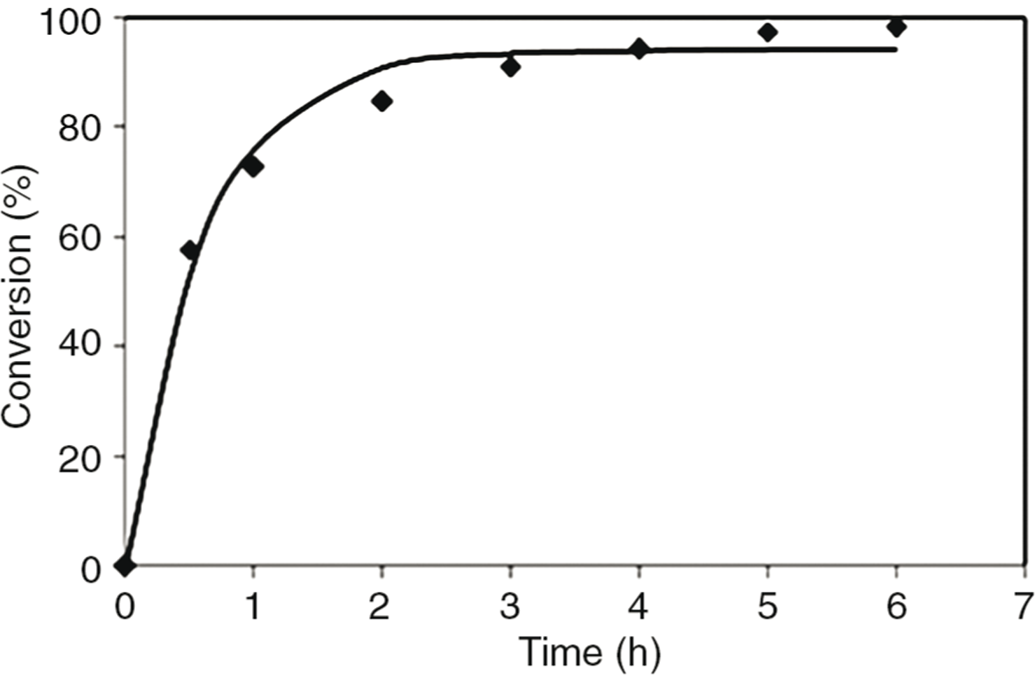

The rate of hydrolysis of the reaction depends on reaction time. Reaction time was optimized by conducting experiments at an enzyme concentration of 4%, 60 °C, buffer to methyl ricinoleate ratio of 2:l (v/w). Figure 1 shows a linear plot as a function of reaction time and conversion. It is apparent from the figure that reaction proceeds faster during the initial 30 min. It is apparent from the figure that conversion increased as the reaction time increased. The most desirable reaction period for the hydrolysis of methyl ricinoleate was found to be 6 h.

3.2. Effect of Reaction TemperatureTOP

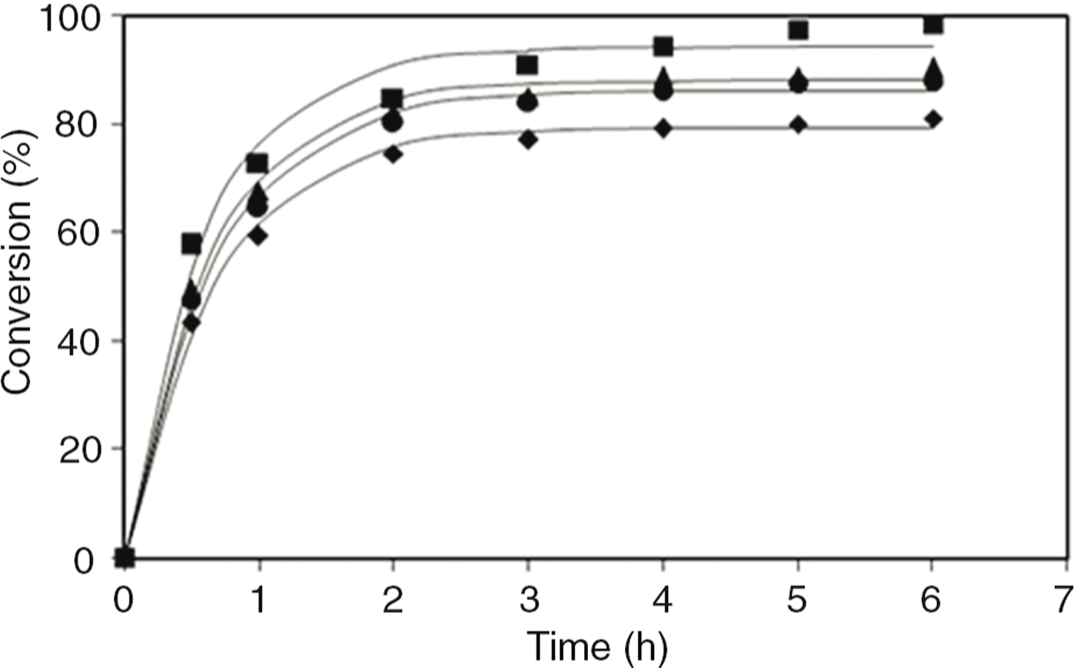

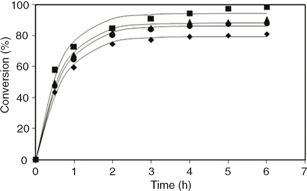

The temperature profiles of hydrolysis reaction at 4% enzyme concentration, buffer to methyl ricinoleate ratio of 2:l (v/w) and 6 h reaction time is shown in Figure 2. It can be inferred from the plot that the reactant conversion increased as the temperature increased. At 40 °C, the conversion was 81.1% and by increasing the temperature to 50 °C, conversion reached 90.5% and at 60 °C, a maximum conversion of 98.5% was obtained. A further increase in temperature to 70°C decreased the conversion to 87.9%. The temperature was not increased beyond this limit as enzymes get deactivated at higher temperatures.

3.3. Effect of Enzyme ConcentrationTOP

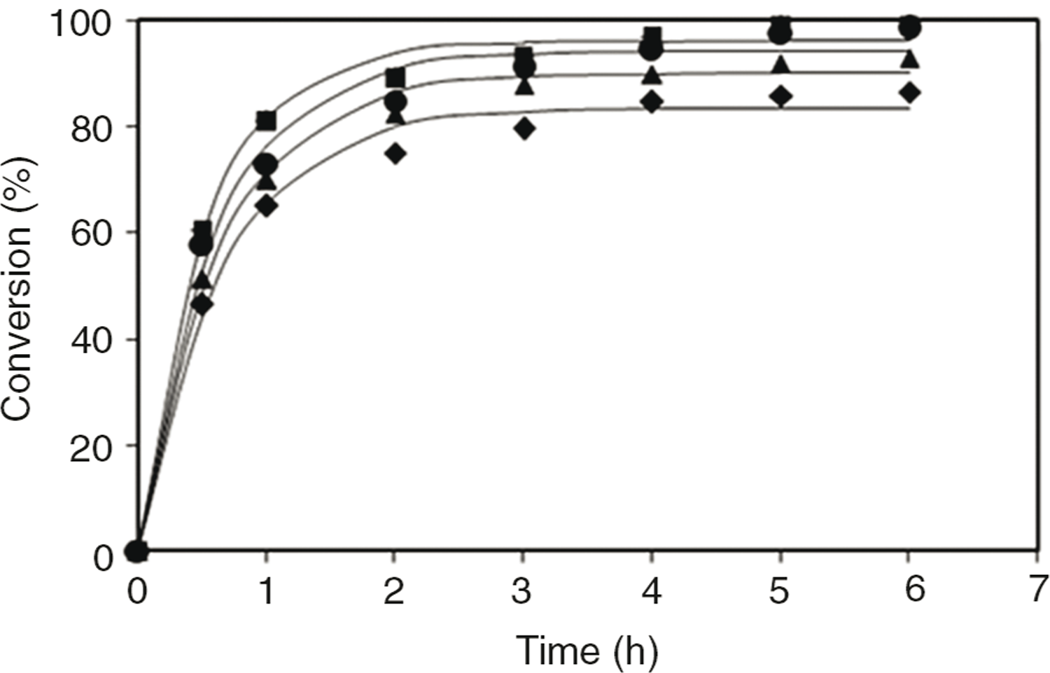

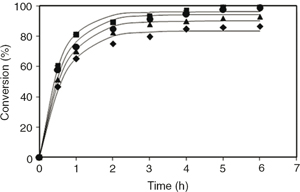

Generally, lipase catalyzed reactions take place at the interface, and the amount of enzyme available at the interface is very important. To determine the effect of enzyme amount on the hydrolysis reaction, we investigated different enzyme dosages for the reaction from 2 to 5% with buffer to methyl ricinoleate ratio 2:l (v/w) at 60 °C for 6 h. Fig. 3 represents the effect of enzyme concentration on conversion. It is inevitable that as the enzyme concentration increased from 2 to 5%, conversion increased as a greater amount of enzyme was available for the reaction. When the enzyme concentration was 2% the conversion was 86.5%, at 4% enzyme dosage, conversion was 98.5%. A further increase in enzyme concentration to 5% did not yield any further increase in conversion. Hence this value was considered as optimum for this parameter.

3.4. Applying the Kinetic modelTOP

The derived kinetic model for one substrate first order reversible reaction was fitted to the experimental data and the two parameters, X_E and β of Eq. 7 were determined by non-linear regression with a Levenberg–Marquardt algorithm using statistical software. A regression co-efficient value of 0.98 indicates that the model is statistically significant and adequate to represent the relationship between the experimental and theoretical parameters. The rate constants for the forward reaction, k₁ and backward reaction, k₂ was calculated from Eq. 8 and Eq. 4, respectively. The results obtained for rate constants, k₁ and k₂, and the equilibrium conversion K are reported in Table 1.

The effect of temperature on the forward reaction rate constant was obtained by fitting k₁ to the following Arrhenius equation (Eq. 9 and Eq. 10).

and

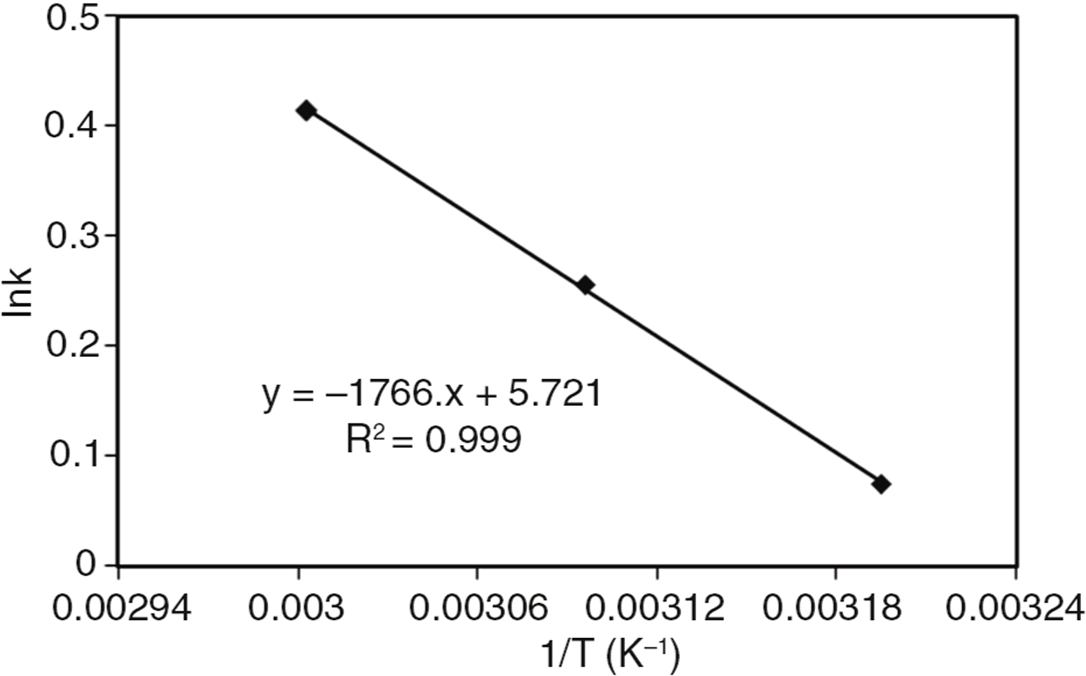

The rate constant, k₁, for the forward reaction is calculated using Eq. 8. From the plot of lnk₁ as a function of the reciprocal temperature, as shown in Figure 4, for 4% enzyme concentration, the frequency factor, A, and the energy of activation, ΔE, were found to be 5.15×10⁴ and 27.6 KJ·mol⁻¹, respectively.

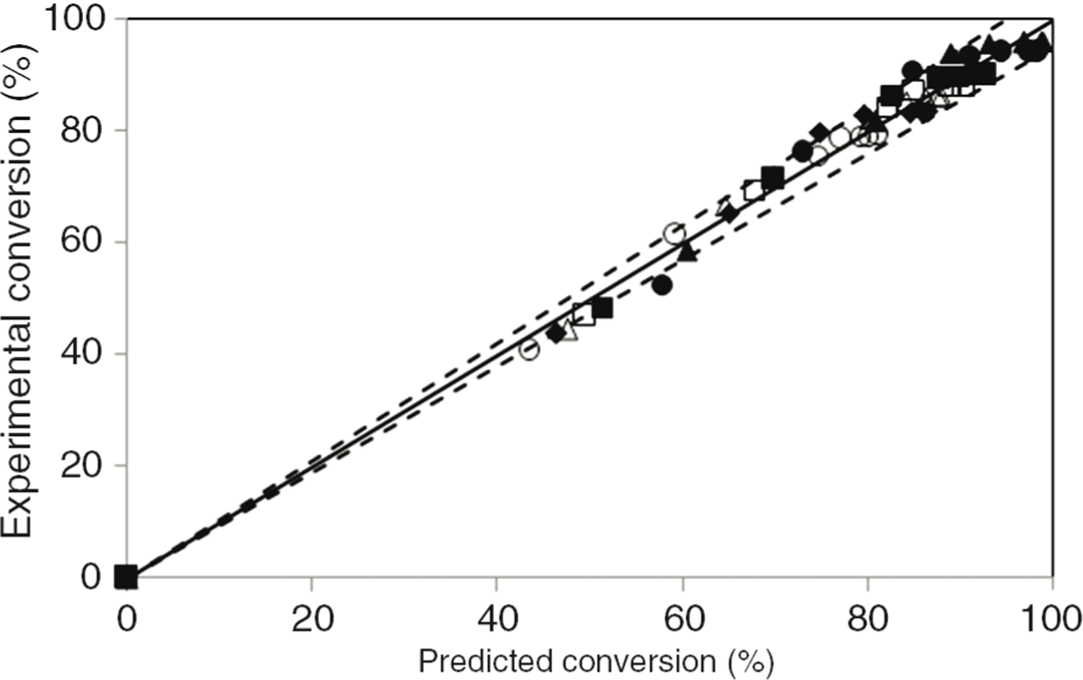

The fitting of the experimental data to the proposed model was also assessed by comparing the experimental conversion values with the theoretically predicted conversions using Eq. 6, and is presented in Figure 5. A good agreement between the experimental conversion and the values calculated from Eq. 6 was observed. Since the p-value for the model was lower than 0.05 there was a statistical relation between the response and the selected variables at 95% confidence level. It can be inferred that the proposed model represented the present reaction system satisfactorily.

4. CONCLUSIONSTOP

Methyl ricinoleate can be used as a potential raw material due to its enriched ricinoleic acid content. In this study we have optimized processing conditions like reaction time, enzyme concentration and temperature for achieving maximum yields of ricinoleic acid using Candida antarctica lipase B as a catalyst using response surface methodology. The degree of hydrolysis of methyl ricinoleate was significantly affected by the hydrolysis conditions including reaction time, enzyme concentration, amount of buffer and temperature. A good agreement was observed between the experimental data and the predicted values. The optimized conditions for the hydrolysis of methyl ricinoleate were found to be 4% enzyme concentration, buffer to methyl ricinoleate ratio 2:1(v/w) and 60 °C temperature for 6h, under optimum conditions a maximum conversion of 98.5% was obtained.

ACKNOWLEDGMENTSTOP

The authors greatly acknowledge the scientific input given by Shri K.V.S.A. Rao, Retired Chief Scientist, Centre for Lipid Research, CSIR-Indian Institute of Chemical Technology.
