A novel hybrid catalyst for the esterification of high FFA in Jatropha oil for biodiesel production

M. Mushtaq^a, I.M. Tan^a, M. Sagir^a,b,*, M. Suleman Tahir^b and M. Pervaiz^c

^aChemical Engineering Department, Universiti Teknologi PETRONAS, Bandar Seri Iskandar-31750, Perak, Malaysia.

^bChemical Engineering Department, University of Gujrat, Pakistan.

^cGovt. College University Lahore, Pakistan

*Corresponding author: m.sagir@uog.edu.pk

1. INTRODUCTIONTOP

The most convenient feedstock for fatty acid alkyl esters is plant oils and animal fat. It is reported that more than 95% of biodiesel is being produced from edible oils (Lee et al., 2008; Mushtaq et al., 2013). Continuous usage of these oils for biodiesel and related commercial products may cause a threat to the food market by affecting edible oil’s price in the international market. Therefore, it is pertinent to find a feedstock which has no competition with food grade oils. In this context many inedible oils such as Jatropha curcas, Karanja, Neem and Babassu, along with unconventional feedstock, for example, poultry fat, waste cooking oil, algae, fungi, latexes and yellow grease are explored for biodiesel production (Lee et al., 2008; Kim 2009; Shahid and Jamal 2011; Wittayakun et al., 2011; Kevin et al., 2012; Chen et al., 2012; Mushtaq et al., 2013). However, despite having low market value compared to edible oils, the production of biodiesel and alkyl esters from this feedstock is not yet economical due to the presence of high amounts of free fatty acids (FFA). It is generally suggested that the FFA value of feedstock should be less than 0.5–1.0% for the successful base catalyzed transesterification reaction (Leung and Guo 2006; Aroua et al., 2012). Unfortunately, the FFA value of waste oils and other cheap feedstock sometimes reaches 30% (Wang et al., 2007). Therefore, a two-step approach is usually applied for biodiesel production; in the first step the FFA value is reduced by using an acid catalysts at less than 1% and then in the second step, a base catalyzed transesterification step is launched (Tellez et al., 2010; Mushtaq et al., 2014). As methanol is not very reactive with fatty acids under normal processing conditions, acid catalysts are usually employed for the esterification reaction, sometimes at high temperature and pressure conditions.

Although there is not much work reported for solid acid catalysts for the oil esterification process, some notable catalysts reported include Nafionl resins, sulphonated zirconia, suphonated sacharides and tungton oxides (Otadi et al., 2011; Lee et al., 2014; Syam et al., 2016).

For the catalyst in an esterification reaction, Brönsted acids such as sulfuric acid, hydrochloric acid, phosphoric acid and Lewis acids such as BF₃ and TiCl₄ can be used. Sulfuric acid is the most commonly employed catalyst but despite good conversion, its use also presents many problems. A common hurdle is its native acid nature which severely hampers its ease of application. Relatively poor efficiency at lower temperatures and a darkening of the color of the product at higher temperatures are common deficiencies of sulfuric acid use. In addition, removal of the liquid catalyst from the bulk product requires several washing steps (Borges and Díaz 2012) with unfavorably high processing costs. Due to the above cited reasons, numerous heterogeneous catalysts were proposed for oils possessing high FFA contents. As BF₃ and sulfate group based catalysts are found to be effective in many reactions which require acidic or Lewis acid sites for catalysts, it is appropriate to consider new catalyst candidates to further improve the esterification reaction of fatty acids. In heterogeneous catalysts for organic synthesis, silica supported BF₃ has been reported by Wilson and Clark (1998). It was reported that this catalyst had very strong Lewis acid (BF₃) as well as some strong Brönsted acid sites. However, despite its great potential for reducing FFA in natural oils, this catalyst has never been used for the esterification reaction of fatty acids in oils and it is pertinent to test the efficiency of this catalyst for FFA reduction.

The current study focuses on the usage of heterogeneous catalysts based on BF₃ and SO₃ groups attached to silica to esterify very high amounts of FFA to methyl esters. The catalytic activity of these catalysts has been studied for various processing conditions. The effects of methanol concentration as well as various FFA contents in oil have also been described. Kinetics and thermodynamic investigations are also reported.

2. MATERIALS AND METHODSTOP

2.1. Raw material and chemicalsTOP

Jatropha oil was obtained from BATC Development Bhd., Malaysia. Methanol, Sodium sulfate, Silica and hexanes were Analytical Reagent (AR) grades from Fisher Scientific. Boron trifluoride - diethyl etherate complex (50% BF₃), formic acid, sodium bicarbonate and chlorosulfonic acid were obtained from Merck. All materials were used as received without further purification.

2.2. Preparation of silica supported-BF3 catalystTOP

Silica supported-BF₃ (SSB) was prepared according to Wilson and Clark (Wilson and H. Clark 1998). Silica was dried at 300 °C for 24 hours and then cooled in a desiccator. In a three-neck flask, 10 g silica was mixed with 100 mL ethanol and then 40 mmol boron trifluoride – diethyl etherate were added. The mixture was stirred at room temperature for 2 hours. The slurry was dried slowly in a rotary evaporator under vacuum at 50 °C. The dried catalyst was stored in a glass bottle with a stopper.

2.3. Preparation of silica sulfuric acid catalystTOP

The silica sulfuric acid (SSA) catalyst was prepared according to Khalifi et al., (2007). To a three-neck flask, 60 g silica was transferred and 23.3 g of chlorosulfonic acid were added drop by drop in the course of 30 minutes. A mild nitrogen stream was applied to remove hydrogen chloride gas produced during the reaction. The product was agitated to facilitate the reaction and the removal of HCl gas. The obtained product (76 g) was stored in a bottle with a stopper.

2.4. Preparation of hybrid catalystTOP

An amount of SSA and SSB was mixed in a 1:1 (weight ratio) to make the hybrid catalyst (HC).

2.5. Preparation of high FFA Jatropha oilTOP

The crude Jatropha oil had an FFA value of 6.64% (as oleic acid). A portion of the oil was converted to its fatty acids by saponification with NaOH and subsequent treatment with sulfuric acid. The sulfuric acid was removed with repeated washes using distilled water until the pH of the washings was neutral. The fatty acids were dried at 105 °C. Jatropha oil was spiked with different amounts of fatty acids to obtain FFA values of 9.25, 15.47, 27.85, 35.01 and 45.64% with corresponding acid values of 18.41, 30.79, 55.42, 69.67 and 90.88 mg KOH·g⁻¹ of oil, respectively. In addition, the crude oil with a FFA value of 6.64% (acid value 13.21 mg KOH·g⁻¹ oil) was also used in this study.

2.6. Acid catalyzed esterification reactionTOP

In a 300 mL three-neck round-bottom flask, equipped with a magnetic stirrer, coil condenser and thermometer, 50 g of filtered and dried Jatropha oil were transferred and heated to the required temperature (30–65 °C) with stirring at a fixed speed of 600 rpm. In a 250 mL beaker, the required amount of methanol (1–20 moles with respect to FFA moles of oil) and catalyst (0.5–3.0 wt.%) were mixed and heated to the required temperature (30–65 °C). Then the methanol-catalyst mixture was transferred to the oil bearing flask and stirring was continued for 30–180 min. Then the mixture was transferred to a separatory funnel to separate the methanol and oil methyl esters. After 30 minutes, the two layers were separated and the oil +FAME layer was washed with warm (55 °C) water till the washings were neutral to pH. The treated oil was dried over anhydrous sodium sulfate.

Base catalyzed trans-esterification of oil. For the base catalyzed esterification, oil with a FFA value of less than 1% was used. The equipment and process were the same as for the pre-esterification experiment except that 6 moles of methanol were used and a 0.85 wt.% of sodium methoxide was used in place of the catalysts. The reaction was continued for 60 minutes at 65 °C and then reaction was stopped. The mixture was transferred to a 500 mL separatory funnel and kept undisturbed for 2 hours. After that the lower dark glycerine + water layer was separated and a golden yellow layer of FAME was washed with warm (55 °C) water until the washings were neutral to pH. The esters were dried over anhydrous sodium sulfate.

2.7. Analytical methodsTOP

Biodiesel purity was confirmed in accordance with ASTM D 6584-00 with a Shimadzu GC 2010 system with fitted FID-2010. The fatty ester profile was determined by GC-MS with an Agilent 7890A GC System coupled with an Agilent 5975C inert XL EI/CI MSD with Triple-Axis Detector. The capillary column was BP5, 30 m × 250 μm × 0.25 μm. The oven temperature program was as follows: 3 min at 100 °C, 25 °C·min⁻¹ to 170 °C, 2 °C·min⁻¹ to 230 °C, 20 °C·min⁻¹ to 250 °C and kept at 250 °C for 10 minutes (Wilson, Smith et al. 1997). Helium was used as the carrier gas with a flow rate of 0.5 mL·min⁻¹.

The esterification progress was monitored according to the AOCS Official Method Cd 3a–63. FT-IR spectra were recorded using a Perkin Elmer Spectrum One FT-IR spectrometer equipped with a ZnSe 45o HATR assembly. An average of 30 scans was used with a spectral resolution of 4 cm⁻¹ for the range of 4000 - 400 cm⁻¹ wave number.

The NMR analysis was performed on a Bruker Ultrashield 400 at 400 MHz and 100 MHz to determine the ¹H NMR and ¹³C NMR spectra, respectively. The solvent used was chloroform-d.

2.8. Determination of FFA conversionTOP

The FFA value was determined according to the AOCS Official Method Cd 3a-63. FFA conversion was calculated as:

Where, FFA_i refers to initial FFA value (%) and FFA_t is the FFA value (%) at a specified time. The reported values are mean values of at least three observations.

3. RESULTS AND DISCUSSIONTOP

3.1. Properties of Jatropha oilTOP

The fatty acid composition of Jatropha oil is presented in Table 1. The major fatty acids are oleic acid, linoleic acid, palmitic acid and stearic acid. Crude oil had an FFA value of 6.64% and an Iodine value of 102.3 mg I₂/g oil.

3.2. Esterification of FFA with acid catalystsTOP

The esterification reaction of fatty acids with alcohols requires a catalyst to proceed, as shown below.

R-COOH + CH₃OH ⇔ R-COOCH₃ + H₂O  (1)

As the methanol is not soluble in Jatropha oil and fatty acids (Zhou et al., 2006), the reaction is heterogeneous in nature. It requires a catalyst, high molar excess of methanol and a higher temperature for the forward reaction.

3.3. Effect of stirring speedTOP

The stirring speed is important in heterogeneous systems for better mixing and facilitation in a mass transfer process. It becomes an important factor at lower reaction temperatures. However, at higher temperatures, particularly near the boiling of methanol, the boiling can provide sufficient agitation required for the reaction. It has been shown by several studies that a stirring speed beyond 600 rpm has no significant effect on the conversion (Mbaraka et al., 2003; Berrios et al., 2007; Chung et al., 2008; Zhang and Jiang 2008). Therefore, in this study a fixed stirring speed of 600 rpm was used for all experiments.

3.4. Effect of reaction temperatureTOP

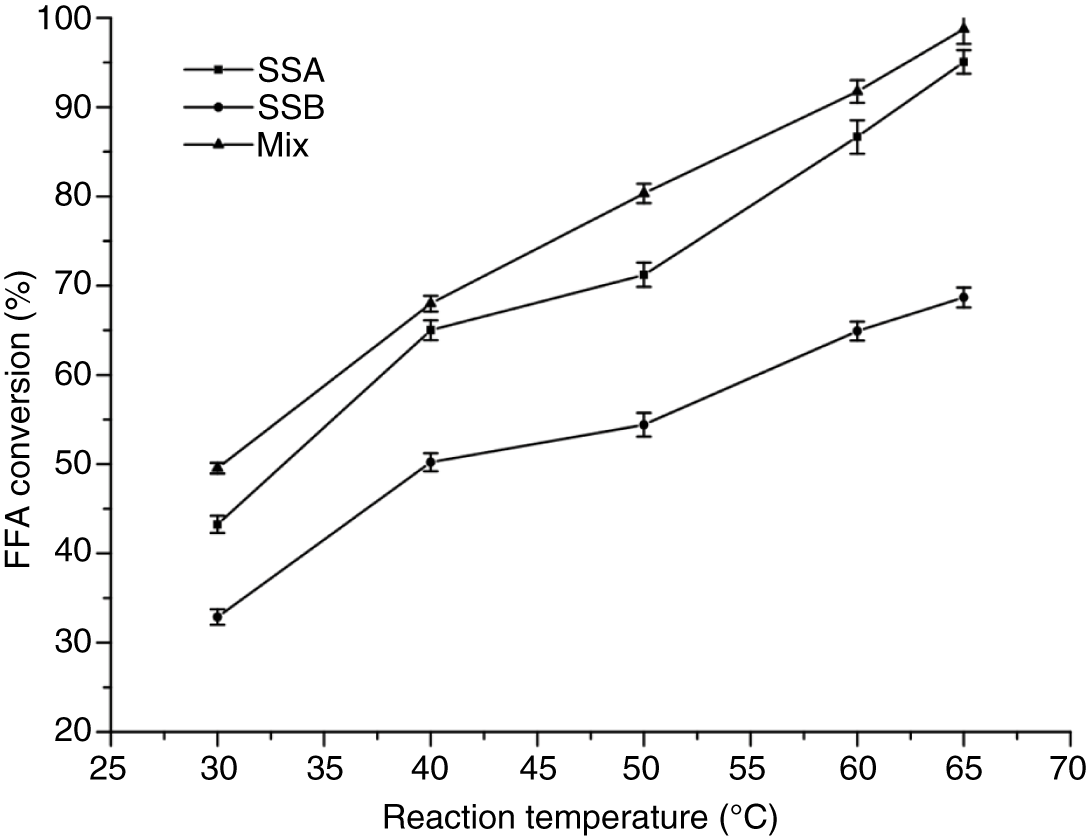

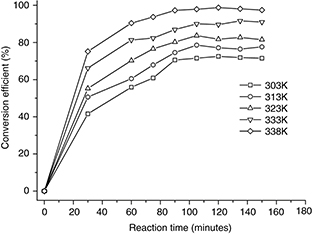

The esterification reaction is highly dependent on the reaction temperature. Generally for heterogeneous catalysts, the reaction temperature was studied in the range of 45–65 °C because a higher temperature will require a pressurized setup for synthesis due to the low boiling point of methanol (Shahid and Jamal 2011). At room temperature, the extent of reaction is low (Nakpong and Wootthikanokkhan 2010), which increases with an increase in temperature. A similar pattern of effect of reaction temperature was observed in this study. The reaction rate increased at higher temperatures because the elevated temperature provides sufficient energy as well as reducing the viscosity of the oil and FFA, thereby providing better phase mixing. The effect of temperature on FFA conversion for all catalysts is shown in Figure 1. The reaction temperature was varied from 30 to 65 °C. The FFA/methanol ratio was 1:20 and the amount of catalyst used was 2 wt.% of oil.

It can be observed that the hybrid catalyst (mixture of two catalysts) showed better catalytic activity even at a low reaction temperature. The conversion steadily increases with an increase in temperature and 98.2% FFA conversion was obtained at 65 °C. The effect of individual catalysts SSA and SSB is somewhat lower than that of the hybrid catalyst and a conversion of 92.2% and 66.4% was achieved for SSA and SSB, respectively. The silica supported boron trifluoride is found to possess a lower efficiency compared to silica sulfuric acid. This can be due to the higher apparent acidity of the SSA. The synergistic effect of the hybrid catalyst is probably associated with the additive effect between the very strong Lewis acid capability of BF₃ and superior Brönsted acidity of SO_3.

3.5. Effect of reaction timeTOP

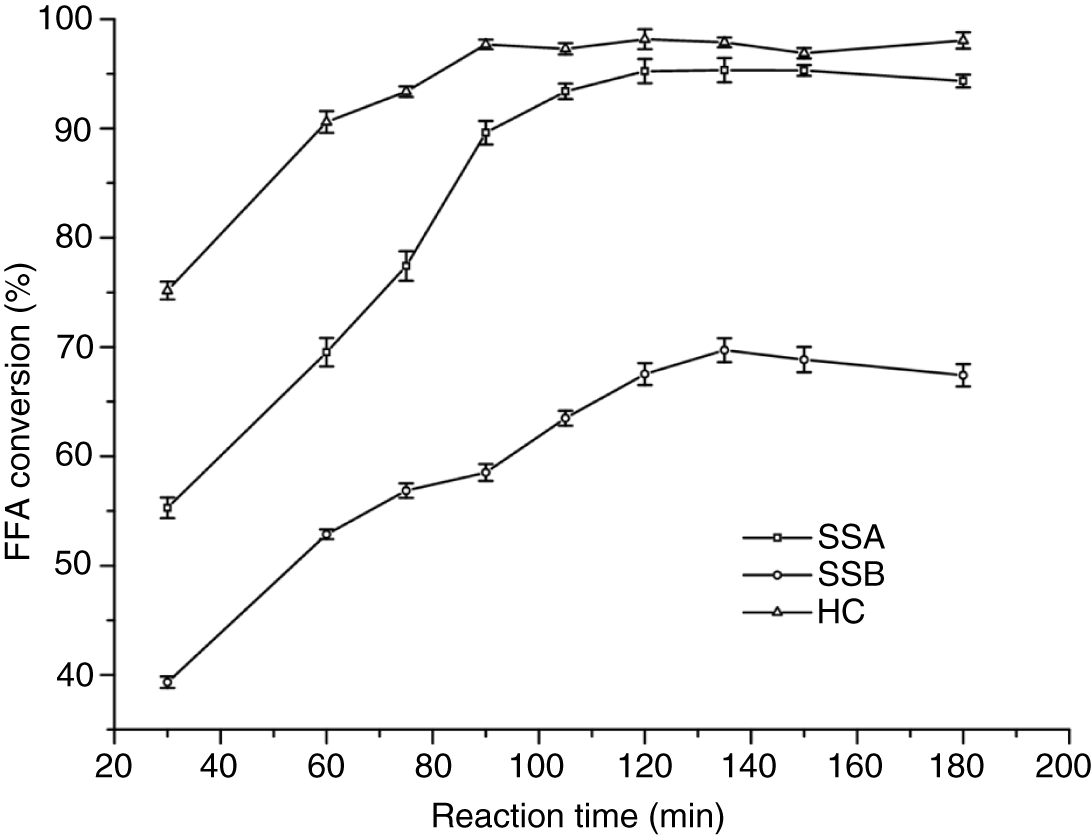

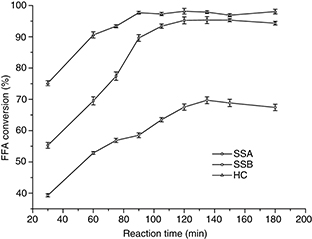

Reaction time is one of the most important factors affecting the esterification reaction. It is also connected with the reaction temperature. At higher temperatures, relatively short reaction times are sufficient for a maximum conversion. The effect of reaction time with three heterogeneous catalysts is shown in figure 2. The reaction was conducted at 65 °C with the FFA/methanol ratio of 1:20. The amount of catalyst used was 2 wt.% of oil. It was observed that the reaction was completed in 100 minutes for HC, and 120 minutes for both SSA and SSB. HC is superior in performance and 98.4% conversion is achieved in a comparatively shorter reaction time of 100 minutes. While SSA converted 90.5% FFA to FAME in 120 minutes, SSB was found to perform poorly with 68.7% FFA converted to FAME in 120 minutes, after which the reaction becomes non progressive. It is again demonstrated that a shorter reaction time for maximum conversion can be attributed to a superior Brönsted and Lewis acid capabilities of HC.

3.6. Effect of methanol molar ratio to FFATOP

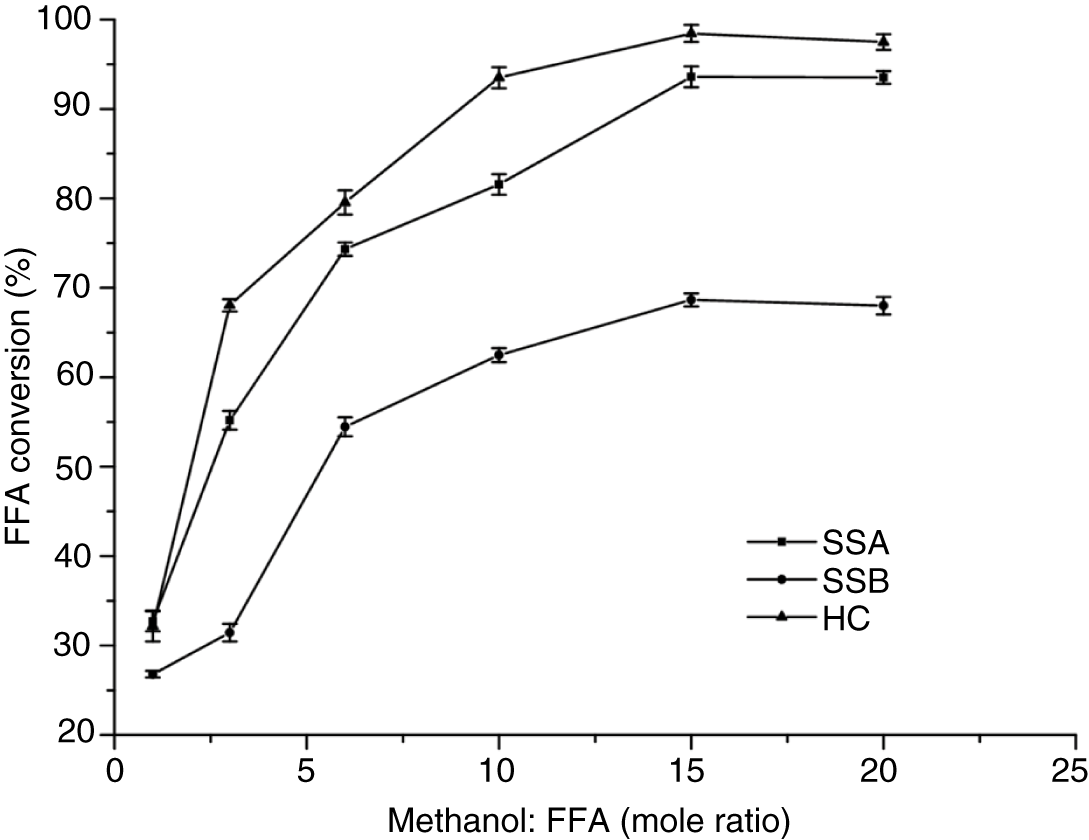

Methanol is the major reagent in the reaction. As esterification reaction is a reversible reaction, a high molar excess of methanol is required for driving the reaction forward. In many studies a large excess of methanol has been employed, such as 1:50 and 1:60 [10,28]. The effect of the amount of methanol is shown in Figure 3. A reaction temperature of 65 °C was used with 2 wt.% of catalyst for a reaction time of 120 minutes. It can be seen from Figure 3 that the conversion is very low when a stoichiometric amount (1:1 molar ratio) of methanol is used. At this amount of methanol, all catalysts are almost equal in efficiency, and SSA, SSB and HC showed conversion efficiencies of 26.39%, 32.64% and 33.6%, respectively. However, at higher molar excess, the reaction becomes more efficient and maximum conversion is achieved at FFA:methanol molar ratio of 1:15. The hybrid catalyst efficiently converted 98.11% of FFA to methyl esters while SSA converted 93.3%. The SSB was lower in performance and a maximum conversion of 68.8% was achieved at 20 molar excess of methanol. It was found that the15:1 mole ratio of methanol: FFA was sufficient for the maximum conversion and any further increase did not show a progressive effect.

The role of high molar excess of methanol in this context is further discussed in the section 3.8.

3.7. Effect of catalyst amountTOP

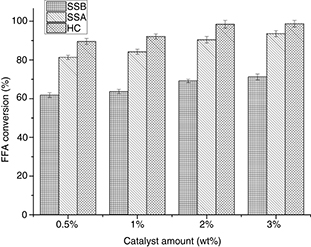

Catalyst amount is also an important parameter in the esterification reaction and varying the amount of catalyst shows a noticeable effect (Figure 4). The reaction was studied for FFA conversion by using 1:20 moles of FFA:methanol, a reaction temperature of 65 °C and a reaction time of 120 minutes. The catalyst amount was varied from 0.5 to 3 wt.% of oil.

The plot shows the maximum conversion (98.21%) for HC at 2 wt.%, and there was no significant effect found for the amount of catalyst exceeding 2%. The SSB and SSA showed a different trend and were lower in performance when compared to the hybrid catalyst even at 3 wt.% loading. SSB converted 69.2% FFA at 3 wt.% and SSA converted 93.6% FFA at 3 wt.% amount.

3.8. Effect of FFA contents of feedstock and methanol amountTOP

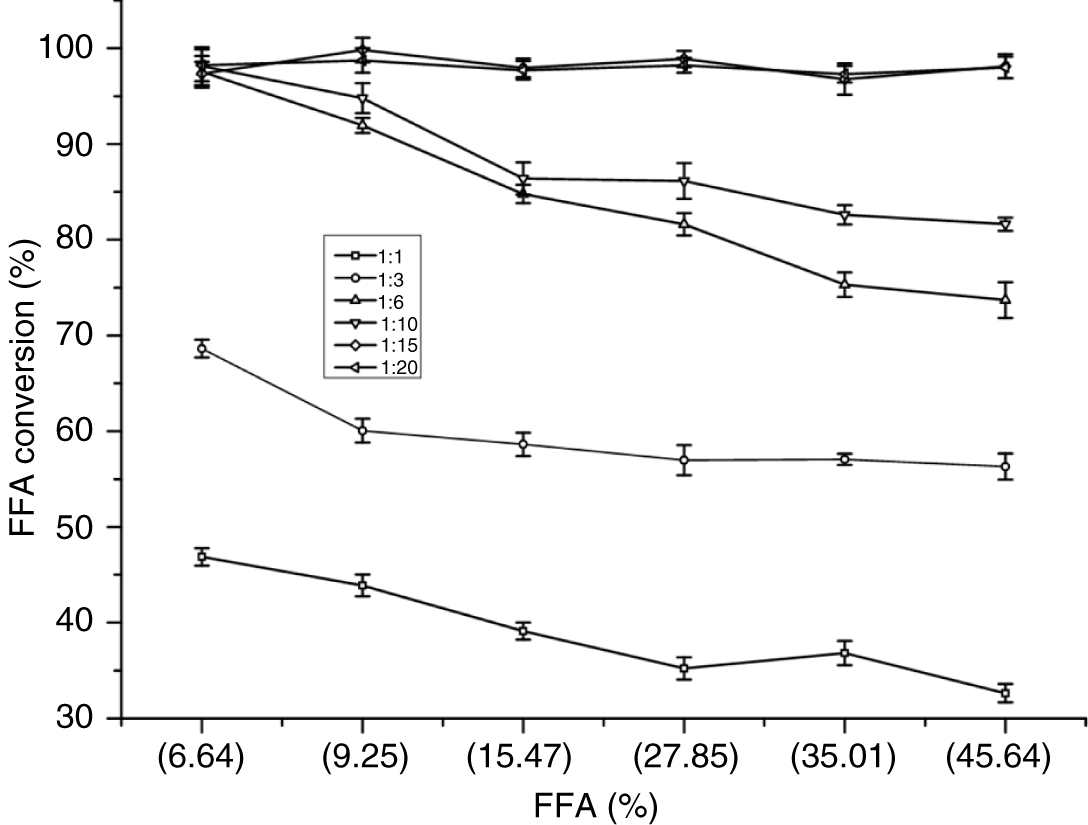

The cumulative effect of varying the amount of FFA and methanol was also studied. A reaction was conducted at 65 °C with 2 wt.% of hybrid catalyst. It was found that the amount of methanol required for maximum conversion was strongly dependent on the initial FFA value of oil. At lower FFA values (6.64 and 9.25%), a relatively lower FFA:methanol molar ratio (1:6) is sufficient but at higher FFA values, a very high molar ratio of methanol is required (1:15–1:20). The lower molar excess of methanol such as 1:10 and 1:6 are not sufficient for maximum conversion at FFA values of 35.01 and 45.64%. This effect for the hybrid catalyst is presented in figure 5. It can be observed that the conversion is maximum for molar ratios of 1:15 and 1:20 (FFA:methanol). This requirement of high amounts of methanol may be attributed to the amount of water produced during the esterification reaction. As methanol and water are mutually soluble, a relatively high amount of methanol is required to be available for a successful reaction. Figure 5 also shows that the hybrid catalyst can be used successfully for oils with varying values of FFA.

Re-usability of hybrid catalyst. Re-usability of heterogeneous catalysts is important due to economic and environmental considerations. Before evaluating the re-usability of the hybrid catalyst, the used catalyst was washed with methanol and dried at 40 °C. Dried used catalyst was loaded and the reaction was conducted as described above.

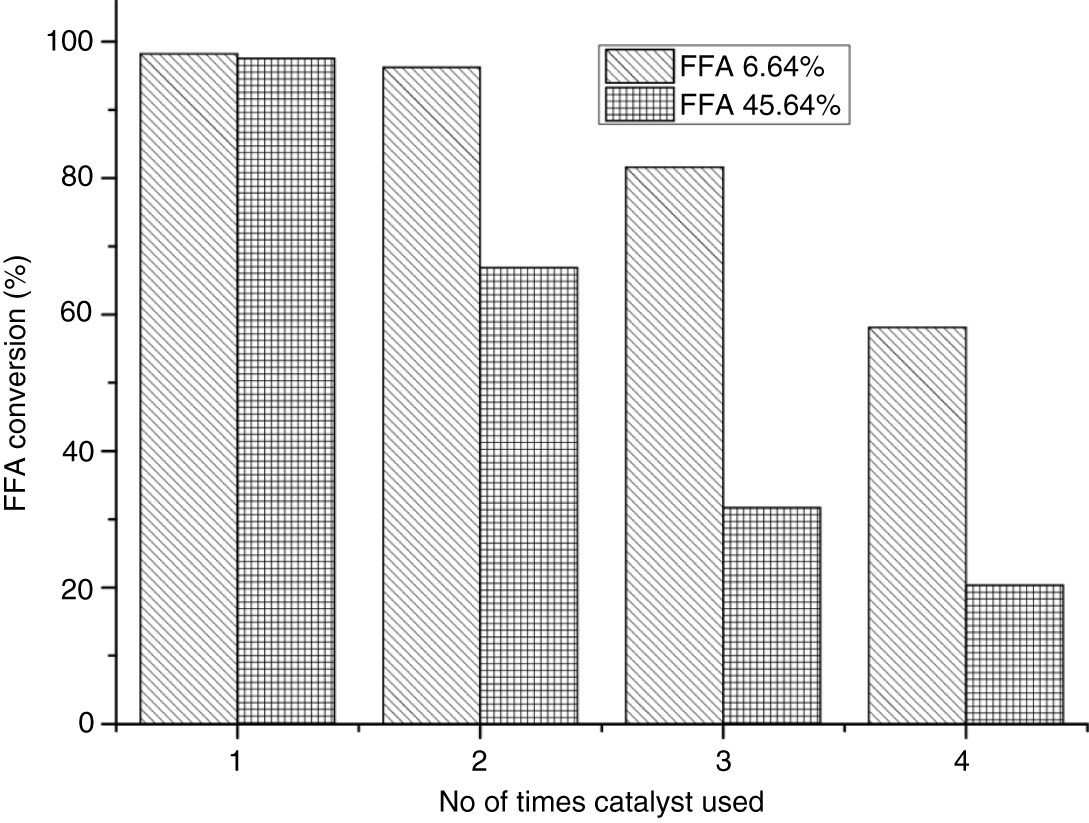

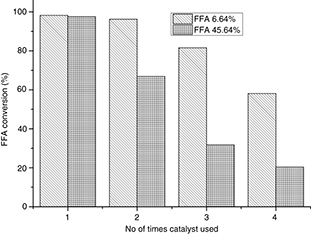

The hybrid catalyst was evaluated for re-usability in two types of oil samples with FFA values of 6.64 and 45.64%. For each type of oil, the same portion of catalyst was used each time. The catalysts for each experiment were used for four times. After each use, before the next experiment, each catalyst was washed and dried as described above. Results are presented in Figure 6.

Experiments showed that the efficiency of the catalyst was drastically affected when used in the oil with high FFA values (45.64%). The efficiency of the catalyst was noted to be 97.5% when it was new and used for first time in this experiment. In the next experiment, the same catalyst exhibited 66.8% efficiency, and a significant decrease in catalytic activity was observed. In the next two tests, third and fourth cycle, the efficiency further decreased to 31.2% and 18.3% respectively. However, the catalyst was found relatively less effected and maintained its high effectiveness when used with the oil with low (6.64%) FFA. For low FFA oil, catalyst efficiency was high (58.3%) even for the fourth cycle of usage.

The substantial effect on catalyst efficiency with oil of high amounts of FFA was probably due to the production of high amounts of water during the reaction. The catalyst probably lost its one or both effective groups in water at high temperatures and its efficiency drastically reduced in subsequent cycles.

3.9. Base catalyzed transesterificationTOP

A very small amount of triglycerides can be converted to methyl esters by using an acid catalyst. Therefore, base catalyzed transesterification was performed by the method discussed earlier, using sodium methoxide. It was noted that the pre-treated oil was found to be suitable for the transesterification reaction and a high conversion of oil to methyl esters, 93.12%, was achieved. A few important properties of the obtained methyl esters are presented in Table 2.

3.10. Spectroscopic analysisTOP

3.10.1. FT-IR AnalysisTOP

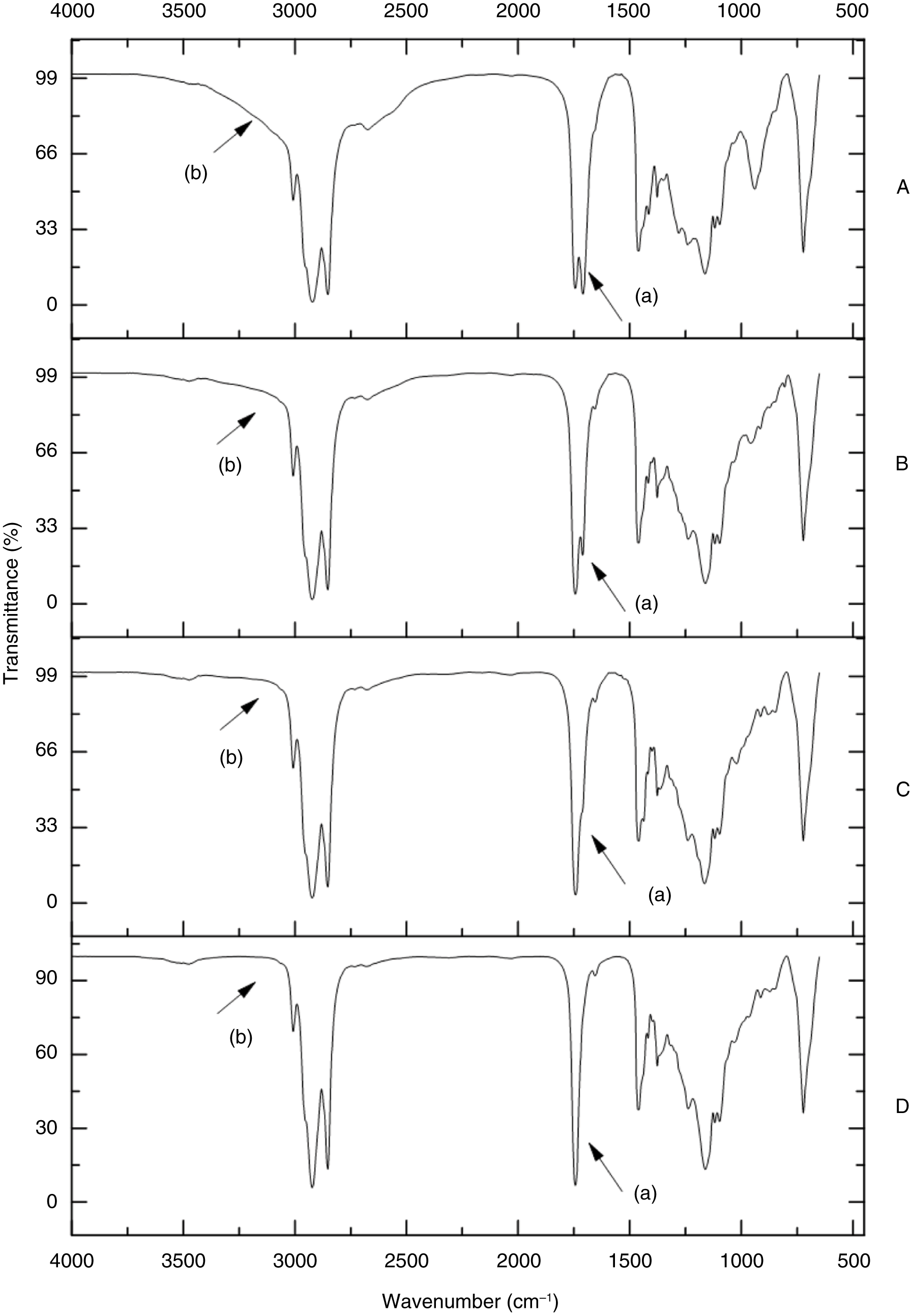

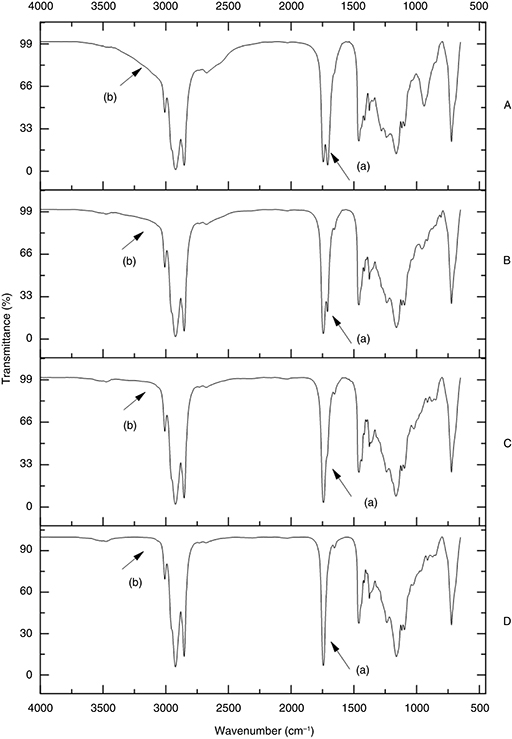

FT-IR spectra were recorded for the crude oil, oil with FFA and produced biodiesel. A transmittance band for carbonyl group in fatty acids appears at 1711 cm⁻¹(a) and for methyl esters (and oils) at 1746 cm⁻¹ (Guillén and Cabo 1997). In addition, fatty acids show a typical broad band at around 3100 cm⁻¹(b) while in methyl esters (and oils), this band is absent. These bands were observed during the esterification reaction with the hybrid catalyst. In the course of the reaction, samples were drawn and their FT-IR spectra were recorded after several cleaning steps. As can be observed in figure 7, the bands at 1708 cm⁻¹(a) and 3100 cm⁻¹ (b) are distinctly visible when the oil has a FFA value of 45.64% (A). However, after 30 minutes the FFA value was reduced to 15% and bands (a & b) at 1708 and 3100 cm⁻¹ were reduced in intensity (B). These bands further decreased in intensity (C) to a barely visible shoulder and later diminished (D) where the FFA value became less than 1%. The band at 1742 cm⁻¹ is for the ester carbonyl group. Further details of the FT-IR spectra are presented below.

Oil: 3007 cm⁻¹(=C-H cis stretch), 2923, 2852(CH₂ stretch), 1746 (ester C=O), 1711 (acid C=O), 1654 (-C=C- stretch),1460 (-C-H bend from CH₂, CH₃),1419 (=C-H bend), 1376 (CH₃sym bend), 1240, 1165, 1118 (ester CO stretch),1099 (C-O stretch), 970 (-HC=CH- bend721 (CH₂ rocking).

Methyl esters: 3006 cm⁻¹ (=C-H cis stretch), 2924, 2853(CH₂ stretch), 1742 (ester C=O), 1654 (-C=C- stretch),1459 (-C-H bend from CH₂, CH₃),1435 (C-H asymm and symm bend of CH₃-COO),1376 (CH₃sym bend),1361 (-C-H bend), 1244, 1195, 1169 (ester CO stretch),1016 (O-C-C stretch), 722 (CH₂ rocking).

3.10.2. NMR analysisTOP

NMR spectroscopy is a more powerful technique than FT-IR spectroscopy in terms of the structural elucidation of molecules. There are several obvious differences in the spectra of oil and methyl esters. In the ¹H NMR spectra, glyceryl protons appear at 4.1 and 4.3 ppm in the form of typically shaped closely spaced peaks (both quintets). The presence of these peaks in a spectrum is a confirmed indication of the presence of glycerides. In the methyl esters, these peaks are absent. Therefore, it is a quick test for the presence of glycerides in the sample.

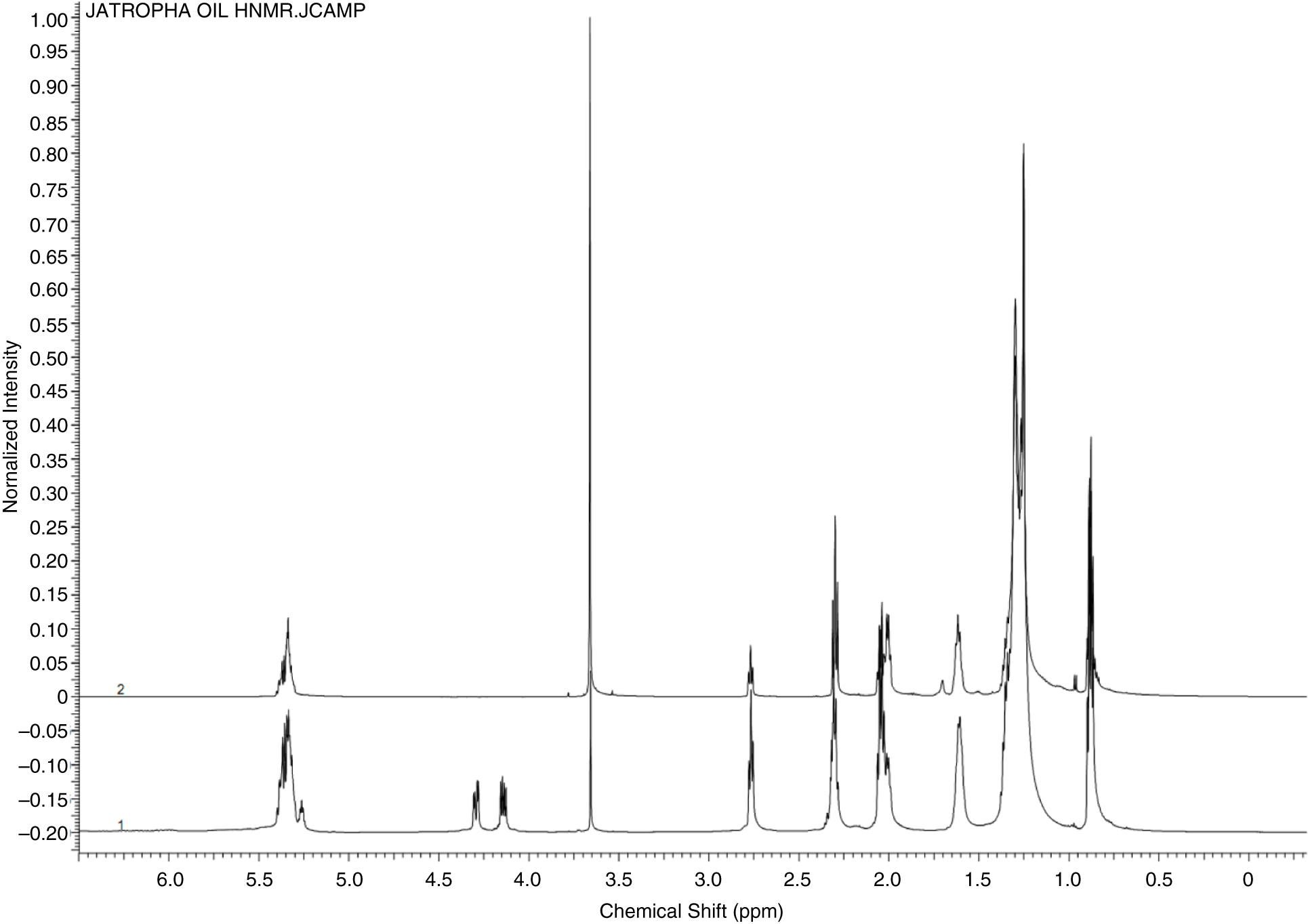

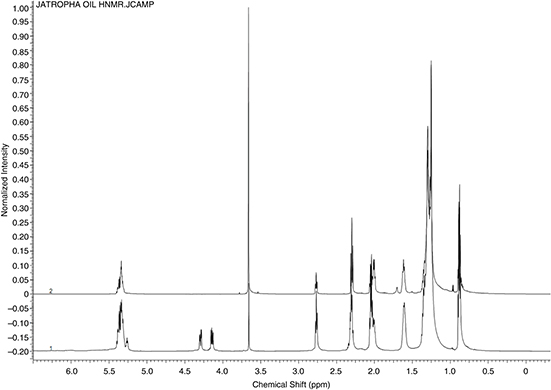

A comparison of the ¹H NMR spectra of Jatropha oil and methyl esters is shown in Figure 8. A small peak at 3.62 which is due to protons of methyl ester is present in the spectrum of Jatropha oil. These methyl esters are due to the conversion of FFA to methyl esters with a heterogeneous catalyst.

The details of all peaks are presented below:

Jatropha oil (treated and contains very low FFA):

¹H NMR (CDCl₃) δ 0.88-0.91 (-CH₃), 1.32-1.64 (CH₂), 1.62 ( CH₂-CH₂COOCH₃) 2.06-2.07(-CH₂-CH=CH-), 2.29-2.33 (CH₂COOCH₃) 2.81 (-CH=CH-CH₂-CH=CH-), 3.62 (C-OO-CH₃) 4.23 (glycerin protons), 5.32 (-CH=CH-)

¹³C NMR (CDCl₃) 14.43-14.46 (-CH₃), 23.29-34.37 (CH₂), 61.3 (C1, C3 glycerol), 69.7 (C2 glycerol) 129-131 (CH=CH, (-CH=CH-CH₂-CH=CH-),173.91 (-COO-CH₃).

Methyl Esters:

¹H NMR (CDCl₃) δ 0.89-0.93 (-CH₃), 1.33-1.63 (CH₂), 1.63 ( CH₂-CH₂COOCH₃) 2.06-2.07(-CH₂-CH=CH-), 2.28-2.32 (CH₂COOCH₃) 2.82 (-CH=CH-CH₂-CH=CH-), 3.62 (C-OO-CH₃), 5.31 (-CH=CH-)

¹³C NMR (CDCl₃) 14.42-14.45 (-CH₃), 23.29-34.37 (CH₂), 51.43 (COOCH₃), 128-130( CH=CH, (-CH=CH-CH₂-CH=CH-) 173.97 (-COO-CH₃).

3.11. Kinetic studiesTOP

The esterification reaction of FFA with a large excess of methanol in oil is reported to be of first order (Berrios et al., 2007; Borges and Díaz 2012; Fernandes, et al., 2012, Sagir et al., 2013). The kinetic studies on the esterification reaction are discussed here for the hybrid catalyst. As the reaction rate is dependent on the reaction time and temperature, various experiments at specific reaction temperature for 180 minutes were performed. It was found that the conversion reached a constant level after 100 minutes of reaction time (Figure 9). At a high reaction temperature, the reaction rate was noticeably high. The data obtained from the plot (shown in Figure 10) were used to calculate the rate constant (K) by using linear regression (equation 2) (Fernandes et al., 2012):

where [FFA]i and [FFA]t are the FFA values at the start and at a particular time, respectively.

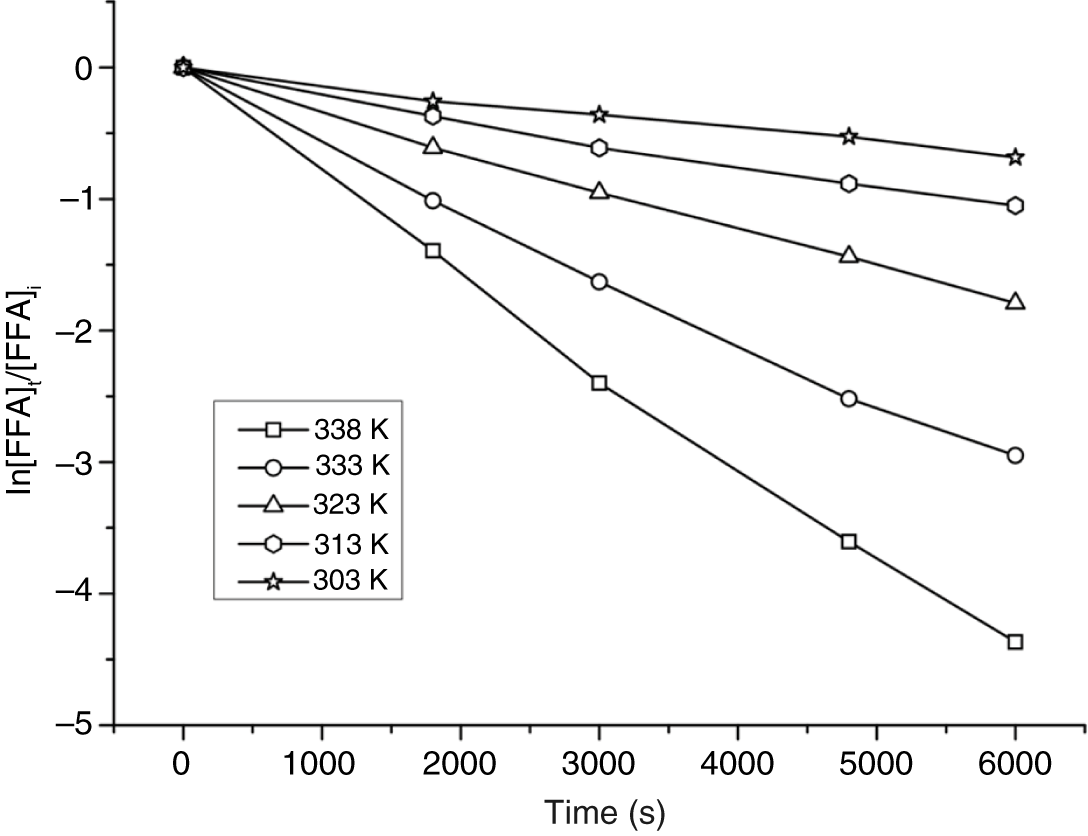

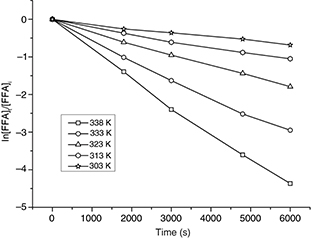

ln[FFA]t/ [FFA]i and time (s) were plotted for all temperatures and a linear regression of each curve was used to calculate the value of K. The results are presented in Table 3. The high values of linear correlation coefficient (R²) indicate that the reaction follows a first order kinetics (Fernandes, Cardoso et al. 2012).

The activation energy (Ea) was calculated by using the Arrhenius equation:

where A is the frequency factor, Ea is activation energy (kJ·mol⁻¹), T is temperature (K), and R is gas constant (J·K⁻¹·mol⁻¹).

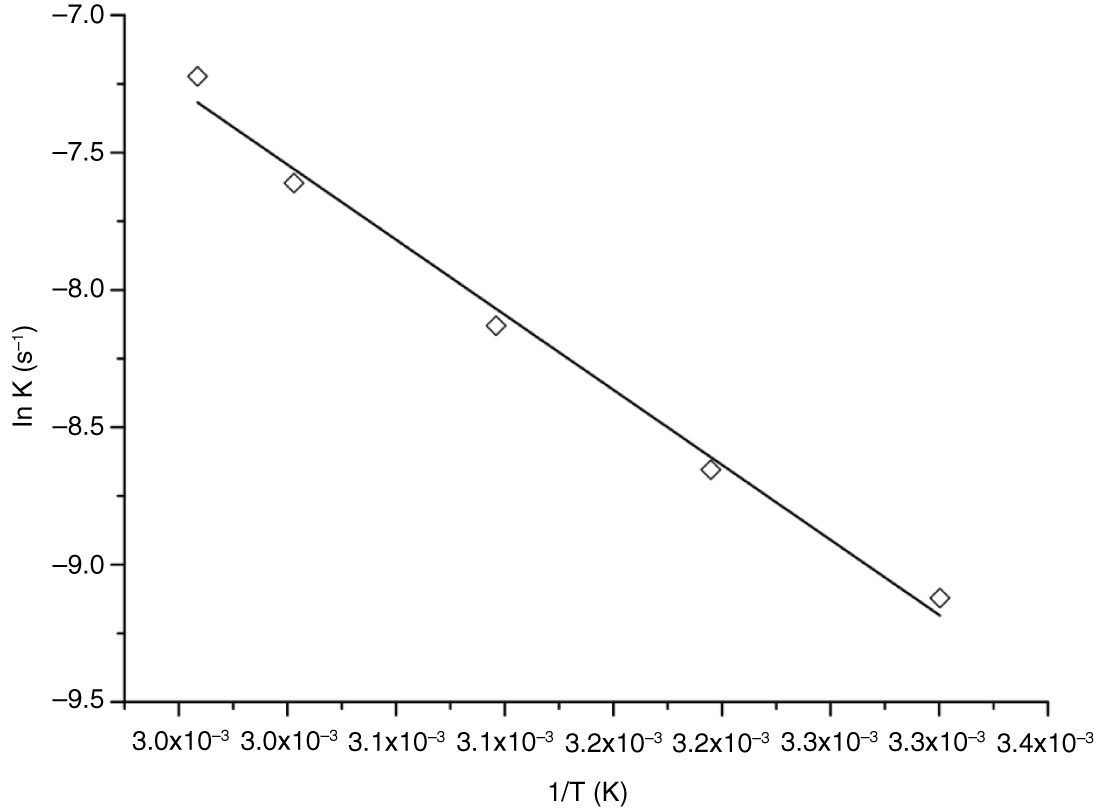

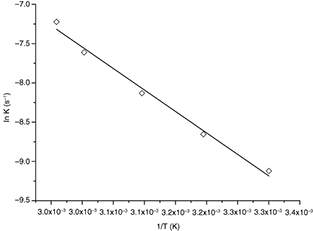

The plot between ln K and 1/T is used to calculate the energy of activation (Ea) (Sagir, Tan et al. 2013). The plot is shown in Figure 11. Linear regression of the plot gives the activation energy of the reaction as 45.42 kJ mol-1 which is very close to the value (45 kJ·mol⁻¹ and 51 kJ·mol⁻¹) as reported elsewhere (Berrios et al., 2007; Fernandes et al., 2012). The value 45 kJ·mol⁻¹for Ea was found by using 10% sulfuric acid as catalyst and 51 kJ·mol⁻¹ was found by using 12-tungustophosphoric acid (1 mol%) (Fernandes, Cardoso et al., 2012) as the catalyst for the esterification of oleic acid. Furthermore, a similar value (46.69 kJ·mol⁻¹) of activation energy was reported using SnCl2 catalyst to esterify oleic acid to methyl ester in soybean oil (Cardoso et al., 2008).

4. CONCLUSIONTOP

In this study three solid catalysts namely silica sulfuric acid (SSA), silica supported boron trifluoride (SSB) and a hybrid catalyst (HC),which was a 50-50 mixture of SSA and SSB, were evaluated for the esterification of high FFA in Jatropha curcas oil. Experimental results showed that the catalytic activity of the hybrid catalyst was superior to that of SSA and SSB alone. A very strong synergistic effect was noted in catalytic activity when the hybrid (mixed) catalyst was used, and an initial FFA value of 45.64% was reduced to 0.903%, with 98% efficiency. The reaction conditions were optimized for the oil FFA:methanol mole ratio of 1:15, a reaction temperature of 65 °C and a reaction time of 100 minutes. Furthermore, while using 2 wt.% of hybrid catalyst for oil samples with varying FFA values from 6.64 to 45.64%, the FFA conversion to methyl esters was more than 98%. The catalyst was found re-usable for three times for the oil with low FFA (6.64%) values and was found relatively less attractive for re-using in the case of oil with a high FFA (45.64%) value. The catalytic conversion reaction of FFA to methyl esters with this catalyst was found to follow the first order kinetics. Activation energy was calculated to be 45.42 KJ.mol⁻¹for 2 wt.% of the hybrid catalyst. It is concluded that the studied hybrid catalyst can be used successfully to esterify natural oils to methyl esters for both high and low amounts of FFA and with good reusability potential for relatively low FFA oils.

ACKNOWLEDGEMENTTOP

The authors gratefully acknowledge the financial support of PETRONAS Research Sdn. Bhd. (PRSB) through PRF Project 158200042 and the use of EOR Centre of Excellence facilities.
