Improving oxidative stability of olive oil: Incorporation of Spirulina and evaluation of its synergism with citric acid

N. Alavi and M.T. Golmakani*

Department of Food Science and Technology, School of Agriculture, Shiraz University, Shiraz, Iran.

*Corresponding author: golmakani@shirazu.ac.ir



SUMMARY

The effects of different Spirulina concentrations used alone and in combination with citric acid on the oxidative stability of olive oil were assessed. The amounts of primary and secondary oxidation products produced in Spirulina samples were lower than that of the control. The improved oxidative stability indices of Spirulina samples with and without citric acid were in the range of 85.20–94.47% and 258.10–260.21%, respectively. In comparison with the control, Spirulina samples manifested significantly higher carotenoid and chlorophyll contents at the beginning and end of the storage period. The presence of these bioactive compounds results from the presence of Spirulina in the medium and can thus retard the oxidation of olive oil. A higher oxidative stability was reached using BHT in comparison with Spirulina samples. Furthermore, no synergistic action was observed in possible connections between citric acid and Spirulina. In conclusion, Spirulina can enhance oxidative stability and improve the shelf life of olive oil.



RESUMEN

Mejora de la estabilidad oxidativa del aceite de oliva: Incorporación de Espirulina y evaluación de su sinergismo con ácido cítrico. Se evaluaron los efectos de diferentes concentraciones de Espirulina usadas solas y en combinación con ácido cítrico sobre la estabilidad oxidativa del aceite de oliva. Las cantidades de productos de oxidación primarios y secundarios producidos en muestras de Espirulina fueron menores que las del control. Además, la estabilidad oxidativa de muestras de Espirulina con y sin ácido cítrico estaban en el intervalo de 85,20–94,47% y 258,10–260,21%, respectivamente. En comparación con el control, las muestras de Espirulina mostraron un contenido significativamente mayor de carotenoides y clorofila al inicio y al final del período de almacenamiento. La presencia de estos compuestos bioactivos y la presencia de Espirulina en el medio pueden retardar la oxidación del aceite de oliva. Se obtuvo una mayor estabilidad oxidativa usando BHT en comparación con muestras de Espirulina. Además, no se observó ninguna acción sinérgica en las posibles combinaciones entre el ácido cítrico y la Espirulina. En conclusión, la Espirulina puede mejorar la estabilidad oxidativa y la vida útil del aceite de oliva.



Submitted: 14 September 2016; Accepted: 13 December 2016

ORCID ID: Alavi N http://orcid.org/0000-0002-8786-5028, Golmakani MT http://orcid.org/0000-0001-5173-1178

KEYWORDS: Arthrospira platensis; Citric acid; Natural antioxidant; Olive oil; Spirulina; Synergistic effect

PALABRAS CLAVE: Aceite de oliva; Ácido cítrico; Antioxidante natural; Arthrospira platensis; Efecto sinérgico; Espirulina

Citation/Cómo citar este artículo: Alavi N, Golmakani MT. 2017. Improving oxidative stability of olive oil: Incorporation of Spirulina and evaluation of its synergism with citric acid. Grasas Aceites 68, e178. http://dx.doi.org/10.3989/gya.0940162

Copyright: © 2017 CSIC. This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-by) Spain 3.0 License.




CONTENT

1. INTRODUCTIONTOP

Olive oil is a major vegetable oil obtained from the mesocarp of the fruits of the olive tree (Olea europaea). Olive oil contains high contents of monounsaturated fatty acids (MUFAs) and the presence of several minor natural antioxidants, which commonly possess fragrant features and nutritional value. The event of oxidation occurring in olive oil can lead to changes in color and flavor, produce toxic compounds, and reduce nutritional value (Barjol, 2013).

The use of antioxidants from different natural sources has recently attracted considerable attention (Taghvaei and Jafari, 2013). The microalga Spirulina (Arthrospira platensis) belongs to the group of cyanobacteria and the family Oscillatoriaceae. Spirulina’s annual production is about 3000 tons (Raheem et al., 2015). Spirulina can synthesize large amounts of protein with a high quality profile of amino acids, lipids with fatty acids of the ω6 family such as gamma-linolenic acid, and carbohydrates. Furthermore, Spirulina contains vitamins and minerals, and is rich in pigments such as phycobili-proteins, chlorophylls, and carotenoids, and antioxidant enzymes such as superoxide dismutase and peroxidase (Spolaore et al., 2006; Golmakani et al., 2012a; Ismaiel et al., 2014). Spirulina has been used in numerous experimental investigations for its chemical and biological properties. Spirulina or its constituents manifested antioxidant capacity by several mechanisms based on free radical scavenging and metal-chelating attributes (Santoyo et al., 2006; Bermejo et al., 2008). Accordingly, Spirulina can be used as a promising source of safe and natural antioxidants. Some efforts have been made to highlight the antioxidant activity of Spirulina in foodstuffs. Cervejeira Bolanho et al., (2014) prepared cookies with Spirulina and discovered an increase in antioxidant capacity of cookies which included Spirulina.

Citric acid (CA) is widely used as a synergist with a mechanism attributed to a chelating metal (Pokorny, 2007). In this regard, the antioxidant activity was evaluated by focusing on the synergy between CA and tanshen (Salvia miltiorrhiza Bunge) extract in lard which ultimately proved the synergy hypothesis correct (Gordon and Weng, 1992). However, Luzia et al., (1998) observed no synergistic effect between 5-caffeoylquinic acid and CA in soybean oil.

The present study aims to assess the effects of different concentrations of Spirulina on improving the oxidative stability of olive oil, individually or in combination with CA. Likewise, the antioxidant activity of Spirulina was compared with that of butylated hydroxy-toluene (BHT).

2. MATERIALS AND METHODSTOP

2.1. Chemicals and reagentsTOP

2,2-Diphenyl-1-picrylhydrazyl (DPPH), ascorbic acid, citric acid, BHT, and p-anisidine reagent (4-Methoxyaniline) were purchased from the Sigma-Aldrich Company (St. Louis, MO). All other chemicals and solvents were of analytical or chromatography grade and were purchased from Merck Company (Darmstadt, Germany).

2.2. SpirulinaTOP

Spray-dried Spirulina was purchased from Swisse Wellness Pty Ltd. (Melbourne, Australia) and was stored in a vacuum-packed condition at 4 °C until the time of analysis. The protein, fat, carbohydrates, ash, and moisture contents of Spirulina were analyzed according to the Official Methods of Analysis of the Association of Official Analytical Chemists (AOAC, 1997).

2.2.1. Fatty acid compositionTOP

Fatty acid methyl esters (FAMEs) were prepared from Spirulina according to the method described by Golmakani et al., (2012a). FAMEs were analyzed on a gas chromatography (GC) system (SP-3420A, Beijing, China), equipped with a flame ionization detector (FID), and fitted to a BPX70 fused silica capillary column (30 m long, 0.25 mm internal diameter, and 0.25 μm film thickness). The injector and detector temperatures were adjusted to 250 and 300 °C, respectively. The carrier gas was nitrogen. The injection volume was 1.0 μL while the injector was set in the split mode (at a ratio of 1:10). The initial oven temperature was held at 140 °C for 5 minutes. Then, it was increased up to 180 °C by the gradual increase of 20 °C per minute. The temperature was kept at 180 °C for 9 minutes. Finally, the temperature was gradually raised to 200 °C by increasing at a rate of 20 °C per minute, and was held at that temperature for 3 minutes. The identification of fatty acids was carried out by comparing their retention times with those of injected standards. The result was expressed as percentages of relative peak areas and was also reported according to the unsaturation degree of fatty acids as in the saturated fatty acid (SFA), MUFA, and polyunsaturated fatty acid (PUFA).

2.2.2. Antioxidant propertiesTOP

Before commencing the antioxidant property experiments, a methanolic extract of Spirulina was prepared. The extraction method involved consecutive steps that were performed as follows: five grams of Spirulina powder were mixed with 25 mL methanol and shaken vigorously for 2 minutes. Then, the mixture was centrifuged (SW14R, Froilabo, Lyon, France) at 5000 rpm for 5 minutes. The supernatant was filtered through Whatman No.1 filter paper. This extraction procedure was executed on the residue twice. In the final stage, all supernatants were combined, centrifuged, and filtered. The extract volume was ultimately increased to 100 mL by adding methanol. The prepared extract was kept at 4 °C until it was considered to be tested in due course.

The method by Şükran et al., (1998) was employed to estimate the carotenoid and chlorophyll contents of Spirulina, and the results were expressed as mg per gram of Spirulina. The ability of the Spirulina extract to donate a hydrogen atom or electron was probed to be assessed, along with the capacity of its hydrophilic and lipophilic antioxidants. These criteria were measured by using the DPPH and cupric reducing antioxidant capacity (CUPRAC) assays, respectively. The DPPH radical scavenging activity of the Spirulina extract (0.01–1.00 mg/mL) was analyzed (Shalaby and Shanab, 2013). A positive control BHT at concentrations of 0.01–0.10 mg/mL was used for comparison of the activities. The results were given as sample concentrations providing 50% DPPH scavenging activity against the radicals present in the test medium (IC50 value). The CUPRAC of Spirulina extract (1 mg/mL) was determined according to the method described by Apak et al., (2004). For preparation of a standard curve, 0.01–0.10 mg/mL ascorbic acid solutions were used. CUPRAC was expressed as mg ascorbic acid equivalent per gram of Spirulina.

2.3. Olive oilTOP

Olive oil was provided by The Edible Oil Industries Group of the Etka Organization. It was stored in a dark bottle with no head space volume and was kept at 4 °C until analysis.

2.3.1. Analytical indicesTOP

Free acidity (Ca 5a-40), peroxide value (PV; Cd 8–53), p-anisidine value (AV; Cd 18–90), and specific extinction coefficients (ultraviolet spectrophotometric indices) at 232 nm (K232 value) and 268 nm (K268 value) (Ch 5–91) were evaluated according to the Official Methods of the American Oil Chemists’ Society (AOCS, 1998). Totox value (TV) was calculated as 2PV+AV.

2.3.2. Fatty acid compositionTOP

Olive oil fatty acids were esterified into FAMEs according to the method described by Golmakani et al., (2012b). All technical features and GC system conditions were similar to those described earlier for the identification of the fatty acid composition of Spirulina. Results are expressed as the percentage pertaining to relative peak areas for each identified fatty acid, and are also reported as SFA, MUFA, and PUFA.

2.4. Oxidative stability of olive oil incorporated with SpirulinaTOP

Spirulina was ground to a fine powder by using a mill grinder (MJW176P, Matsushita Electric Industrial Company, Osaka, Japan). Spirulina powder was added at concentrations of 0.5, 1.0, and 1.5% (w/w) to the olive oil. Then, Spirulina samples were sonicated with an ultrasound probe (Bandelin Electronic GmbH & Co. KG, Berlin, Germany). The ultrasound probe conditions were set at 50 W for 10 minutes total working time (20 seconds ultrasound time and 10 seconds interval time) at 25 °C. For the purpose of comparison, BHT was added to olive oil at a concentration of 0.01% (w/w). Along with different antioxidants used alone in this study, the binary mixtures of the antioxidants and the CA (0.01%, w/w) were also prepared.

Samples were heated in an incubator (Memmert GmbH + Co. KG, Schwabach, Germany) set at 60±1 °C for 16 days. The samples were placed in the dark. Spirulina samples were initially filtered through Whatman No.1 filter paper and were then analyzed. The oxidative stability of samples was monitored every 4 days by determining the PV, AV, TV, K232 value, and K268 value. The carotenoid and chlorophyll contents of the samples were determined (Minguez-Mosquera et al., 1991) at the beginning and at the end of the storage period, and were respectively expressed as mg lutein and pheophytin-a per kg of olive oil. Also, antioxidant indices of the samples were estimated and were reported as the induction period (IP), protection factor (PF), antioxidant activity (AA), improved oxidative stability (IOS), and synergism degree resulting from the combination of antioxidants. The IP is defined as the number of days necessary to reach the PV of 20 meq O2/kg (Keramat and Golmakani, 2016). The IP was calculated by the extrapolation of PV curve. AA index is a function of antioxidant concentration (Antolovich et al., 2002). Accordingly, AA values of those samples containing synergistic modes of action were estimated based on the concentrations of antioxidants involved and the concentration of the CA. PF, AA, IOS, and synergism were estimated based on the IPs according to the following equations:




Color parameters of L*a*b* were determined for the samples at the beginning and at the end of the storage period following the method described by Habibi et al., (2015). In the L*a*b* coordinate system, the L* value represents brightness varying from 0 (black) to 100 (white), while a* value varies from −100 (greenness) to +100 (redness), and the b* value varies from −100 (blueness) to +100 (yellowness). Moreover, the color difference was also calculated in comparison with the control (with or without CA).

2.5. Statistical analysisTOP

All experiments and analyses were performed in triplicate. The results were reported as mean values along with ± standard deviations. Statistical analyses were carried out using Statistical Analysis Software (SAS) version 9.1 (SAS Institute Inc., Cary, NC). All data were treated with the general linear model (GLM) procedure. Significant differences (P < 0.05) were determined among the mean values using the Duncan’s multiple range tests.

3. RESULTS AND DISCUSSIONTOP

3.1. SpirulinaTOP

Spirulina consisted of protein (63.60%), carbohydrates (17.51%), fat (6.38%), ash (7.03%), and moisture (5.48%). Spirulina was characterized by high protein content and low moisture content.

3.1.1. Fatty acid compositionTOP

As shown in Table 1, palmitic acid (54.03%), γ-linolenic acid (21.03%), and linoleic acid (18.59%) were the major fatty acids identified in Spirulina. Golmakani et al., (2012a) also evaluated the fatty acid compositions of Spirulina cultivated under different conditions. Similar to the findings herein, they reported that the major fatty acids present in Spirulina were palmitic acid (47.5–50.4%), γ-linolenic acid (23.6–25.4%), and linoleic acid (12.5–14.6%).

Table 1. Fatty acid composition of Spirulina and olive oil
Fatty acid Relative peak area (%)
Spirulina Olive oil
Myristic acid (C14:0) 1.68 ± 0.17* ND**
Palmitic acid (C16:0) 54.03 ± 0.92 17.14 ± 0.05
Palmitoleic acid (C16:1 ω-7) 0.87 ± 0.74 ND
Stearic acid (C18:0) ND 0.42 ± 0.16
Oleic acid (C18:1 ω-9) 3.81 ± 0.26 75.44 ± 3.77
Linoleic acid (C18:2 ω-6) 18.59 ± 0.06 5.71 ± 3.03
α-Linolenic acid (C18:3 ω-3) ND 1.29 ± 0.53
γ-Linolenic acid (C18:3 ω-6) 21.03 ± 0.18 ND
Ʃ Saturated fatty acid (SFA) 55.71 ± 0.75 17.59 ± 0.16
Ʃ Monounsaturated acid (MUFA) 4.68 ± 0.99 74.90 ± 2.75
Ʃ Polyunsaturated fatty acid (PUFA) 39.61 ± 0.24 7.51 ± 2.60
* Mean ± SD (n=3).
** Not detected.

Only small amounts of PUFAs (0.02, 0.03, and 0.04%) can be liberated into the olive oil by adding 0.5, 1.0, and 1.5% Spirulina, respectively. Therefore, these minor amounts cannot be deemed the cause for significant alterations in the PUFA contents of the olive oil.

3.1.2. Antioxidant propertiesTOP

The initial carotenoid and chlorophyll contents of Spirulina were found to be 0.51 and 11.98 mg/g, respectively. Also, Mendiola et al., (2009) determined the composition of Spirulina pacifica and detected that it contained 1.00 mg/g carotenoids and 2.16 mg/g chlorophylls.

The IC50 value of the Spirulina extract was found to be 0.364 ± 0.003 mg/mL. Therefore, Spirulina was proven to have an apt role as a radical scavenger. BHT manifested an IC50 value of 0.0363 mg/mL. Therefore, BHT exhibited higher DPPH radical scavenging activity than Spirulina.

3.2. Olive oilTOP

3.2.1. Analytical indicesTOP

The free acidity, PV, AV, TV, K232 value, and K268 value of olive oil were 1.76 ± 0.15 g oleic acid/100 g, 4.18 ± 0.21 meq O2/kg, 3.77 ± 0.05 mg/kg, 12.13 ± 0.05, 1.25 ± 0.13, and 0.10 ± 0.00, respectively.

3.2.2. Fatty acid compositionTOP

According to Table 1, the major fatty acids were found to be oleic acid (75.44%), palmitic acid (17.14%), and linoleic acid (5.71%). The oil was rich in MUFA (74.90%).

3.3. Oxidative stability of olive oil incorporated with SpirulinaTOP

3.3.1. Primary, secondary, and total oxidation productsTOP

The samples began to oxidize during accelerated storage and the oxidation progress was analyzed by measuring primary, secondary, and total oxidation products. The PV of the control was increased until day 8 of storage (Figure 1a). The control had a maximum PV of 21.81 meq O2/kg after 8 days of storage, which led to its increased oxidation by 45.21–57.63% more than other samples. Thereafter, the control underwent a decrease in the PV as the oxidation progressed and the value reached 18.97 meq O2/kg. Simultaneously, the AV result of the control showed a rapid increase in the formation of secondary oxidation products from day 8 onwards of storage. Rapid oxidation can be a result of the instability of hydro-peroxides in the control, thereby generating further secondary oxidation products. The control yielded a significantly higher PV than other samples throughout the storage period. The PVs of samples other than the control exhibited an increasing trend during the storage period. The PVs of samples containing 0.5, 1.0, and 1.5% Spirulina at the end of the storage period were measured to be14.62, 14.57, and 14.00 meq O2/kg, respectively, which is significantly lower than the value of the control after 8 days of storage (21.81 meq O2/kg). The release of bioactive compounds from Spirulina can delay the oxidation of olive oil. Similarly, Farvin and Jacobsen (2015) evaluated the antioxidant activity of the extracts of seaweeds Fucus serratus and Polysiphonia fucoides in a fish oil-in-water emulsion. Their results showed that the PV of the emulsion containing the ethanolic extract of Polysiphonia fucoides was lower than that of the control throughout the storage period.

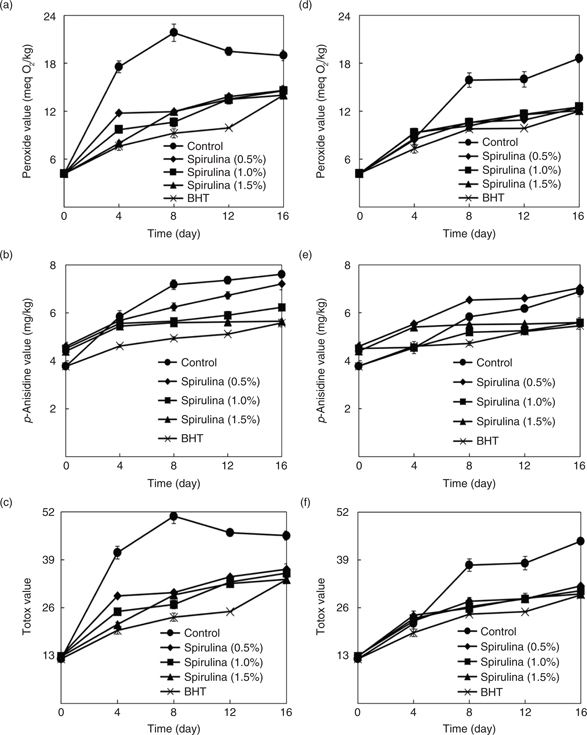

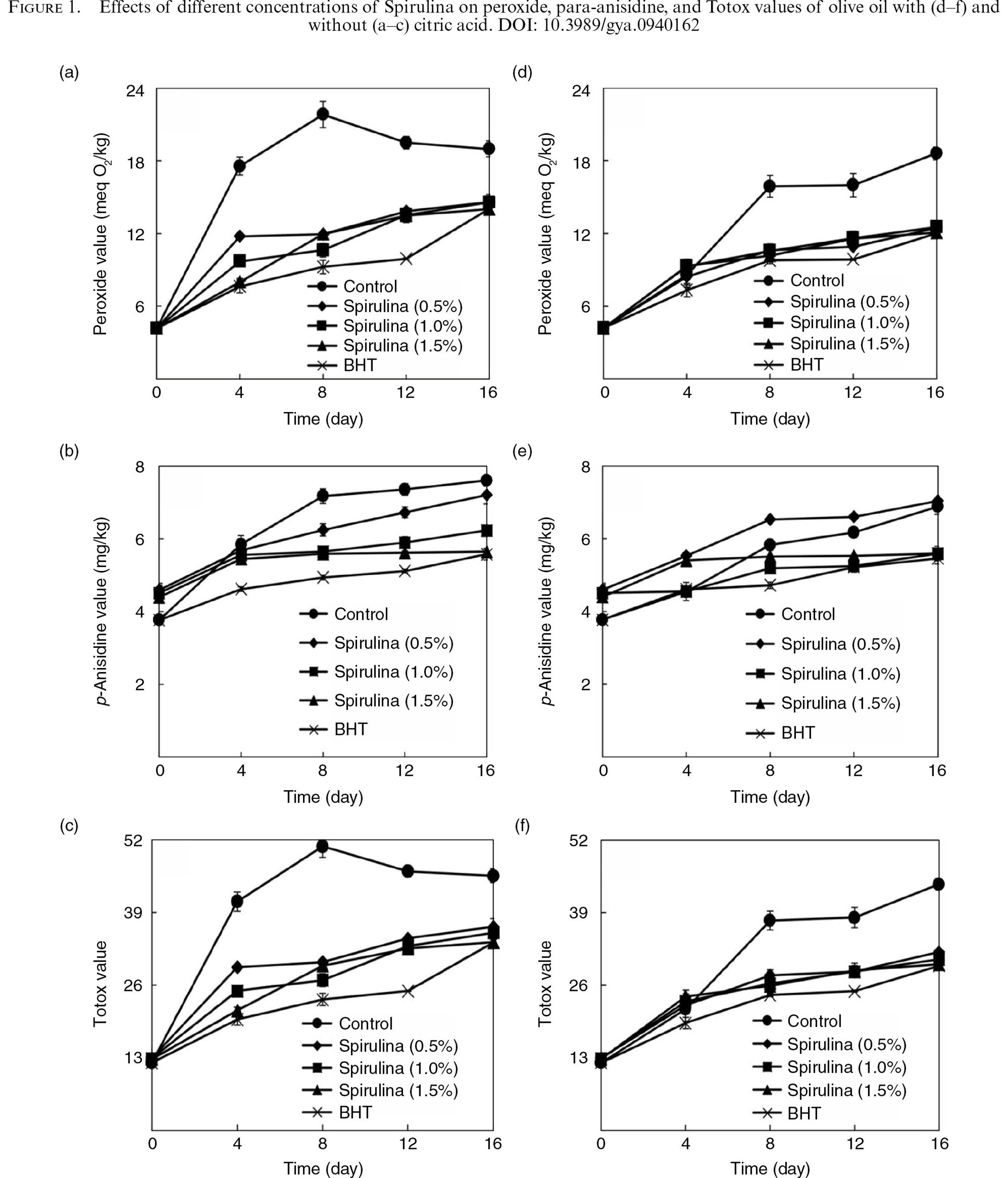

Figure 1. Effects of different concentrations of Spirulina on peroxide, para-anisidine, and Totox values of olive oil with (d–f) and without (a–c) citric acid.



After 12 days of storage, the PV of the BHT sample (9.91 meq O2/kg) was significantly lower than those of the Spirulina samples (13.52–13.83 meq O2/kg). Thereafter, the BHT sample, however, showed a PV of 14.03 meq O2/kg, similar to those of the Spirulina samples (14.00–14.62 meq O2/kg). Siriwardhana et al., (2004) compared the PVs of brown alga Hizikia fusiformis extracts and BHT in fish oil. They reported that both Hizikia fusiformis extracts and BHT had significantly lower PVs than the control; however, the highest concentration of Hizikia fusiformis manifested a slightly higher efficiency than BHT.

The PVs of samples containing CA were observed to increase along with a longer storage period (Figure 1d). The control presented the highest PV during storage. At the end of the storage period, the PVs of the Spirulina samples at concentrations of 0.5, 1.0, and 1.5% were significantly lower by 33.01, 32.69, and 35.11%, respectively, compared to the control. Different Spirulina concentrations showed fairly similar PV patterns of change in value during the storage period, suggesting that a further antioxidant potential failed to be achieved at higher concentrations of Spirulina. At the end of the storage period, there were no significant differences among the PVs of samples containing BHT and Spirulina. At this stage, the PVs of all samples containing CA were significantly lower than those of their corresponding samples without CA.

The AVs of samples increased during the storage period (Figure 1b). The AV of the control was significantly higher than those of other samples throughout the storage period and finally reached 7.61 mg/kg. At the end of storage period, the Spirulina samples (0.5, 1.0, and 1.5%) exhibited significantly lower AVs, reaching amounts of 7.21, 6.23, and 5.65 mg/kg, respectively. Consequently, the formation of secondary oxidation products can be retarded by adding Spirulina. In the case of the Spirulina samples, the AVs decreased when higher concentrations of Spirulina were applied. Also, at the end of the storage period, the lowest AVs were observed in samples containing 1.5% Spirulina (5.65 mg/kg) and BHT (5.58 mg/kg).

The AVs of the samples containing CA increased during the storage period (Figure 1e). At the end of the storage period, the control and the sample containing 0.5% Spirulina showed the highest AVs (6.88 and 7.04 mg/kg, respectively). At this stage, the AVs of the samples containing 1.0% and 1.5% Spirulina were 5.59 mg/kg, and were similar to the AV of the BHT sample (5.46 mg/kg). Although the AVs of the control and also the sample containing 1.0% Spirulina with CA were significantly lower than those of their corresponding samples without CA, there were no significant differences among the AVs of 0.5% Spirulina, 1.5% Spirulina, and the BHT samples with and without CA throughout the storage period.

The trends observed in the TV results were similar to those in the PV results. The TV of the control reached a maximum value of 50.80 after 8 days of the storage, which was 1.69–2.17 times higher than the TVs observed in the Spirulina samples (Figure 1c). Subsequently, the TV of the control decreased, measuring 45.55 at the end of the storage period. In comparison with the control, the TVs of the Spirulina samples (0.5, 1.0, and 1.5%) were significantly lower, measuring 36.44, 35.37, and 33.66, respectively, at the end of the storage period. Kindleysides et al., (2012) evaluated the antioxidant activities of the extracts of two brown seaweeds (Ecklonia radiata and Macrocystis pyrifera) and two red seaweeds (Champia sp. and Porphyra sp.) in hoki oil. Their results showed that all seaweed extracts exhibited lower TVs than the control.

At the end of the storage period, the TV of BHT sample measured 33.64, exhibiting a similar value compared with the condition where the concentrations of 1.0 and 1.5% Spirulina were applied.

The TVs of the samples containing CA increased as a result of longer storage periods (Figure 1f). The control exhibited the highest TV during storage. At the end of the storage period, the TVs of the Spirulina samples (0.5, 1.0, and 1.5%) were significantly lower by 27.51, 30.55, and 32.57%, respectively, than the control. The TVs of the samples containing 1.0 and 1.5% Spirulina finally reached 30.62 and 29.73, respectively, and were similar to that of the BHT sample (29.49). The TVs of all the samples containing CA were significantly lower than those of their corresponding samples without CA at the end of the storage period.

3.3.2. Antioxidant indicesTOP

To compare the efficiencies of the various antioxidants used in this research, some indices were evaluated (Table 2). In comparison with the control, which exhibited an IP of 6.50 days, significantly higher IPs were observed when adding different concentrations of Spirulina to the olive oil. The inclusion of Spirulina in the olive oil increased the IP to a range of 23.28–23.46 days. This finding can be attributed to the activity of bioactive compounds which are most probably known to emanate from Spirulina. Chakraborty et al., (2016) applied the rancimat method to evaluate the effects of combining the extracts from the seaweeds Kappaphycus alvarezii, Hypnea musciformis, and Jania rubens on improving the oxidative stability of concentrated FAMEs obtained from sardine oil. They found that the IP of the sample containing the seaweed combination (6.80 h) was significantly higher than that of the control (0.28 h).

Table 2. Effects of different concentrations of Spirulina on antioxidant indices of olive oil
Sample Induction period (IP; day) Protection factor (PF) Antioxidant activity (AA) Improved oxidative stability (IOS; %) Synergism (%)
Without citric acid
 Control 6.50 ± 0.22c* 1.00 ± 0.00c - - -
 Spirulina (0.5%) 23.28 ± 1.03b 3.58 ± 0.16b 5.16 ± 0.32b 258.10 ± 15.81b -
 Spirulina (1.0%) 23.46 ± 1.28b 3.61 ± 0.20b 2.61 ± 0.20b 260.21 ± 19.76b -
 Spirulina (1.5%) 23.41 ± 0.31b 3.60 ± 0.05b 1.74 ± 0.03b 260.21 ± 4.75b -
 BHT 28.03 ± 0.82a 4.31 ± 0.13a 331.28 ± 12.67a 331.28 ± 12.67a -
With citric acid
 Control 16.15 ± 0.97c* 1.00 ± 0.00c - - -
 Spirulina (0.5%) 30.43 ± 0.19b 1.88 ± 0.01b 1.77 ± 0.03b 88.44 ± 1.18b −10.41 ± 4.20a
 Spirulina (1.0%) 29.91 ± 1.34b 1.85 ± 0.08b 0.85 ± 0.08b 85.20 ± 8.32b −13.83 ± 6.84a
 Spirulina 1.5%) 31.41 ± 0.93ab 1.94 ± 0.06b 0.63 ± 0.03b 94.47 ± 5.71ab −6.78 ± 5.09a
 BHT 33.00 ± 0.86a 2.04 ± 0.05a 52.17 ± 2.66a 102.85 ± 5.66a −17.80 ± 6.40a
* Mean ± SD (n=3); In each column and for each part (i.e. with or without citric acid), means with different letters are significantly different (P < 0.05).

According to Table 2, there were no significant differences among the IPs of the Spirulina samples. Therefore, adding Spirulina at the concentration of 0.5% can be considered the most economically sufficient concentration for extending the shelf life of olive oil. Applying lower but effective concentrations of alga can be valuable from an economic standpoint (Kindleysides et al.,2012). The BHT sample manifested the highest IP, which was 28.03 days.

The IPs of the Spirulina samples containing CA ranged from 29.91 to 31.41 days and were significantly higher than the IP of the control, which was 16.15 days. No significant differences, however, were observed among the Spirulina samples. Also, the BHT sample containing CA had a significantly higher IP than those of the Spirulina samples. The IPs of the control, 0.5%, 1.0%, and 1.5% Spirulina, and the BHT sample containing CA were significantly higher than those of their corresponding samples without CA.

Spirulina samples (with or without CA) showed significantly higher PFs in comparison with their corresponding control (Table 2). However, by increasing the Spirulina concentration from 0.5% to 1.5%, the PF values remained almost constant. The PF values of the BHT samples (with or without CA) were significantly higher than those of their corresponding Spirulina samples.

Unlike IP and PF, the AA index is dependent on the concentration of antioxidants (Antolovich et al., 2002). Although there were no significant differences among the AAs of various concentrations of Spirulina samples (with or without CA), The AA of the BHT sample (with or without CA) was significantly higher than those of their corresponding Spirulina samples (Table 2).

Adding 0.5, 1.0, and 1.5% Spirulina increased the IOS, ranging from 258.10 to 260.21% (Table 2). There were no significant differences among the IOS values of Spirulina samples, suggesting that adding 0.5% Spirulina to the olive oil can be sufficient to exert its optimum effect. The IOS value of the BHT sample measured 331.28%, and was significantly higher than those of the Spirulina samples.

The Spirulina samples containing CA recorded IOS values in the range of 85.20–94.47% (Table 2). The BHT sample containing CA (102.85%), however, showed a significantly higher IOS value than the Spirulina samples containing CA.

Synergistic effects were not detected between CA and Spirulina since synergism values were negative, ranging from −13.83 to −6.78% (Table 2). The Cooperative actions of synergism were not observed between BHT and CA either.

3.3.3. K232 and K268 valuesTOP

Complementary oxidative stability indices such as K232 and K268 values represent the presence of conjugated diene and triene compounds, respectively (AOCS, 1998; Katsoyannos et al., 2015). The K232 values of the samples were increased by prolonged storage periods (Figure 2a). The control staged the highest K232 value throughout the storage period. The K232 values of the Spirulina samples (0.5, 1.0, and 1.5%) were significantly lower (by 31.94, 36.46, and 29.86%, respectively) compared to the control at the end of the storage period. The observed efficiency acted upon the olive oil can be due to the progressive release of bioactive compounds from Spirulina into the olive oil.

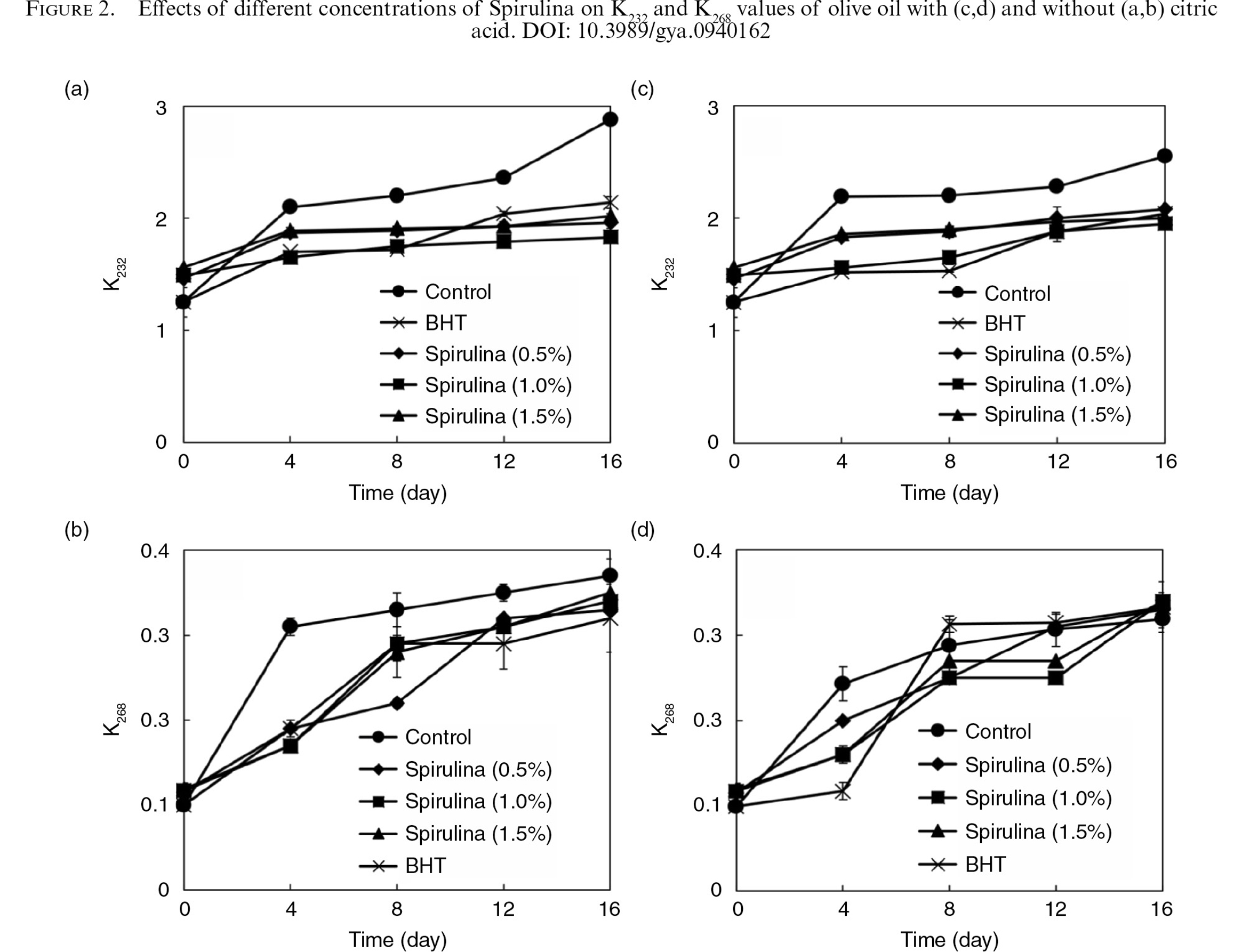

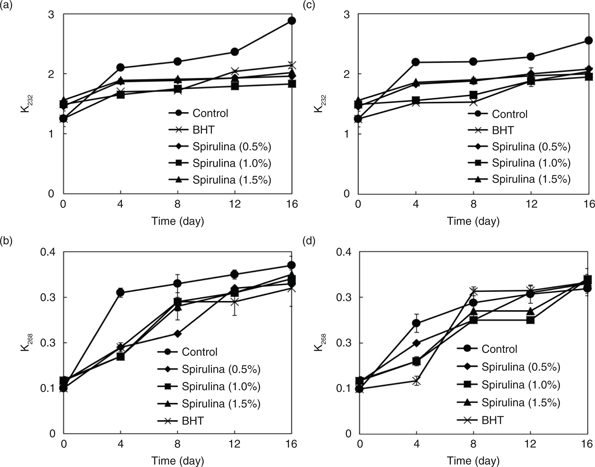

Figure 2. Effects of different concentrations of Spirulina on K232 and K268 values of olive oil with (c,d) and without (a,b) citric acid.



The K232 values of the samples containing CA were increased by longer storage periods (Figure 2c). The control was recorded to have a significantly higher K232 value than those of other samples throughout the storage period. In comparison with the control, the K232 values of the Spirulina samples (at concentrations of 0.5, 1.0, and 1.5%) were significantly lower (by 18.43, 23.53, and 21.57%, respectively) at the end of the storage period.

The K268 values of all the samples increased as a result of longer storage periods (Figure 2b). After 8 days of storage, the Spirulina samples had significantly lower K268 values than the control. Thereafter, K268 values of the samples containing 1.0 and 1.5% Spirulina were similar to that of the control. The BHT sample recorded a K268 value similar to those of samples containing 1.0 and 1.5% Spirulina at the end of the storage period.

K268 values of the samples containing CA increased over time (Figure 2d). At the end of the storage period, the K268 values of the Spirulina samples and BHT were similar to that of the control.

3.3.4. Carotenoid and chlorophyll contentsTOP

The Antioxidant activity of Spirulina was generally attributed to its carotenoid and chlorophyll contents (Santoyo et al., 2006). Carotenoids can prevent oxidation by scavenging free radicals (reactive oxygen species) or trapping the singlet oxygen. The carotenoid content of the control was 6.16 mg/kg and decreased by 16.17% during the storage period (Table 3). In comparison with the control, however, the Spirulina samples at concentrations of 0.5, 1.0, and 1.5% contained carotenoid contents that were respectively 1.12, 1.36, and 1.50 times higher than the control. This finding can be attributed to the release of Spirulina pigments into the olive oil. Although the carotenoid content of the control sample decreased at the end of the storage period, the carotenoid contents of the Spirulina samples slightly increased at the same time. This progressive trend of increase can be explained by the higher rate of carotenoid liberation compared to its decomposition.

Table 3. Effects of different concentrations of Spirulina on carotenoid and chlorophyll contents of olive oil
Sample Chlorophyll Carotenoid
Initial content (mg/kg) Final content (mg/kg) Relative change (%) Initial content (mg/kg) Final content (mg/kg) Relative change (%)
Without citric acid
 Control 6.16 ± 0.04d* 5.16 ± 0.06e −16.17 ± 1.52c 15.49 ± 0.22d 10.04 ± 0.19e −32.78 ± 0.72e
 Spirulina (0.5%) 6.87 ± 0.40c 6.91 ± 0.22c +0.69 ± 2.85a 19.02 ± 0.35c 25.52 ± 0.09c +34.22 ± 2.50c
 Spirulina (1.0%) 8.36 ± 0.15b 8.54 ± 0.09b +2.26 ± 2.55a 20.03 ± 0.24b 39.11 ± 0.20b +90.96 ± 1.59a
 Spirulina (1.5%) 9.25 ± 0.14a 9.46 ± 0.07a +2.31 ± 1.52a 24.46 ± 0.09a 44.14 ± 0.14a +81.15 ± 0.77b
 BHT 6.16 ± 0.04d 5.46 ± 0.04d −11.36 ± 1.06b 15.49 ± 0.22d 12.26 ± 0.77d −20.86 ± 4.12d
With citric acid
 Control 6.16 ± 0.04d* 5.30 ± 0.03d -13.90 ± 1.09b 15.49 ± 0.22d 10.34 ± 0.19e −33.25 ± 1.72e
 Spirulina (0.5%) 6.93 ± 0.03c 7.02 ± 0.11c +1.44 ± 1.32a 18.44 ± 0.35c 25.04 ± 0.12c +35.88 ± 2.62c
 Spirulina (1.0%) 8.13 ± 0.12b 8.33 ± 0.06b +2.46 ± 0.75a 19.93 ± 0.12b 37.89 ± 0.06b +90.06 ± 0.99a
 Spirulina (1.5%) 9.33 ± 0.14a 9.59 ± 0.05a +2.85 ± 0.48a 24.27 ± 0.05a 43.96 ± 0.10a +81.13 ± 0.77b
 BHT 6.16 ± 0.04d 5.48 ± 0.04d −11.04 ± 0.39b 15.49 ± 0.22d 10.98 ± 0.08d −29.08 ± 1.47d
* Mean ± SD (n=3); In each column and for each part (i.e. with or without citric acid), means with different letters are significantly different (P < 0.05).

The carotenoid contents of the samples containing 0.5, 1.0, and 1.5% Spirulina (with CA) were respectively 12.5, 31.98, and 51.46% higher than that of the control sample (Table 3). The carotenoid content of the control sample containing CA decreased at the end of the storage period, but the carotenoid contents of the Spirulina samples containing CA were observed to remain almost constant over time.

Chlorophyll is one of the most important molecules acting as an antioxidant agent in a dark environment (Criado et al., 2008). In comparison with the control samples (with or without CA), the chlorophyll contents of the Spirulina samples were significantly higher, both at the beginning and at the end of the storage period (Table 3). The chlorophyll contents of the control samples (with or without CA) decreased at the end of the storage period, but the chlorophyll contents of the Spirulina samples increased.

3.3.5. Color attributesTOP

In comparison with the control samples (with or without CA), the L* values of the Spirulina samples were significantly lower, both at the beginning and at the end of the storage period (Table 4). The release of pigments from Spirulina caused a reduced brightness of the olive oil. Relevant to this context, Fradique et al., (2010) measured the color attributes of pasta containing Spirulina maxima and found a decrease in its L* value in comparison with the control group of pasta.

Table 4. Effects of different concentrations of Spirulina on color attributes of olive oil
Sample L* a* b* ΔE**
Initial Final Initial Final Initial Final Initial Final
Without citric acid
 Control 57.67 ± 0.82a*** 55.00 ± 0.71b −5.50 ± 0.55a −4.40 ± 0.55a 56.83 ± 0.98a 51.40±0.55b - -
 Spirulina (0.5%) 51.78 ± 0.41b 50.50 ± 0.58c −6.83 ± 0.41b −7.17 ± 0.41b 50.80 ± 0.45b 50.25 ± 0.50c 8.59 ± 0.09c 5.31 ± 0.69d
 Spirulina (1.0%) 50.17 ± 0.41c 49.00 ± 0.00d −6.83 ± 0.41b −8.75 ± 0.50c 50.25 ± 0.50b 49.00 ± 0.00d 9.67 ± 0.98b 7.53 ± 0.25b
 Spirulina (1.5%) 48.60 ± 0.54d 47.83 ± 0.75e −7.50 ± 0.58b −9.50 ± 0.58d 50.20 ± 0.84b 44.25 ± 0.50e 11.15 ± 0.29a 10.84 ± 0.31a
 BHT 57.60 ± 0.55a 56.00 ± 0.00a −5.50 ± 0.57a −5.00 ± 0.00a 56.50 ± 0.58a 56.75 ± 0.50a 0.35 ± 0.71d 6.31 ± 0.53c
With citric acid
 Control 58.00 ± 0.00a1 57.50 ± 0.58a −5.50 ± 0.58a −4.75 ± 0.50a 56.50 ± 0.58a 54.50 ± 0.58b - -
 Spirulina (0.5%) 50.75 ± 0.50b 49.50 ± 0.58b −6.75 ± 0.50b −7.50 ± 0.58b 50.75 ± 0.50b 50.00 ± 0.00c 9.38 ± 0.51c 9.60 ± 0.36c
 Spirulina (1.0%) 50.00 ± 0.00c 49.50 ± 0.58b −6.80 ± 0.45b −8.25 ± 0.50c 50.00 ± 0.00c 49.25 ± 0.50d 10.27 ± 0.29b 10.28 ± 0.21b
 Spirulina (1.5%) 46.75 ± 0.50d 44.75 ± 0.50c −7.50 ± 0.58b −9.00 ± 0.00d 49.00 ± 0.00d 44.75 ± 0.50e 13.67 ± 0.65a 16.42 ± 0.75a
 BHT 57.80 ± 0.45a 57.00±0.00a −5.75 ± 0.50a −5.00 ± 0.00a 56.50 ± 0.58a 56.50 ± 0.58a 0.35 ± 0.71d 2.18 ± 0.12d
** In comparison with its corresponding control as reference.
*** Mean ± SD (n=3); In each column and for each part (i.e. with or without citric acid), means with different letters are significantly different (P < 0.05).

Spirulina samples (with or without CA) manifested lower initial a* values than the control samples, which were accompanied by varied greenness intensities of the olive oil, ranging from a bright green color to an emerald green color (Table 4). At the end of the storage period, the a* values of the Spirulina samples decreased due to the release of Spirulina’s green pigments. The a* value of the control sample increased at the end of the storage period, which can be due to the degradation of chlorophyll molecules.

According to Table 4, the initial b* values of the Spirulina samples were significantly lower than those of the control samples. The release of pigments during the the storage period led to the reduction of the final b* values in the Spirulina samples.

The ΔE values of the Spirulina samples increased when higher concentrations of Spirulina were applied (Table 4). The ΔE values of the Spirulina samples were significantly higher than those of the BHT samples.

4. CONCLUSIONSTOP

In this study, the effects of different Spirulina concentrations, either used alone or in combination with CA on the oxidative stability of olive oil were assessed. Lower amounts of primary, secondary, and total oxidation products were obtained in samples with different concentrations of Spirulina. No synergistic effects were observed between Spirulina samples and CA. Spirulina can be regarded as an appropriate source of bioactive compounds aimed at preventing oxidation, maintaining nutritional compounds, and enhancing the shelf life of olive oil.

ACKNOWLEDGEMENTSTOP

This research project was financially supported by Shiraz University. We would like to thank the Edible Oil Industries Group of The Etka Organization for providing olive oil. We also thank the Iranian editor Mohsen Hamedpour-Darabi for editing the English language of the paper.



REFERENCESTOP


Antolovich M, Prenzler PD, Patsalides E, Mcdonald S, Robards K. 2002. Methods for testing antioxidant activity. Analyst. 127, 183–198. http://dx.doi.org/10.1039/b009171p
AOAC 1997. Official methods of analysis of AOAC international. Association of Official Analytical Chemists.Washington, DC (USA).
AOCS 1998. Official Methods and Recommended Practices of the American Oil Chemists’ Society. Illinois (US), AOCS Press.
Apak R, Güçlü K, Özyürek M, Karademir SE. 2004. Novel Total Antioxidant Capacity Index for Dietary Polyphenols and Vitamins C and E, Using Their Cupric Ion Reducing Capability in the Presence of Neocuproine: CUPRAC Method. J. Agric. Food Chem. 52, 7970–7981. http://dx.doi.org/10.1021/jf048741x
Barjol J-L.2013. Introduction, In Aparicio R, Harwood J. (Eds.) Handbook of Olive Oil: Analysis and Properties. Springer, 4, 6, 12.
Bermejo P, Piñero E, Villar ÁM. 2008. Iron-chelating ability and antioxidant properties of phycocyanin isolated from a protean extract of Spirulina platensis. Food Chem. 110, 436–445. http://dx.doi.org/10.1016/j.foodchem.2008.02.021
Cervejeira Bolanho B, Buranelo Egea M, Morocho Jacome AL, Campos I, Monteiro De Carvalho JC, Godoy Danesi ED. 2014. Antioxidant and nutritional potential of cookies enriched with Spirulina platensis and sources of fibre. J. Food Nutr. Res. (Bratislava, Slovakia) 53, 171–179.
Chakraborty K, Joseph D, Joseph D. 2016. Concentration and stabilization of C20–22 n-3 polyunsaturated fatty acid esters from the oil of Sardinella longiceps. Food Chem. 199, 828–837. http://dx.doi.org/10.1016/j.foodchem.2015.12.082
Criado MN, Romero MP, Casanovas M, Motilva MJ. 2008. Pigment profile and colour of monovarietal virgin olive oils from Arbequina cultivar obtained during two consecutive crop seasons. Food Chem. 110, 873–880. http://dx.doi.org/10.1016/j.foodchem.2008.02.075
Farvin KS, Jacobsen C. 2015. Antioxidant Activity of Seaweed Extracts: In Vitro Assays, Evaluation in 5% Fish Oil-in-Water Emulsions and Characterization. J. Am. Oil Chem. Soc. 92, 571–587. http://dx.doi.org/10.1007/s11746-015-2624-5
Fradique M, Batista AP, Nunes MC, Gouveia L, Bandarra NM, Raymundo A. 2010. Incorporation of Chlorella vulgaris and Spirulina maxima biomass in pasta products. Part 1: Preparation and evaluation. J. Sci. Food Agric. 90, 1656–1664. http://dx.doi.org/10.1002/jsfa.3999
Golmakani MT, Rezaei K, Mazidi S, Razavi SH. 2012a. γ-Linolenic acid production by Arthrospira platensis using different carbon sources. Eur. J. Lipid Sci. Technol. 114, 306–314. http://dx.doi.org/10.1002/ejlt.201100264
Golmakani MT, Rezaei K, Mazidi S, Razavi SH. 2012b. Effect of alternative C2 carbon sources on the growth, lipid, and γ-linolenic acid production of spirulina (Arthrospira platensis). Food Sci. Biotechnol. 21, 355–363. http://dx.doi.org/10.1007/s10068-012-0047-8
Gordon MH, Weng XC. 1992. Antioxidant properties of extracts from tanshen (Salvia miltiorrhiza Bunge). Food Chem. 44, 119–122. http://dx.doi.org/10.1016/0308-8146(92)90322-s
Habibi M, Golmakani MT, Mesbahi G, Majzoobi M, Farahnaky A. 2015. Ultrasound-accelerated debittering of olive fruits. Innovative Food Sci. Emerging Technol. 31, 105–115. http://dx.doi.org/10.1016/j.ifset.2015.06.014
Ismaiel MMS, El-Ayouty YM, Piercey-Normore MD. 2014. Antioxidants characterization in selected cyanobacteria. Ann. Microbiol. 64, 1223–1230. http://dx.doi.org/10.1007/s13213-013-0763-1
Katsoyannos E, Batrinou A, Chatzilazarou A, Bratakos SM, Stamatopoulos K, Sinanoglou VJ. 2015. Quality parameters of olive oil from stoned and nonstoned Koroneiki and Megaritiki Greek olive varieties at different maturity levels. Grasas Aceites 66, e067. http://dx.doi.org/10.3989/gya.0711142
Keramat M, Golmakani, M-T. 2016. Effect of Thymus vulgaris and Bunium persicum essential oils on the oxidative stability of virgin olive oil. Grasas Aceites 67, e162. http://dx.doi.org/10.3989/gya.0337161
Kindleysides S, Quek SY, Miller MR. 2012. Inhibition of fish oil oxidation and the radical scavenging activity of New Zealand seaweed extracts. Food Chem. 133, 1624–1631. http://dx.doi.org/10.1016/j.foodchem.2012.02.068
Luzia MR, Trugo LC, Da Paixao KCC, MarcíLio R, De Maria CAB, Quinteiro LMC. 1998. Effect of 5-Caffeoylquinic Acid in the Presence of Metal Chelators on Soybean Oil Oxidative Stability. LWT-Food Sci. Technol. 31, 64–68. http://dx.doi.org/10.1006/fstl.1997.0294
Mendiola JA, Martín-Álvarez PJ, SeñOráNs FJ, Reglero G, Capodicasa A, Nazzaro F, Sada A, Cifuentes A, Ibáñez E. 2009. Design of Natural Food Antioxidant Ingredients through a Chemometric Approach. J. Agric. Food Chem. 58, 787–792. http://dx.doi.org/10.1021/jf901951z
Minguez-Mosquera MI, Rejano-Navarro L, Gandul-Rojas B, Sanchezgomez AH, Garrido-Fernandez J. 1991. Color-pigment correlation in virgin olive oil. J. Am. Oil Chem. Soc. 68, 332–336. http://dx.doi.org/10.1007/bf02657688
Pokorny, J. 2007. Antioxidants in food preservation, In Rahman MS. (Ed.) Handbook of Food Preservation. CRC press, 274–275.
Raheem A, Azlina WW, Yap YT, Danquah MK, Harun R. 2015. Thermochemical conversion of microalgal biomass for biofuel production. Renewable Sustainable Energy Rev. 49, 990–999. http://dx.doi.org/10.1016/j.rser.2015.04.186
Santoyo S, Herrero M, Senorans FJ, Cifuentes A, Ibáñez E, Jaime L. 2006. Functional characterization of pressurized liquid extracts of Spirulina platensis. Eur. Food Res. Technol. 224, 75–81. http://dx.doi.org/10.1007/s00217-006-0291-3
Shalaby EA, Shanab SMM. 2013. Comparison of DPPH and ABTS assays for determining antioxidant potential of water and methanol extracts of Spirulina platensis. Indian J. Geo-Mar. Sci. 42, 556–564.
Siriwardhana N, Lee KW, Kim SH, Ha JH, Park GT, Jeon YJ. 2004. Lipid Peroxidation Inhibitory Effects of Hizikia fusiformis Methanolic Extract on Fish Oil and Linoleic acid. Food Sci. Technol. Int. 10, 65–72. http://dx.doi.org/10.1177/1082013204043883
Spolaore P, Joannis-Cassan C, Duran E, Isambert A. 2006. Commercial applications of microalgae. J. Biosci. Bioeng. 101, 87–96. http://dx.doi.org/10.1263/jbb.101.87
Şükran D, Güneş T, Sivaci R. 1998. Spectrophotometric determination of chlorophyll-A, B and total carotenoid contents of some algae species using different solvents. Turk. J. Bot. 22, 13–18.
Taghvaei M, Jafari SM.2013. Application and stability of natural antioxidants in edible oils in order to substitute synthetic additives. J. Food Sci. Technol. 52, 1272–1282. https://doi.org/10.1007/s13197-013-1080-1
