Physicochemical characteristics, thermal stability and antioxidant characteristics of Trichosanthes kirilowii maxim seed oil as affected by different extraction methods

Z.K. Hou^a, Q.Z. Ji^b, L. Yang^a, Z.Q. Gao^b and B.C. Wang^a,*

^aBiotechnology and Pharmaceutical Engineering, Nanjing Tech University, Nanjing 211800, China.

^bSchool of Pharmaceutical Sciences, Yancheng Teachers College, Yancheng 224007, China.

*Corresponding author: wangbc2000@126.com

1. INTRODUCTIONTOP

Over 80 species of Trichosanthes are found across the globe and, 40 of them are thought to exist in China. Traditional Chinese medicine has been putting the fruits, seeds, and roots to frequent use. Moreover, they are considered as some of 50 core herbs (Wang et al., 2009). A good number of research studies have been carried out to report on the chemical components as well as the biological function of T. kirilowii including antitumor, anti-HIV, and anti-tyrosinase (Dat et al., 2010). Huang et al. (2000) brought forth a report that T. kirilowii seeds contribute to an energy-affluent diet that contains 62% oil together with up to 30% proteins in addition to 2.5% mono- and oligosaccharides.

A good amount of attention has been received by TSO due to its high content in conjugated linolenic acids (CLNA) (Jiang et al., 2015). Various health advantages have been shown by CLNA isomers that include anti-carcinogenic, lipid metabolism regulation, anti-inflammatory, anti-obese and antioxidant functions (Yuan et al., 2014). Nevertheless, these uncommon fatty acids that are constrained to triacylglycerols are able to be simply oxidized and polymerized to viscous oils, despite being exposed to typical temperatures (Joh et al., 1995). The methods used for oil extraction are likely to alter minor constituents that have functional properties and contribute to oxidation stability. Nowadays, more and more people have focused on cold extracted oils because the oils attained possess optimal nutritive characteristics. Cold pressing is termed to be a technology that does not take into account heat or chemical treatments throughout oil extraction. The fact that there is no refining also is part of cold pressing is likely to result in an optimal degree of lipophilic phytochemicals that includes natural antioxidants (Kiralan et al., 2014).

This study aims at the extraction of oil from T. kirilowii seeds with the help of cold pressing, hot pressing and soxhlet extraction. A comparison study among the three oils with regards to their physicochemical properties and chemical composition in addition to thermal stability was carried out. Furthermore, the antioxidant potential of the oils was assayed by applying the b-carotene bleaching tests; 1-diphenyl-2-picrylhydrazyl (DPPH) and 2-Azinobis-(3-ethylbenzthiazoline-6-sulphonate) (ABTS) radical scavenging examination.

2. MATERIALS AND METHODSTOP

2.1. Specimens and reagentsTOP

A collection of T. kirilowii seeds was taken from the Jiangsu Provinces (China) from the T. kirilowii seed yield in the month of October, 2015. Prior to analyses, the T. kirilowii seeds were persevered at -4 °C. DPPH, ABTS, Trolox, Rutin, Cholesterol, α-tocopherol and γ-tocopherol were secured from the Aladdin Industrial Corporation (Shanghai, China). The purchase of Fatty acid methyl esters (FAMES) was made from Nu-Chek-Prep Inc (Elysian, MN, USA). The procurement of the rest of the chemicals as well as reagents of analytical standard was done from Sinopharm Chemical Reagent Co. Ltd. (Shanghai, China).

2.2. Chemical characteristics of T. kirilowii seedsTOP

The determination of the fat, moisture, protein, ash, and crude fiber contents of the T. kirilowii seeds was carried out according to GB/T 14488.1-2008, GB/T 14489.1-2008, GB/T 14489.2-2008, GB/T 5505-2008 and GB/T 5515-2008 (Chinese national standard, 2008).

2.3. Oil extractionTOP

The extraction of T. kirilowii seed oils was done with the help of three varied approaches listed to be the Soxhlet approach, Cold pressing and Hot pressing. According to the Soxhlet method, as described by GB/T 14488.1-2008, T. kirilowii seeds were directly pressed with a hydraulic press (T100 model, Shandon, China) for Cold pressing and Hot pressing. Cold pressing: T. kirilowii seeds were pressed at a temperature of 25 °C with no thermal processing. Hot pressing: T. kirilowii seeds were stir-fried 30 min, and pressed at a temperature of 110 °C. The other extraction condition was the same with the exception of a pressure of 50 MPa and pressing for 50 min. Collection and clarification of the pressed oils with fine suspended solids was carried out by centrifuging at 8000g for 15 minutes at 4 °C. Finally, the seed oils were put in dark bottles which were then flashed with nitrogen gas and placed in a freezer at -20 °C temperature for succeeding physicochemical analyses. The oil yield was computed with the help of the following equation:

Where M₁ denotes the weights of T. kirilowii seeds (g) and M₂ represents the T. kirilowii seeds after extracted weight (g).

2.4. Determination of oil quality indicesTOP

The acid value (AV), peroxide value (PV), iodine value (IV), saponification value (SV) and refractive index (RI) shown by the oil specimens were determined according to GB/T 5530-2005, GB/T 5538-2005, GB/T 5532-2008, GB/T 5534-2008 and GB/T 5527-2010.

2.5. Determination of fatty acid (FA) compositionTOP

Preparation of the FAME solution of the oil specimens was done as per the bases of the method of Sun et al. (2013). 0.1 g of oil specimen was dissolved in 1 mL petroleum ether and 1 mL benzene, adequately shaken for the purpose of dissolution of the oil, and, thereafter, completely blended with 2 mL of a 0.4mol/L KOH-CH₃OH solution. For a time period of ten minutes, the mixture was stored at room temperature, and 6 mL of saturated NaCl solution were added. The upper layer was removed for the gas chromatography (GC) analysis.

The FA composition of the oil specimens was determined by GC instrument (Model GC-7890B, Agilent, USA) equipped with a DB-WAXETR capillary column (30 m×0.25 mm×0.25 μm, Agilent, USA) and a flame ionization detector (FID) in addition to helium as the carrier gas. 1 μL of the FAME solution was injected into the split mode at a ratio of 1:30. The column temperature program was as follows: 140 ºC (2 min), 140-210 ºC (10 ºC/min), 210-250 ºC (5 ºC/min), 250 ºC (5 min). The injector as well as detector temperatures were 280 ºC. The identification of fatty acids was done by comparing their respective retention times (Rt) with matching standards. Furthermore, calculation of the composition of Fatty acids was done taking into account the relative FID response regions. All determinations were conducted in triplicate.

2.6. Determination of total phytosterols (TP)TOP

The specimens were prepared in accordance with the approach by Chirinos et al. (2013). The TP content was brought to analysis as per the Sulfate-Phosphate-Ferric approach with some modifications. 4 mL of sample extract were placed in a 10 mL test tube in addition to 2 mL of a Sulfate-Phosphate-Ferric chromogenic agent, shaken and cooled to room temperature. Absorption at a value of 480 nm was calculated in a Shimadzu UV-Vis Spectophotometer (Shimadzu UV-1800, KYOTO, JAPAN) against a blank sample. The TP was described as Cholesterol in milligrams per gram of oil, with the help of a standard curve (Y = 0.0057X + 0.1084 R² = 0.9941) produced with 50-200 μg/mL.

2.7. Determination of total tocopherols (TT)TOP

Total tocopherols were determined with the help of a HPLC system. A Hypersil BDS C18 column (250×4.6 mm, 5 μm) was used with methanol/water (96:4) as the mobile phase with a flow rate of 1 mL/min. Specimen preparation was performed in accordance with the HY/T 1598-2008 (Chinese agricultural standard, 2008).

2.8. Determination of total flavonoids (TF)TOP

The extraction of TF from the oil was done in accordance with the method of Liu et al. (2013). 10 mL of 90% alcohol were added to 1 g of oil sample, and extracted for 1 h by ultrasonic. After centrifugation (15 min, 4000 g, ambient temperature), the supernatants were separated, packed and retained in the dark at 4 °C well before the TF assay.

The analysis of TF was carried out in accordance with the method of Xu et al. (2015) with some modifications. With the rutin solution (0-0.1 mg/mL) as standard, the standard curve (Y = 7.3111X + 0.0551, R² = 0.9981) was drawn. In accordance with the drawn standard curve, the material of aggregate flavonoids was computed and described as the amount of rutin in weight (mg) in 1 g oil, mg/g.

2.9. Determination of total phenolic compounds (TPC)TOP

Phenolic compounds were extracted from the oil in accordance with the method of Rombaut et al. (2015). The analysis of the TPC content was conducted in accordance with the Folin-Ciocalteau reagent process with some modifications. 0.2 mL of specimen extract were poured into a 20 mL test tube together with 1 mL of Folin-Ciocalteau reagent (Singleton et al. 1999). After one minute, 18.8 mL of sodium carbonate (4%) were added and mixed. The mixture was then placed in a 75 °C water bath for 10 min. Absorbance was measured at 760 nm. The TP material was expressed as gallic acid equivalents (GAE) in milligrams per gram of oil, with the help of a standard curve (Y = 0.0484X + 0.0456, R² = 0.9982) produced with 0-6 μg/mL.

2.10. Thermal stability of TSOTOP

The evaluation of the thermal stability of the TSO was carried out with the help of the thermogravimetric (TG) method on a thermo-gravimetric analyzer (STA449F5, NETZSCH, Germany) taking into account the nitrogen and synthetic air atmosphere conditions. Ten mg of sample were heated at a rate of 10 °C/min from room temperature to 750 °C. TG curves, together with derivative curves (DTG) were used for analyzing the thermal stability of the TSO.

2.11. β-carotene bleaching test with TSOTOP

Performance of the β-carotene bleaching test was done as stated by Miraliakbari and Shahidi after some modifications. A 3 mL amount of the β-carotene solution together with 40 mg linoleic acid in addition to 400 mg Tween 40 emulsifier were inserted into a 100 ml flask with a round bottom. The removal of Chloroform was conducted under vacuum with the help of a rotary evaporator, and 100 mL of distilled water were put into the flask and vigorously shaken. Finally, 200 µL of TSO or methanol (control) were added to trigger the reaction which was computed by examining the absorbance at 470 nm in cycles of 20 min for 120 min. The preparation of blank specimens devoid of β-carotene was performed for background subtraction. Evaluation of the potential of the extracts to resist the oxidation of β-carotene was done as follows:

Where A represents the absorbance at a specific time

2.12. The ABTS scavenging activity of TSOTOP

The aggregate antioxidant function of the oil extracts was calculated with the TEAC test as put forth by Magalhaes et al. (2008) after some modifications. The ABTS^·+ solution was mixed with alcohol, to an ultimate absorbance of the control of 0.7 ± 0.02 at 734 nm. 3 mL of ABTS^·+ solution were added to 1 mL of the specimen solution (1-100 mg/mL). The absorbance was measured at a value of 734 nm after 30 min, with ethanol as a blank. All analyses were conducted in triplicate. The aggregate antioxidant function was expressed as TEAC (Trolox equivalent antioxidant capacity), using a standard curve (Y = 1.0024X + 25.415 R² = 0.9972) generated with 4-72 μmoL/L.

2.13. DPPH scavenging capacity of TSOTOP

The antioxidant activities of the oils were determined according to Sun et al. (2005) and Dalonso et al. (2012) with some modifications. First, 2 mL of 0.2 mmol/L of DPPH in ethanol were blended with 2 mL of the specimen solution (5-100 mg/mL). The absorbance A_i was measured at a value of 517 nm after incubation for 20 min at 25°C. 2 mL ethanol were taken to replace the sample solution to measure the absorbance A₀. The specimen solution was added with 2 mL of ethanol, and the absorbance A_j was measured. All measurements were carried out in triplicate. The calculation of the inhibition by DPPH radicals was made according to the following equation:

2.14. Statistical analysisTOP

The entire number of trials was performed in triplicate and data were expressed as the means ± standard deviations (SD). SPSS Version 19.0 software was used and the statistical analysis was conducted by one-way analysis of variance. Significance was stated at p < 0.05.

3. RESULTSTOP

3.1. Chemical characteristics of T. kirilowii seedsTOP

The average proximate composition of T. kirilowii seeds together with some literature references are shown in Table 1. The ash content (3.28%) together with the oil content (31.85%) were slightly higher in comparison with those previously reported in the literature (Solati et al., 2013) whereas moisture content (5.77%) was lower and the crude fiber (20.61%) contained in the seeds was in agreement with those earlier described in the literature (Hu, 2004). This type of difference in nutrient concentrations among classes is likely to be attributed to changes in harvest areas, storage conditions and maturity stage. It may also be due to regional as well as climatic dissimilarities where T. kirilowii seeds are grown (Solati et al., 2013). The present findings suggest that T. kirilowii seeds are a suitable means of protein as well as lipids with respect to human consumption.

3.2. Physicochemical Characteristics of TSOTOP

The oil yield together with the physicochemical characteristics of TSO following different extraction methods are presented in Table 2. Soxhlet extraction produced the maximum oil yield (31.85%), followed by hot pressing (29.49%) and cold pressing (28.66%). Both AV and PV are considered the most important factor regarding the seed oil standard. The AV of TSO values obtained from the cold pressing, hot pressing and soxhlet methods were 0.45, 0.51 and 0.57 (mg KOH/g), respectively. In comparison with the other oils, a higher stability of the oil extracted by cold pressing was suggested by its low AV. The AV of CPTSO was lower as compared with those reported by Yan et al. (2008) and Jiang et al. (2015). The PV of cold pressing (4.56 meq/kg) together with that of hot pressing (4.86 meq/kg) were discovered to be exceptionally low as compared with that of the soxhlet extract (6.17 meq/kg). The PV showed by the entire amount of the extracted samples in this study was lower in comparison with those reported by Jiang et al. (2015). The IV suggests the level of instauration and the value of 134.15 (g I₂/100 g) was found for cold pressing, 132.79 (g I₂/100 g) for hot pressing and 131.75 (g I₂/100 g) for the soxhlet extract, which is higher compared to the IV reported by Yan et al. (2008) regarding the soxhlet extract (120.90 g I₂/100 g). The SV displayed by the soxhlet extract was a bit lower (149.89 mg KOH/g) in comparison with the other extraction methods. All the corresponding values were exceptionally low in comparison with those reported by Yan et al. (2008) and Zeng et al. (2007). The RI shown by the TSO was identical to that reported by Yan et al. (2008). Furthermore, these findings were lower in comparison with those reported by Zeng et al. (2007).

3.3. Fatty acid composition of TSOTOP

This study reported eleven fatty acids (Table 3). The following order as per the ranking of the major fatty acids was determined: linoleic acid (LA, C18:2), punicic acid (PA), oleic acid (OA, C18:1n-9), palmitic acid (C16:0), a-Eleostearic acid, stearic acid (C18:0). Palmitic acid and stearic acid were the key saturated fatty acids (SFA) in TSO whereby their contents were in the range of 3.91 to 3.94% and 2.38 and 2.40%, respectively. The palmitic acid and stearic acid contents of CPTSO had higher values in comparison with HPTSO and SETSO. LA, PA, and OA were the prominent unsaturated fatty acids (UFA) in TSO, and accounted for 40.78 to 41.02%, 25.57 to 26.01% and 21.34 to 21.83%, respectively. OA was the most abundant monounsaturated fatty acid (MUFA) in the TSO. The material of OA categorization leading to CPTSO, HPTSO, SETSO, PA, a-Eleostearic acid and catalpic acid contained three isomers of CLNA found in TSO, which is in agreement with the findings of Joh et al. (1995). PA appeared as the major CLNA isomer; the content of PA reported by Joh et al. (1995) and Yang et al. (2011) were higher in comparison with what we found. Nevertheless, Yang et al. (2011) reported no catalpic acid content in TSO, and the LA content was higher compared to the findings of Joh et al. (1995) and Yang et al. (2011). CPTSO showed the highest LA content (41.02%), while SETSO possessed the highest PA content (26.01%). CPTSO had the maximum MUFA material while showing the least amount of PUFA material. The PUFA material of TSO stood considerably higher as compared with 49.7% as reported by Wang et al. (2009). The PUFA/SFA ratio came out to be 10.09 (CPTSO) to 13.52 (SETSO), which was consistent with Yang et al. (2011). A PUFA to SFA ratio of more than 1.5 is linked with goodness of fit, and this is why TSO is considered healthy. The fatty acid profile together with high quantities of PUFA makes the TSO a prime constituent for nutritional applications.

3.4. Bioactive compound of TSOTOP

The bioactive compounds (TF, TP, TT and TPC) of the extracted oils of the three methods are given in Table 4. Except for TP, there was no significant difference in the different bioactive compounds of the TSO extracted by different methods (p < 0.05). Phenolics as well as flavonoids were the key constituents of non-nutritive compounds and presented antioxidant, anti-mutagenic, anti-inflammatory, and anti-carcinogenic properties, which aid in the prevention of atherosclerosis (Lee et al. 2006). HPTSO had the highest TF content (1.33 ± 0.06 mg RT/g), followed by CPTSO. However, the content of TPC in CPTSO was higher than HPTSO, and the content of TF and TPC in SETSO was the lowest. Phytosterols are the major constituents of the unsaponifiable matter in vegetable oils and fats. This fraction, possessing an intricate composition, can reach up to 10% or more in particular plants. A sterol analysis provides useful information with regards to both the quality and the identity of the probed oil and can be considered as a fingerprint. CPTSO had the highest TP content (5.80 ± 0.29 mg/g), and the lowest TP content was found for HPTSO. In this way, high temperatures are likely to damage the flavonoids in the oil. The tocopherols contained in vegetable oil are thought to protect the polyunsaturated fatty acids from peroxidation. The highest TT content (9.89 ± 0.18 mg/100g) was SETSO, and the TT content of CPTSO was less than SETSO. The TT content of HPTSO was the lowest, possibly because of the difference in the solubility of tocopherols due to different systems. In summary, the four kinds of bioactive compounds were found to have high contents in CPTSO in comparison with HPTSO and SETSO, especially in TP and TPC, and have a direct relationship with the antioxidant activity of TSO.

3.5. Thermal stability analysisTOP

The TG/DTG curves of TSO showed the thermal events presented in Table 5 whereby, an observation of 10% weight loss in the was made at 389.50 °C (CPTSO), 391.86 °C (HPTSO) and 389.41°C (SETSO) in a static climate. On the other hand, regarding oxidative atmosphere, this weight loss was observed at 369.90 °C (CPTSO), 395.69 °C (HPTSO) and 356.82 °C (SETSO). This behavior remained constant with respect to weight losses of 50 and 90%, suggesting that air present in the combustion of triacylglycerides in an oxidizing climate, resulted in a rapid thermal decomposition of the oil.

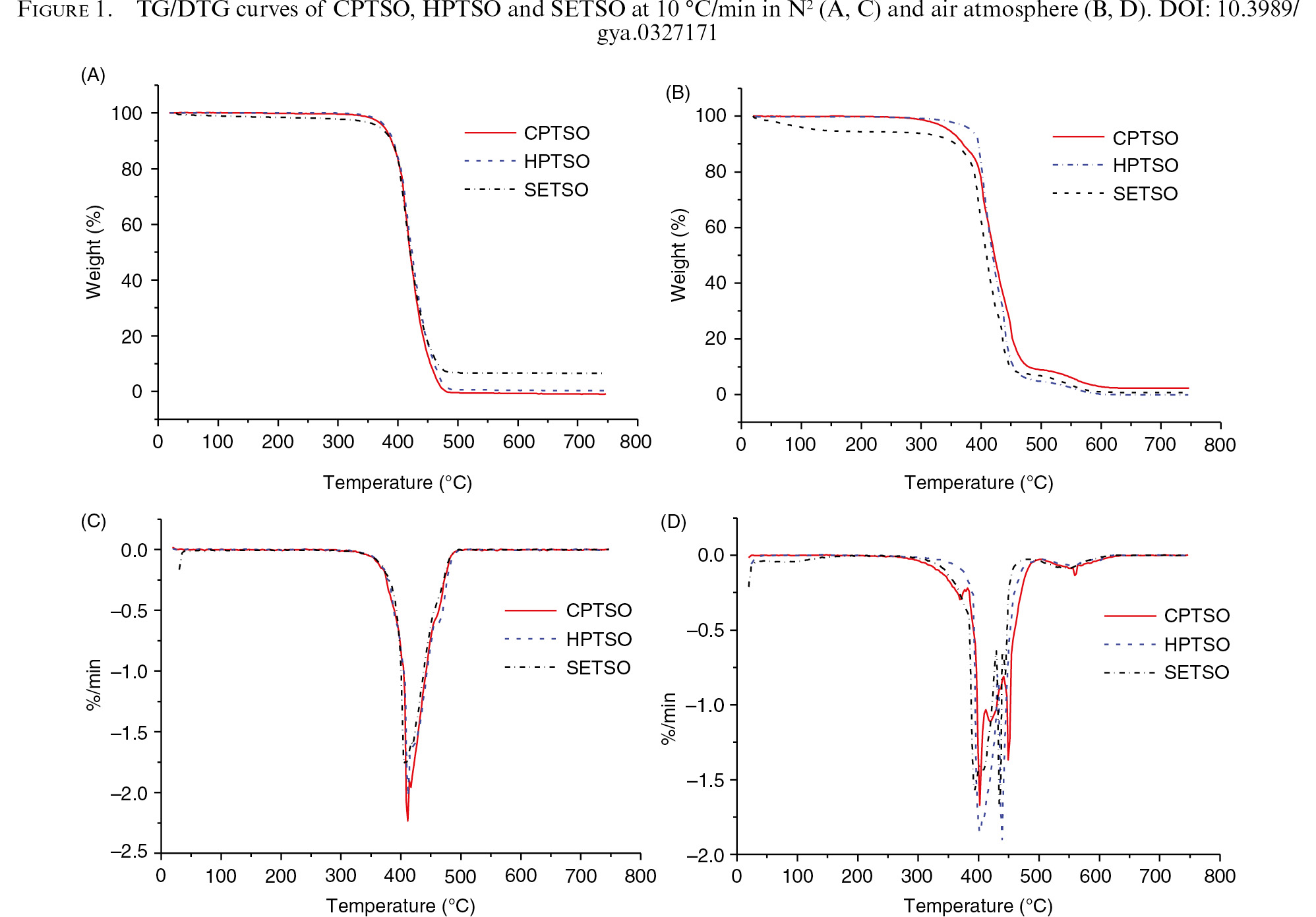

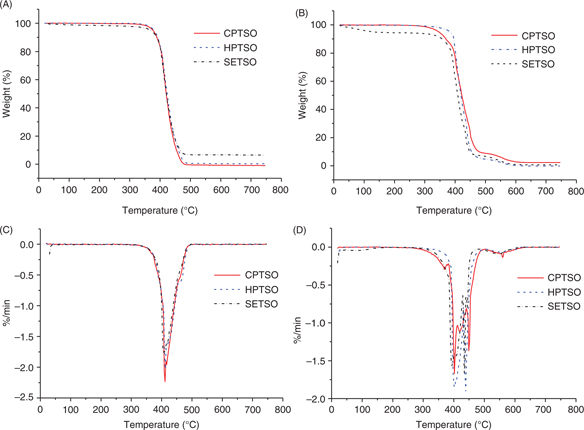

The TG/DTG curves of TSO in a still N₂ atmosphere (A and C) as well as in an air atmosphere (B and D) are presented in Figure 1. The extrapolated onset temperature was held at 411.56 °C for CPTSO in nitrogen. In addition, HPTSO came out to be the highest, having a temperature of 412.14 °C, which was almost 3 °C higher in comparison with that of SETSO. As the evaluations of the oil in air atmosphere were made, HPTSO showed the top thermal stability, followed by CPTSO and SETSO. The final decomposition temperature of CPTSO as well as that of SETSO was almost 508 °C, which is higher than that of HPTSO (497 °C). Only one stage of weight loss was found under nitrogen in all the oils and decomposition took place at a temperature of 400-450 °C, which is in agreement with the thermal decomposition shown by the oils (Garcia 2007). In accordance with oxidizing climate, the mechanism was found to be intricate due to the reaction of oils as well as the presence of oxygen. It took four phases for the decomposition of all the oils to take place. The weight loss of SETSO occurred at the temperature about 50-100 °C, because of the residual organic solvents in the oil. CPTSO and SETSO possessed quite an identical decomposition temperature at 400 °C in the foremost phase. HPTSO and SETSO had same decomposition temperature at 436 °C in the second phase and at 550 °C in the 4^th stage, while CPTSO met decomposition at the temperature of 450 °C in the third stage and at 560 °C in the fourth stage. The results indicated that CPTSO may be for use as frying oil. The four discrete steps for the purpose of oil degradation in normal air consist of decomposition of PUFA, MUFA, SFA, in addition to the oxidation of carbonaceous residue, respectively. The rule governing vegetable oil decomposition takes into account the oxidation of fatty acid constituents. In this way, the loss of weight by oils arising out of elevated temperatures was balanced by the absorption as well as reaction of fatty acids with atmospheric oxygen (Solís-Fuentes 2010).

3.6. Inhibition of β-carotene bleachingTOP

The β-carotene bleaching test is considered to be a convenient test when it comes to measuring the capacity of a compound or a blend for the inhibition of the oxidation of β-carotene (Miraliakbari et al. 2008). Our findings brought to light the fact that the SETSO had the highest antioxidant function, with a 45.03% reduction in β-carotene following an assessment for 120 minutes (Table 6). The HPTSO showed the second highest activity (29.61% of β-carotene remaining after 120 min assay), leading to CPTSO (28.49% of β-carotene remaining after 120 min assay). The β-carotene bleaching test shares similarities with an oil-in-water emulsion system; dissimilarities in the solubility of antioxidant compounds pose impact on their function in this assay (Miraliakbari et al., 2008). Hydrophobic antioxidants are suggested to deliver a more efficient performance in comparison with hydrophilic antioxidants in the β-carotene bleaching test by focusing on the lipid phase as well as the lipid–water interface, and in this way, fighting lipid radical formation in a direct manner together with β-carotene oxidation (Frankel 2000).

3.7. ABTS free radical scavenging activityTOP

The ABTS test provides the most frequent, convenient and straightforward approach for the purpose of estimating the scavenging potential of free radicals. It has the bases of the reduction of the absorbance of the solution of the radical ABTS^·+, falling within the range of 710-760 nm, relying on the solvent, because of its inactivation from antioxidants. It is applied to examine both lipophilic and hydrophilic substances for their antioxidant properties (Christodouleas et al., 2014).

The scavenging capacity of TSO with regards to ABTS free radicals is presented in Table 6. All the scavenging actions showed a dose-dependent approach at saturations falling in the ranges of 0 to 100 mg/mL. In addition, all the specimens displayed powerful radical scavenging functions when given higher doses. CPTSO showed the most powerful ABTS scavenging function among the analyzed specimens. When given the dose of 40 mg/mL, the ABTS free radical scavenging capacities of TEAC value of CPTSO, HPTSO, and SETSO were determined as 67.87, 63.78 and 57.12 μmol/L, respectively. The findings suggested that TSO possesses a sizeable scavenging ability against the ABTS free radical, and CPTSO possesses higher ABTS free radical scavenging abilities than HPTSO and SETSO.

3.8. DPPH scavenging abilityTOP

The impact posed by antioxidants on DPPH radical scavenging is typically ascribed to a hydrogen-donation capacity (Birasuren et al., 2013). For the purpose of evaluating this action, the DPPH test makes use of an extensive and user-friendly protocol, despite the fact that it does not take into account an oxidizable substrate (Grajeda-Iglesias et al., 2016). Findings from the computation of the scavenging operation of TSO are presented in Table 6 whereby every specimen showed a concentration-dependent scavenging action against the DPPH radical. The IC50 values for the DPPH radical stood at 18.68, 20.27 and 23.51 mg/mL for CPTSO, HPTSO and SETSO, respectively. CPTSO exhibited better antiradical activity than HPTSO and SETSO.

4. CONCLUSIONTOP

The key composition in T. kirilowii seed consisted of crude fat (31.85%) and fiber (20.61%) in addition to some quantities of protein, moisture and ash. Carrying out the comparison of the three extraction approaches, the oil extracted by cold pressing presented the lowest oil yield; although it showed improved values with respect to AV, PV, IV and SV. Nevertheless, the extraction approach had no influence on the preservation of the functional compounds, for example, fatty acids. The major fatty acids in CPTSO included linoleic acid together with punicic acid and oleic acid. Unsaturated fatty acids accounted for 93.08% of the aggregate fatty acids. The results of our study in bioactive compounds, thermal stability and antioxidant activity of TSO showed that the extraction method affected the quality of the oils. HPTSO displayed the optimal thermal stability. followed by CPTSO and SETSO. CPTSO had higher active substances and antioxidant capacity than HPTSO and SETSO. This study showed that good quality TSO can be extracted using cold pressing and the CPTSO could be explored as use in medicine or functional foods.

ACKNOWLEDGMENTTOP

This work received the support from the China Spark Program (2015GA690260) and Scientific Research Project in School-level (15YCKLQ007).
