Predicting extra virgin olive oil freshness during storage by fluorescence spectroscopy

R. Aparicio-Ruiz^a, N. Tena^a, I. Romero^a, R. Aparicio^a, D.L. García-González^a,* and M.T. Morales^b

^aInstituto de la Grasa (CSIC), Bdg. 46 Campus University Pablo de Olavide, E-41013 Seville, Spain

^bDepartment of Analytical Chemistry, Universidad de Sevilla, Prof. García González, 2, 41012, Seville, Spain

*Corresponding author: dlgarcia@ig.csic.es

1. INTRODUCTIONTOP

Virgin olive oil (VOO) sensory quality is related to its flavor, which decisively influences consumer preferences, and its unique health benefits explained by its content in phenols and monounsaturated fatty acids. Some of these properties are found at the most desirable level just after the oil extraction. Unlike other food products, virgin olive oil is not a product that improves with age. Thus, a given sample of virgin olive oil undergoes chemical processes that negatively affect its properties during its shelf-life. The decay in functional or quality properties during aging is related to oxidative processes (Morales and Przybylski, 2013), and thereby the concentration of these compounds evolves depending on the concentration of antioxidant compounds of the initial oil and the storage conditions from the olive mill to the kitchen.

Many compounds which change in their concentrations during VOO shelf-life reveal the aging of the oil but they do not necessarily imply decay in aroma or taste properties. In fact, sometimes an aged oil may have better sensory quality than a fresh one obtained from damaged olives and still be within the extra-VOO category, and thereby freshness and sensory quality should not be confused, as commonly happens among retailers and consumers (Aparicio-Ruiz et al., 2014). However, freshness had become a parameter of paramount importance to maintain the quality at the highest standard levels until reaching the date indicated in “Best Before” though freshness is not necessarily related to VOO sensory quality (Aparicio-Ruiz et al., 2014). For this reason, methodologies to assess the freshness of oil should be separated from those which evaluate sensory quality (e.g. panel tests or volatile compound analysis) (IOC, 2015). Consequently, the concept of freshness, which is intuitively associated with the time from VOO processing, should be measured with chemical compounds that do not mislead to underestimations or overestimations of virgin olive oils of good quality.

Table 1 shows a summary of some methods proposed for assessing the quality parameters of virgin olive oils that have implications in freshness, aging and sensory parameters of oils. The instrumental approaches qualifying the oils into higher/lower grades that also assess freshness can be grouped in two groups: those that have a causal relationship with sensory quality, and those that have a casual relationship (Aparicio et al., 2012). The latter methods analyze compounds whose concentrations are mathematically correlated with freshness or some sensory parameters. Mathematical correlation, however, can fail in providing a full explanation of freshness/quality under certain circumstances, and in those cases, sensory and chemical information would be dissociated. Among the compounds that have been suggested for tracing the aging of virgin olive oils, pigments have been proposed as promising markers (Aparicio-Ruiz et al., 2012). Thus, a recently obtained VOO contains lutein, β-carotene, chlorophyll (a, b) and pheophytin (a, b) as major pigments and it does not contain pyropheophytin a (Mínguez-Mosquera et al., 1990). The pigment profile varies during VOO storage, even under ideal darkness and controlled temperature conditions (Gallardo Guerrero et al., 2005), because of pigment degradation reactions (e.g. pheophytinization of chlorophylls) (Aparicio-Ruiz et al., 2010), which start at the malaxation process of crushed olives. The degradation process continues during the storage of VOOs until the formation of pyropheophytin from pheophytin due to the loss of the carbomethoxy group in the C13 of the isocyclic ring of the chlorophyll structure. The former compound, pyropheophytin, should be present at low levels in recently obtained oils, and hence it has been suggested as a useful parameter for monitoring the degradation of VOO (Aparicio-Ruiz et al., 2010) during storage. Thus, a high concentration of pyropheophytin can be due to inadequate conditions of temperature during the storage of VOOs. The relationship between pyropheophytins and storage conditions has awakened an interest in studying the formation kinetics of this compound with the aim of establishing a prediction model (Aparicio-Ruiz et al., 2012) for determining the shelf-life of VOOs, taking into account the temperature in the place where the oil is sold.

The determination of pyropheophytins as an indirect measurement of extra virgin olive oil (EVOO) freshness can be accepted under the premise that freshness highly depends on the storage conditions and not only on the time elapsed since olives were harvested, as consumers are inclined to think. Thus, researchers have tried to demonstrate the usefulness of pigments for the assessment of EVOO freshness (Ayton et al., 2012; Aparicio-Ruiz et al., 2012). This analytical determination is particularly interesting if the initial value of pyropheophytins is provided, because it would allow for detecting inadequate storage conditions (Aparicio-Ruiz et al., 2012). Therefore, pyropheophytins can be used to carry out a backward trace of the storage conditions of VOOs by checking the differences between the initial concentrations with the values at any moment. The rising interest in pigments for freshness assessment of VOOs has led to the requirement of a major perfection in their analytical determinations, in particular in those that allow a rapid measurement. The use of fluorescence spectroscopy is favoring the development of routine analysis of pigments. In fact, this technique has been used for studies of stress processes and physiological changes in plants (De Ell and Toivonen, 1999) and in tracking thermo-oxidative processes in edible oils (Tena et al., 2009; Tena et al., 2012) among other applications.

The present work is focused on checking the evolution of pigments during VOO storage, firstly by applying a mathematical model to evaluate the changes in pigment contents during the storage of virgin olive oil in supermarkets; and secondly, by selecting the fluorescence bands associated to aging in order to design a mathematical model for assessing the freshness of EVOO as a possible alternative to the determination of pyrophenophitins.

2. MATERIALS AND METHODSTOP

2.1. SamplesTOP

Experiments were carried out with two extra virgin olive oils (EVOO) that were stored for 18 months, which is the most common shelf-life for EVOOs. First oil was a mixture 1:1 of two VOO varieties (Picual and Lechín) with the following quality parameters: organoleptic assessment: 8.3 ± 0.4 (median of fruitiness, Mf); peroxide value: 2.87 (mEq O₂/kg); acidity: 0.19 (% m/m of oleic acid); K270: 0.08 ; and K232: 1.95 . The second virgin olive oil was an extra virgin olive oil var. Hojiblanca with the following characteristics: 8.0 ± 0.5 (median of fruitiness, Mf); peroxide value: 2.95 (mEq O₂/kg); acidity: 0.21(% m/m of oleic acid); K270: 0.10 ; and K232: 1.98 .

Each virgin olive oil was stored in eighteen 100 mL sealed flasks, each one corresponding to one of the months in the shelf-life study. The flasks were colored and they were filled with oil to the top to avoid any headspace. The flasks were stored at room temperature (indoors) in a cabinet under controlled light conditions. The oils were sampled every month, which means 18 samples for each oil.

2.2. Quality parametersTOP

All quality parameters were determined according to the methods described by the International Organization for Standardization (ISO). For acidity determination (ISO, 2009), 20 g of oil were weighed in an Erlenmeyer flask of 250 mL. A solution of 100 mL of ethanol/ethyl ether (50:50), previously neutralized, and phenolphthalein solution were added to the Erlenmeyer flask. The mixture was titrated with a NaOH 0.1M solution.

The UV extinction coefficients were determined by measuring the absorbance of the oil, previously dissolved in cyclohexane at their respected concentration, at 232 nm and 270 nm. The results were expressed as extinction coefficients (K232 and K270) by applying the equations described in regulation ISO 3656 (ISO, 2011).

The peroxide value was determined by titration according to ISO 3960 (ISO, 2007). A mixture of 2 g of sample, 10 mL of choloroform, 15 mL of acetic acid and 1 mL of a saturated IK solution were prepared in a flask. After 30 s shaking, the flask was left in the dark for 5 minutes. The mixture was titrated with sodium tiosulphate 0.002N after adding 75mL distilled water to stop the reaction and a starch solution as indicator. The results were expressed in mEq O₂/kg.

2.3. Analysis of pigmentsTOP

2.3.1. ChromatographyTOP

The determination of pigments (chlorophylls, pheophytins and pyropheophytin a) was carried out with a HPLC (Agilent Technologies 1100, Santa Clara, California) equipped with a C18-RF Spherisorb ODS-2 (25 cm × 4 mm i.d., 3 μm particle size) (Waters, Saint Quentin-Ylines, France) and a diode array detector. It worked in gradient regime using the solvents (A) water/ion-pair reagent/methanol (1:1:8, v/v/v) and (B) acetone/methanol (1:1 v/v), at a flow rate of 1.25 mL/min. The ion-pair reagent was 0.05 M tetrabutylammonium acetate and 1 M ammonium acetate in water (Aparicio-Ruiz et al., 2010). The chromatographic signals were obtained at 410 nm (pheophytin a and pyropheophytin a), 430 nm (chlorophyll a, pheophytin b and pyropheophytin b) and 450 nm (chlorophyll b). Sample pre-treatment and quantification were carried out by applying the method already described by Tena et al., (2012).

The standard of chlorophyll a, from spinach, was bought from Sigma-Aldrich (C5753) according to the suggestion of Gertz and Fiebig (2006). Pheophytin was obtained by acidification with hydrochloric acid from the chlorophylls (Sievers and Hynninem, 1977). Pyropheophytin a was obtained from pheophytin a by thermal treatment with pyridine for 24h at 100 °C with reflux (Schwartz et al., 1981).

2.3.2. Fluorescence spectroscopyTOP

Spectrofluorimetric measurements were performed with a RF-1501 Shimadzu spectrofluorophotometer (Shimadzu Corporation, Kyoto, Japan) equipped with a continuous 150 W xenon lamp, excitation and emission monochromators, and a photomultiplier detector. Fluorescence emission spectra (360-900 nm, 1 nm interval) were collected at 350 nm excitation wavelength (Zandomeneghi et al., 2005), slits were set at 10 nm. The samples were scanned using a 3 mL non-fluorescent cell (10 mm path length). After each series of measurements, the cuvette was cleaned using detergent, followed by a rinse with de-ionized hot water and acetone to dry and eliminate the rest of the fat. Each sample was analyzed in triplicate.

2.3.3. Mathematical model to predict the percentage of pyropheophytin aTOP

The mathematical model (Know-How, Utility model, MIT_TO-0022272) that allows predicting the percentage of pyropheophytin a (henceforth, PPP) in EVOOs stored at any given temperature in darkness and with lack of oxygen (Aparicio-Ruiz et al., 2012) was used to evaluate how % PPP values of samples that are stored in different supermarkets around the world vary over time.

2.3.4. Statistical AnalysisTOP

Univariate and multivariate algorithms have been applied by means of Statistica version 6.0 (Statsoft, Tulsa, OK). The Brown-Forsythe test was used with the one-way ANOVA to determine the emission wavelengths of the fluorescence spectra obtained for a λ_ex= 350 nm that better correlated with the storage time. Stepwise linear regression analysis (SLRA), with a priori F-to-enter and F-to-remove values, was the statistical procedure used to ensure the significance of the results and to avoid good results by chance. The F-to-enter/remove values (6.14/6.13) were selected under the strictest conditions (Fisher distribution table at p = 0.05).

3. RESULTS AND DISCUSSIONTOP

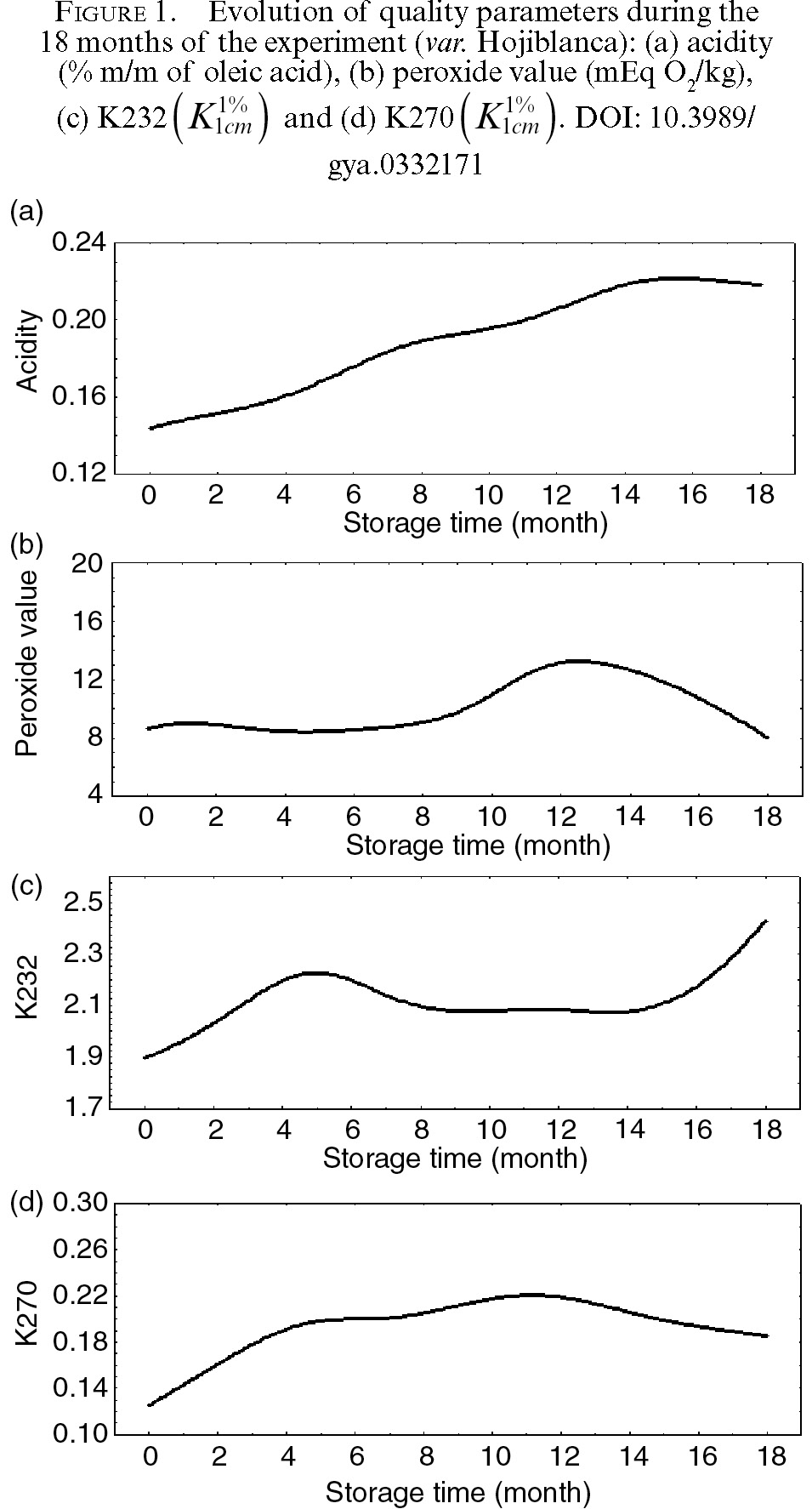

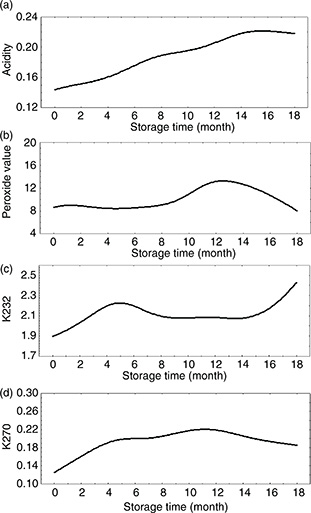

The current trade standard of the International Olive Council (IOC) establishes the criteria, and their limits, for each category of olive oil (IOC, 2016). Three of these parameters are free acidity, peroxide value and absorbance in ultra-violet. Figure 1 shows the trend of those quality parameters during the entire period of the experiment (18 months). All the parameters underwent an increment in their values, with the exception of the peroxide value, although they were always below the limit for extra-virgin olive oil category.

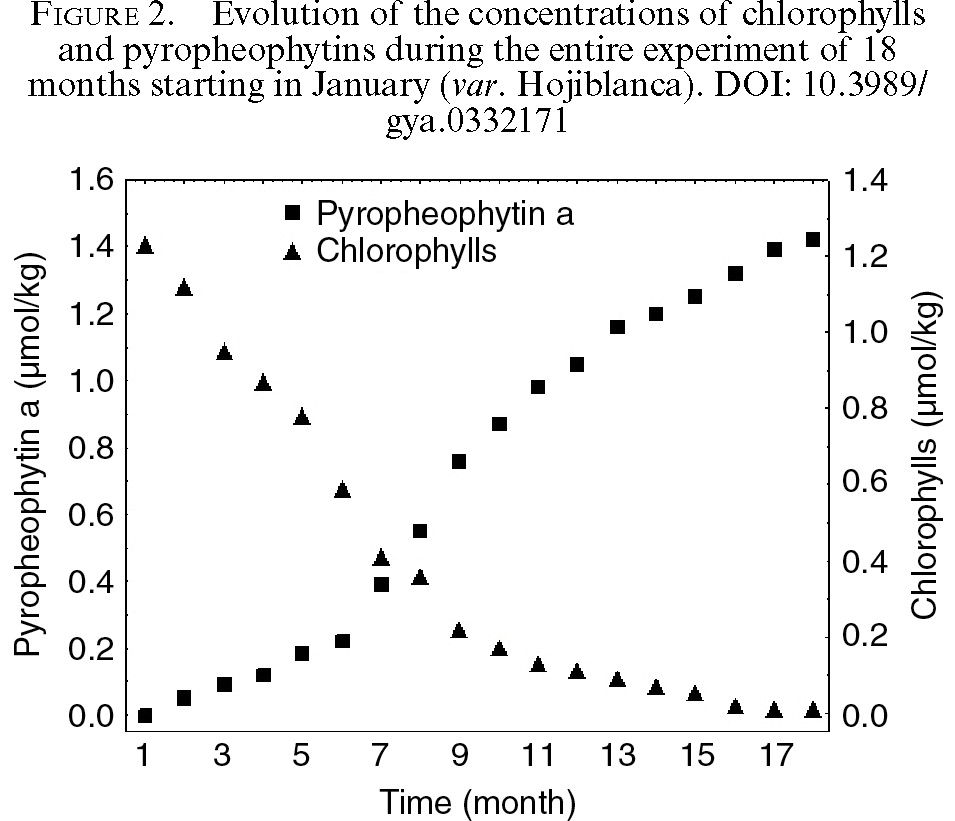

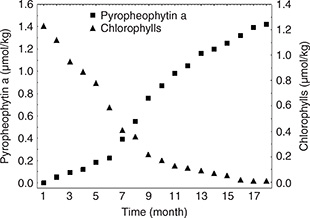

With respect to the presence of pigments, the chromatographic results from quantifying PPP and chlorophylls (a and b) showed opposite behavior (Figure 2) as the amount of the PPP increased during the experiment, exponentially during the summer time (June, July and August); while the concentration of chlorophylls diminished according to a non-linear equation as well. The change in the concentrations of both compounds has a chemical explanation since an external source of energy (mostly heat but also light) which affects EVOO for a period of time causes decarbomethoxylation of the C13 carbon of chlorophylls, forming the pyro derivatives (Aparicio Ruiz et al., 2010).

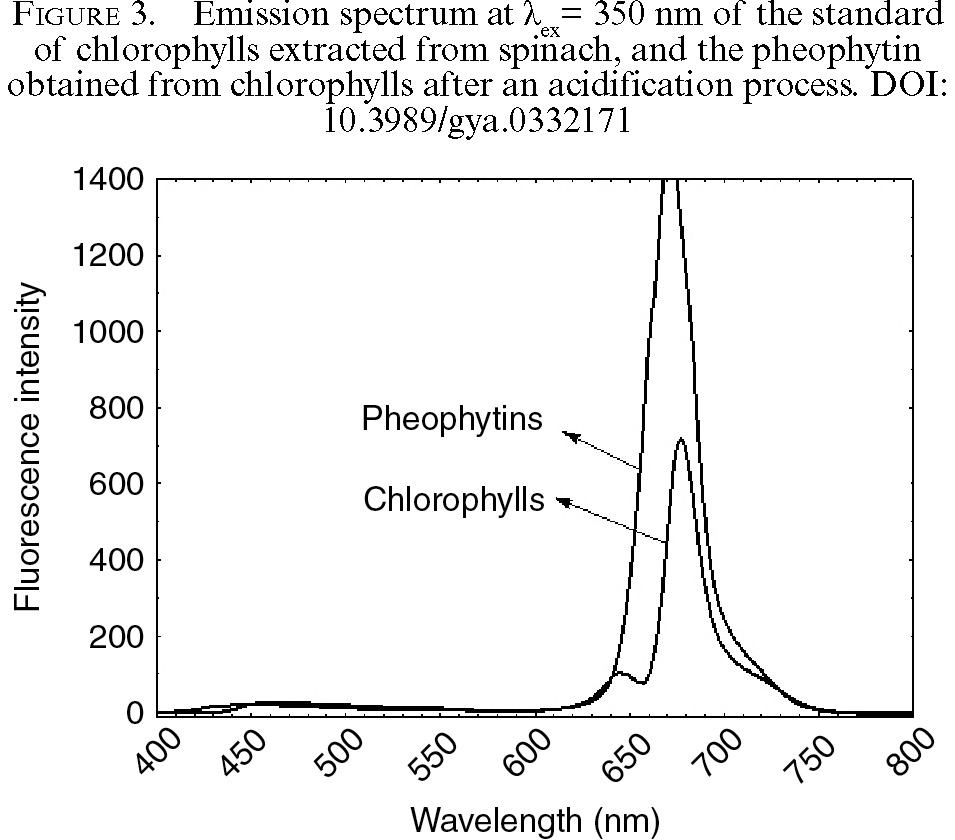

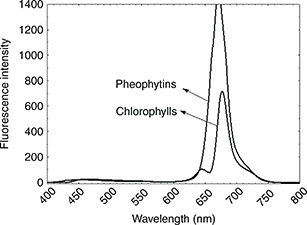

With respect to the fluorescence spectra of the samples, the existence of bands is due to the conjugated structure of the tetrapyrrole-macrocycle, which has been described by different authors (Galeano Díaz et al., 2003; Sikorska et al., 2005; Sayago et al., 2007; Tena et al., 2012). In order to verify the spectral assignments to chlorophylls, a purified extract of these compounds was analyzed by fluorescence spectroscopy. Figure 3 shows the emission spectrum at λ_ex= 350 nm of an extract of chlorophyll a from spinach and pheophytins obtained from the chlorophylls by acidification. The only band (λ_em= 650-700 nm) has already been described by different authors (Dupuy et al., 2005; Zandomeneghi et al., 2005; Sikorska et al., 2005) as caused by the presence of chlorophylls and pheophytins in oils, while other authors (Galeano Díaz et al., 2003) have associated the wavelengths at 669 nm and 653 nm with chlorophylls a and b, respectively.

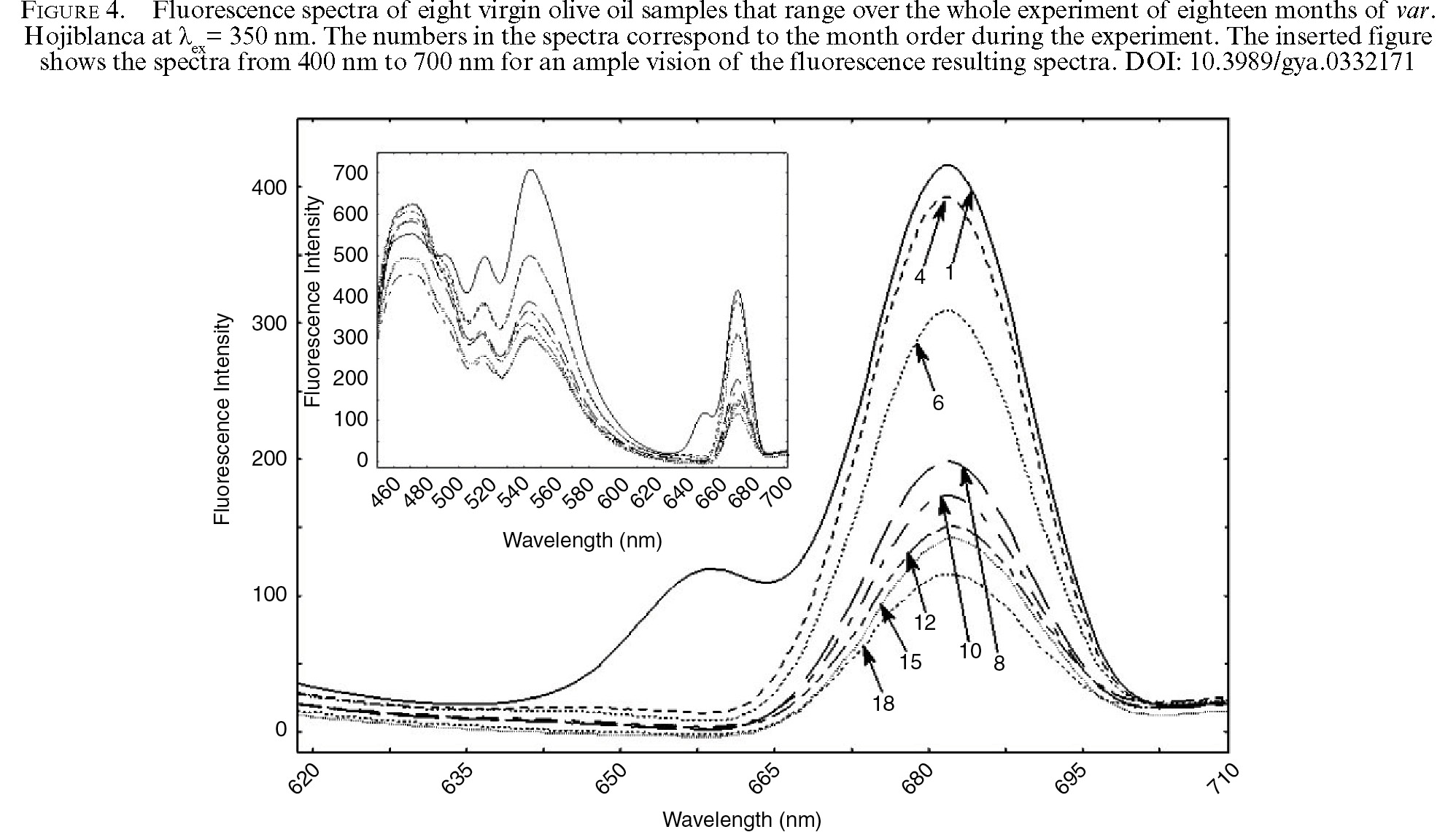

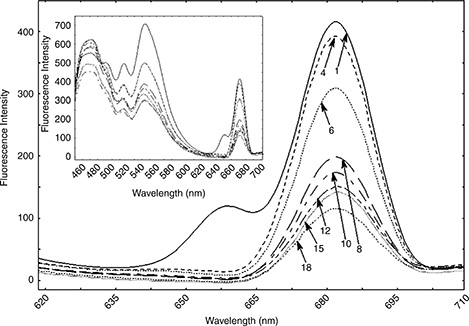

Figure 4 shows the emission spectrum of 8 samples which range over the eighteen months of the experiment. Six main bands at around 480, 510, 530, 560, 660 and 680 nm characterize the virgin olive oil at the initial state of the shelf-life study. The profile of the initial olive oil in the range of wavelengths associated with pigments, chlorophylls and pheophytins, resembles the fluorescence spectra obtained with the chlorophyll extract (Figure 3). It is noticeable that the band around 625nm disappeared before the fourth month of the experiment, which agrees with results obtained in a previous study centered on thermoxidation, where chlorophylls disappeared at the beginning of the experiment (Tena, 2010).

Brown-Forsythe univariate algorithm showed the best p-values (<0.05) between the fluorescence spectral ranges and the contents of PPP and chlorophylls determined by HPLC. Selected bands showed good correlations between data from pigments (µmol/kg) and fluorescence bands (intensity). The bands assigned to pigments (650-695 nm) showed a high negative correlation with PPP(-0.87), while the band at 680 nm, previously observed in the spectrum of the purified chlorophyll extracted from spinach (Figure 3), showed a high positive correlation with the total chlorophylls a and b (0.90).

Once the oils were analyzed by fluorescence spectroscopy and the bands associated to pigments were identified, the study was centered on: (i) evaluating the pigment (PPP) evolution over time by means of a mathematical model based on kinetics according to the temperature of storage and the initial concentration of PPP (Aparicio et al., 2012), (ii) the selection of fluorescence bands associated to aging and the design of a mathematical model to assess the freshness of the oil.

3.1. Mathematical modelling of the concentration of pigments over time (influence of temperature)TOP

Previous studies on the kinetics of pigment degradation resulted in a mathematical model to describe the changes in PPP in EVOOs depending on time and storage temperature under conditions of darkness and lack of oxygen (Aparicio-Ruiz et al., 2012). The results of this estimation can be applied to optimize the storage conditions or to determine the “Best-before” date for a particular geographical location where the oil is being distributed and stored (Aparicio Ruiz et al., 2014).

On the other hand, the degradation of the chlorophylls present in a just obtained EVOO to PPP during its inevitable storage period has been studied with enough scientific base as to regulate that EVOOs must have % PPP lower than 17% during their entire shelf-life (CDFA, 2016; SANS, 2015; AS, 2011).

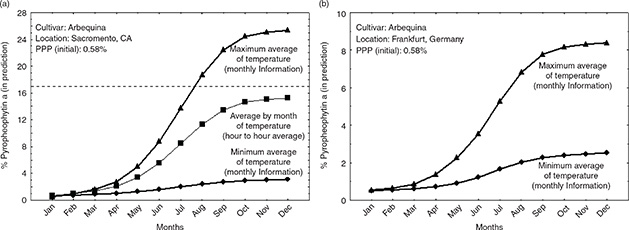

Considering that limit, the proposed prediction model can calculate the time that it takes an EVOO stored under certain conditions of temperature (with information from hourly to yearly temperature average) in exceeding this limit and therefore its “Best before” (or shelf-life) date as EVOO. In order to develop an application of this kinetics model, we have analyzed two hypothetical situations. The first one is the case of an EVOO that is on the shelf of a supermarket situated in Sacramento (California, USA). The other situation corresponds to an EVOO in similar circumstances but located in Frankfurt (Germany). Since the mathematical equation to emulate the formation of PPP requires entering the storage temperature, information was collected from Deutscher Wetterdienst (http://www.dwd.de) and the temperature values for Sacramento (USA) were obtained from the National Climatic Data Center (http://cdo.ncdc.noaa.gov/climatenormals/clim20/ca/047630.pdf).Three possible values were considered for the application of the equation: the recorded high temperature, the recorded low temperature, and the average temperature. The two first values were calculated on a monthly basis, while the average value was calculated considering the hour-by-hour information. Figure 5 shows the plots obtained after applying the predictive model for % PPP with three temperatures (the average, the maximum average and the minimum average) in the two cities. The EVOO stored in Sacramento (California, USA) does not reach % PPP higher than 17% in one year when the temperature is measured on an hourly basis with the average values given by National Climatic Data Center (Figure 5a). When the model is applied on a monthly basis with the maximum average temperature of each month, the limit of 17% PPP is reached in six months but these extreme conditions have scarce possibilities of being real (Figure 5a). On the contrary, % PPP would be very low (< 4%) if the monthly minimum average temperatures are the inputs of the mathematical model. These results show that EVOO stored in California should be strictly controlled and protected from higher temperatures and that action should be requested by consumer associations that pay for a virgin olive oil with a controlled quality. It is important to note, however, that those oils with high % PPP may still be qualified as EVOO according to the sensory assessment and other quality parameters for all the other international regulatory bodies (IOC, EU, Codex Alimentarius, USA).

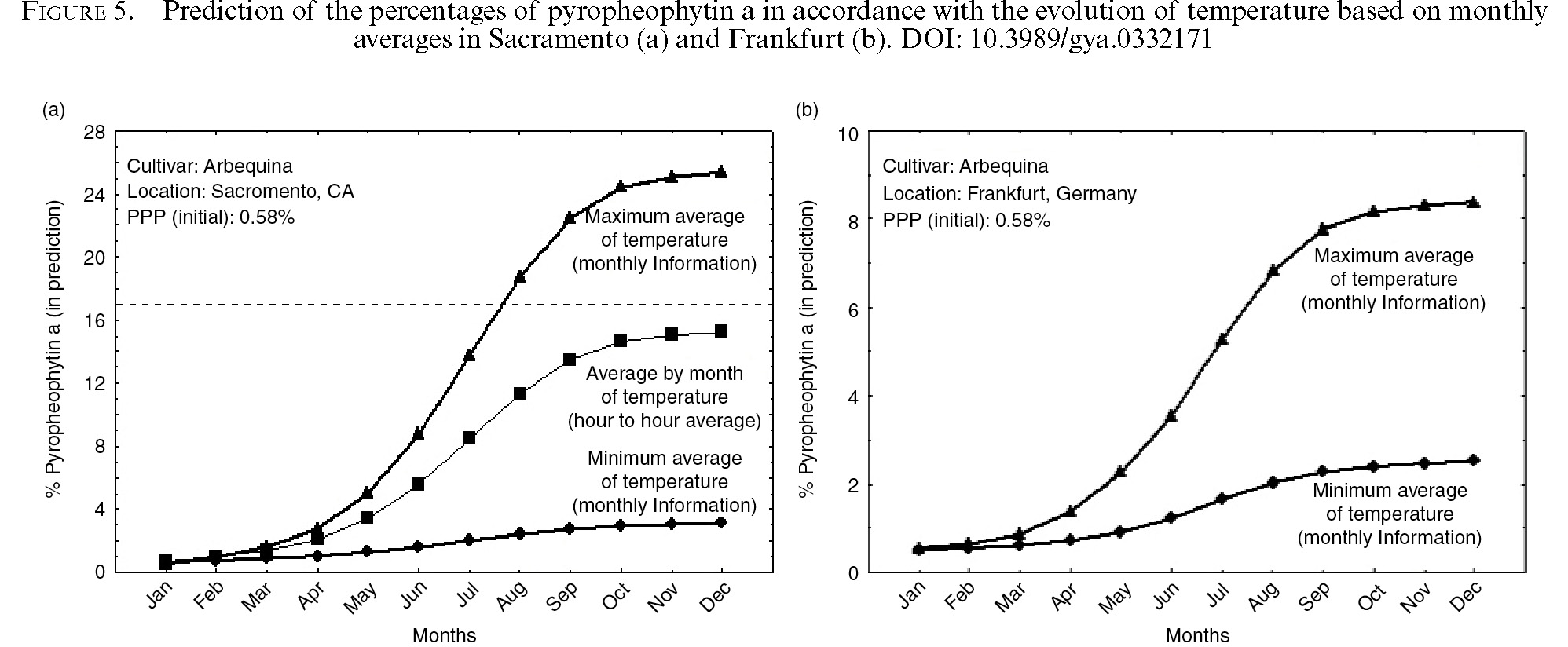

A very different situation is the storage of the same EVOOs in Frankfurt, where winters and summer are much cooler. Figure 5b shows that % PPP would be lower than 17% according to the simulation model. Taking into account an intermediate situation between Sacramento and Frankfurt, a shelf-life period of 18-24 months, from olive oil producing (not from olive oil bottling), would be appropriate enough for establishing a “Best before” date. The main conclusion is that the increment in % PPP mostly depends on the temperature of the whole period of storage from the producer to the consumer.

The method for controlling % PPP is not, however, easily implemented in all laboratories despite the effort made by researchers (Gertz and Fiebig, 2006) to simplify the initial procedure (Mínguez-Mosquera et al., 1992). The request for rapid methods to detect virgin olive oil freshness is widely claimed by producers, sellers and consumers (Aparicio et al., 2013), and it obviously includes the determination of all the parameters that evolve over time, such as pigments.

3.2. Mathematical model based on the pigment fluorescence bands for assistance in freshness prediction.TOP

Fluorescence spectroscopy meets the requirements of being rapid and simple and its application in determining pigments is scientifically supported since associated bands were produced (Figures 3 and 4). However, the selection of wavelengths that explain the decrease or increase of pigments associated with time and temperature of EVOO storage is not a simple exercise due to the complexity of the spectra and the number of compounds that may emit in the same region (Tena et al., 2012). Thus, the statistical procedures were applied to the whole range of the spectra collected at λ_ex= 350 nm, for sample 1 (var. Hojiblanca), which was selected as a training set. The selected wavelengths were verified with the spectra collected with sample 2 (a mix of var. Picual and var. Lechín), which played the role of validation set. Stepwise linear regression analysis (SLRA), under the strict Ridge Regression algorithm, was applied to the spectral intensities registered for 18 months, and the explaining variable was time (number of months). The statistical procedure selected three bands, 655, 680 and 695 nm, which coincide with the zone of emission of pigments (Figure 3). The best regression in terms of adjusted-R²was obtained for 655 nm (adjusted-R² = 0.91), a wavelength that matches the distinctive band of pigments.

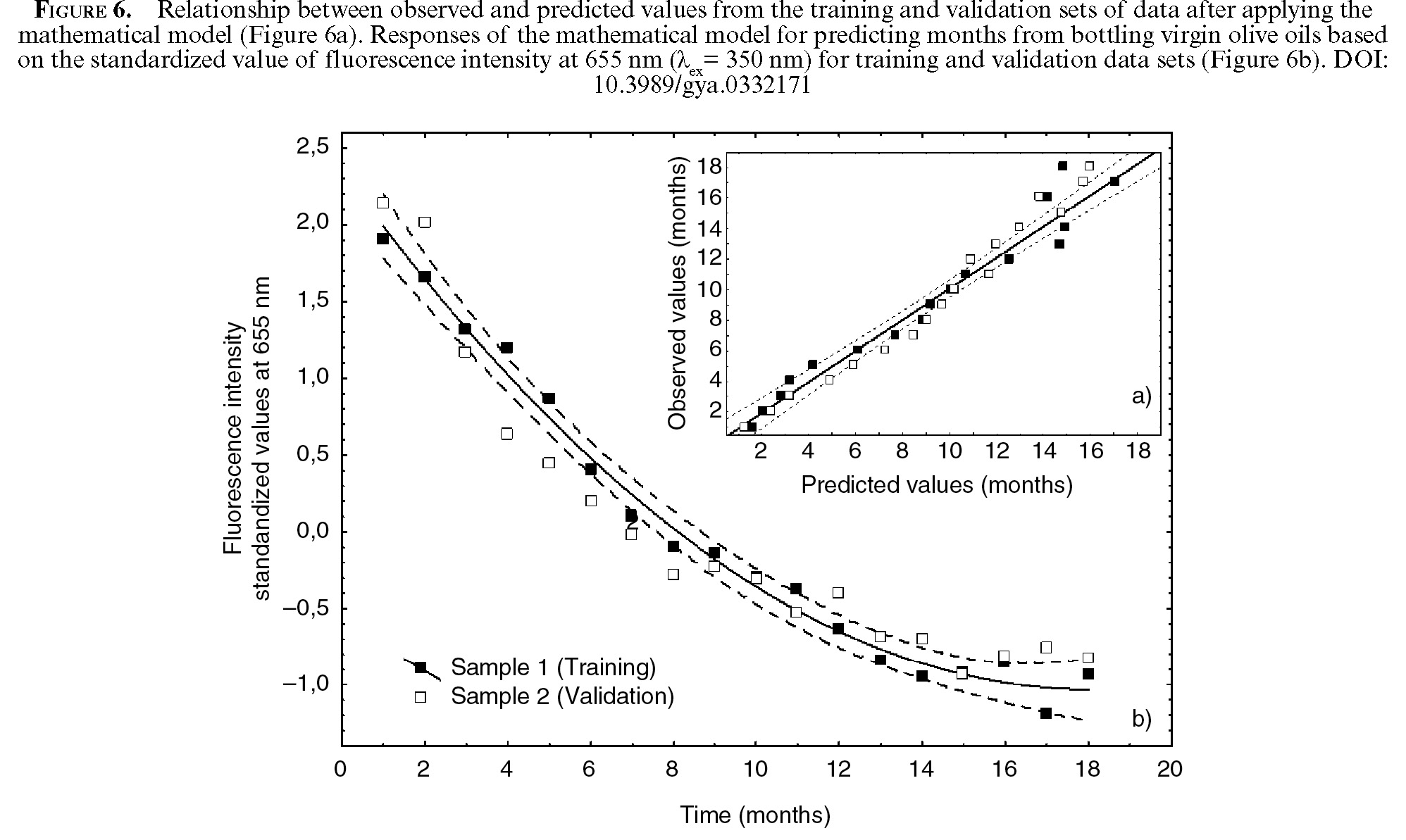

Despite the high value for an adjusted -R² coefficient, the decrease in chlorophylls during storage follows a non-linear trend, as displayed in Figure 2. In fact, the evolution of 655 nm band showed a non-linear trend during storage (Figure 6b), and a quadratic model was selected to relate the intensity (I_ʎem655nm) of this band and the storage time (months).

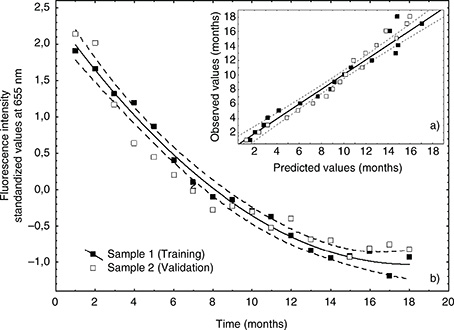

Figure 6a shows the regression line of observed against predicted values of fluorescence intensity by the equation for a period of 18 months with the training and validation sets of data. The behavior of the results for training and validation sets are very similar, which could support the use of the strictest algorithm of Ridge Regression for building the model, but the use of the model with different cultivars and hence levels of pigmentation (Roca and Mínguez-Mosquera, 2001) added uncertainty when predicting after 12 months (Figure 6a). This loss in certainty in prediction is not completely corrected after normalization by the initial values at 655 nm although some improvement is displayed in Figure 6b. As the model is based on a well-documented association of pigments and fluorescence signals (Tena et al., 2012), the problem of the loss in certainty in the last months can be found in the empirical effect of working with different cultivars. Thus, virgin olive oils may have similar values for their quality parameters but different levels of pigmentation, which influence the prediction between 14 and 18 months.

4. CONCLUSIONSTOP

The two mathematical models described in this study highlight the use of pigments in the prediction of the shelf-life of extra virgin olive oil. The first mathematical model has pointed out the need to know the storage temperature from processing to the kitchen and the initial concentration of pyrophephytin to predict, in an accurate way, the shelf-life using a model based on the increment in PPP content. To guarantee an accurate prediction of the shelf-life based on this parameter, the shelf-life must be predicted by taking into account the temperature in the place where the oil is going to be sold. The second mathematical model presented in this study was developed using the data obtained from a rapid and non-destructive technique that provides a rapid measurement of pigment content. This model was developed using the spectral region assigned to these compounds that clearly evolves during storage. The data treatment applied to the spectra of EVOOs acquired every month during 18 months selected a wavelength of emission at 655 nm as the best wavelength that correlates with the evolution of chlorophyll pigments during storage. The prediction formula has been successfully validated with the data obtained for another storage study using a EVOO sample of a different variety. Further research is currently being carried out to develop applications to assess freshness at industrial scale.

ACKNOWLEDGEMENTSTOP

This work was supported by the Spanish State Secretary for Research, Development and Innovation (AGL2015-69320-R).
