Use of Echium oil fatty acids and tricaprylin as substrates of enzymatic interesterification for the production of structured lipids

A. Yüksel^a, N. Şahin-Yeşilçubuk^{a, *}

^aDepartment of Food Engineering, Faculty of Chemical and Metallurgical Engineering, Istanbul Technical University, Maslak, TR-34469, Istanbul, Turkey

*Corresponding author: sahinnes@itu.edu.tr

1. INTRODUCTIONTOP

The health benefits of medium chain fatty acids (MCFAs) and long chain fatty acids (LCFAs) are well documented and today’s biotechnological improvements allow for the production of SLs which include both of these fatty acids in one triacylglycerol (TAG) molecule. Recently, the production of MLM-type SLs with medium chain fatty acids (MCFAs, C6-C10) at sn-1 and sn-3 positions, and long chain saturated and unsaturated fatty acids (LCFAs, C12-C24) at sn-2 position has gained attention for clinical and nutritional purposes (Osborn and Akoh, 2002). During digestion, MCFAs are cleaved from the TAG molecule via the activity of sn-1,3 specific pancreatic lipase and then transported to the liver through the portal vein where it is rapidly turn into glucose. In addition, MCFAs do not have carnitine dependence and they do not need chylomicrons; they can be easily oxidized to produce energy as well. Furthermore, MCFAs do not further esterified as a newly synthesized TAG molecule; thus they have a low tendency to be deposited as body fat which is beneficial for the control of body weight (Akoh et al., 2002; Osborn and Akoh, 2002). LCFAs are absorbed as sn-2 monoacylglycerol (MAG) through lymphatic system and are mainly used in biosynthetic processes (Mu and Hoy, 2004).

MCFAs have been used for years to satisfy the nutritional needs of patients with lipid malabsorption such as Chron’s disease, cystic fibrosis, colitis and premature birth (Akoh et al., 2002). However, MCFAs do not satisfy the body’s essential fatty acid requirement, so they cannot be used as a lipid source alone (Nunes et al., 2011). For this reason, MLM-type SLs designed as one TAG molecule represent both MCFAs and LCFAs which permit more controlled release of fatty acids into the bloodstream (Osborn and Akoh, 2002). Studies revealed that MLM-type emulsions are the safest and most effective way of energy delivery for patients who need long-term parenteral nutrition (Rubin et al., 2000; Matulka, Noguchi and Nosaka, 2006). The enzymatic synthesis of MLM-type SLs has gained importance in recent years. The enzymatic production of MLM-type SLs has been studied using different substrate sources. In the study by Hita et al. (2009), MLM-type SL with caprylic acid at the sn-1,3 positions and docosohexaenoic acid (DHA) at the sn-2 position was produced via enzymatic reactions. Researchers concluded that designed SL has the potential of being an important nutritional component for the development of the central nervous system of premature babies. Kim et al. (2010) designed a MLM-type SL consisting of caprylic acid and gamma-linolenic acid (GLA) derived from borage oil by an enzymatic synthesis method for premature babies and for those who have lipid malabsorption such as cystic fibrosis. In another study, corn oil and caprylic acid were the substrates of enzymatic process yielding with MLM-type SL intended for patients with special nutritional requirements (Öztürk, Ustun and Aksoy, 2010). In the study by Nunes et al., (2011), MLM-type SL destined for clinical nutrition was produced via enzymatic reactions between olive oil and capric acid.

SDA is an important fatty acid since it is an intermediate metabolite of the omega-3 pathway in which alpha-linolenic acid (ALA) is converted to eicosapentaenoic acid (EPA) and docosahexaenoic acid (DHA) and shows similar health effects to EPA and DHA. SDA is more efficiently converted into EPA and DHA when compared to ALA (Whelan, 2009). Oil from the plant source Echium plantagineum L., Boraginaceae, a black currant from the families Primulaceae and Grossulariaceae, have high concentrations of SDA, and also some microbial oils; fish oils, and genetically engineered soybean and canola are the sources of SDA (Whelan, 2009; Surette, 2013). SDA originated from plants has the potential of being a sustainable and vegetarian EPA source since EPA is mainly derived from fish oils. Fish stocks are being depleted day by day due to over fishing activities and the negative effects of climate change. Also, fish oils may have some environmental pollution (dioxins, polychlorated biphenyls, toxic heavy metals such as mercury) as well as an undesired smell and taste (Chávez-Servín et al., 2009). Furthermore, the PUFA content of the oil reaches up to nearly 60%. Thus, due to the high presence of SDA content in Echium oil, it was chosen as one of the substrate oils. Since the aim of the study was to incorporate long-chain fatty acids into the sn-2 position of the SLs, Echium oil served to fulfill the desired oil composition and distribution of fatty acids in the newly synthesized TAG structure.

In the literature, there are several studies about enzymatically synthesized SLs with the use of different SDA plant sources as substrate oil. In the study by Kleiner et al., (2012), firstly, low temperature crystallization (LTC) was applied in order to increase SDA content in modified soybean oil from 25% to 48.72% (TAG) and 60.78% (FFA). In the next step, SL with the highest SDA content (53.46 ± 1.85% SDA with 36.37 ± 3.14% at sn-2 position) was produced via the acidolysis reaction between the TAG and FFA of LTC catalyzed by Lipozyme^® TL IM in solvent free conditions. Ifeduba and Akoh (2014) used genetically modified SDA soybean oil and caprylic acid to produce SLs via enzymatic reactions in their study. In an another study, Gökçe et al., (2013) obtained low calorie SL with 64.4% PUFA content at the sn-2 position via the enzymatic acidolysis reaction catalyzed by Lipozyme^® RM IM where Echium oil and lauric acid were used as oil sources. Bilgiç et al., (2012) used Echium oil and olive oil as substrates of enzymatic acidolysis reactions catalyzed by Lipozyme^® TL IM in order to incorporate SDA into olive oil. As a result of the study, SLs were produced with 4.9% SDA and 43% PUFA contents. To sum up, previous studies used SDA rich oil sources or Echium oil to enrich oils in terms of omega-3 and omega-6 PUFAs (Bilgiç and Yeşilçucuk, 2012; Kleiner et al., 2012; Gökçe, Şahin-Yeşilçubuk and Üstün, 2013; Ifeduba and Akoh, 2014). However, no previous study investigated the influence of reaction conditions for obtaining MLM-type SL from Echium oil fatty acids and tricaprylin. Therefore, the aim of this study was the production and optimization of MLM-type SLs containing SDA via enzymatic acidolysis reactions. In order to characterize the products, the fatty acid composition, sn-2 positional composition and melting profiles of the SLs were determined.

2. MATERIALS AND METHODSTOP

2.1. MaterialsTOP

The Echium oil (E. plantagineum) used in this study was purchased from the Harke Group, GmbH (Germany). Tricaprylin was purchased from Sigma Chemical Co. (St. Louis, MO). Lipozyme^® RM IM commercially immobilized sn-1,3 specific lipase from Rhizomucor miehei was donated by Novo Nordisk A/S branch (İstanbul, Turkey). The enzyme activity of Lipozyme^® RM IM was 275 UIN/g. TLC plates were purchased from Merck (Whitehouse, NJ). All other reagents and solvents purchased either from Sigma Chemical Co. (St. Louis, MO) or Merck (Whitehouse, NJ) were of analytical or chromatographic grade.

2.2. MethodsTOP

2.2.1. Preparation of free fatty acids from Echium oil TOP

Echium oil was saponified to obtain free fatty acids according to Yüksel and Yeşilçubuk (2012). For the saponification process, 25 g of Echium oil and 5.75 g of KOH were weighed into a flask and 11 mL of distilled water and 66 mL of aqueous ethanol [95% (v/v)] were added to the oil. The mixture was heated in a water bath at 60 °C for 1 hour. After 1 h, the reaction was stopped by adding 60 mL of distilled water. The unsaponifiable matter was extracted twice into the hexane layer (100 mL) and they were discarded. Then, the mixture was acidified (pH = 1.0) with 3 mol/L of HCl. After acidification, free fatty acids were extracted into 50 mL of hexane which was further passed through anhydrous sodium sulfate column. Hexane was evaporated at 40 °C using a rotary evaporator. The free fatty acids were stored at -18 °C for further use.

2.2.2. Acidolysis reactions TOP

Acidolysis reactions with different molar ratios of free fatty acids and tricaprylin were performed in screw-capped amber glass bottles (Table 1). Lipozyme^® RM IM (10% weight of total substrates) was added to the reaction medium together with 3 mL of n-hexane. The reaction mixture was placed in an orbital shaker (IKA, KS4000i, Germany) rotating at 200 rpm under different conditions determined by the RSM design generated by Modde 11.0 (Umetrics, Umeå, Sweden). After the enzymatic reactions, the reaction mixture was passed through a glass column packed with anhydrous sodium sulfate as described in Sahin et al., (2005a). All reactions were carried out in duplicate and the results are reported as the average data.

2.2.3. Experimental design for RSM study TOP

A three-factor, 5-level central composite circumscribed design (CCC) was applied by the use of Modde 11.0 (Umetrics, Umeå, Sweden) software to investigate how the chosen parameters affect the incorporation of SDA during the enzymatic reactions. Reaction temperature (T, °C) (50-60°C), reaction time (t, h) (6-12 h) and substrate molar ratio (Sr, total free fatty acids/tricaprylin (3-6 mol/mol) were the parameters of the response surface methodology (RSM) study. The factor ranges were selected according to the preliminary studies (data not given here) and the literature survey. Table 1 shows the independent variables together with the experimental design of this study. The experiments were carried out randomly and the average of two parallel results for each experimental point is reported as the mol % of the fatty acids.

2.2.4. Analysis of reaction products TOP

The reaction products (50 μL) were separated as TAG bands on a silica gel G TLC plate (20 x 20 cm) using a petroleum ether, diethyl ether, and acetic acid (80:20:0.5, v/v/v) mixture as the solvent system. 0.2% 2,7-dichlorofluorescein in methanol was sprayed onto the TLC plate to make the TAG bands visible under UV light. Then, the TAG bands were incubated with 3 mL of 6% HCl in methanol and 40 μL of C17:0 as internal standard (10 mg/mL) in test tubes and they were placed in an oven at 75 °C. After 2 hours, the reaction products were mixed with 2 mL of n-hexane and 1mL of 0.1 M KCl and centrifugated at 1000 rpm for 3 minutes to obtain the upper layer which was then passed through an anhydrous sodium sulfate column. Finally, the fatty acid methyl esters (FAME) obtained were analyzed by gas chromatography to evaluate the fatty acid composition of the substrate oils and reaction products (Jennings and Akoh, 1999).

2.2.5. Fatty acid composition analysis TOP

Shimadzu GC 2010 Plus gas-liquid chromatography (GLC) (Milan, Italy) equipped with a flame-ionization detector (FID) and SP-2380 capillary column (60m × 0.32mm ID × 0.20 μm film thickness) (Supelco Inc., Bellefonte, PA, USA) was used to evaluate the substrate oils and reaction products for their fatty acid compositions. Both the injector and detector temperatures were held at 250 °C. The oven temperature was initially held at 60 °C for 1 min, and then programmed to 165 °C for 30 min at a rate of 20 °C/min (first ramp); to 190 °C for 35 min at a rate of 10 °C/min (second ramp); to 210 °C for 10 min at a rate of 20 °C/min (third ramp). Hydrogen was used as the carrier gas at a flow rate of 1.02 mL/min. The sample volume was 1 µL and relative amounts of FAME were calculated as mol % fatty acid (FA) by computer with reference to heptadecanoic acid as the internal standard. The reported results were the average values of duplicate analyses.

2.2.6. Sn-2 positional fatty acid analysis TOP

The TAG bands scrapped off from the TLC plates were incubated with a 1.0 M Tris-HCl buffer (2 mL), 0.05% bile salt solution (0.5 mL), 2.2 g/100 g calcium chloride solution (0.2 mL) and pancreatic lipase (40 mg) in the test tubes placed in a water bath at 40 °C for 3 min. 6 mol/L HCl (1 mL) and diethyl ether (4 mL) were added and then centrifuged. An anhydrous sodium sulfate column was used to filter the upper phase. Thereafter, a 200 µL aliquot was spotted on TLC plates coated with silica gel G, and the TLC plates were placed in the tank and hexane, diethyl ether, and formic acid (60:40:1.6, v/v/v) were used as developing solvents. After the band seperation, 2,7-dichlorofluorescein in methanol (0.2 g/100 mL) was sprayed onto the TLC plate in order to visualise the 2-monoacylglycerol (2-MAG) band under UV light. For identification, a 2-monoolein standard (Sigma) was used as a marker. The 2-MAG band corresponding to the marker bang was scrapped off into a screw-capped test tube, methylated and analyzed by GLC as previously described (Pina-Rodriguez and Akoh, 2009).

2.2.7. Scale-up process TOP

For scale-up synthesis of SLs, the optimum reaction conditions generated by RSM were employed. The levels of tricaprylin and total free fatty acids were increased by approximately 40 times. Also, enzyme and hexane levels were scaled-up to levels which agreed with the increased amount of substrate oils. The reaction mixture containing substrates at a 6 mol/mol substrate molar ratio was incubated at 60 ºC and agitated in an orbital shaking air-bath at 200 rpm for 6 hours. In the end, the mixture was passed through anhydrous sodium sulfate column in order to stop the enzymatic reaction.

2.2.8. Removal of free fatty acids from the reaction mixture TOP

The reaction products from the scale-up process were purified according to the procedure outlined by (Lee et al., 2004). After the enzymatic interesterification reaction, excess hexane was removed by a rotary evaporator, and 60 mL of 0.5 mol/L KOH solution prepared with ethanol (20 mL/100 mL) and 110 mL hexane were added to the product subsequently transferred to a separatory funnel. The upper layer was collected, mixed with 3-4 drops of phenolphthalein solution and titrated with 0.5 mol/L KOH solution prepared with ethanol (20 mL/100 mL). 30 mL of a saturated NaCl solution were added to the mixture when the color of the mixture turned to pink. Then, the mixture was shaken vigorously and passed through the anhydrous sodium sulfate column. The collected hexane phase was removed by rotary evaporator and kept at -18 °C until use.

2.2.9. Melting profile determination TOP

The melting profiles of tricaprylin, Echium oil and the SL product of the scale-up process were determined by differential scanning calorimetry (DSC) Q10 model (TA Instruments, New Castle, DA) according to the AOCS Official Method Cj 1-94 (1989).

2.3. Statistical analysisTOP

The regression analysis, statistical significance, analysis of variance (ANOVA), and response surface applications were carried out using Modde 11.0 (Umetrics, Umeå, Sweden) software. Second-order coefficients were generated by regression analysis. The goodness of fit of the model was evaluated by the coefficient of determination (R²) and ANOVA data.

A second-order polynomial model was used to fit the data obtained from the experimental design as shown in equation 1:

where Y is the response (incorporation of SDA at sn-1, 2, 3 positions), b₀ is the intercept; b_i is the linear term (first-order model); b_ii is the quadratic term (second-order model), b_ij is the interaction regression coefficient, and X_i and X_j are the independent variables.

3. RESULTS AND DISCUSSIONTOP

3.1. Fatty acid profile of the substrate oilsTOP

The fatty acid profile of the substrate oils (tricaprylin and Echium oil) was determined by GLC-FID. The samples were analyzed in duplicate and average results were calculated. According to the results, tricaprylin consisted of 99.5% caprylic acid. In addition, Echium oil fatty acids contained predominantly α-linolenic acid (31.7%), oleic acid (14.5%), linoleic acid (14.1%), stearidonic acid (13.7%) and γ-linolenic acid (10.7%). The fatty acid profile of Echium oil fatty acids was found to be close to the Echium oil fatty acid composition (Guil-Guerrero et al., 2000; Özcan, 2008; Bilgiç and Yeşilçubuk, 2012).

3.2. Model fitting for the optimization studyTOP

The present study aimed at the production of MLM-type SLs containing stearidonic acid at the sn-2 position between tricaprylin and the free fatty acids of Echium oil by enzymatic acidolysis reactions. An experimental design with three-factor and five-level CCC was applied in order to optimize the reaction conditions. Table 1 shows each design point and observed responses in terms of SDA incorporation at the sn-1, 2, 3 positions (mol %). Regression coefficients (b) and significance (P) values are given in Table 2.

As can be seen from Table 2, the first-order parameters such as time (t) and substrate molar ratio (Sr) were significant and they both had positive effects on the incorporation of SDA. Since the other terms such as temperature, quadratic terms and interaction terms were not found to be significant, they are not presented in Table 2. Therefore, the model equation including the significant terms for SDA incorporation at the sn-1, 2, 3 positions can be written as:

Fitness of the model was evaluated by analysis of variance, and the results are given in Table 3. According to the ANOVA analysis presented in Table 3, since F_model (8.07) is very high compared to the F_9,7 value (3.69) (α=0.05), the obtained model is regarded as suitable for prediction (Sahin et al., 2005a; Sahin et al., 2005b; Yüksel and Yeşilçubuk, 2012). In addition, model error is used to determine whether the model is fit to the results of the experiment. Since the p value of the model error for SDA incorporation at the sn-1, 2, 3 positions was 0.195, there was no significant (p > 0.05) lack of fit in the model (Rao et al., 2002; Lumor and Akoh; 2005; Sahin et al., 2005a; Chopra et al., 2011).

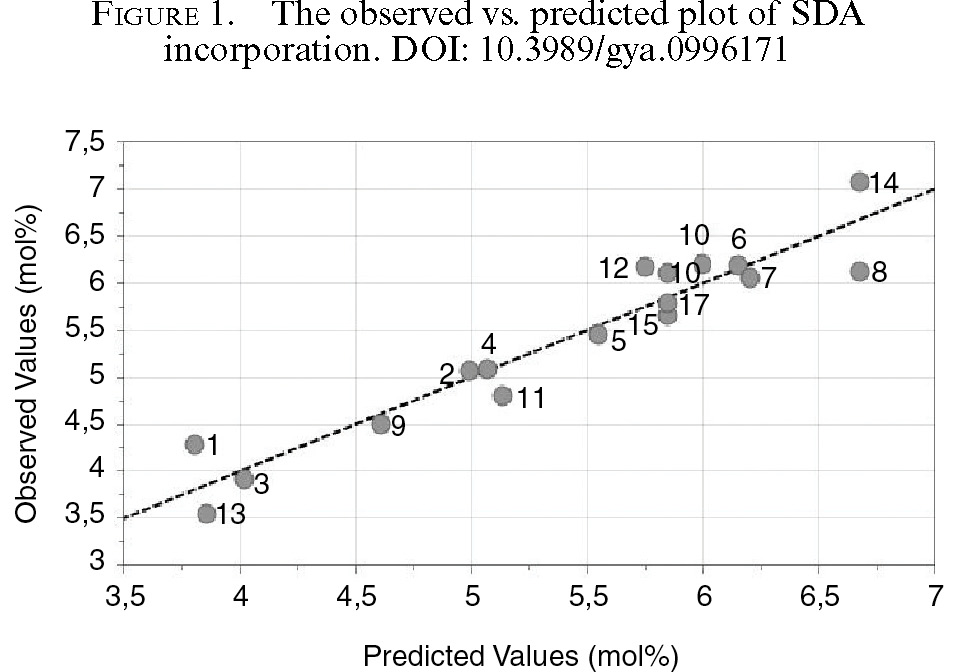

The coefficient of determination (R²) for SDA incorporation at the sn-1, 2, 3 positions was found to be 0.91. Also, the relationship between the observed and predicted values from the model is given in Figure 1. According to the graph in Figure 1, the observed vs. predicted plot of SDA showed a linear distribution. This also means that the model generally represents the real relationship between the reaction parameters and the response (Yang et al., 2003).

3.3. Optimization studyTOP

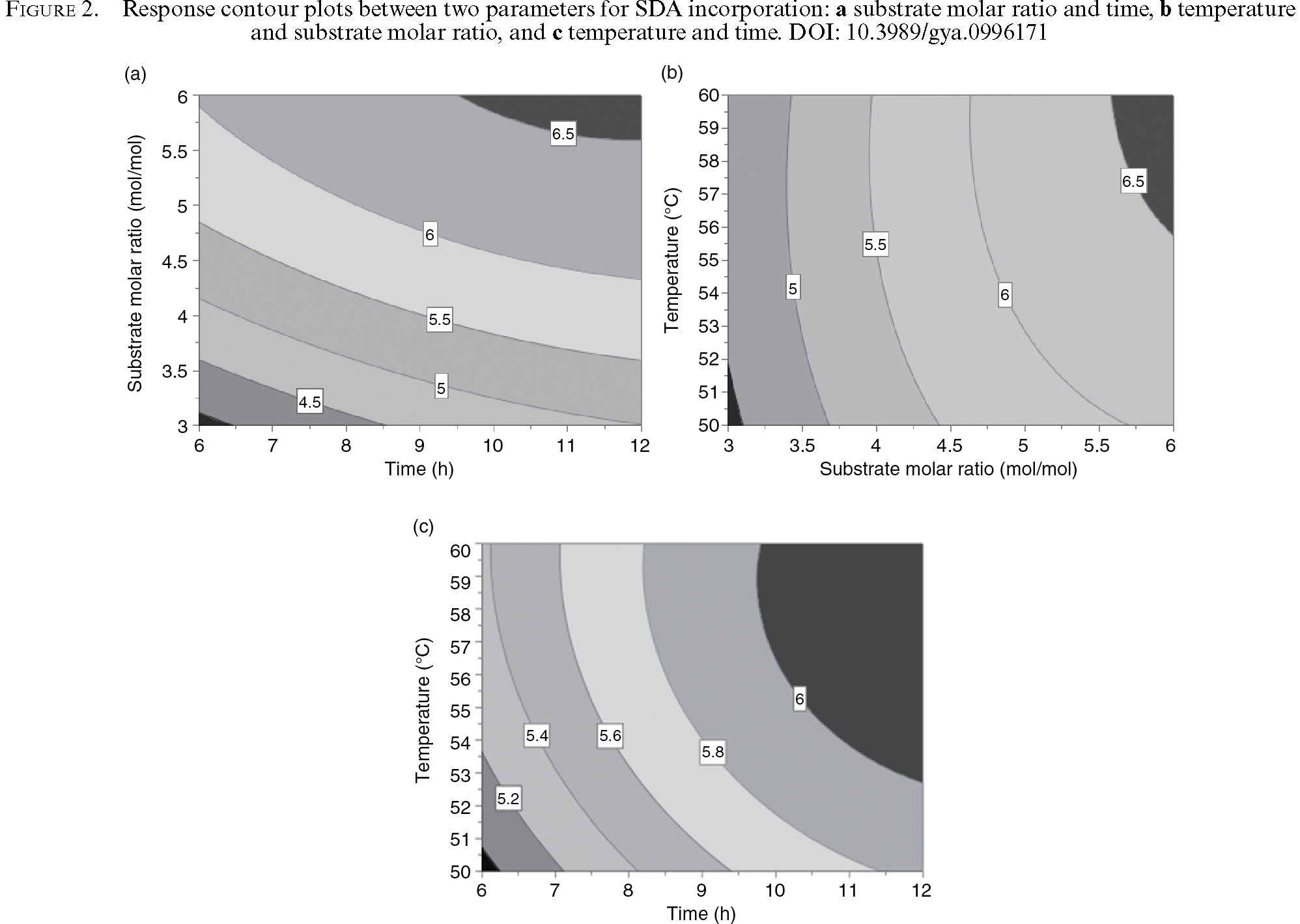

Response surface methodology was used to evaluate and to predict/optimize the relationship between the reaction parameters and the response. The contour plots obtained from the interaction of temperature, time and substrate molar ratio on the enzymatic incorporation of SDA into tricaprylin are given in Figures 2a, 2b and 2c. While drawing the contour plots, the third variables were kept at medium values.

As can be seen from Figure 2a, SDA incorporation at the sn-1, 2, 3 positions increases with the increase in both time and substrate molar ratio within the observed experimental ranges (Temperature: 60 °C).

The effects of substrate molar ratio and temperature on the incorporation of SDA at sn-1, 2, 3 positions are shown in Figure 2b. It can be seen that SDA incorporation increases with increasing substrate molar ratio almost independently from temperature within the observed experimental ranges (Time: 9 h).

The effects of time and temperature on the incorporation of SDA at the sn-1, 2, 3 positions are shown in Figure 2c. According to this figure, SDA incorporation increases with the increase in time within the observed experimental ranges (Substrate molar ratio: 6 mol/mol).

In this work, it was aimed to maximize the SDA incorporation at the sn-1, 2, 3 positions, thus according to the optimizer function of Modde 11.0, the optimal conditions for the maximum incorporation of SDA (6.8 mol%) were found to be 59.9 °C, 10.7 hours and 6.6 mol/mol for temperature, time and substrate molar ratio, respectively. In order to reduce the cost of the enzymatic process, lower substrate molar ratio and a shorter reaction time were selected as optimal conditions for SDA incorporation which were 60 °C reaction temperature, 6 h reaction time and 6 mol/mol substrate molar ratio. At these reaction conditions, 6.1% SDA incorporation was predicted from the generated model.

3.4. Model verification and scale-up production at optimal reaction conditionsTOP

The optimal conditions for SDA incorporation at the sn-1, 2, 3 positions were determined to be 60 °C, 6 h and 6 mol/mol substrate molar ratio and SDA incorportion was predicted as 6.1% under these conditions. In order to confirm the prediction power of the model, the enzymatic reactions were performed under these conditions at small scale. Moreover, the scale-up process was also carried out at these optimum conditions. The results of both small-scale and scale-up processes are given in Table 4. As can be seen in Table 4, the experimental incorporation values for SDA obtained from both small-scale (6.1%) and scale-up (6.6%) production were satisfactorily close to each other and to the predicted value (6.1%) from the generated model. The Sn-2 position of SLs were mostly (78-79%) occupied by long-chain fatty acids including palmitic, stearic, oleic, α-linolenic and stearidonic acids. In addition to this, the yield of the reaction product after the removal of FFAs was 20.5%.

3.5. Melting behavior of substrate oils and SLTOP

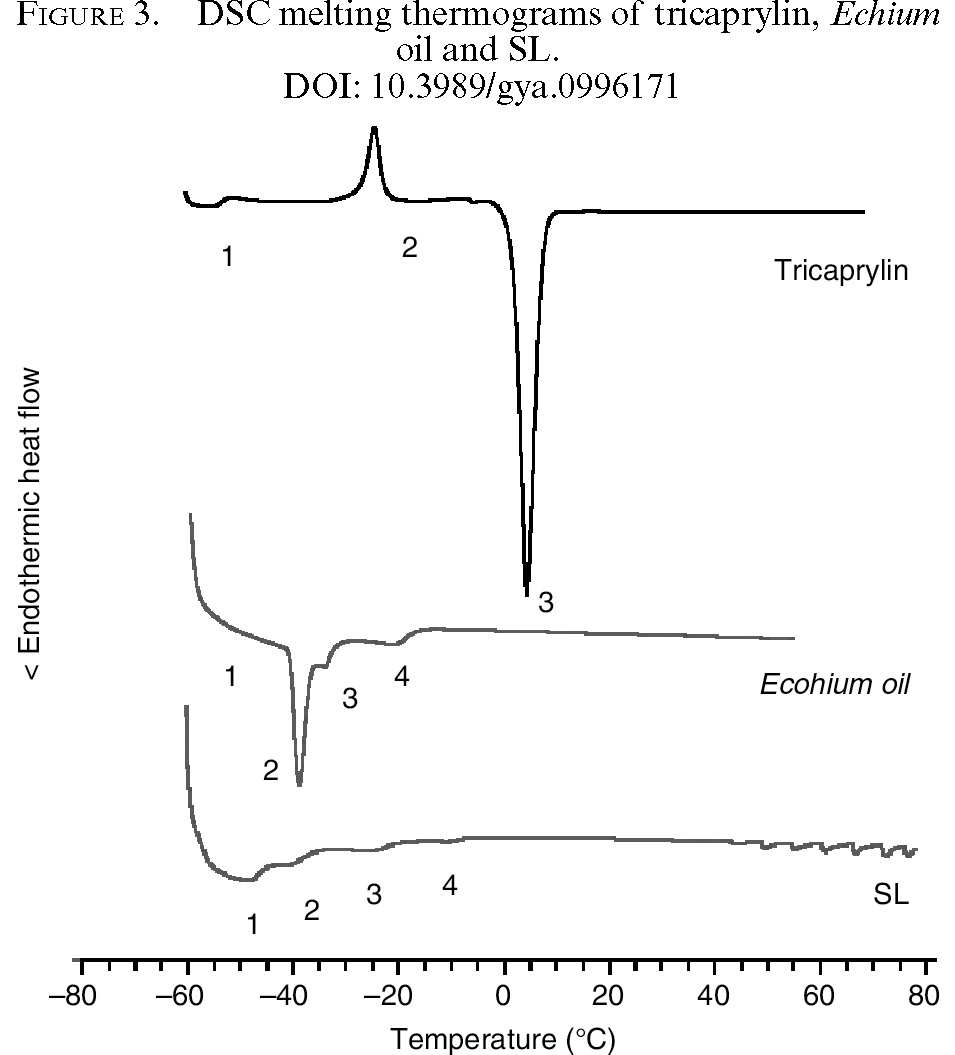

The melting behavior of the substrate oils (tricaprylin and Echium oil) and the SL obtained in the scale-up production were evaluated by the DSC melting thermograms shown in Figure 3. The main endothermic peaks are consecutively numbered in each thermograph. Figure 3 shows the melting profile of tricaprylin with one sharp peak (peak 3 at 10 °C) since it contains saturated fatty acids at about 99.5%. In addition, tricaprylin has another two melting peaks at -50 °C and -15 °C. Echium oil has four melting points (-49 °C, -34 °C, -27 °C and -11 °C, respectively) as can be seen in Figure 3. If we compare the melting behavior of tricaprylin and Echium oil, Echium oil has a narrower melting point range (-50 to -10 °C). Figure 3 also shows the melting thermogram of the SL produced in scale-up process. This thermogram reveals that the incorporation of unsaturated fatty acids into tricaprylin resulted in the presence of new melting points at lower temperatures (peaks 1, 2, 3 and 4 indicated the temperatures -47 °C, -37 °C, -22 °C and -6 °C, respectively). Moreover, the characteristic melting peak of tricaprylin (peak 3 of tricaprylin thermogram) disappeared. SL has no characteristic melting peak when compared to the DSC thermograms of tripcaprylin and Echium oil.

4. CONCLUSIONSTOP

The MLM-type structured lipid obtained as a result of this study contained SDA as well as other omega-3 fatty acid ALA together with medium chain caprylic acid. We believe that the MLM-type SLs produced within the concept of this study will satisfy the needs of patients with special nutrition requirements as well as consumers who increasingly demand functional foods with health benefits. These SLs can be used for patients with lipid malabsorption, for premature babies, and for hospitalized patients who require more energy, more quickly. Moreover, the construction of novel or designer structured lipid molecules from Echium oil substrates will be promising for food, therapeutic, and nutritional uses in the near future.
