Mid-infrared spectroscopic detection of sunflower oil adulteration with safflower oil

O. Uncu, B. Ozen^* and F. Tokatli

Izmir Institute of Technology, Department of Food Engineering, Urla-Izmir

*Corresponding author: banuozen@iyte.edu.tr

1. INTRODUCTIONTOP

Adulteration is a major problem for the food industry with significant economical and health consequences as in the case of toxic oil syndrome (Lai et al., 1994). There are various studies in the literature regarding adulteration detection techniques which focus on fats and oils (Jha et al., 2016; Gómez-Caravaca et al., 2016; Tena et al., 2015; Ellis et al., 2012). Creative fraud techniques necessitate the development of new adulteration detection methods or the update of existing ones. In general, most official methods that aim to detect adulteration are based on chromatographic detection of compounds such as sterols and include extensive time requirements and laborious extraction steps.

Safflower oil is mixed with sunflower oil in high proportions since this oil is relatively cheaper. Even small differences between oil prices result in high profits when large amounts of oils are mixed. The oil industry have complaints (personal communication) about the difficulty in detecting the adulteration of sunflower oil with safflower oil even with traditional chemical analysis techniques due to the resemblance in chemical composition (fatty acid, sterol etc.) between safflower oil and sunflower oil (Hurriyet, 2016).

Adulteration detection methods could be classified under two groups: targeted and non-targeted analytical methods (Aparicio et al., 2013). While targeted techniques are based on the identification of specific compounds such as fatty acids, sterols or tocopherols in the sample, a non-targeted approach provides a general view of the molecular structure of the analyzed compounds. It is well-documented in the literature that infrared (IR) spectroscopic methods as non-targeted analytic techniques are quite successful in detecting the adulteration of various oils even at low adulteration levels (Azizian et al., 2015; Mendes et al., 2015; Gurdeniz and Ozen, 2009). In addition, these methods have the advantages of being rapid and relatively more environmentally friendly since they require minimum sample preparation. Qualitative and quantitative applications of mid-IR spectroscopy in the 4000–400 cm⁻¹ range of electromagnetic spectrum is a common practice in the analysis of organic compounds in order to identify the specific chemical structures of a matrix (Guillén and Cabo, 1997). This measurement technique is based on the fact that bonds of certain atomic groups have specific modes of vibration (stretching and/or bending) under mid-IR absorption which lead to a qualitative representation of molecular structure at characteristic frequencies (Karoui et al., 2008). One reason for the success of these spectroscopic methods is the use of chemometric techniques in the analysis of the data since the complex data obtained from spectroscopic measurements could be converted into a meaningful form with the application of these statistical methods.

Near and mid-IR spectroscopic techniques are reported in the literature to have been commonly used in authentication studies related mostly with olive oil. As a mid-IR spectroscopic technique Fourier transform infrared (FTIR) spectroscopy in combination with chemometric tools was able to detect a corn-sunflower-canola mixture in olive oil at the 5% level (Gurdeniz and Ozen, 2009). In another study that used various multivariate statistical data analysis approaches, oils that came from different botanical origin (olive, sunflower, corn, soybean and hazelnut) were differentiated from each other and percentages of binary mixtures in olive oil were predicted with FTIR spectroscopy (Lerma-García et al., 2010). There are also examples of the use of FTIR spectroscopy in the adulteration detection of various oils other than olive oil. This spectroscopic technique and chemometric data analysis were also successful in detecting the mixtures of animal fat in cod-liver oil (Rohman and Che Man, 2009). Both mid and near IR spectroscopy were used in identifying soybean oil added to camellia oil and it was reported that both methods were effective in the detection and quantification of adulteration (Wang et al., 2006). However, there is no report in literature about the detection of safflower in sunflower oil with any analytical methods. This study was aimed to use FTIR spectroscopy and various chemometric tools to detect the adulteration of sunflower oil with safflower oil in comparison to the fatty acid profile analysis. This study was undertaken upon request from the sunflower oil industry.

2. MATERIALS AND METHODSTOP

2.1. SamplesTOP

Nine crude sunflower oils and 6 crude safflower oils were supplied by an oil company. Adulterated samples were prepared by adding safflower oils to each of the sunflower oil samples at 10, 30, 50 and 60% (v/v) and 216 adulterated samples (9 sunflower oils x 6 safflower oils x 4 concentrations = 216 mixtures) in total were analyzed as well as pure sunflower and safflower oils (9 + 6 = 15).

2.2. Fatty acid profileTOP

The fatty acid profiles of the oil samples were determined according to European Official Methods of Analysis (European Union Commission, 1991). After methylation with a cold solution of KOH in methanol, the extracted samples were analyzed with a GC (Agilent 6890, Agilent Technologies, USA) equipped with an auto-sampler (Agilent 7863 & FID) and a split/splitless (1:50) injector. A HP 88 capillary column (Agilent, USA) with dimensions of 100 m×0.25 mm ID×0.2 μm was used in the GC analyses.

2.3. FTIR spectroscopyTOP

Spectra of the oil samples were collected against air background in mid-IR region (4000–650 cm⁻¹) with a FTIR spectrometer (Spectrum 100, Perkin Elmer, USA) equipped with a ZnSe-horizontal attenuated total reflectance (HATR) accessory and a DTGS detector. Resolution was set to 4 cm⁻¹ and 64 scans were taken for each sample. The ZnSe crystal was cleaned with hexane, ethanol and distilled water after each run.

2.4. Data analysisTOP

Orthogonal partial least square-discriminant analysis (OPLS-DA) and soft independent modeling class analogy (SIMCA) as supervised chemometric tools were used in the differentiation of pure oils from adulterated sunflower oil samples with respect to their fatty acid profiles and mid-IR spectra. The number of components in OPLS-DA is given as (p_p, p_o). The p_p and p_o are the number of components which explain the information in the X matrix predictive to the Y matrix, and information of the X orthogonal to Y, respectively.

A prediction of adulteration percentages was performed with partial least square (PLS) regression. The classification and prediction ability of the models was checked with coefficients of determination, R² (calibration) and R² (cross validation), and variable importance for the projection (VIP) and root mean square error of estimation (RMSEE), cross validation (RMSEcv), and prediction (RMSEP). The leave-one-out cross-validation technique was used to check the validation performance of the model. Data were analyzed with Simca 13.0.3 (Umetrics Co., Umea, Sweden) software. The Software determines the number of necessary principal components (PC) to build the models with respect to R² validation values.

3. RESULTS AND DISCUSSIONTOP

3.1. Differentiation with respect to fatty acid profileTOP

The fatty acid profiles of crude sunflower and safflower oils are shown in Table 1. The major fatty acids for both seed oils were found as palmitic, stearic, oleic and linoleic acids in varying amounts. The palmitic acid content of safflower oil lies between 6.72% and 6.94% while it is between 6.22% and 7.46% in sunflower oil. In addition, the amount of stearic acid in safflower oil ranges between 2.47 and 3.09% and that of sunflower is between 2.94 and 3.86%. Therefore, both palmitic and stearic acid contents of sunflower and safflower oils generally overlap with each other. However, the oleic and linoleic acid contents in safflower and sunflower oils are quite different from each other. While oleic acid composes 11.87–16.37% of the tested safflower oil samples, the sunflower oil samples contain 23.25 to 36.41% oleic acid. The linoleic acid contents in safflower and sunflower oils range between 72.75–77.12% and 52.28–64.33%, respectively. The rest of the fatty acids were found in similar amounts for sunflower and safflower oil samples. According to the literature, safflower oil has a variable fatty acid profile and the palmitic, stearic, oleic and linoleic acid contents of most commonly known safflower oils range between 6–8%, 2–3%, 16–20% and 71–75%, respectively (Knowles, 1989; Velasco and Fernández-Martínez, 2001). However, these ranges may differ depending on variety (genotype), growing conditions and cultivation locations of the plant (Yeilaghi et al., 2012; Cosge et al., 2007; Gecgel et al., 2007; Fernández-Martínez et al., 1993). The safflower oil used in this study, in general, covers these ranges in the literature; therefore, provide sufficient variation required for adulteration studies. The sunflower oil samples also have a wide fatty acid composition range.

Since it is a waste of resources and time to determine the fatty acid profiles of all mixtures (216 samples) using GC measurement, the fatty acid content of each mixture was calculated using the composition of pure oils by taking into account mixture percentages. However, the fatty acid profiles of 8 mixtures were also measured experimentally and calculated vs the measured amounts were correlated with each other. As a result, it was determined that the R² values for the relation between calculated and measured amounts of fatty acids for all 8 mixtures were higher than 0.99. Therefore, the calculated fatty acid profiles of all the mixtures were used in the multivariate statistical analysis to observe the differentiation power of the fatty acid profile in order to detect adulteration of sunflower oil with safflower oil.

Differentiation among oil samples was investigated using multivariate discriminant analysis techniques such as PLS-DA, OPLS-DA and SIMCA and OPLS-DA provided better discrimination among oil samples compared to PLS-DA; therefore, the results of only OPLS-DA are discussed. First, OPLS-DA was run only for pure oils and pure safflower and sunflower oils are separated from each other very well (R² (calibration) =0.67 and R² (cross-validation) =0.95) with respect to the first principal component (PC1) (graph not shown). The Loading plot (graph not shown) indicated that the higher contents of palmitoleic (16:1), stearic (18:0), oleic (18:1) and behenic (22:0) acids for sunflower oil and higher amounts of myristic (14:0), linolenic (18:2n6), and arachidic (20:0) acids of safflower oil were the fatty acids causing differentiation between these oils. VIP values of the model (not shown), which indicate the importance of each variable in the model, also proved that the mentioned fatty acids had higher discriminatory power than the rest of the fatty acids. Therefore, ineffective fatty acids are removed from the data set for further evaluations.

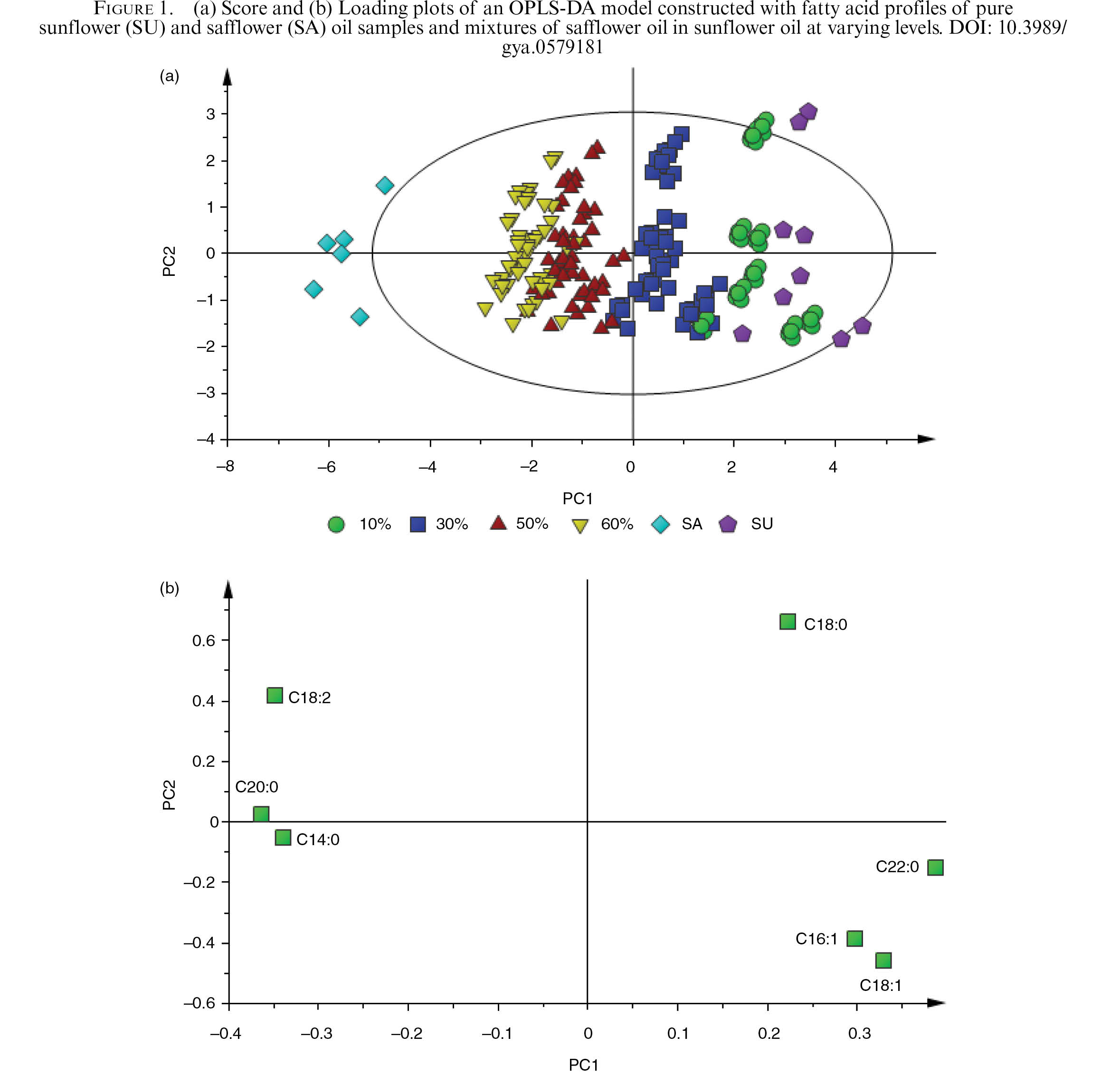

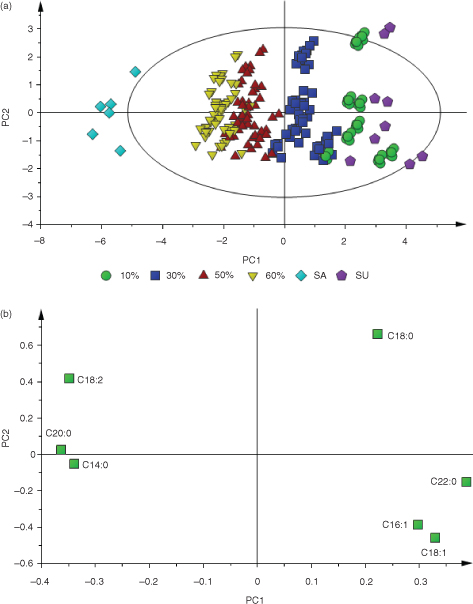

As far as the differentiation of mixtures is concerned, with respect to their fatty acid contents, both OPLS-DA and SIMCA were used in the data analysis. The OPLS-DA model of the fatty acid data has R² (calibration) and R² (cross-validation) of 0.83 and 0.16, respectively. A OPLS-DA model was built with (1+1) PC. Figure 1 shows the OPLS-DA score plot (Figure 1a) and loading plot (Figure2b) of pure sunflower, safflower and mixture oils. The first PC in the score plot explains 62% of variability while the second PC corresponds to 21% of variability. From the score plot, it could be seen that only pure sunflower and safflower and also higher levels of adulterated samples (50% (v/v) and 60% (v/v)) were separated from each other while lower levels of adulterated samples (10% and 30%) were not clustered or differentiated clearly. The loading plot (Figure 1b) revealed that the fatty acids used in the model were effective only in the differentiation of pure sunflower and samples with high safflower oil percentages. The misclassification analysis for the constructed OPLS-DA model is given in Table 2. According to this table, 30 and 13 out of 54 samples at 10 and 30% adulteration levels, respectively, were misclassified as pure sunflower oil. Although there were misclassifications above the 30% level none of the misclassified samples was assigned to the pure sunflower oil group. As an example, 1 of the samples from the 50% adulteration level was assigned to the 30% level while 5 of them were grouped as 60% mixture. Therefore, it could be concluded that adulteration detection using fatty acid profile is possible at around 50% mixture level according to the misclassification table.

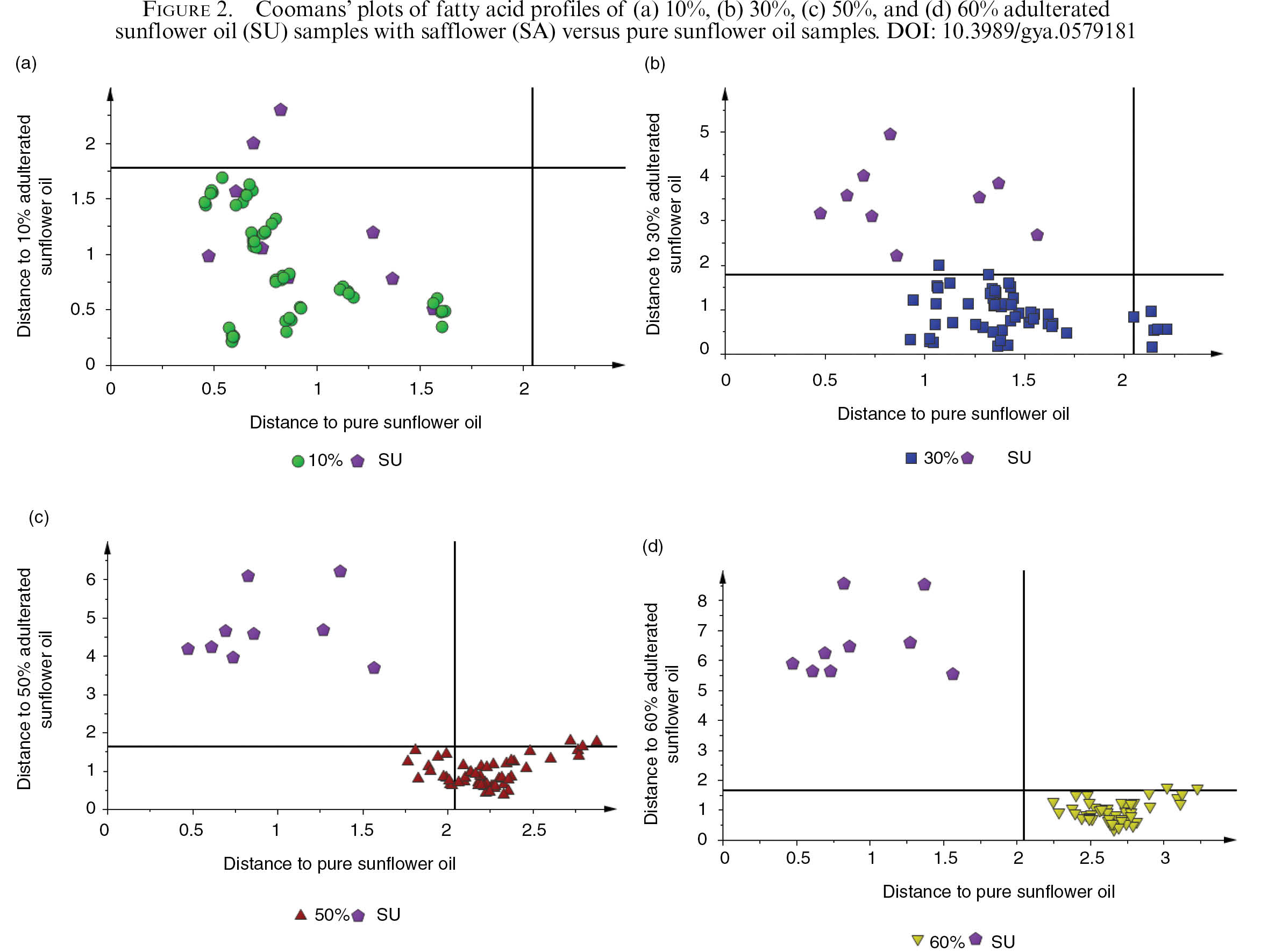

In addition, SIMCA models (Figure 2) were also created to see the differentiation power of fatty acids in the detection of adulteration with safflower oil. As seen in Figure 2a, all samples of 10% safflower-sunflower mixtures and even most of the pure sunflower samples are located in the common region of Cooman’s plot. This indicates that detection at this level is not possible. At the 30% level a clear separation is still not possible because most of the adulterated samples are in the common region (Figure 2b). There is a clearer differentiation between pure and mixed samples at the 50% level but some of the samples are still in the common region of the plot (Figure 2c), while at the 60% level of adulteration there is a clear separation between pure and adulterated samples (Figure 2d). Therefore, the 60% adulteration level is the critical percentage in the detection of adulteration of sunflower oil with safflower oil using fatty acid profile. OPLS-DA discrimination resulted in lower detection limit of 50% compared to SIMCA but this is still a high value. In other words, fatty acid profile is not very satisfactory for the differentiation of adulterated sunflower oil. It was reported that while fatty acid profile could detect adulteration of olive oil with various oils (soybean, corn, and sunflower) at levels as low as 2% (Jabeur et al., 2014), it was not effective in determining mixtures of hazelnut oil-olive oil or almond oil-olive oil (Christopoulou et al., 2004).

3.2. Mid-infrared spectroscopic detection of adulterationTOP

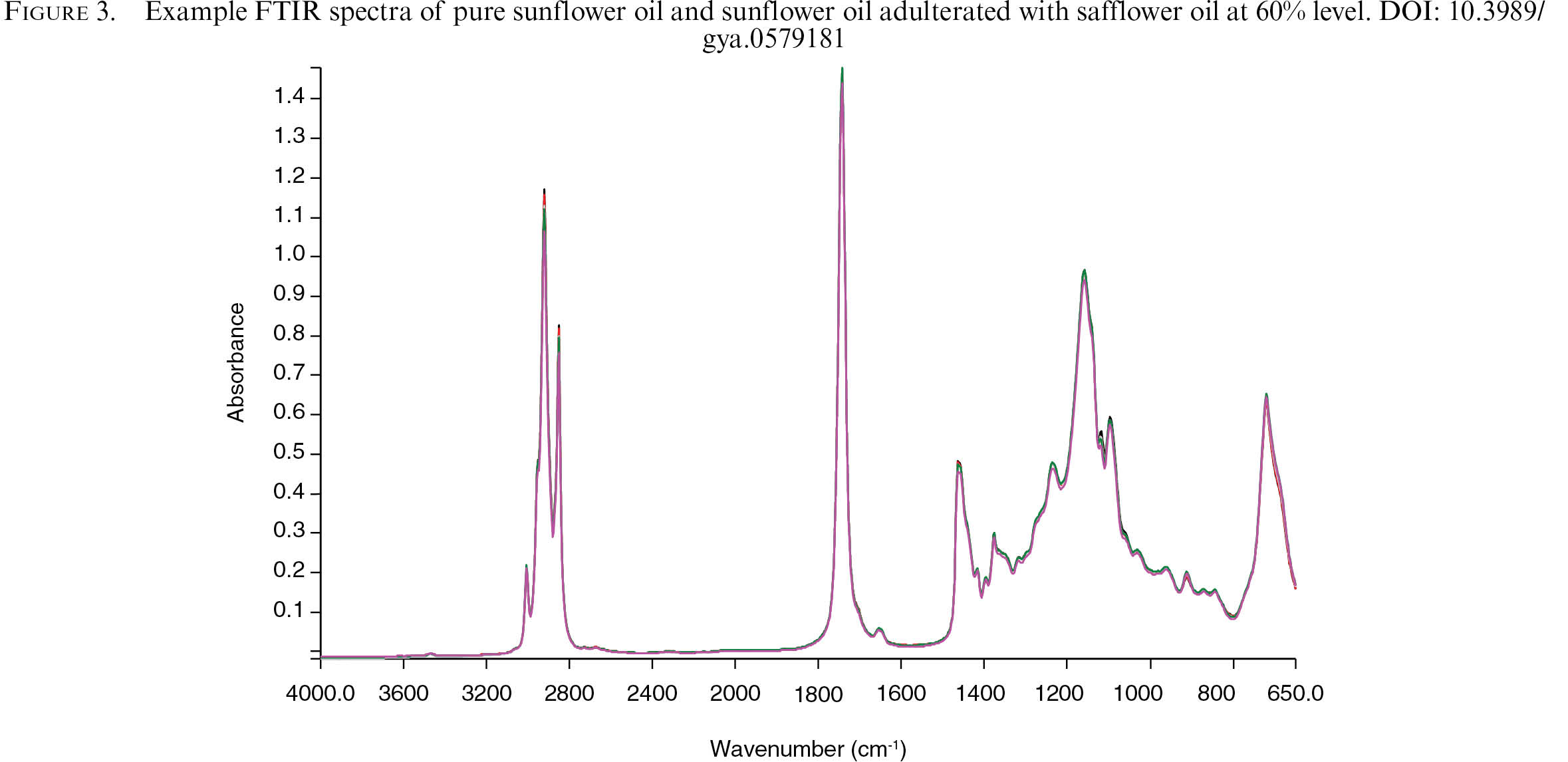

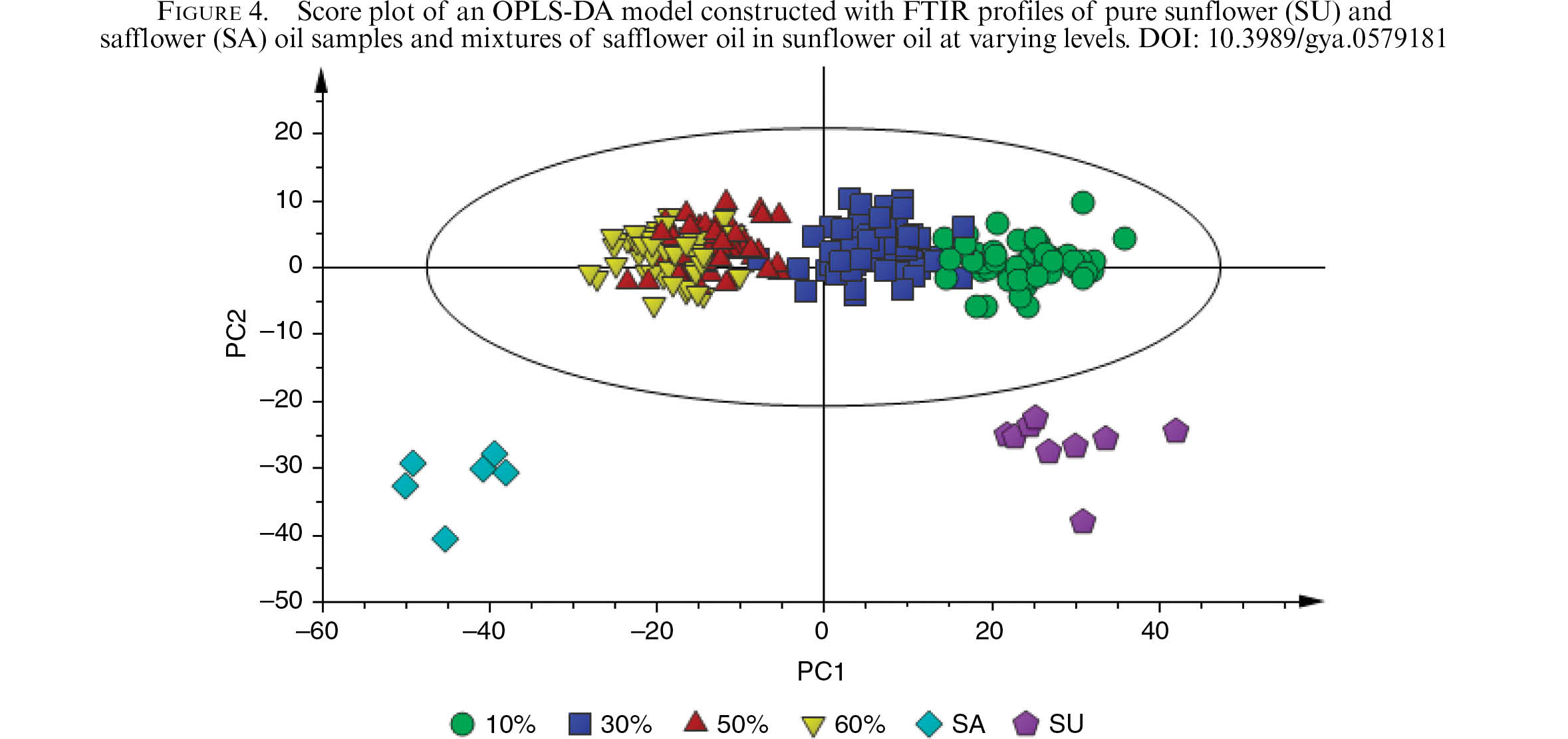

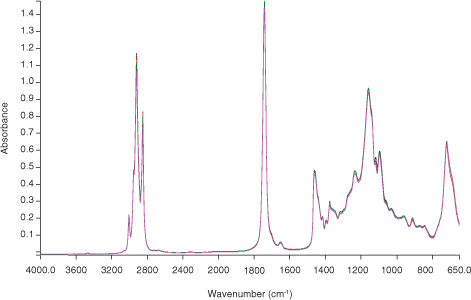

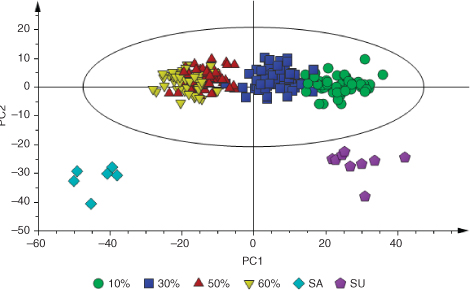

Mid-IR spectra of pure sunflower and safflower oils and their mixtures were also collected to be used as an authentication tool and the spectra indicate no clear visible differences among samples (Figure 3). However, multivariate statistical analysis of the data is generally very effective in revealing even very small spectral differences which cannot be observable with the naked eye. Therefore, the data were analyzed both by OPLS-DA and SIMCA and the second derivative of whole mid-infrared spectra (4000–650 cm⁻¹) with 3351 variables was used in the analysis to eliminate noises in the spectra and shifts in the baseline. The number of PC required to construct the model is (2+2). An OPLS-DA model constructed with mid-IR data has a R² (calibration) of 0.22 and R² (cross-validation) of 0.26. The First PC of the model explains 14% of the variability and the variability corresponding to the second PC is 8%. Low R² can be explained by the location of pure oil samples outside the control ellipse whereas mixtures are placed inside the ellipse (Figure 4). In addition, the mixtures are separated depending on their percentages although there are overlaps in some cases. The VIP values for the model indicated that wavenumbers responsible for differentiation fit the well-known absorption bands (1815–659, 3146–2816, 3391–3382, 3631–3530 cm⁻¹) of a general oil spectrum. Peaks around the 3600–3500 cm⁻¹ region could be attributed to –OH stretching while the 3300–2800 cm⁻¹ region is associated with –CH stretching. The C-O stretch takes place at 1800–1700 cm⁻¹ and 1200–650 cm⁻¹ is the fingerprint region. Misclassification results for OPLS-DA models constructed using FTIR data are also given in Table 2. This table shows that there is no misclassification even at the 10% adulteration level. Some of the mixtures were misplaced to inaccurate mixture percentages at higher levels; however, none of these mixtures were classified as pure sunflower oil.

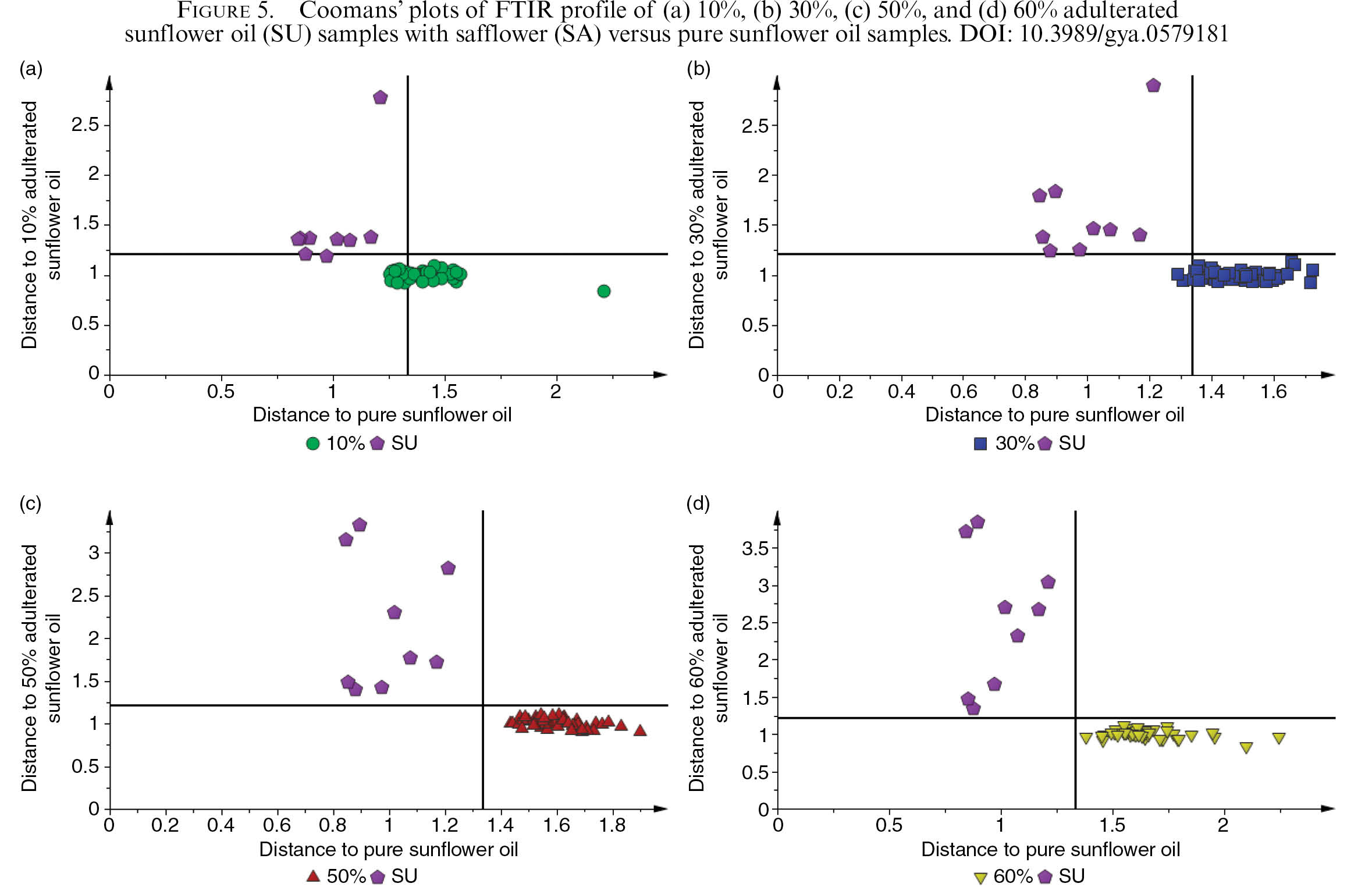

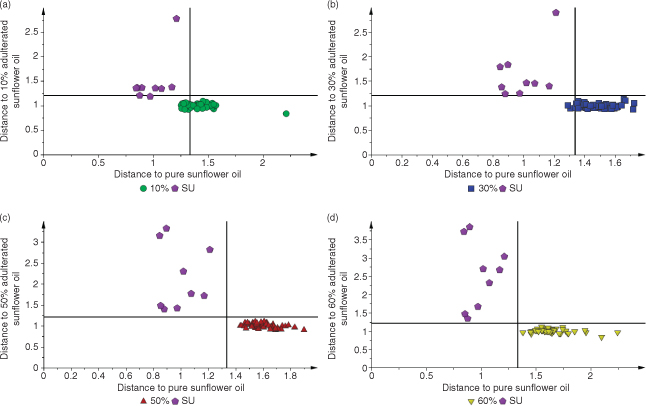

To further investigate the detection limit, mid-IR spectra were also analyzed with SIMCA (Figure 5). The Cooman plot (Figure 5a) obtained from SIMCA showed that the separation between pure sunflower oil and 10% mixtures was not successful. At the 30% level only two samples were in the common region but the rest were perfectly separated from the pure sunflower oils (Figure 5b). Differentiation was also perfect with 50 and 60% mixtures versus pure oil, according to Figure 5c and 5d, respectively. The detection limit obtained from the OPLS-DA model is lower compared to the SIMCA results as it is the same with the OPLS-DA model developed with the fatty acid profile data.

Mid-IR spectroscopy could detect very low levels of adulteration in the oils. It was reported that palm oil in extra virgin olive oil could be determined at the 1% level with FTIR spectroscopy (Rohman and Che Man, 2010) while 5% is the critical level for the adulteration of extra virgin olive oil with cottonseed and rapeseed oils (Gurdeniz and Ozen, 2009). However, the detection limit of adulteration could be higher due to the similar nature of oils that are mixed as in hazelnut oil-olive oil mixtures. The detection limit for these mixtures was reported as 25% (Ozen and Mauer, 2002). The critical detection limit of 30% found in this study for safflower oil adulteration of sunflower oil might seem a high value. However, laborious sterol analysis requiring long analysis time is the current method used to detect adulteration for a safflower-sunflower oil mixture. Since there are overlaps in the sterol ranges of these oils (Codex, 2017), detection limits for this analysis might not be very low although there is no study in the literature regarding this issue. In addition, the adulteration percentages encountered for this oil are not very low (oral communication) and the oil industry needs rapid analysis techniques for cases requiring quick decision making. Therefore, a rapid FTIR analysis could still be a valuable tool as a screening method and suspicious samples could be further evaluated with other methods.

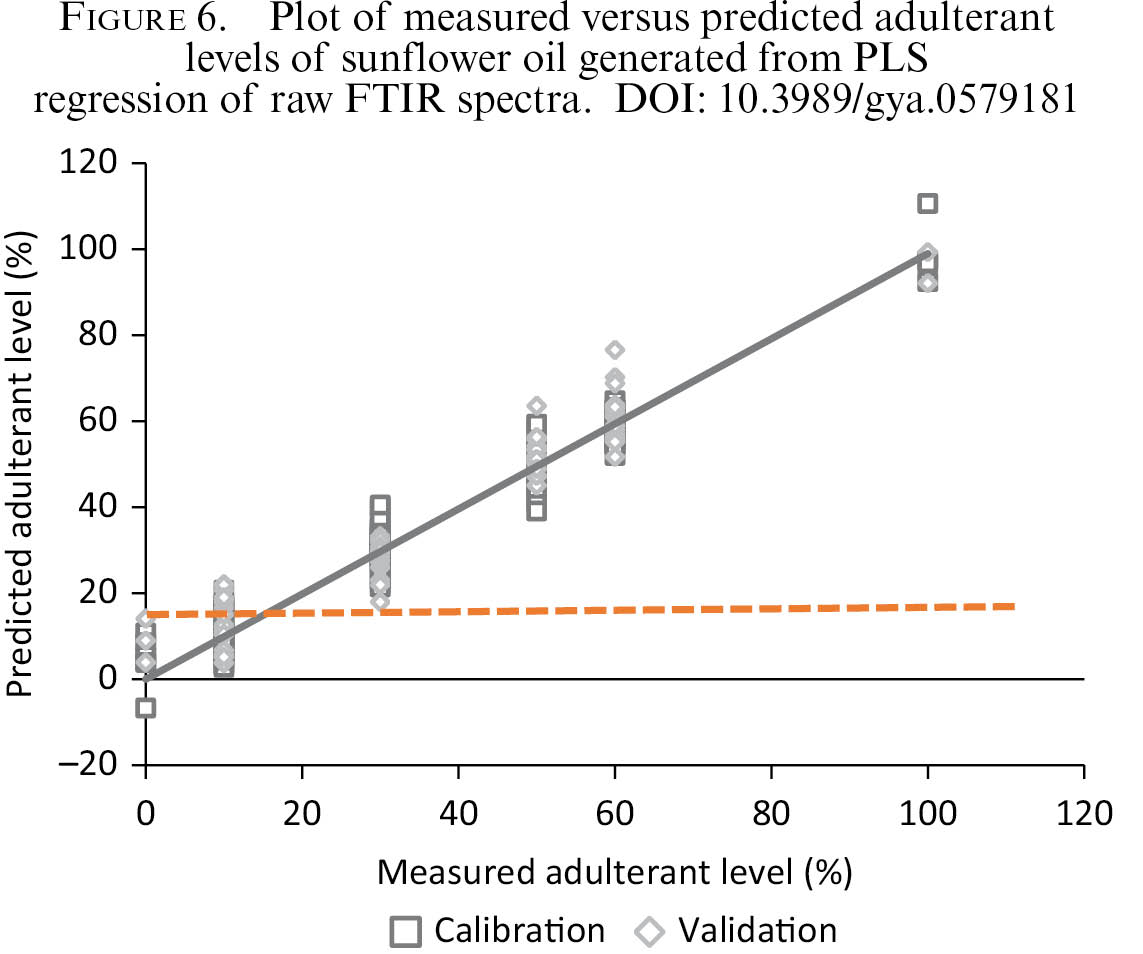

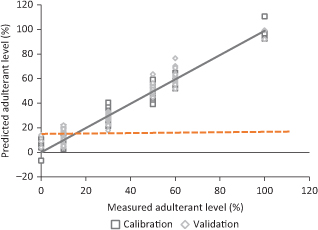

Mid-IR spectra were also used in the prediction of adulteration percentages of sunflower oils and PLS regression models of both raw and second derivative spectral data were developed for this purpose. Calibration models were constructed with 150 samples (66% of all samples) and 77 samples were used for the external validation of both models. Validation samples were randomly selected from each adulteration level. The statistical parameters of the PLS model developed from the raw data are R² (calibration) = 0.96, R² (external validation) = 0.93, R² (cross-validation) = 0.9, RMSEE = 4.47, RMSEP = 5.68, RMSEcv = 9.03. The PLS model of second derivative data resulted in statistical parameters of R² (calibration) = 0.99, R² (external validation) = 0.83, R² (cross-validation) = 0.79, RMSEE = 2.26, RMSEP =8.71, RMSEcv = 10.56. According to these statistical parameters, raw data were found more efficient than the second derivative in the prediction of adulteration. The R² and RMSE values for the PLS model built with 10 PC from raw data indicate that the model is very effective in estimating the adulteration level. Figure 6 shows the correlation between actual adulteration percentages and adulteration levels predicted with FTIR spectroscopy. There are overlaps in the prediction of 10% adulteration level with pure sunflower oil while the estimated values of 30% mixture do not intersect with pure oil (Figure 6). Therefore, this could be regarded as an indication of 30% critical limit of adulteration detection level for sunflower oil with safflower oil.

4. CONCLUSIONSTOP

To detect the adulteration of sunflower oil with safflower oil, two approaches, fatty acid profile and mid-IR spectroscopy analyses, in combination with various chemometric techniques, were used in this study. Adulteration could be detected at levels as low as 10 and 30% with the OPLS-DA and SIMCA of mid-IR spectral data, respectively; while a higher level of adulteration of around 50–60% could be determined with fatty acid analysis data, as confirmed by different chemometric techniques. In other words, FTIR spectroscopy is more promising than fatty acid analysis for the adulteration detection of sunflower oil admixture with safflower oil. This could be explained by the fact that mid-IR analysis reveals the overall chemical information including fatty acid profile at molecular level which is much more informative than the fatty acid analysis alone. Moreover, very similar fatty acid profiles of sunflower and safflower oils can lead to unsatisfactory differentiation between adulterated sunflower oil and pure sunflower oil samples with fatty acid analysis. Since, FTIR spectroscopy is a rapid technique with minimum waste generation it could be used as a screening tool to check the authenticity of sunflower oil.

ACKNOWLEDGEMENTSTOP

We would like to thank The Environmental Research Center of Izmir Institute of Technology for their assistance in GC analyses.
