Crystallization kinetics of safflower and olive oils during low-temperature storage

M. Yoshida^a, Y. Miyagawa^b, H. Fujita^b and S. Adachi^b,*

^aDivision of Food Science and Biotechnology, Graduate School of Agriculture, Kyoto University, Sakyo-ku, Kyoto 606-8502, Japan.

^bFaculty of Bioenvironmental Science, Kyoto Gakuen University, Kameoka, Kyoto 621-8555, Japan.

*Corresponding author: adachi-s@kyotogakuen.ac.jp

1. INTRODUCTIONTOP

Vegetable oils are multi-component systems containing various triacylglycerols (TAGs), in which three fatty acid molecules are ester-bond to a glycerol molecule (Himawan, Starov, and Stapley, 2006). Depending on the oil type, it can contain TAGs with largely different melting points. The fractionation of oils having different melting points has been performed on an industrial scale. For an efficient fractionation of oils, it is necessary to reasonably control the size and form of the crystals, which are affected by the cooling conditions (Abeshima, 1998; Hamm, 1995). Because the crystals affect the physical properties and appearance of foods, the control of the crystal size, shape, and polymorph is important for producing food with high quality (Rincón-Cardona et al., 2013; Himawan et al., 2006). Furthermore, owing to the diversification of trends in food consumption, the physical properties of required oils and fats are also diversified (Fujiwara et al., 1972). The composition of TAGs and constituent fatty acids influences the crystallization behavior (Abeshima, 1998). For food distribution and preservation, it is important to predict the time at which crystallization begins or polymorphic transition occurs during storage. Lipid crystallization may cause oil–water separation in emulsified foods (Coupland, 2002; Rousseau, 2000). Differences in polymorphism may also affect the oxidation behavior of lipids (Calligaris et al., 2006).

The crystallization behavior of oils with high melting points, such as palm oil and cacao butter, has been investigated as well as the effect of adding other oils and fats or talc (de Oliveira et al., 2015; Quast et al., 2013; Yoshikawa et al., 2016). The crystallization behavior of vegetable oils with low melting points, sunflower (Calligaris et al., 2008) and olive oils (Barba et al., 2013; Bayés-García et al., 2017), has also been investigated. Studies on crystallization polymorphism (Barba et al., 2013; Bayés-García et al., 2017), and the effects of oxidation of the oil (Calligaris et al., 2006, Chiavaro et al., 2012) and TAG compositions (Bayés-García et al., 2017) on the crystallization behaviors have been reported, especially for olive oil. However, studies on the crystallization behavior of oils with low melting points are far fewer compared to those of oils with high melting points and in many cases this behavior remains unclear.

We previously studied the crystallization behavior of rapeseed oil, which is a vegetable oil with a low melting point, particularly the time required for crystallization during isothermal storage, or the induction period of crystallization. In that study, stress measurement, temperature measurement, and differential scanning calorimetry (DSC) analysis revealed that several hours to half a day were required for complete crystallization during the isothermal storage of rapeseed oil at low temperatures (Miyagawa et al., 2015; Miyagawa et al., 2016). X-ray structural analysis showed minute structural changes during the induction period for crystallization and the crystalline polymorphism after crystallization (Miyagawa et al., 2017). Although these methods are useful for identifying the details of phenomena occurring during the crystallization process, they are not applicable to continuous measurement for the same sample over a long period of time. Moreover, it is difficult to quantitatively interpret the results.

In addition to the methods described above, the crystallization behavior of oils can also be measured by dilatometry (Bailey and Kraemer, 1944; Fulton et al., 1954), turbidity measurement, transmitted light intensity measurement (Wright et al., 2000), microscopic observation (Kellens et al., 1992), and pulsed nuclear magnetic resonance (pNMR) spectroscopy (Campbell et al., 2004). Dilatometry is a classic, useful method for examining the crystallization behavior of oils. This method provides information about volumetric change in the bulk oil, which is a crystallization ratio, and crystal structure such as polymorphism (Bailey et al., 1944). This contrasts with DSC and X-ray structural analyses, which provide thermal and microscopic information. In addition, dilatometry is advantageous for a non-destructive measurement of the same sample over a long period. Volumetric dilatometry is a method for measuring volumetric changes in the oil using a dilatometer consisting of a bulb filled with oil and a capillary filled with an immiscible liquid. Because the filling liquid must not be evaporated or frozen during the measurement, mercury has frequently been used in dilatometry for oils. However, in recent years, the adverse safety and environmental aspects of using mercury have made its use largely discontinued. Because it is difficult to find an alternative appropriate filling, the dilatometry technique for measuring the crystallization behavior of oil has also been discontinued. We showed previously that the crystallization behavior of rapeseed oil can be accurately measured by dilatometry when a using 30% (w/w) CaCl₂ solution (brine) as filling liquid (Miyagawa, Yoshida, Nakagawa, Adachi, 2018). The measurement of turbidity or transmitted light intensity is an effective method for observing microscopic changes occurring in the crystallization process (Wright, Narine, Marangoni, 2000) as well as pNMR. The measurement of transmitted light intensity is easily conducted and is more sensitive than pNMR spectroscopy (Wright et al., 2000). We previously applied the transmitted light intensity measurement method to monitor the crystallization of rapeseed oil during its isothermal storage (Miyagawa et al., 2018).

The Avrami or Kolmogorov-Johnson-Mehl-Avrami (KJMA) model (Avrami, 1940) has been most frequently used for describing the crystallization behavior of oil. In addition, the nucleation rate of TAGs in vegetable oil is expressed by the Fisher-Turnbull equation (MacNaughtan et al., 2006; Turnbull and Fisher, 1949). However, these methods cannot be used to sufficiently express or analyze the crystallization process which includes the induction period. In this context, we previously proposed a kinetic model for the crystallization of rapeseed oil during isothermal storage at low temperatures (Miyagawa et al., 2018).

In the present study, the crystallization behaviors of safflower and olive oils were evaluated in the temperature ranges of -10 to -20 °C and -5 to -17 °C, respectively, using dilatometry and transmitted light intensity measurement. The changes in volume were analyzed by using our previous model to evaluate the rate constants for the crystallization of the oils.

2. MATERIALS AND METHODSTOP

2.1. MaterialsTOP

The first-grade safflower oil, research-grade olive oil, special-grade sodium sulfate, and 28% sodium methoxide in methanol were purchased from Fujifilm Wako Pure Chemical Corp., Osaka, Japan. Special-grade calcium chloride was purchased from Nacalai Tesque, Kyoto, Japan.

2.2. Fatty acid compositionTOP

Approximately 100 μL safflower or olive oil were mixed with 3 mL methanol and 0.8 mL 28% sodium methoxide in methanol, and the mixture was heated at 75 °C for 15 min using an aluminum block thermostat (Dry ThermoUnit, DTU-1CN, Taitec, Saitama, Japan). After allowing the mixture to cool to room temperature, 3 mL hexane were added, and the mixture was stirred. 2 mL distilled water were then added, and the mixture was stirred again. Approximately 1 mL of the hexane layer was removed, and a sufficient amount of anhydrous sodium sulfate was added to dehydrate the hexane solution. The dehydrated hexane solution was centrifuged at 10,000 rpm for 3 min using an MC-150 centrifuge (Tomy Seiko, Tokyo, Japan), and the upper layer was analyzed by gas chromatography (GC-2014, Shimadzu Corp., Kyoto) with a DB-23 capillary column (Agilent Technologies, Tokyo) and flame ionization detector to determine the fatty acid composition of the oil. The injector and detector temperatures were set at 245 °C and 250 °C, respectively. The column temperature was maintained at 150 °C for 0.5 min and raised gradually to 170 °C at 4 °C/min, 195 °C at 5 °C/min, and 215 °C at 10 °C/min before being held at 215 °C for 5 min. The composition of each oil is shown by the mean and standard deviation of triplicate analyses.

2.3. Volumetric measurementTOP

The densities of 30% (w/w) CaCl₂ (designated as brine), safflower oil, and olive oil at 25 °C were determined by pycnometry to be 1.2780 ± 0.0009, 0.9098 ± 0.0005, and 0.9094 ± 0.0004 g/mL, respectively, which are the means ± standard deviation of three measurements.

The dilatometric apparatus employed and the method used to measure the volumetric change in the oil were the same as those used in our previous study (Miyagawa et al., 2018). Briefly, a calibration curve related the storage temperature, q (°C) and the volumetric change of the brine, X_brine (mL/g) was prepared from the brine. The calibration curve was linear with a correlation coefficient R² of 0.9988 and is expressed by

Prior to use, the safflower and olive oils were degassed as follows. The safflower oil was frozen at -80 °C for 1 h and degassed under reduced pressure for 1 h during the thawing process. The oil was frozen again at -80 °C for 1 h and degassed under reduced pressure at room temperature overnight. The olive oil was frozen at -80 °C for 2 h and degassed under reduced pressure at room temperature overnight.

50 g of the degassed safflower or olive oil were precisely weighed and placed in the bulb portion of the dilatometer and stored in a temperature-controlled chamber at -25 °C or -30 °C for 30 min to be frozen. Approximately 60 g of the brine was layered onto the frozen oil, and the oil was then thawed. The dilatometer was allowed to stand for 2 h in a temperature-controlled chamber at 30 °C. It was then cooled to a specific temperature at a temperature-descending rate of 0.5 °C/min and kept at the specific temperature. The sum of volumetric changes in the oil and the brine, V_total, from the initial temperature set point of 30 °C were recorded every 10 min. The volumetric change in the oil from the initial temperature set point, X_oil (mL/g), was calculated using Eq. (2):

where W_brine and W_oil are weights of the brine and the oil, respectively.

The time from the start of isothermal storage to the time at which the volume began to change was defined as the induction period for crystallization. The point at which the derivative of the X_oil with respect to time began to change was defined as the time at which the volume began to change. Measurements were performed in triplicate for the olive oil stored at -7 °C and once for other cases.

When safflower oil was stored at -15 °C, the change in temperature was measured every 5 min by using a K-type thermocouple installed in the center of the bulb.

2.4. Measurement of transmitted light intensityTOP

The measurement was conducted in the same way as that reported in our previous study (Miyagawa et al., 2018). Briefly, the degassed oil was placed in a glass cuvette with an optical path length of 1 cm and frozen. After thawing, the intensity of the transmitted light was measured in the range of 360 to 830 nm by using an apparatus consisting of a tungsten light source (LS-1, Ocean Optics, Florida, USA) and a spectroscope (USB2000+UV−VIS−ES, Ocean Optics). The light intensity at 600 nm over 150 counts was recorded. Measurements were performed in triplicate for the olive oil stored at -7 °C and once for other cases.

3. RESULTS AND DISCUSSIONTOP

3.1. Fatty acid compositionTOP

Table 1 shows the fatty acid compositions of the safflower and olive oils used to measure the changes in volume and transmitted light intensity during storage at low temperatures. The main component of both the safflower and olive oils was oleic acid, at about 80% and 75%, respectively. The second most common components were linoleic acid for safflower oil and palmitic acid for olive oil, at about 13% and 12%, respectively.

3.2. Changes in volume and transmitted light intensity of safflower oilTOP

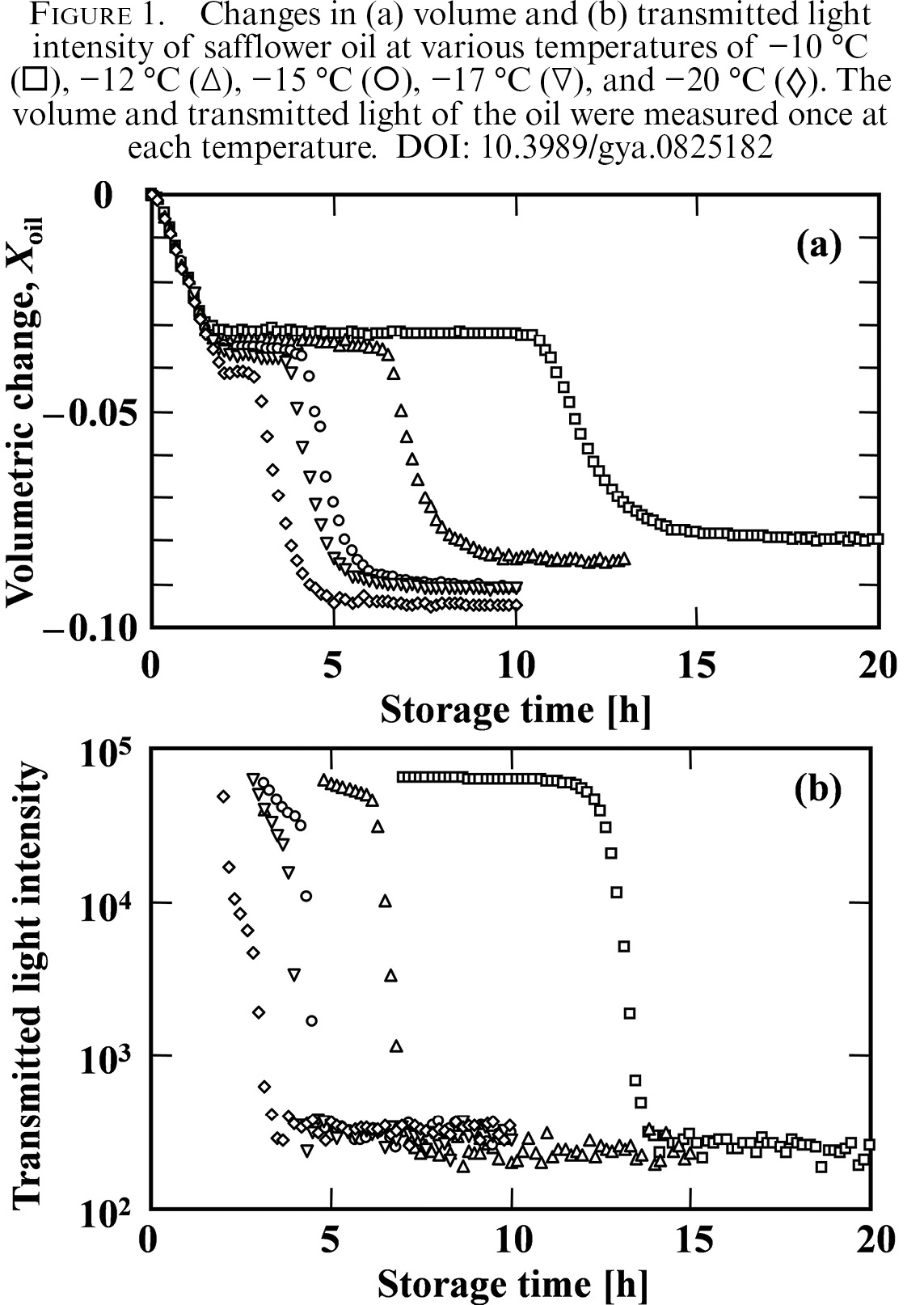

The safflower oil was stored at -10, -12, -15, -17 and -20 °C, and the changes in its volume and transmitted light intensity at 600 nm were measured with time (Figure 1). As with the change in the volume of rapeseed oil reported in our previous study (Miyagawa et al., 2018), the change in the volume of safflower oil progressed in three stages. In the first stage, the volume decreased in proportion to a decrease in temperature (cooling process). In the second stage, the volume was hardly changed at a constant temperature (induction period for crystallization). In the third stage, the volume decreased even at constant temperature.

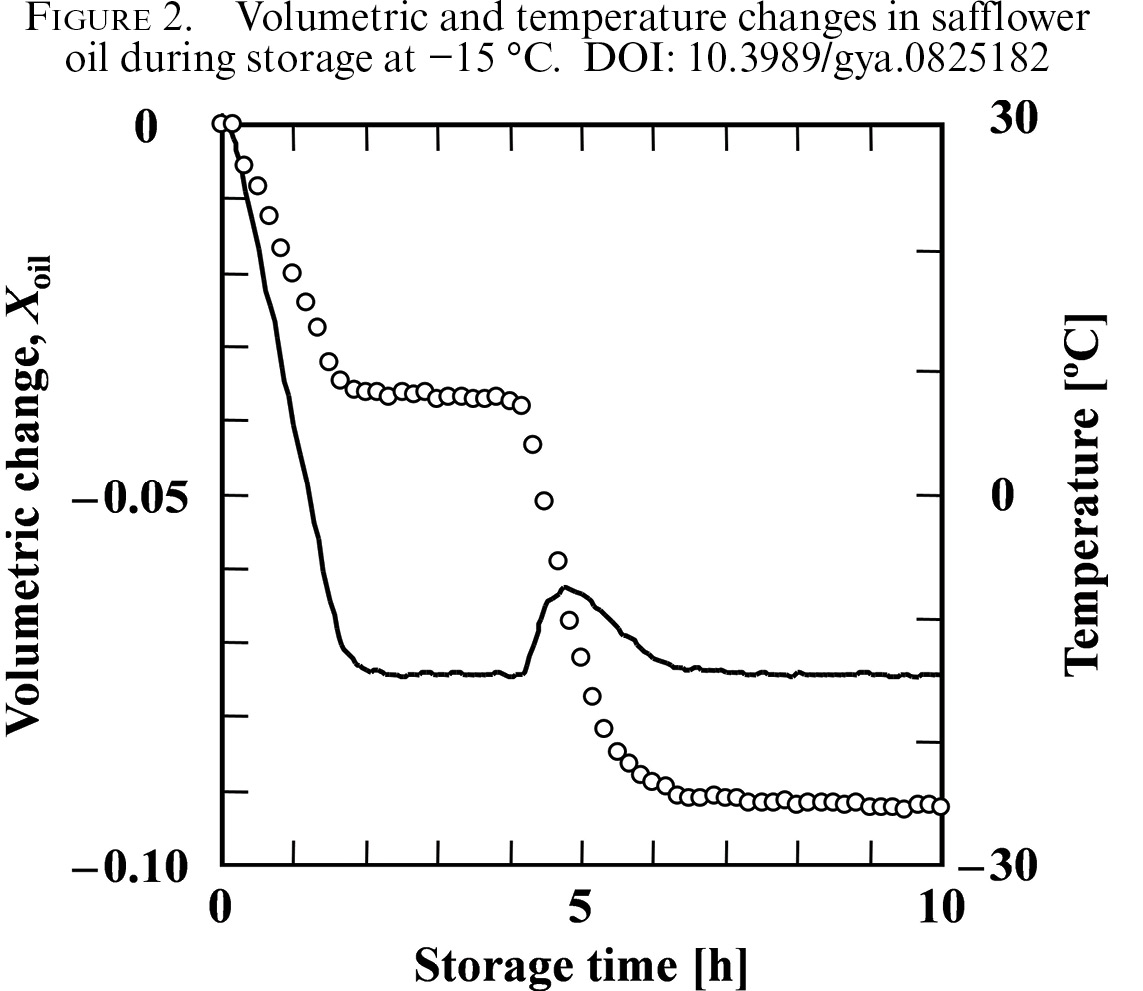

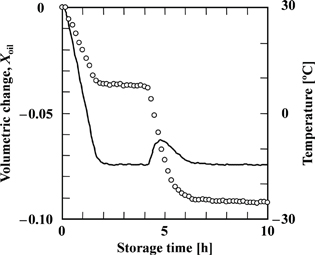

The changes in volume and temperature were simultaneously measured for safflower oil stored at -15 °C (Figure 2). The volume decrease and heat generation occurred simultaneously. This fact indicates that the heat generation was ascribed to a large structural change accompanying the change in volume, which describes crystallization.

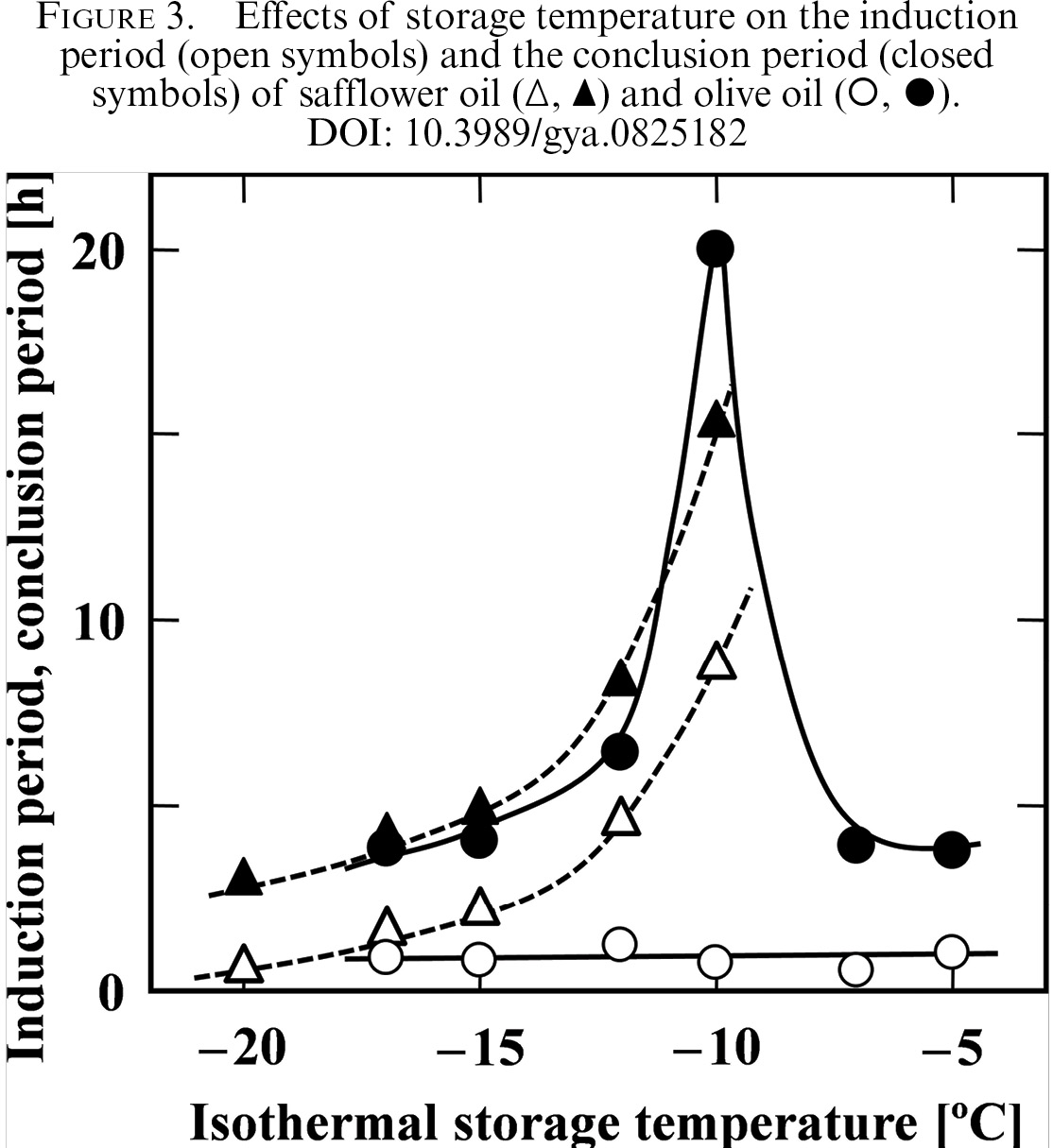

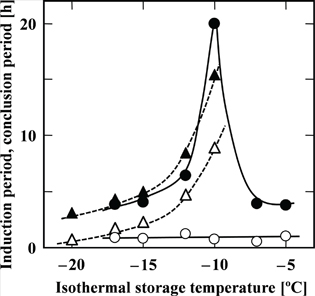

Higher storage temperature was directly proportional to a remarkably longer induction period (Figure 3). The relationship between the storage temperature and the induction period for safflower oil was consistent with that of our previous study (Miyagawa et al, 2019).

At the beginning of the measurement, the transmitted light intensity was too large to be detected and gradually decreased during the subsequent induction period. A lower storage temperature related to a greater decrease in transmitted light intensity and in the rate of decrease.

The transmitted light intensity of the oil stored at -10 °C sharply decreased after the volume began to decrease, whereas the decrease in volume and the sharp decrease in transmitted light intensity occurred almost simultaneously for the oil stored at -12 °C. This fact suggests that the process of macroscopic crystallization development might be different at -10 °C and -12 °C or at lower temperatures.

In the process of rapeseed oil crystallization, a phenomenon was observed in which the transmitted light intensity increased once during the induction period. This increase suggests that a melt-mediated transition occurred in which the rapeseed oil in a nearly solid state changed to a liquid state and then crystallized (Miyagawa et al., 2018).

The safflower oil did not exhibit an increase in transmitted light intensity during the induction period. This fact suggests that the safflower oil crystallized by a mechanism different from melt-mediated transition or that the change accompanying the transition was very small.

3.3. Changes in volume and transmitted light intensity of olive oilTOP

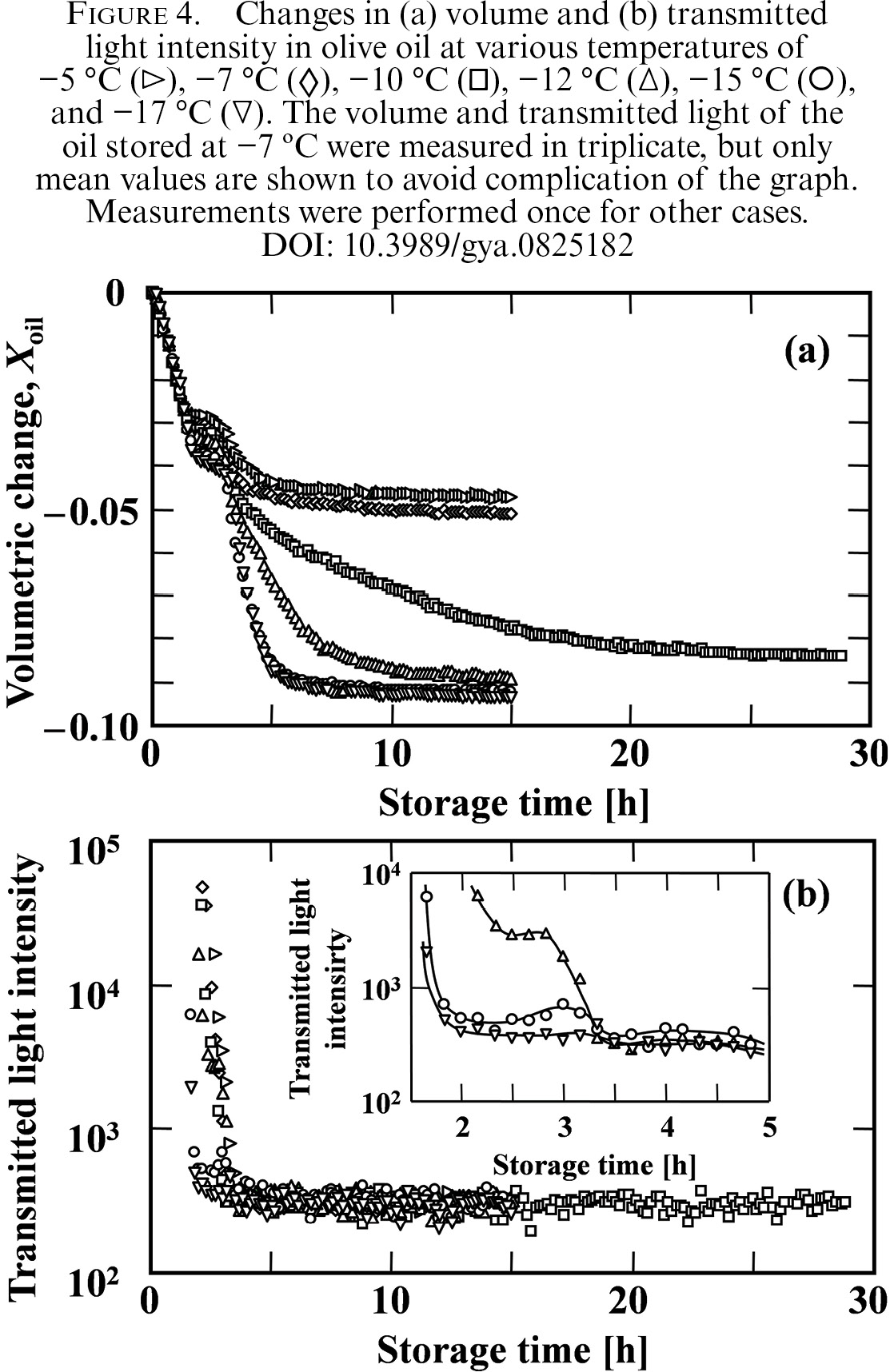

Figure 4 shows the transient changes in volume and in the transmitted light intensity of olive oil stored at -5, -7, -10, -12, -15, or -17 °C. Compared with that for safflower oil, olive oil showed a large change in volume during the induction period. Moreover, this tendency was more pronounced at a lower storage temperature. The relationship between the storage temperature and induction period of the olive oil was different from that of safflower oil. That is, the induction period of olive oil did not decrease monotonically with a decrease in storage temperature and was the longest when stored at a specific temperature of -10 °C.

The changes in volume and transmitted light intensity of olive oil varied greatly at -10 °C, as did the induction period. The volumetric change in olive oil after crystallization was -0.08 to -0.09 mL/g at -10 °C or lower temperatures. This volumetric change is almost the same as those of safflower and rapeseed oils, at -0.07 to -0.10 mL/g (Miyagawa et al., 2018). The volumetric changes at -5 °C and -7 °C were both about -0.05 mL/g, which is greater than those at other temperatures.

Figure 5 shows the density of olive oil at various temperatures, which was calculated from the volumetric change. The densities at -5 °C and -7 °C are almost the same as that of liquid. The olive oil kept at -5 °C and -7 °C appeared to be partially crystallized. However, the olive oil was fully crystallized at -10 °C and appeared to be uniform, and no phase separation was observed macroscopically. Oil in a liquid or liquid-like state appeared to exist in the void of the solid crystals.

The duration from the start of the isothermal storage to the end of the volumetric decrease of the oil stored at -10 °C, which is designated as the conclusion period of crystallization, was significantly longer than the conclusion periods of oils stored at other temperatures.

Unlike that of safflower oil, the volume of olive oil stored at -10 °C did not decrease smoothly but exhibited a step-wise change that was significant between 5 and 15 h of storage time. This change suggests that crystals of different structures were generated in a step-wise fashion or that the structures of the crystals gradually changed.

The transmitted light intensity of the olive oil showed different behaviors at temperatures higher and lower than -10 °C as well as volumetric change. At -10 °C or higher, the transmitted light intensity of the olive oil greatly decreased when its volume began to decrease. The transmitted light intensity of the olive oil stored at -12, -15, and -17 °C did not decrease monotonically but temporarily increased just before crystallization. This temporary increase can be attributed to melt-mediated transition. Therefore, the transition would have occurred at below -12 °C. The melt-mediated transition is likely to occur at relatively high temperatures. This means that the transition is more likely to occur when the difference between the storage temperature and the melting point of TAGs to crystallize is smaller (Miyagawa et al., 2018). However, it is interesting to note that the olive oil underwent the transition at -12 °C or lower rather than at -10 °C or higher.

The aforementioned density suggests that only some TAGs crystallized at -5 °C and -7 °C. The crystallized TAGs were presumed to be those with high melting points and likely included palmitic acid or stearic acid, such as LPP, SOS, POS, and PPP, for which L, O, S, and P represent linoleic, oleic, stearic, and palmitic acids, respectively. The content of each TAG was less than 1% in oilve oil, but more than those in safflower and rapeseed oils (Totani, 2012). It was considered that all the TAGs, including those with low melting points such as OOO, OOP, and LOO, crystallized at -10 °C or lower. These TAGs were the main three components of the olive oil in decending order (Bayés-García et al., 2017; Totani, 2012). The crystallization of TAGs with high melting points would occur at temperatures higher than -10 °C, and the crystallization of all TAGs would occur at -10 °C or lower. When only TAGs with high melting points crystallized, the melt-mediated transition hardly occurred because -10 °C is a relatively low temperature. When all of the TAGs crystallized, the melt-mediated transition would have occurred because -12 °C is a relatively high temperature. The temporarily increased transmitted light intensity at the temperature range of -12 °C to -17 °C was larger at the higher storage temperature. The oil in which the melt-mediated transition occurred appeared to be in the most liquid-like state at -12 °C. This also indicates that -12 °C is a relatively high temperature for the crystallization of the oil.

3.4. Changes in density before and after crystallizationTOP

In our previous study (Miyagawa et al., 2018), we showed that the density of liquid rapeseed oil immediately after the commencement of isothermal storage, in which no crystal had formed, was proportional to the temperature even though the oil crystallized after a certain period. Timms (1985) reported that the proportionality constant is 6.8 × 10⁻⁴ mL/g·°C, regardless of the oil type. According to the Timms formula and using the densities measured at 25 °C, the relationships between density ρ (g/mL) and storage temperature T (°C) for the safflower and olive oils are given by Eqs. (3) and (4), respectively.

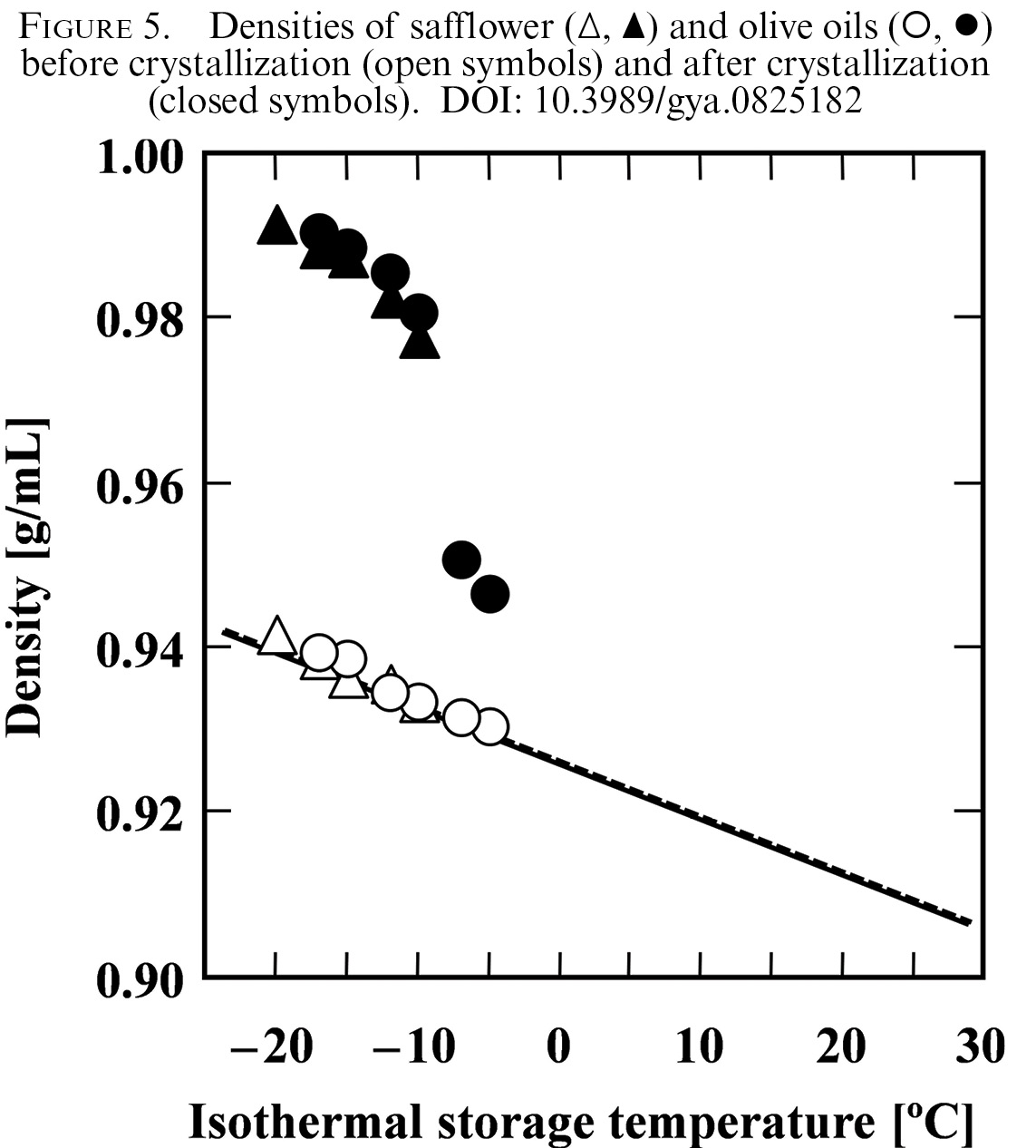

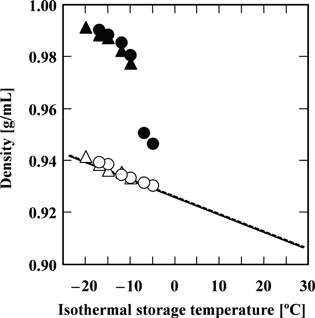

For each oil, the density ρ_iso at the beginning of isothermal storage (i.e., at the end of the cooling process) and the density ρ_cry after crystallization were estimated (Figure 5). The determination coefficients R² of Eqs. (3) and (4) for ρ_iso of safflower and olive oils were 0.950 and 0.948, respectively, suggesting that no crystals were formed in either oil during the cooling process.

The ρ_cry values of the safflower and olive oils were larger at the lower storage temperature and showed convex shapes against the temperature. The density of crystals is closely related to the packing structure of the TAG molecules (Himawan et al., 2006). The most abundant TAG in both the safflower and olive oils is triolein (Bayés-García et al., 2017; Totani, 2012). Because the TAG molecules that were present most frequently were common to both the oils, it appears that they showed a similar temperature dependency of density. Olive oil contains more fatty acids with high melting points, palmitic acid, and stearic acid than safflower oil (Table 1); thus, olive oil would have more TAGs with high melting points. It was reported that some TAGs containing palmitic and stearic acids were more rich in olive oil than in safflower oil as mentioned in section 3.3 (Totani, 2012). The melting point of olive oil containing more components with high melting points is thought to be comprehensively higher than that of safflower oil (Miyagawa et al., 2019). Therefore, olive oil crystallized at a relatively lower temperature would have higher density.

3.5. Crystallization kineticsTOP

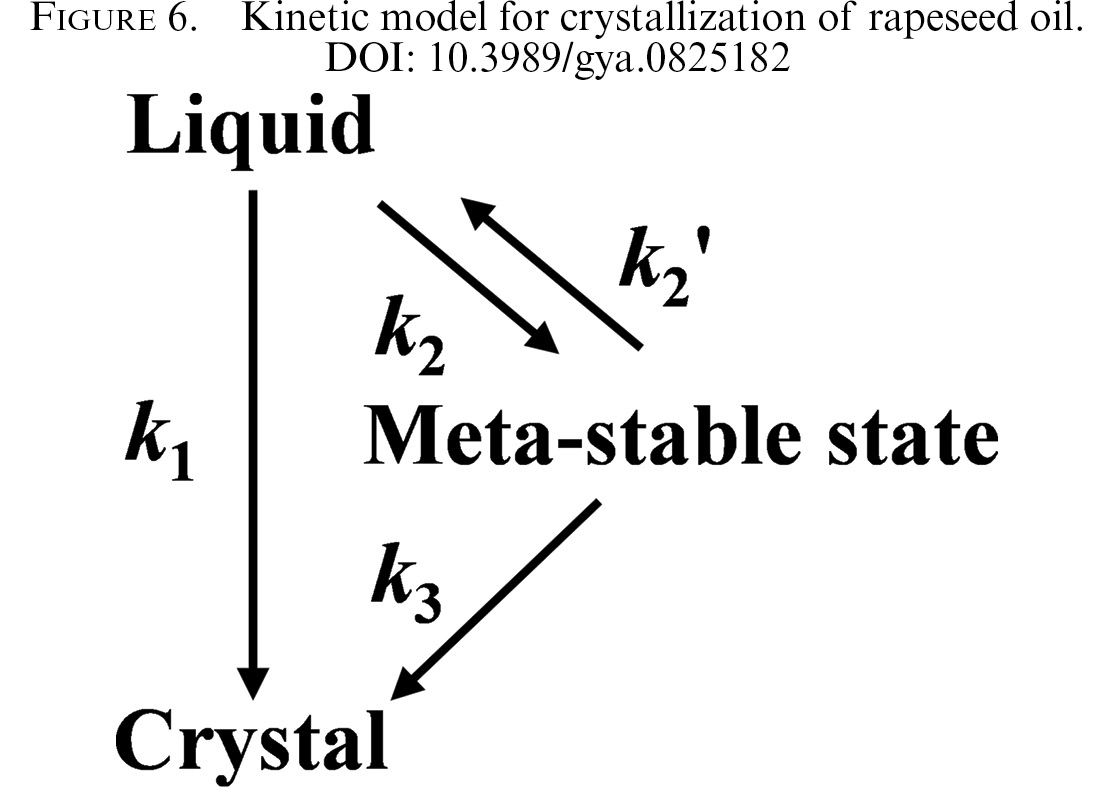

Based on the kinetic model (Miyagawa et al., 2018) shown in Figure 6, the changes in the volume of safflower and olive oils that occurred during the isothermal storage were analyzed. The kinetic model effectively represented the normalized volumetric change during the crystallization process of rapeseed oil including the induction period, which is defined by Eq. (5) (Miyagawa et al., 2018):

where X_oil is the volumetric change at any storage time, and X_oil,0 and X_oil,∞ are the volumetric changes that occur from the beginning of cooling at 30 °C to the starting point of isothermal storage at a specific temperature and from the beginning of cooling at 30 °C to the end of crystallization, respectively.

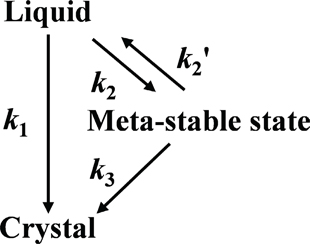

The model assumes two processes for crystallization and consists of four steps. All of the steps are considered to be expressed by first-order kinetics. In one process, liquid oil crystallizes directly, with a rate constant k₁; in the other, oil crystallizes through an intermediate state (meta-stable state). In step 2, liquid oil changes to the meta-stable state with a rate constant k₂. Step 2′ with rate constant k₂′ is the reverse reaction of step 2. Steps 2 and 2′ represent the melt-mediated transition. In step 3, with a rate constant k₃, crystals generated earlier promote autocatalytical change from the meta-stable to crystal state.

The analysis of the crystallization behavior of the safflower and olive oils showed that the k₂′ value was very small or zero at the storage temperature at which no increase in transmitted light intensity was observed. The k₂′ values for the safflower oils stored at all temperatures and for the olive oil stored at -5 °C and -7 °C were regarded as zero.

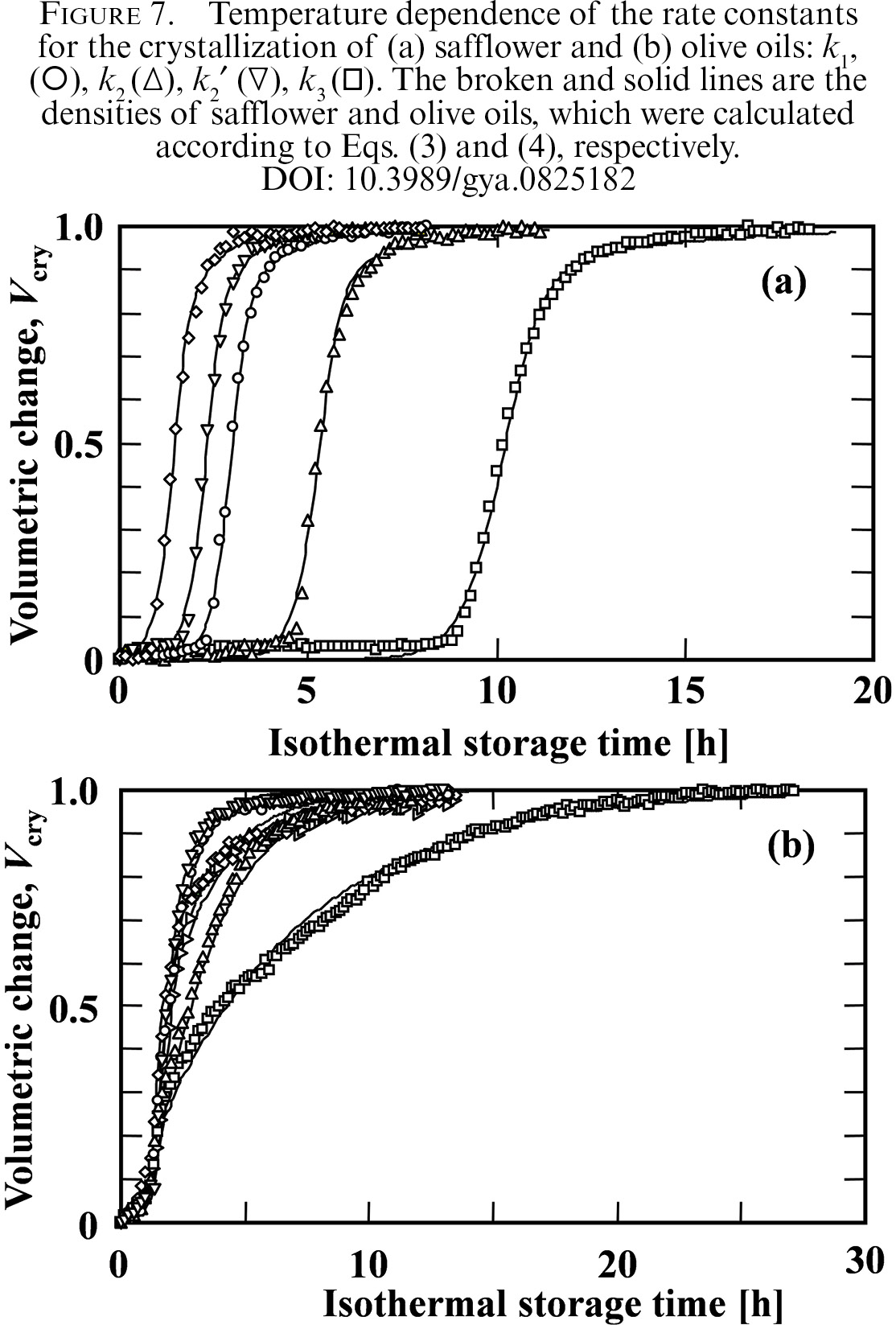

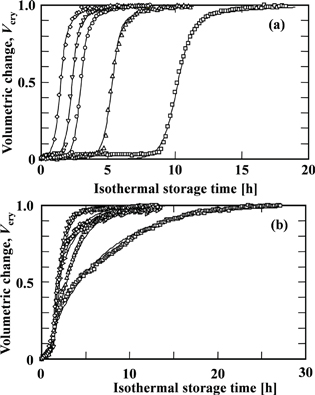

Figure 7 shows the changes in the volume of safflower and olive oils during their isothermal storage. The root mean squared errors (RMSE), which are defined by Eq. (6), were in the range of 1.30 × 10⁻² to 2.78 × 10⁻², and the model effectively expressed the changes in volume of both oils during storage at any temperature:

where V_obs and V_cal are the experimentally observed V_cry value and that calculated according to the model, respectively.

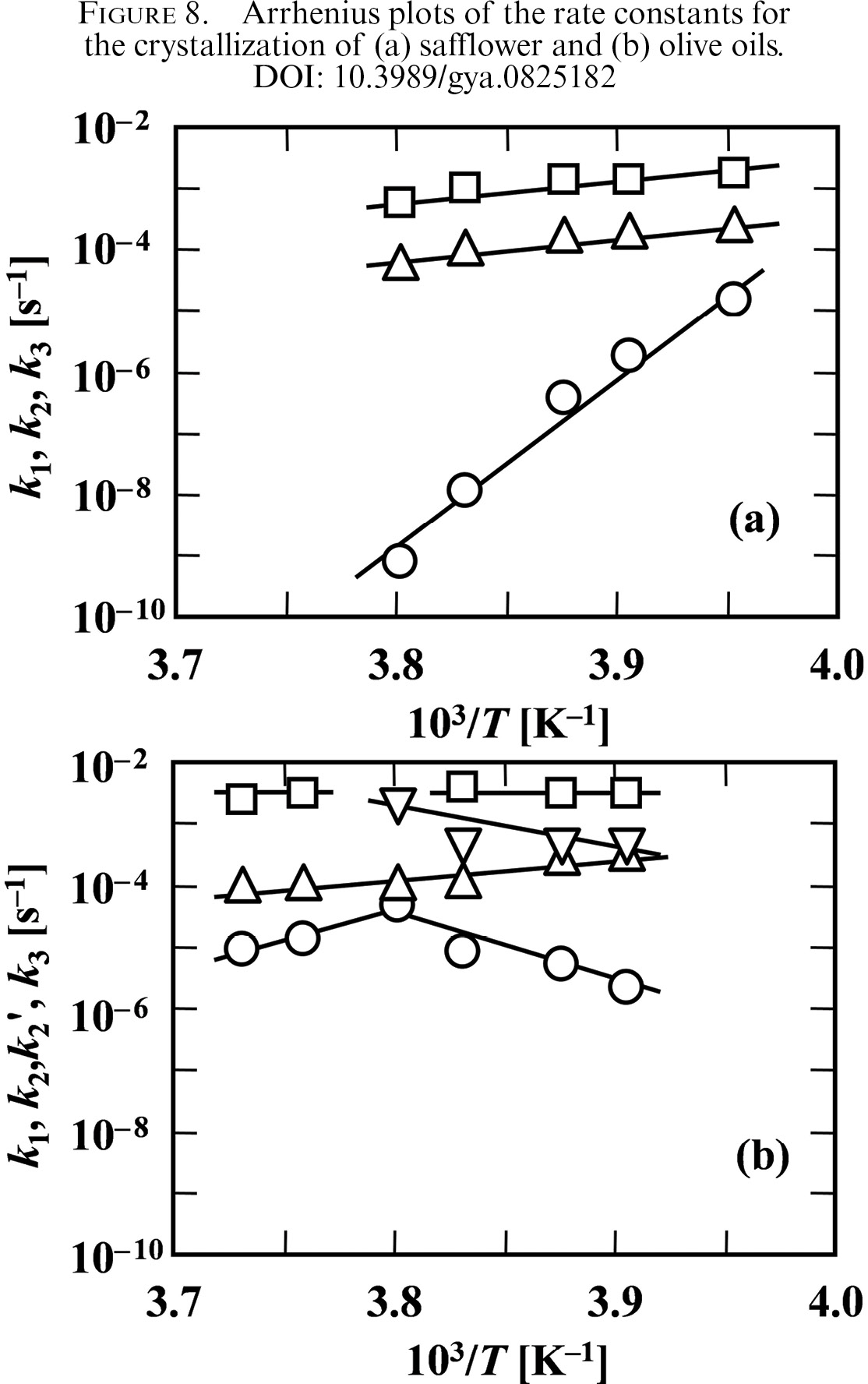

Figure 8 shows the Arrhenius plots for the rate constants k₁, k₂, k₂′, and k₃ for safflower and olive oils. The k₁, k₂, and k₃ values for safflower oil increased with a decrease in temperature. This fact effectively reflects that a lower storage temperature relates to a shorter induction period of crystallization. The activation energy for k₁ was about -550 kJ/mol. This large value of activation energy indicates that the crystallization process of safflower oil through step 1 is sensitive to temperature change.

The temperature dependencies of the rate constants for olive oil changed at -10 °C. As the temperature decreased, the k₁ value increased between -5 °C and -10 °C but decreased between -10 °C and -17 °C. As with the safflower oil, the k₂ value increased slightly with a decrease in storage temperature. The k₂′ value was 0 at -5 °C and -7 °C, as described above, and decreased between -10 °C and -17 °C with a decrease in temperature. The k₃ value was 0 at -10 °C, and those at other temperatures were almost the same.

From the temperature dependencies of the rate constants, the crystallization mechanism of olive oil was inferred as follows. At -5 °C and -7 °C, no melt-mediated transition occurred, and crystallization proceeded in parallel by direct change from liquid to crystal (step 1) and by autocatalytic change from meta-stable to crystal states (step 3). On the contrary, at -10 °C, the oil in the meta-stable state changed to a liquid state through melt-mediated transition (steps 2 and 2′), and the liquid oil then crystallized directly through step 1. Therefore, it is presumed that step 3 did not proceed. This presumption agrees with our previous consideration (Miyagawa et al., 2018) such that step 3 proceeds when step 2′ hardly proceeds.

The fact that no temporary increase in transmitted light intensity was observed at -10 °C may seem to contradict the progress of step 2′. However, it is reasonable from the discussion on the changes in volume and density to understand that the crystallization behavior varies below -10 °C. At -10 °C, the temporary change in transmitted light intensity may not be observed owing to the great influence of the volumetric change in step 2′. At -12 °C or lower, because the k₂′ became small and it was difficult for step 2′ to proceed, step 3 would have proceeded significantly. It is considered that step 2 became dominant as the temperature decreased and that step 1 became inferior to decrease the k₁ value. The behaviors of the volume decreases in safflower and olive oils could be explained by the same kinetic model as that used for rapeseed oil, suggesting that the crystallization mechanism of these three oils would be the same. Focusing on the relationships between the magnitude of each rate constant and the storage temperature, the k₂, k₂′, and k₃ values were almost common for safflower, olive and rapeseed oils. The temperature dependences of the k₂ and k₃ values were both small, and the decrease in k₂′ with the decrease in storage temperature was similar among the three oils. Because the k₁ value depends largely on the oil type, it is expected to be a parameter which characterizes oil crystallization.

The fatty acids and TAG compositions of the oils depend on their growing area and variety. However, since their main components do not change greatly, the results on the induction period and the rate constants for crystallization obtained in this study may be helpful in roughly predicting the crystallization behaviors of safflower and olive oils. They would be useful in developing efficient purification methods for safflower and olive oils and in determining the appropriate preservation conditions of foods which contain these oils.

CONCLUSIONSTOP

Changes in volume and transmitted light intensity of safflower and olive oils were measured during storage at -10, -12, -15, -17, and -20 °C and at -5, -7, -10, -12, -15, and -17 °C, respectively. The behaviors of volume and transmitted light intensity with time for safflower oil gradually changed with a decrease in storage temperature. On the contrary, those for olive oil were entirely different above and below -10 °C. It was suggested that the crystallization behaviors of safflower and olive oils such as changes in volume and transmitted light intensity can differ depending on the occurrence of the transition. The transition would be affected by minor components with high melting points. The volumetric changes in the safflower and olive oils with time were analyzed based on a kinetic model proposed in a previous study for rapeseed oil crystallization. The kinetic model reasonably represented the volumetric changes in the safflower and olive oils, although the apparent behaviors were significantly different. It is suggested that the crystallization mechanism of vegetable oil is essentially the same even though the crystallization behavior appears to be different.
