Efficiency of ultrasound assisted extract of Delonix regia petals as natural antioxidant on the oxidative stability of sunflower oil

M.K.S. Morsi, N.F.S. Morsy^* and H.S. Golshany

¹Food Science Dept., Faculty of Agriculture, Cairo University, Egypt

*Corresponding author: nanafsm@yahoo.com

1. INTRODUCTIONTOP

Sunflower oil is susceptible to oxidation because it contains high levels of polyunsaturated fatty acids. Lipid oxidation produces rancid flavors and degrades the quality and safety of food products which are rich in oils (Upadhyay and Mishra, 2015). Oxidative stability is an important indicator for evaluating the ability of oils to resist oxidation through processing and storage. Natural and synthetic antioxidants are added to edible oils to delay oxidation, and prolong the shelf-life of food products. The use of natural antioxidants is in increasing demand (Mezza et al., 2018).

Delonix regia (Bojer ex Hook), commonly known as Poinciana regia, Royal Poinciana, or Gul mohar, is a member of the Caesalpinioideae family. It is a large ornamental tree with red peacock flowers (Vargas et al., 2010). The floral petals are sweetish-sour in taste and are often eaten by children and used by natives for confections (Bhatt et al., 2000). The water extract of the flowers is used for medicinal purposes (Adjé et al., 2010). Veigas et al., (2012) reported that the antioxidant potential of D. regia flowers may be related to their high content of carotenoids.

Carotenoid pigments are responsible for the color of fruits and flowers, which plays an important role in attracting insects to act as pollinators and seed dispersion vehicles (Hornero-Méndez and Mínguez-Mosquera, 2000). Conventional methods have been used to recover valuable compounds from plant food matrices. Food scientists have reported on processes with a green and sustainable extraction concept.

The ultrasound-assisted extraction (UAE) technique has been developed to improve the extraction rate and extraction yield of bioactive compounds by reducing energy and time compared to conventional methods (Goula et al., 2017). Ultrasound produces cavitation in the extraction media that directs a jet of liquid at the surface, causing cell rupture of the material subjected to extraction (Roselló-Soto et al., 2015). The UAE of polyphenols from D. regia dried flowers using methanol shortened maceration time significantly (Adje et al., 2010). UAE is used to obtain antioxidants and phenolic compounds from plant materials at high yield with low extraction solvent volume and low cost in a short time (Chemat et al., 2018).

The present study is the first to focus on the extraction of carotenoids from Delonix regia petals by ultrasound technique.

The objectives of the present research aim:

2. MATERIALS AND METHODSTOP

2.1. Plant material TOP

Seven kg of D. regia (Boj.) Raf. petals were collected from the garden at the Department of Food Science, Faculty of Agriculture, Cairo University during the bloom season (May-June 2016). The freshly harvested petals (80.38% moisture) were shade dried at room temperature till their moisture content reached 8.28%. For pigment extraction and analysis, the petals were ground into a fine powder and placed in brown glass bottles in a dark well-ventilated place till extraction.

2.2. Chemicals and reagentsTOP

2,2-diphenyl-1-picrylhydrazyl (DPPH), butylated hydroxyl toluene (BHT), ferric chloride, trichloroacetic acid, phosphate buffer pH 6.6, potassium ferricyanide and standards of β-carotene, lutein and lycopene were purchased from Sigma–Aldrich Fine Chemicals (St. Louis, MO). All solvents used (acetonitrile, hexane and methanol) were of HPLC grade and were obtained from Merck (Darmstadt, Germany). Refined, bleached and deodorized sunflower oil with no added antioxidants was procured from Cairo Oil and Soap Company, Egypt.

2.3. Carotenoid extraction using different techniquesTOP

2.3.1. Ultrasonic extraction (US) and stirring (S)TOP

UAE was performed using a Fisher Sonic Dismemberator, Model 300, 50 Hz, USA. Ten grams of the dried powder were used for each extraction process. Each extraction process was repeated three times. The ultrasound extraction was carried out using dried powder to solvent (a nonpolar solvent, hexane) ratios of 1:20 and 1:30 (w/v). The mixture was subjected to ultrasonic radiation using an ultrasound generator, equipped with an ultrasonic horn probe with a 19 mm diameter tip immersed 5 mm into the solution, in the center of the vessel. The ultrasonic intensity levels were designed as 10% of the maximal output power (30 W), 20% of the maximal output power (60 W) and 30% of the maximal output power (90 W), at room temperature (25 °C). The highest temperature of the system reached 28 °C. The acoustic energy density (W) was calculated according to Upadhyay et al., (2015) by dividing the dissipated power by the volume of solvent (L) used during extraction. Sonication was performed at three different levels of acoustic energy density (0.73, 1.46 and 2.44 W/L). The experimental process was protected from light for less attenuation of the carotenoids during extraction by covering with aluminum foil. During the ultrasound extraction (US), the samples were continuously stirred (S) by a magnetic stirrer (Model MS-300, China). After standing and layering the extraction media, the extracts were collected and filtered to separate the plant material from the liquid extract. Aliquots of the extract were withdrawn at 10, 30, 50, 80, 100 and 120 min.

As a control, the conventional solvent extraction technique was performed by magnetic stirring (S), at room temperature (25 °C) using the same material/solvent ratios and extraction times to evaluate the efficiency of ultrasound.

2.4. Preparation of sunflower oil enriched with carotenoids at different levels TOP

2.4.1. Addition of dried extract rich in carotenoids TOP

The extract with the highest level of carotenoids was evaporated under vacuum using a rotary evaporator (Model N-1000 Tokyo Rikakikai Co., LTD., Japan) at 40 °C. The dried extract (0.05-0.125 g) with its known content of total carotenoids was used for enriching sunflower oil samples (10 mL each) with carotenoids at 67.46 and 159.56 mg carotenoids/Kg oil.

2.4.2. Infusion of D. regia flower powder into sunflower oil by macerationTOP

D. regia dried flower powder-oil mixtures were prepared according to the method of Ammar et al., (2017), at 10% and 20% (w/v) using 1 L of sunflower oil for each sample. The mixtures were kept in dark glass bottles for 20 days at 5 °C. The mixtures were subjected to constant agitation for 2 h at room temperature, daily. After the maceration step, the plant material was removed by filtration and the total carotenoids in each extract was determined. Each experiment was carried out three times.

2.5. Visible scanningTOP

VIS spectra were performed using a Jasco V-550 UV/VIS multi-wavelength Spectrophotometer (Jasco Applied Sciences Ltd., Droxford, United Kingdom) from 405-505 nm (2 nm/s) of the extracts. Scanning of these extracts was followed after 10 min of extraction till the rate of extraction yield was limited (the increment of carotenoids/min was less than 10 μg).

2.6. Quantification of total carotenoids TOP

The concentration of total carotenoids in each extract was determined by measuring its absorbance in hexane at 448 nm using the β-carotene absorption coefficient (A^1%_1cm=2592) according to Rodriguez-Amaya (2001) using UV–visible spectrophotometer (Unico UV-2000, USA). Hexane was used as a blank. The carotenoid extraction yield was expressed as μg of carotenoids/g of dry weight (dw) sample.

The carotenoid content of pigmented sunflower oil was determined according to Goula et al., (2017) with some modifications as follows: three grams of sample (infused or enriched with carotenoid-rich extract) were accurately weighed and dissolved in hexane up to a final volume of 10 mL. The carotenoid content was measured as β-carotene and was calculated from the absorbance of the pigmented oil solution against sunflower oil as a blank.

2.7. HPLC analysis of β-caroteneTOP

The highest carotenoid extract was filtered through a 0.45 μm membrane filter. Before injection, 50 mL of the hexane extract was concentrated using a rotary evaporator at 40 °C under vacuum and re-dissolved in 10 mL of hexane. Twenty μL of the extract were injected for HPLC analysis. HPLC separation was performed using a HPLC system (Agilent Technologies 1100 series, USA) equipped with a solvent degasser, quaternary pump, auto sampler, and UV/VIS diode array detector. A LiChrospher 5 RP Select B 5 μm particle size (250 × 4.0 mm) HPLC column was used. Acetonitrile - methanol (70:30 (v/v) was used as the mobile phase. The detection wavelength was set at 448 nm with a flow rate at 1 mL/min. Ten μL of the standard mixture (25 μg lutein, 22.5 μg lycopene and 100 μg β-carotene/mL) were injected and submitted to the same HPLC conditions as the extract analysis.

2.8. Evaluation of the antioxidant activities of the carotenoid-rich extract TOP

2.8.1. DPPH free radical scavenging activity TOP

The radical scavenging activity of the carotenoid-rich extract towards DPPH radicals was determined according to Gulluce et al., (2007). The dried extract was dissolved in 5 mL hexane using a volumetric flask. The initial absorbance of the DPPH solution (40 μg/mL) was 1.221. BHT solutions in concentrations of 0, 25, 50 and 100, 200 μg/mL were used as reference. The concentration of the extract that was required for inhibiting 50% of the DPPH radicals was determined and expressed as the IC₅₀ value.

2.8.2. Ferric reducing antioxidant power (FRAP) TOP

The reducing power of the dried extract dissolved in hexane was determined at 700 nm according to the method of Oyaizu (1986). BHT solutions in concentrations of 0, 3.12, 6.25, 12.5, 25 μg/mL were used as standard reference. IC₅₀ (Concentration of the extract providing absorbance 0.5) was calculated from the graph using extract concentration versus absorbance.

2.9. Analyses of sunflower oilTOP

The acid value and peroxide value of the refined sunflower oil were determined according to AOCS (1998).

2.10. Oxidative stability of sunflower oil enriched with carotenoids from flower powder or its extract using Rancimat method at 110 °CTOP

The oxidative stability was assessed by measuring the induction time (h), in a Rancimat apparatus (Metrohm AG Series 679, Herison, Switzerland) according to the AOCS Official Method Cd 12b-92 (AOCS, 1998). Each sample of sunflower oil (3 g) was heated to 110 ± 2 °C and subjected to air-flow at 20 L/h. The collected polar volatile compounds in water increased its conductivity (μS/cm). Conductivity was measured throughout the analysis. Oxidative stability was compared with that of sunflower oil supplemented with 200 ppm BHT. The induction time was determined from the inflection point of the conductivity curve. The relative stability was calculated according to the following formula:

Relative stability = Induction time of the sample oil/Induction time of the control.

2.11. Statistical analysisTOP

All the experiments were carried out in triplicate and the results were expressed as the mean value ± SD. Data were analyzed using one-way analysis of variance (ANOVA). Duncan’s multiple range test was used to compare the significance of differences at P < 0.05.

3. RESULTS AND DISCUSSIONTOP

3.1. Visible scanningTOP

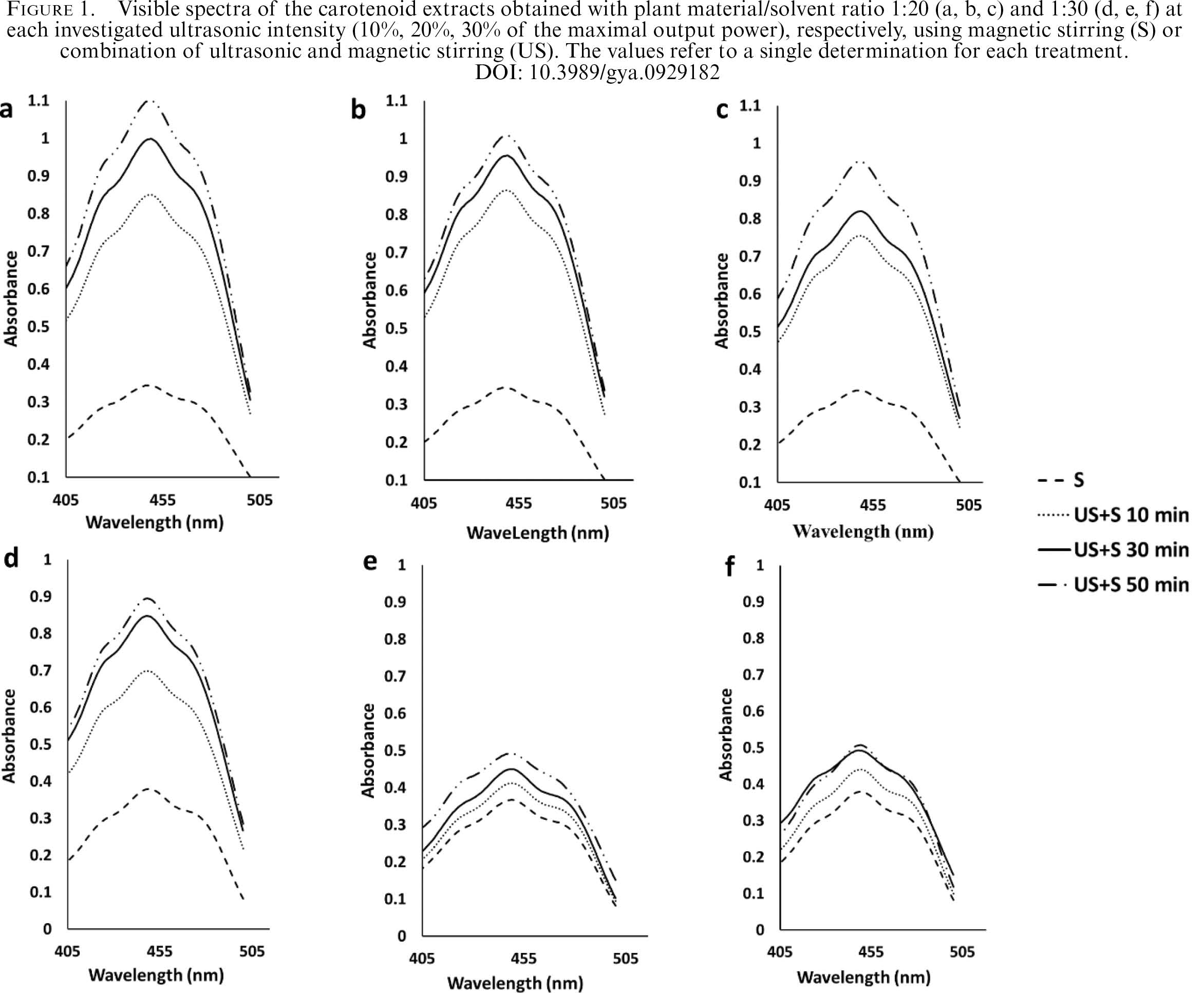

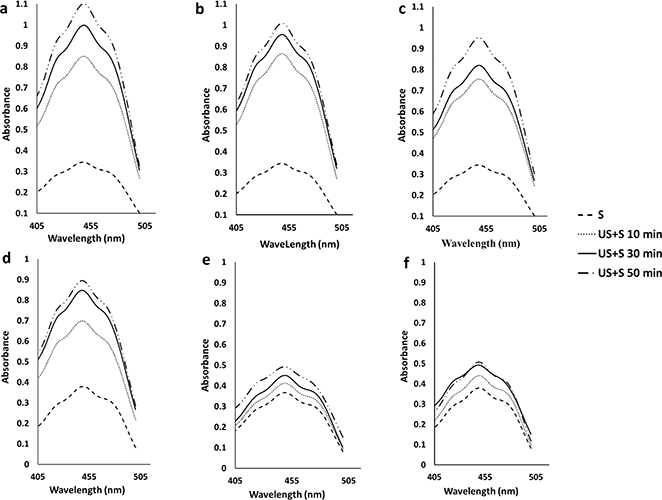

The visible spectra of the hexane extracts from 10 min to 50 min extraction time were recorded from 405 nm to 505 nm. The rate of the extracted carotenoids decreased to < 10 μg carotenoids/min after 50 min. The obtained visible spectra are shown in Figure 1.

The spectra illustrated three characteristic absorption peaks at 448 nm and 470 nm and a shoulder at 427 nm with the maximum absorption at 448 nm. These spectra are in agreement with those found by Sricharoen et al., (2016) for β-carotene. The extracts obtained by magnetic stirring only or at low material solvent ratio or at a short extraction time or at high ultrasonic intensity showed low levels of absorption indicating low carotenoid concentration. The extract that was obtained with the highest level of carotenoids in a nearly short time (50 min) was selected for further analysis.

3.2. HPLC analysis TOP

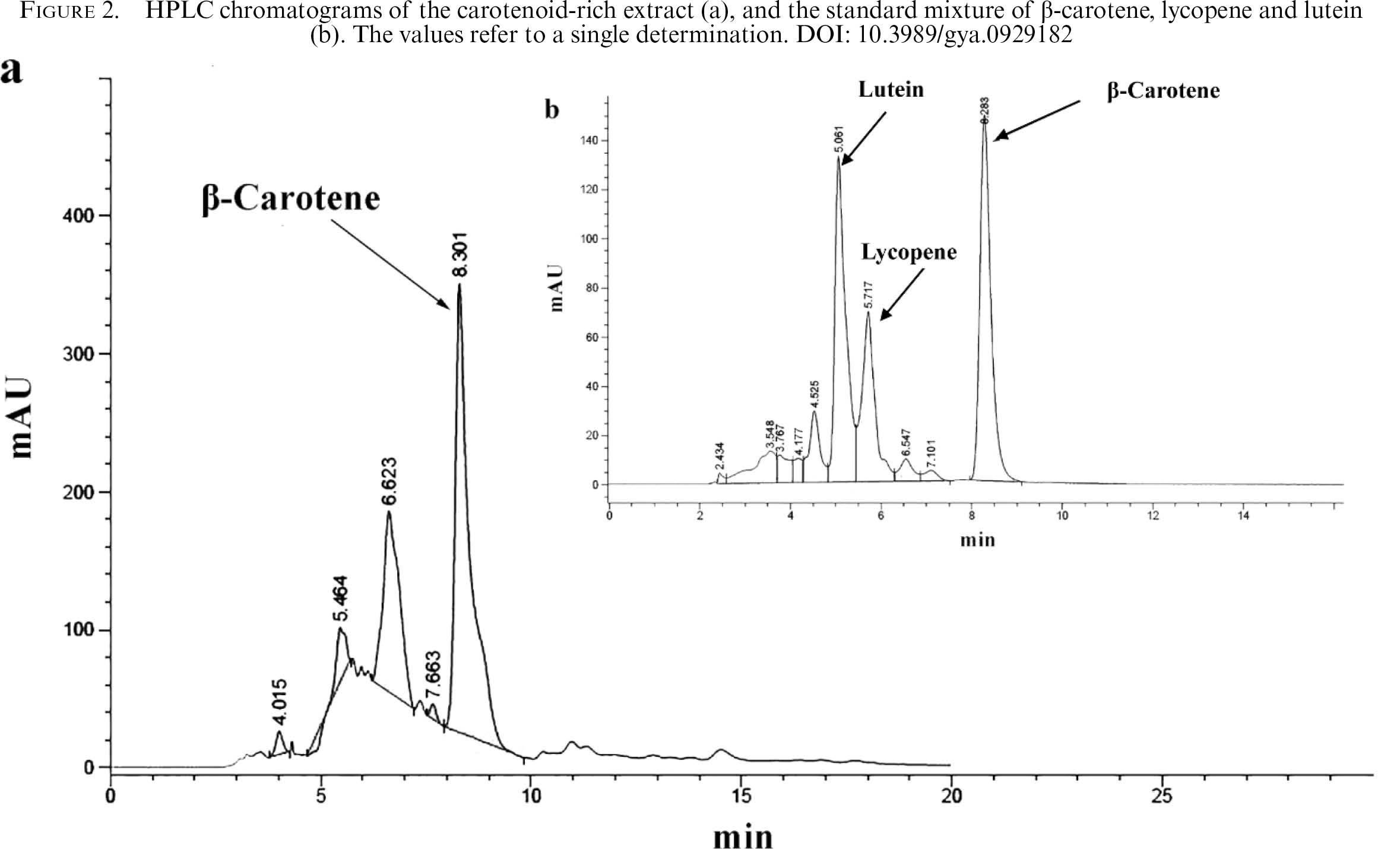

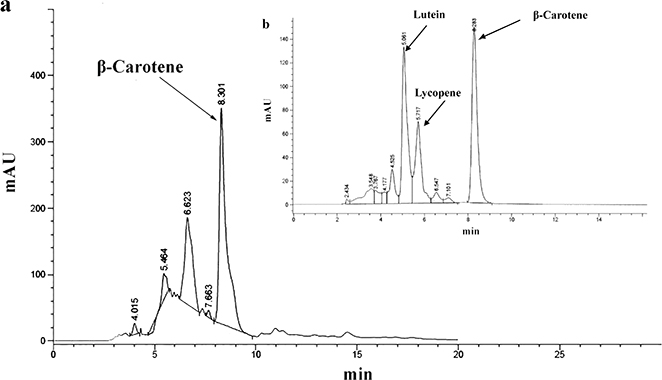

The selected extract with the highest level of carotenoids was analyzed by HPLC for the confirmation and quantification of β-carotene in this extract (1:20 plant material/solvent ratio, 10% ultrasonic intensity for 50 min) (Figure 2). The concentration of β-carotene was found to be 31.86 μg/mL.

3.3. Effect of extraction timeTOP

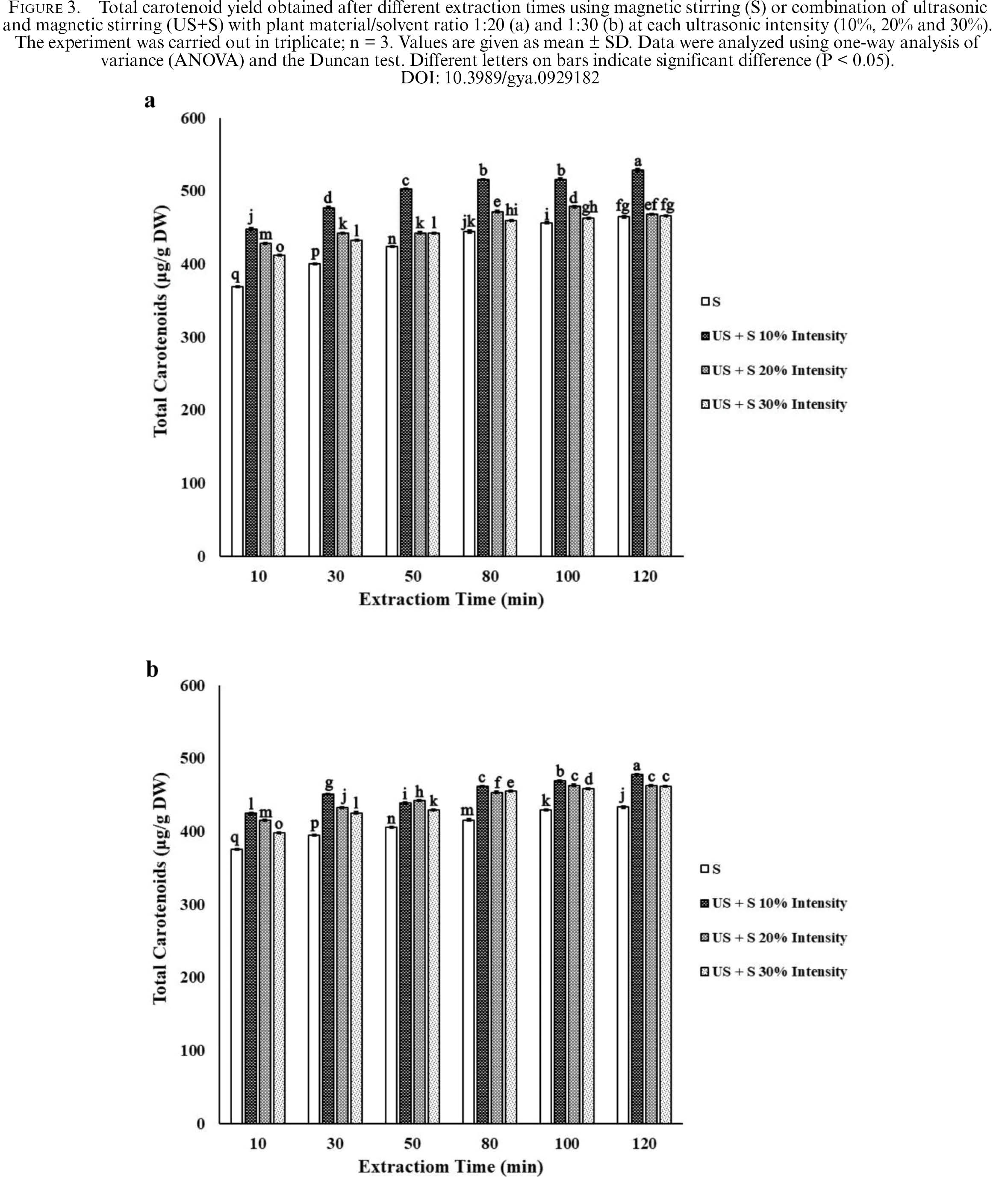

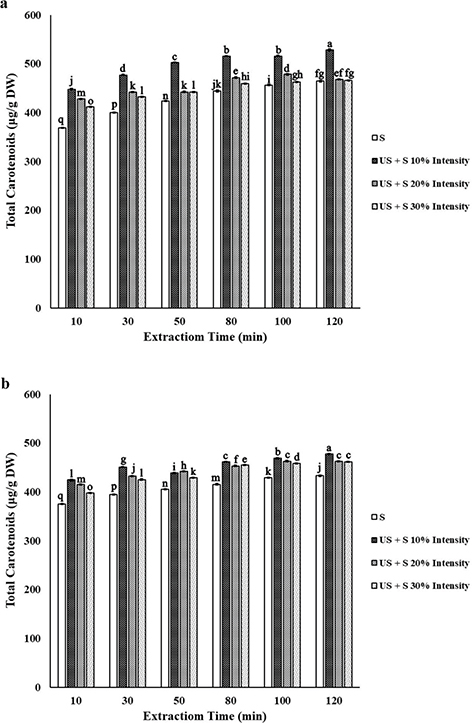

The optimization of the extraction time is of great importance to minimize energy costs. The ultrasonic with stirring technique (US+S) was significantly more efficient for the extraction of carotenoids than stirring (S) alone at each extraction time, regardless of material/solvent ratio as shown in Figure 3. The ultrasound efficiency could be due to its capability to penetrate and rupture the cell walls and improve the mass transfer of soluble constituents from solid material to solvent phase (Wang and Weller, 2006). Extending extraction time from 10 to 120 min with or without ultrasonic caused a significant increase in the extracted carotenoids, regardless of the material/solvent ratio used.

The highest yield of total carotenoids was obtained with a material/solvent ratio of 1:20 at 10% ultrasonic intensity for 120 min. The yield of extracted carotenoids using material/solvent ratio of 1:20 at 20% ultrasonic intensity for 100 min was significantly higher than that obtained at the same intensity for a longer time (120 min). Since the rate of extracting carotenoids decreased to <10 μg carotenoids/min only when extraction time was extended from 50 min to 120 min, this time was selected as the optimal time for the maximum extraction of carotenoids from petals. In other words, extending the extraction time from 50 min to 120 min enhanced the extraction of carotenoids by less than 6%, regardless of the extraction conditions used. This result is in agreement with that found by Ye et al., (2011).

3.4. Effect of ultrasonic intensity (%)TOP

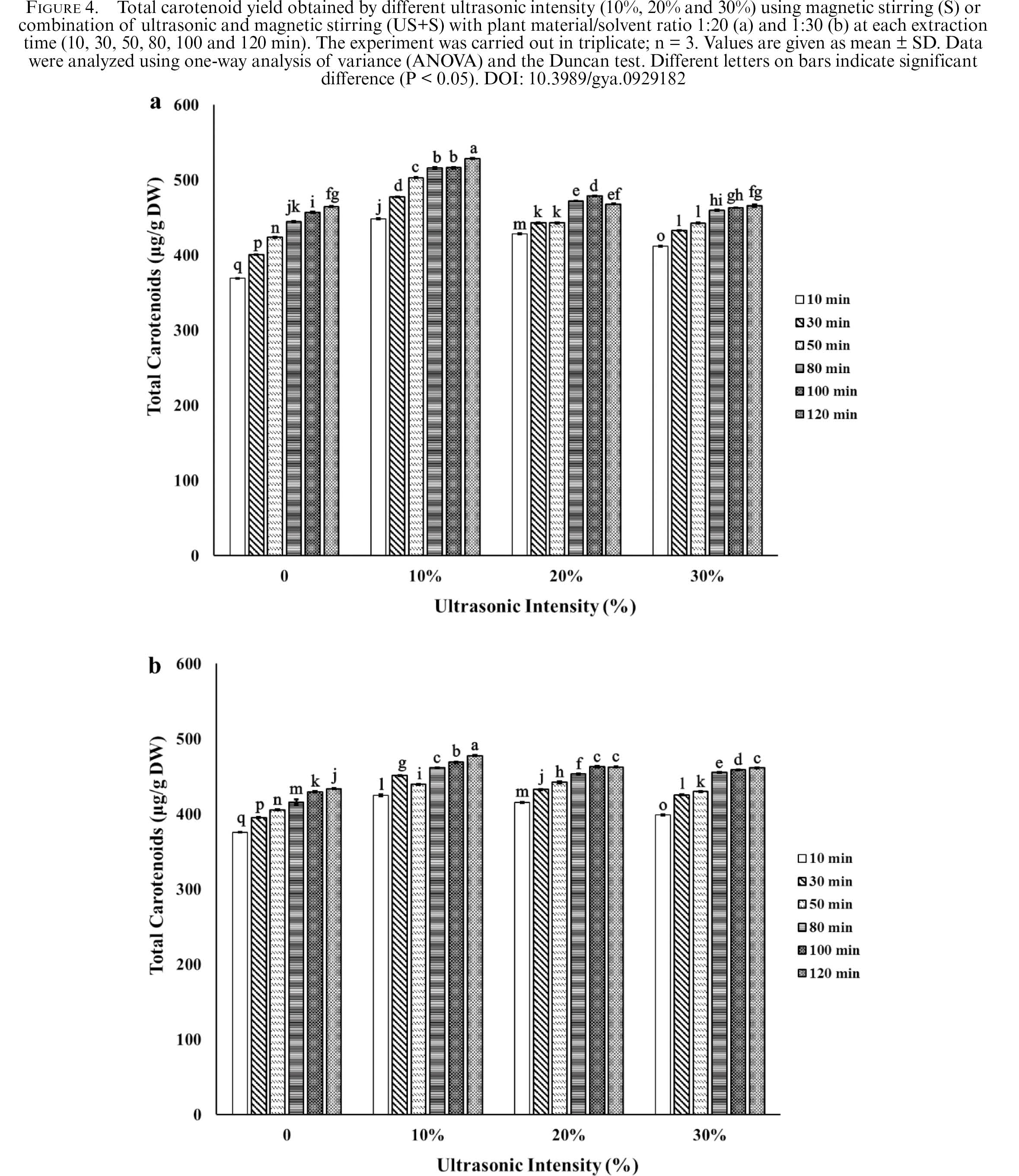

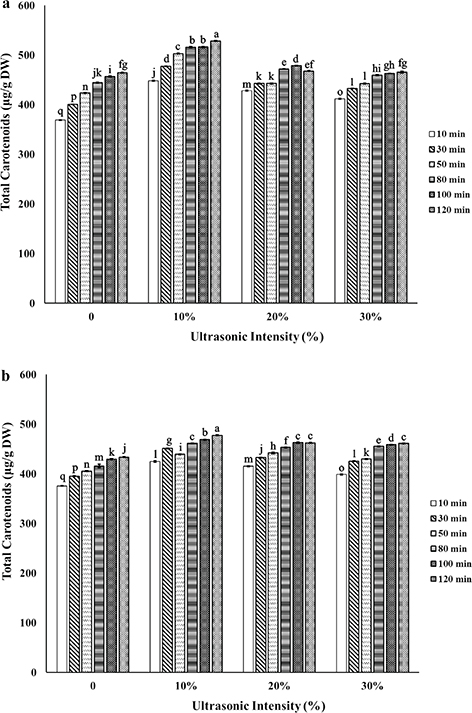

Increasing ultrasonic intensity by higher than 10% of the maximum output power (energy density 0.73 W/L) was accompanied by a significant decrease in the extracted carotenoids regardless of the material/solvent ratio (Figure 4). Although this low intensity required a longer extraction time, its effect on the product stability is less pronounced than high ultrasonic intensity as reported by Tiwari et al., (2010). At the same time, the extraction performed using 1:20 ratio, ultrasonic intensity 20% (energy density 1.46 W/L) or higher for 120 min did not significantly increase the total carotenoid yield that was obtained with conventional stirring only for the same duration. Increasing ultrasonic intensity from 20% (energy density 1.46 W/L) to 30% (energy density 2.44 W/L) using a material/solvent ratio of 1:30 for 80 min caused a significant increase in the extracted carotenoids, while after 120 min extraction it did not significantly affect the total carotenoid yield.

Raso et al., (1999) reported that higher acoustic intensity caused a scattering of ultrasonic waves and a reduction in the extraction yield. High ultrasound intensity causes the formation of radicals, which degrades carotenoids (Saini and Keum, 2018). Therefore, low ultrasonic intensity (10% of the maximum output power, energy density 0.73 W/L) was selected to eliminate any destruction of the carotenoids present.

3.5. Effect of material/solvent ratioTOP

Decreasing material/solvent ratio from 1:20 to 1:30 was accompanied by a remarkable decrease in the extracted carotenoids throughout the extraction process, regardless of the ultrasonic intensity used. This result could be due to the fact that the increment in solvent/material ratio was not high enough to enhance the mass transfer of carotenoids from the plant material. This result is in agreement with that reported by Sachindra and Mahendrakar (2005). Decreasing the material/solvent ratio negatively affects the ultrasonic energy/unit volume of the solvent and the yield of the extractable material (Raza et al., 2017).

3.6. Antioxidant activities of the flower extractTOP

3.6.1. DPPH radical scavenging activity TOP

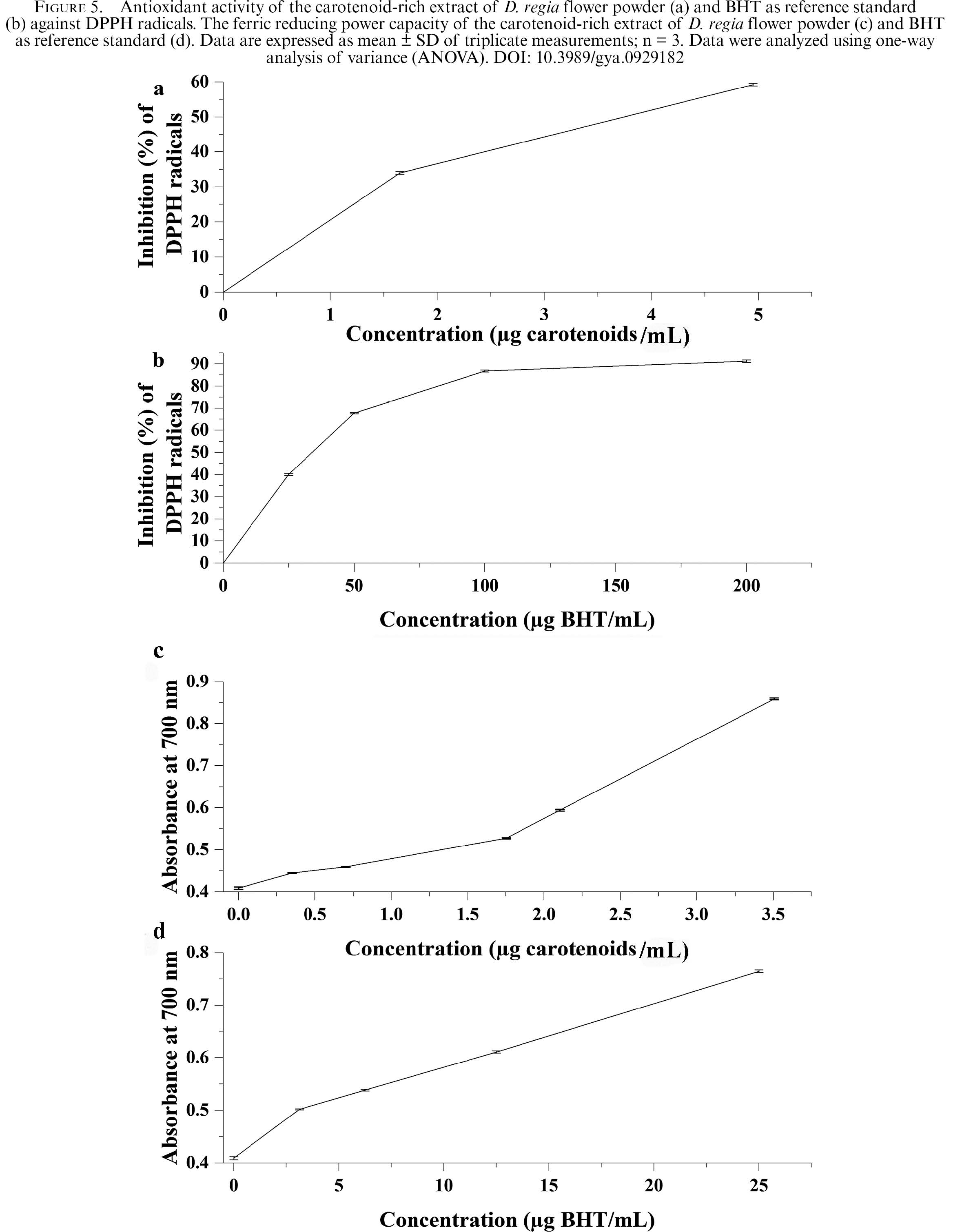

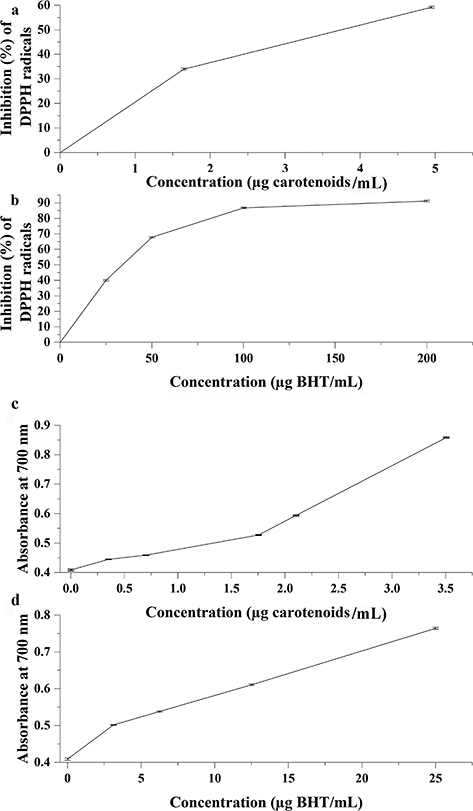

This method is based on the ability of the DPPH radical to react with hydrogen donor species. The carotenoid-rich extract indicates its antioxidant activity against DPPH radicals. The IC₅₀ of the hexane extract (3.73 μg carotenoids/mL) was ~10 times that of the BHT (IC₅₀= 34.7 μg/mL) as illustrated in Figure 5 a-b. On the other hand, Shabir et al., (2011) studied the antioxidant activity of different solvent (methanol, ethanol, acetone, and water) extracts of Delonix regia Raf. flowers and the highest DPPH scavenging activity was recorded for the 80% methanol extract (IC₅₀ value 14.8 μg/mL).

3.6.2. Ferric reducing power activity TOP

The reducing power assay indicates the high antioxidant activity of the investigated carotenoid-rich extract. The IC₅₀ of the extract (1.36 μg carotenoids/mL) represented ~3 times that of BHT (IC₅₀= 3.37 μg/mL) as shown in Figure 5 c-d. Shabir et al., (2011) showed that the 80% methanol extract from Delonix regia flowers had a low reducing power value (IC₅₀~ 4 mg/mL).

3.7. Oxidative stability of sunflower oilTOP

Many physical and chemical methods are used to assess the degree of oil deterioration (oxidation). The acid value (0.38 mg KOH/g oil), and peroxide value (0.66 meq O₂/Kg oil) of the investigated refined sunflower oil (with no added antioxidants) indicate its freshness and its high quality according to the Codex Alimentarius Standards (Codex Alimentarius, 2015). Rancimat test as an accelerated technique is used for measuring the oxidative stability of oils and fats at an elevated temperature and high flow rate of air. The induction time indicates the resistance of oils to oxidative deterioration. The oxidative stability of the sunflower oil samples as affected by different levels of carotenoid-rich extract or infused flower powder is illustrated in Table 1.

The oxidative stability (induction time) of the sunflower oil sample without added extract (control) was 8.65 h. The oxidative stability of sunflower oil increased by 50% (relative stability ~ 1.5) when it was enriched with 67.46 mg carotenoids/kg oil (using carotenoid-rich extract) or with 155.72 mg carotenoids/kg oil (by infusion of oil with 20% flower powder for 20 days at 5 °C).

On the other hand, sunflower oil supplemented with BHT at 200 ppm had a relative stability of 1.26. This indicates the highest antioxidant efficiency of the carotenoid-rich extract compared to BHT.

This plant extract effectively stabilized sunflower oil against rancidity and the results could be compared with the findings of Upadhyay and Mishra (2015), who increased the oxidative stability of sunflower oil (by about 36%) by blending with sage (Salvia officinalis) oleoresin at 200 ppm. Upadhyay et al., (2017) delayed the thermo-degradation of sunflower oil during frying (18 h) by the synergistic combination of oleoresin rosemary, as a natural antioxidant, and ascorbyl palmitate. Induction period values of the oil blend decreased significantly at the end of frying by 1.5 times reduction instead of 5 times reduction in the control sample. Meanwhile, the UAE of ground dried tomato waste (containing the skin and seeds of ripe tomato) into refined sunflower oil at 5% (w/v) for 50 min at 20 °C increased its induction time by 19% (Nour et al., 2018).

The infusion of flower petals into the investigated oil caused the migration of pigments from petals to oil. Saini and Keum (2018) reported that vegetable oil enriched with carotenoids could be used as a pigmented oil in food formulations. Sachindra and Mahendrakar (2010) extracted carotenoids from shrimp waste using sunflower oil. They reported that the addition of carotenoid carriers to fish sausage enhanced the color and flavor of the product.

The addition of a higher level of carotenoid-rich extract to oil (159.56 mg carotenoids/Kg oil) lowered the oxidative stability of the oil by 11% (relative stability = 0.89), indicating the pro-oxidant activity of this level as reported by Polyakov et al., (2001) and Nour et al., (2018), who found that carotenoids act as a pro-oxidant at a high concentration.

4. CONCLUSIONSTOP

The results of this study indicate that the independent factors in the ultrasound extraction had a significant effect on the extraction yield of carotenoids from the petals of Delonix regia. The combination of ultrasound and magnetic stirring (US+S) significantly increased the extraction yield compared to conventional stirring (S). The relatively high material/solvent ratio and low intensity of ultrasonic were efficient for maximum extraction yield. DPPH, FRAP assays and the oxidative stability of sunflower oil measured by the Rancimat reflects the high efficiency of carotenoid-rich extract as natural antioxidant compared to synthetic antioxidant (BHT) with its known side effects. The carotenoid-rich extract turned out to be pro-oxidant at a high level.
