Utilization of unsaponifiable matter from rice bran oil fatty acid distillate for preparing an antioxidant-rich oleogel and evaluation of its properties

S. Sahu^a, M. Ghosh^a,* and D.K. Bhattacharyya^a

^aSchool of Community Science and Technology, Indian Institute of Engineering Science and Technology, Shibpur

*Corresponding author: g_minakshi2000@yahoo.com

1. INTRODUCTIONTOP

Rice bran oil (RBO), a healthy vegetable oil, is a good source of various antioxidants such as oryzanol, tocopherol, tocotrienol, squalene and phytosterol and has greater oxidative stability and longer shelf-life than other vegetable oils. Rice bran oil is a rich source of monounsaturated fatty acids (n-9 MUFA), n-6 PUFA and sterols, and it has been proven to reduce LDL (bad cholesterol). This healthy vegetable oil with a balanced fatty acid profile is more effective for preventing heart disease, skin disease, and cancer and it improves the immune system activity and neurological function (Ahmad Nayik et al., 2015).

Rice bran oil fatty acid distillate (RBOFAD) is a by-product which is produced in the physical refining plants for the de-acidification of RBO and this by-product is mainly utilized in soap manufacturing processes. Higher amounts of unsaponifiable matter composed of oryzanol, sterol, tocopherol, squalene and fatty alcohol are present in the rice bran oil fatty acid distillate (Sahu et al., 2018). Oryzanol, sterol, tocopherol, tocotrienol and squalene possess high antioxidant properties against free radicals (Ahmad Nayik et al., 2015). Oryzanol, an antioxidant compound in rice bran oil, decreases plasma cholesterol levels, serum cholesterol levels, and platelet aggregation with increasing bile excretion. Gamma oryzanol improves the immune system and good cholesterol levels, which is important for health. It prevents cancer and reduces menopause problems in women (Ahmad Nayik et al., 2015). Tocopherols and tocotrienols (α, β, γ and δ) are comprised in rice bran oil and are also important phytochemicals with antioxidant activities and potential health ­benefits (Chen and Bergman, 2005). The tocopherols in rice bran oil help to balance the endocrine hormones and improve neurological functions (Ahmad Nayik et al., 2015). Squalene, a phytochemical, has been studied for its preventive effects in many diseases such as cancer and cardiovascular diseases (Escrich et al., 2014). Recently, squalene has also received attention as a functional food in various food sectors. Studies have proven that phytosterols from plant origin have cholesterol-reducing activity (Gupta et al., 2011; Nijjar et al., 2010). Mixtures of phytosterols and γ-oryzanol are able to produce transparent gelling structures and other advantages of these components are the cholesterol reducing properties of Phytosterols (Calligaris et al., 2014; Dassanayake et al., 2011). Fatty alcohols are mainly derived from various vegetable oils and serve as raw material for making oleogel, which is recently gaining importance in bakery applications, various household products and surfactants (Dassanayake et al., 2011; Troni et al., 2013). Therefore, these constituents are useful for the utilization of functional foods for human health.

Ethylcellulose (EC), a hydrophobic polymer oleogelator has the ability of crystallization properties in edible oils and EC is commercially available, less expensive than other organogelators, and is also used as a food additive and textural modifier for oleogel formation in various food sectors (Gómez-Estaca et al., 2019; Hwang et al., 2013; Patel and Dewettinck 2015; Zetzl et al., 2014).

Waxes are esters of long chain fatty acids which are esterified to fatty alcohols; various hydrocarbon, ketones, fatty alcohols, mono-, di- and tri-acyleglycerol and sterol ester are contained in plant wax samples. These plant waxes have excellent crystallization properties in edible oils (Dassanayake et al., 2011). Studies have proven various plant wax crystallization in liquid oils such as rice bran wax in olive oil, sunflower wax in milk fat, animal wax and plant wax in sunflower oil and beeswax in hazelnut oil (Doan et al., 2015). Rice bran wax, a by-product of rice bran oil can be used as a good organogelator for valuable requirements in food sectors (Dassanayake et al., 2011). RBW has been used to provide certain micronutrients such as fatty alcohol, tocopherols, oryzanol, and sterols to act as an enhancer of oleogel formation besides providing nutritional quality and functional food properties such as antioxidants.

The addition of RBW also enhanced the compatibility of ethyl cellulose in the oil phase along with the homogeneity of the ethyl cellulose based oleogel.

Oleogel is a colloidal system of micro-­heterogeneous solid and liquid phase. In general, oleogels have a smooth texture with a small amount of gelator and they have shown feasibility for the replacement of trans and saturated fats containing hard stocks used in food products such as margarine, spreads, etc. (Hwang et al., 2013; Hwang et al., 2012). The mixture of oryzanol and phytosterols, wax esters, long chain fatty acids, fatty alcohols, waxes, lecithin, monoacylglycerides, sorbitan tristearate are more effective as organogelator for making oleogel from edible oil (Dassanayake et al., 2011).

The objective of the present investigation is mainly concerned with the utilization of high antioxidant-rich unsaponifiable matter, duly isolated from rice bran oil fatty acid distillate, as a composite organogelator system for making oleogels from rice bran oil along with rice bran wax or ethyl cellulose.

2. MATERIALS AND METHODSTOP

2.1. Materials and oleogel preparationTOP

RBOFAD and RBW, two refinery by-products, were obtained from M/S Sethia Oils Ltd. (Burdwan, WB, and India). Refined RBO was purchased from a local grocery store, ethyl cellulose (HIMEDIA, CAS no. 9004-57-3, RM 1610-500) was purchased from a reagent supplier and total unsaponifiable matter was isolated from RBOFAD following the standard AOAC method (AOAC 972.28). RBW was blended at 1–7 wt% levels with physically refined rice bran oil to produce oleogel. Antioxidant-rich, soft oleogel (gel A) was also produced with UMRBOFAD (2 wt%), ethyl cellulose (2 wt%), RBW (3 wt%) and RBO. Oleogel (gel B) without the UMRBOFAD was prepared with only RBW and RBO at 80 °C as shown in Table 1. Antioxidant-rich oleogel was prepared by dissolving the weighed solid ethyl cellulose, UMRBOFAD and RBW in rice bran oil (RBO) at 140 °C after full melting of all substances. Then the heated solution was cooled at room temperature (26 °C) and stored in the refrigerator and the oleogels are depicted in Figure 1.

2.2. Oil binding capacityTOP

Oil binding capacity (OBC) is essential for one of the physical properties of oleogel (YIlmaz and Öǧütcü 2014). First melted oleogel was put in an Eppendorf tube (a) which was previously weighed and stored in refrigerator for 1 hour. After that, this Eppendorf was again weighed (b) and centrifuged at 9000 rpm at room temperature (27-28 °C) for 16 min. After centrifugation this Eppendorf was turned over onto a paper for draining the extra liquid oil. After the draining of the liquid oil, the Eppendorf tube was weighed again (c). OBC value was calculated by the equation:

Released oil (%) = [(b-a) -(c-a)]/(b-a) ×100

Oil binding capacity (OBC) % = 100- released oil (%)

2.3. Color measurementTOP

The colors of the surface of oleogel samples were mostly measured by Konica Minolta Color Reader CR 10 (Japan). The color was measured in three different points of each sample such as “L” (Lightness), “b+” (Yellowness) and “a+” (Redness) (Sahu et al., 2018).

2.4. Thermal analysisTOP

The melting temperature and crystallization temperature of oleogel were examined by DSC (PerkinElmer Diamond DSC) (Dassanayake et al., 2011). Instrument calibration was done with Indium and Zinc. Each oleogel sample (20–25 mg) was weighed into an aluminium pan and hermetically sealed. The temperature was gradually increased from room temperature to 80 °C at 5 °C/min; the oleogel samples were cooled to −20 °C at 5 °C/min and held for 3 min at −20 °C for full crystallization of the samples. Again these oleogel samples were heated to 80 °C at 5 °C/min. because the antioxidant rich oleogel (Gel A) was liquid at 80 °C inspite of ethyl cellulose and rice bran wax being present due to the compatibility of ethyl cellulose in the gel, enhanced as revealed by the clarity of the oleogel.

2.5. Crystal morphologyTOP

The crystals of oleogel samples were observed by Polarized Light Microscope (Bin Sintang et al., 2017a). Small amounts of oleogel sample were placed on glass microscope slides and these slides were covered with glass cover slips. Partially and fully polarized digital images of various oleogels were observed using a camera (Canon) at room temperature. The crystal morphology of oleogel samples was compared at different concentrations of RBW, ethyl cellulose and UMRBOFAD.

2.6. Viscosity measurementsTOP

The viscosity of oleogel samples (gel A and gel B) was measured by a Viscometer (LR Lamy Rheology instrument). The oleogel samples were heated in water bath at 80 °C for proper melting. These melted oleogel samples were placed in the sample cell of the viscometer and the viscosity was measured with a gradual decreasing of temperature (80 °C to 20 °C) at the rate of ̴ 1 °/min. The viscosity measurements were plotted against the temperature.

2.7. XRD analysisTOP

XRD patterns of oleogels were taken by Panalytical XʹPert PRO X-Ray diffractometer (Yang et al., 2017). Angular scans were performed from 2° to 50° at 2°/min scan rate with a copper source X-ray tube, α = 1.54 Å.

2.8. FTIR spectroscopyTOP

The oleogel samples were analyzed by Fourier transform infrared (FTIR) Spectroscopy (Perkin EImer FTIR) for infrared spectra measurements at 4000–650 cm⁻¹ wave range (YIlmaz and Öǧütcü, 2014).

2.9. Oxidative stabilityTOP

Peroxide value measurements for the determination of the primary lipid oxidation of oleogel samples as an important determination for oxidative stability during the storage period of oleogels at 3 to 4 °C were made following the AOCS method (Öǧütcü et al., 2015). The peroxide values (meq O₂ Kg⁻¹) of oleogel samples were measured by the acetic acid-chloroform method and potassium iodide solution.

2.10. Determination of DPPH and ABTS+ radical scavenging activityTOP

The DPPH (1,1- diphenyl-2-picrylhydrazyl) was measured for the determination of radical scavenging power of oleogel samples. The samples were diluted to varying concentrations with isopropanol, and then these diluted samples were mixed with 1 ml DPPH solution (0.04 mg/ml) in a dark place. The mixture was then incubated at room temperature (28 °C) for 30 min. The absorbance of solutions was measured at 517 nm using a spectrophotometer (JASCO V630 UV Vis Mississippi, USA). The sample concentration required for scavenging 50% DPPH free radical (IC₅₀) was determined from the percent inhibition curve against the respective concentration (Pengkumsri et al., 2015).

The free radical scavenging activity of the oleogel samples was measured by the ABTS⁺ radical. An ABTS⁺ stock solution was prepared by mixing with ABTS⁺ (7mM) and potassium persulfate (2.45 mM) and stored in the dark at room temperature for 16 hours. The ABTS⁺ solution was diluted with ethanol (1:50) to obtain the perfect absorbance (0.700 ± 0.02) at 734 nm. 10 μL samples were diluted with isopropanol 190 μL diluted ABTS⁺ solutions were added. This solution was incubated at room temperature for 10 min and the absorbance was measured by a UV Spectrophotometer at 734 nm. The free radical scavenging activity was determined by the IC₅₀ value, which expresses the concentration of sample required for the inhibition of 50% radical (Pengkumsri et al., 2015).

2.11. Statistical analysisTOP

The results were presented as mean values with standard deviations and the statistical analysis was done by the Tukey test (p < 0.05) for the inter-group comparison of parametric data using Origin 8 software.

3. RESULTS AND DISCUSSIONTOP

3.1. Physical properties of oleogelsTOP

Some valuable physical characteristics of oleogels are shown in Table 2. The OBC value of gel A is much lower than that of gel B. Therefore, gel A is a softer oleogel than gel B and gel B is a stronger, more stable gel than gel A (high antioxidant-rich oleogel). Gel A contained high amounts of unsaponifiable matter (γ-oryzanol 3.27 g/100g UM; total tocopherol 10.93 mg/100 g UM; total phytosterol 21.81 g/100g UM; squalene 1.15 g/100 g UM and total fatty alcohol 73.34 g/100 g UM) which is isolated from the rice bran oil fatty acid distillate (Sahu et al., 2018). Phytosterol and oryzanol mixture and fatty alcohol are good organogelators for making various types of oleogels (Dassanayake et al., 2011).

The colors of oleogels are different due to the presence of the unsaponifiable matter from rice bran fatty acid distillate, rice bran wax percentage and liquid stock oil. These colors of oleogels are usually dependent on rice bran wax concentration and used stock liquid oil because RBW consists of esters of long-chain saturated fatty acids and fatty alcohols (Yılmaz and Öǧütcü 2014). “L” (Lightness) and “b+” (Yellowness) of antioxidant-rich oleogel (gel A) are much higher than gel B (without unsaponifiable matter) except “a+” (Redness) of gel A, as shown in Table 2.

3.2. Thermal properties of oleogelsTOP

Thermal parameters such as crystallization, melting temperatures and enthalpies of oleogel samples were measured by DSC and the results are shown in Table 3. The crystal form of gel A began at 53.92 °C and melting initiated at 57.37 °C. The peak temperature and peak crystallization temperatures were determined as 68.83 and 52.81 °C. The melting enthalpy and crystallization enthalpy were 2.709 J/g and −0.303 J/g. The starting points of crystallization and the melting of gel B were at 53.91 °C and 68.13 °C. The peak melting and peak crystallization temperatures of gel B were observed at 68.13 °C and 51.88 °C; crystallization and melting enthalpies were −7.646 J/g and 7.549 J/g. Crystallization and melting enthalpy values were high because gel B contained a higher amount RBW than gel A because the concentration of RBW was smaller in gel A compared to gel B. In general, the peak and onset of melting and crystallization temperatures of oleogel A (high antioxidant rich) were quite similar to oleogel B. The differences in onset and peak temperatures can be attributed to the relatively higher melting points of the constituents of unsaponifiable matter such as oryzanol, phytosterol and fatty alcohol. Antioxidant-rich oleogel (Gel A) became liquid at 80 °C inspite of containing Ethyl cellulose and rice bran wax, presumably due to the compatibility of ethyl cellulose and wax in the oil phase of the oleogel, which was further accentuated in particular by the action of oryzanol as a solutizer. Therefore, gel A could be better as a good food application than gel B because gel A contained higher amounts of unsaponifiable matters (γ-oryzanol, tocopherol, squalene, phytosterol and fatty alcohol). The composition of unsaponifiable matter can be utilized in food products such as margarine, mayonnaise, health drinks, bakery products such as biscuits and cakes where the unsaponifiable matter constituents act as good antioxidants, preserving the flavor characteristics of the baked products by maintaining the oxidative stability of the fat phases.

3.3. Crystal morphological propertiesTOP

The crystal morphological properties of the two oleogels (gel A and gel B) were found by Polarized Light Microscope (PLM) and are depicted in Figure 2. These pictures show the morphological structure of oleogels with rice bran wax and unsaponifiable matter from rice bran fatty acid distillate and reveal that the crystallized form of gel B is similar to gel A, which is a more antioxidant-rich oleogel. Literature reviews of oleogels with rice bran wax showed more needle-like structure (Doan et al., 2015). The results for the morphological properties of oleogels showed a smooth and homogeneous mixture of oleogels. From this study, it was determined that gel A was smooth and homogeneous, similar to gel B and gel B contained a more needle-like structure than gel A, although gel A contained large needle crystals and network-like structure because gel A contains higher amounts of oryzanol, phytosterol and ethyl cellulose (Bin Sintang et al., 2017a).

3.4. The viscosity of oleogel samplesTOP

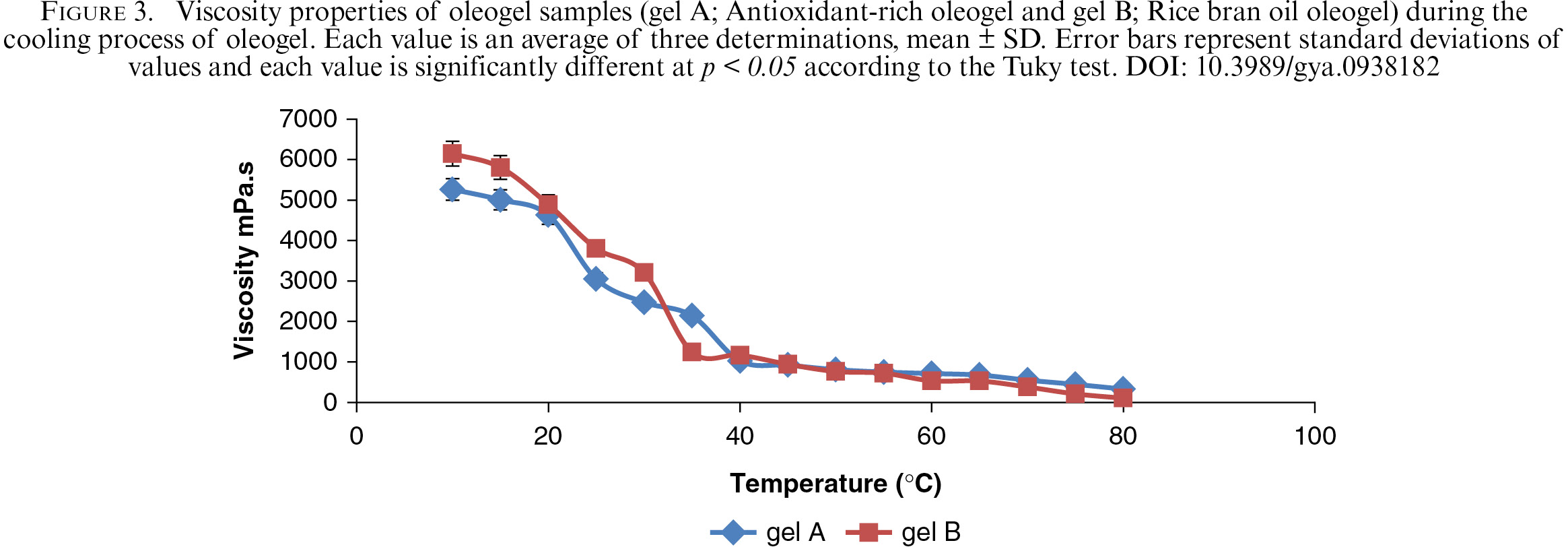

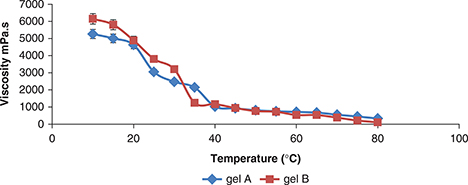

The viscous properties of the oleogel samples (gel A and gel B) during the cooling process are shown in Figure 3. The viscosity of gel B with RBW at 7% W/W) was higher than gel A during the cooling process because gel B contained a high amount of rice bran wax which created a more fiber-like needle crystal structure and formed a strong gel structure. The viscosity of the oleogel samples was explained by temperature, crystallization, size and shape.

3.5. X- ray diffraction patterns of oleogel samplesTOP

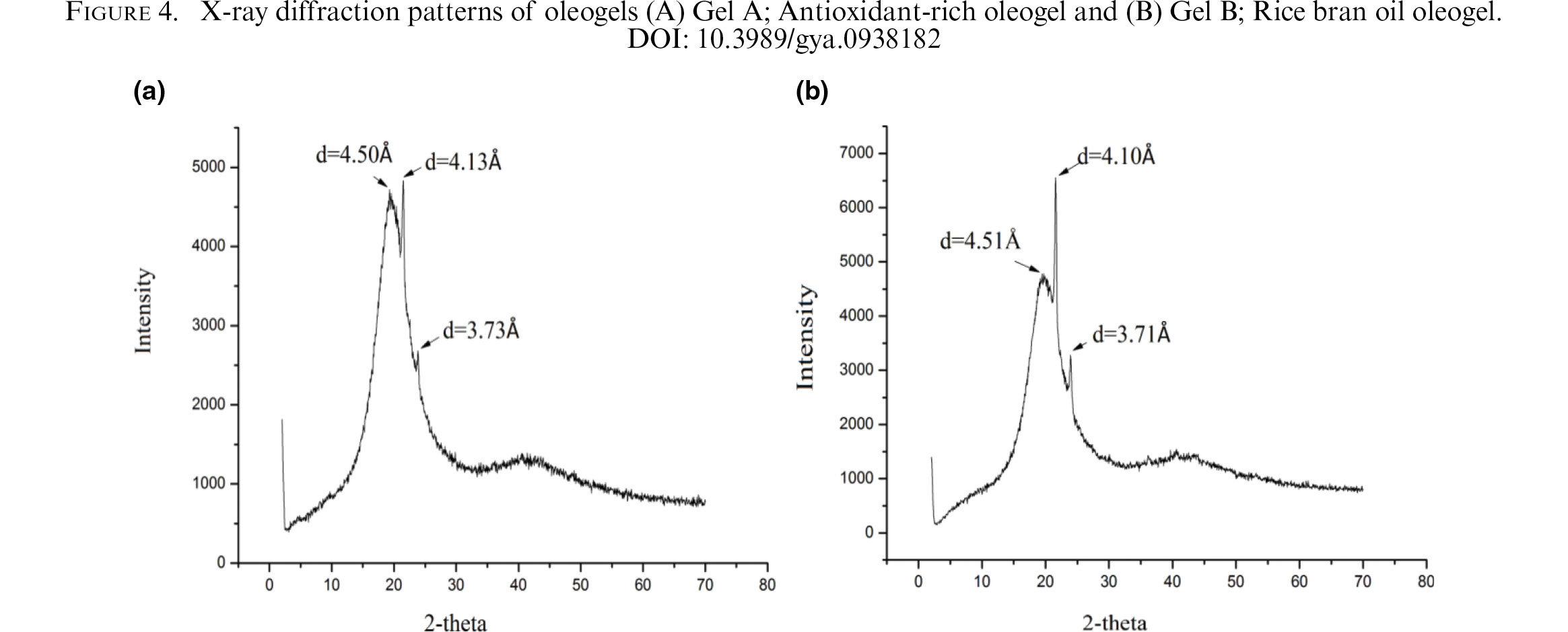

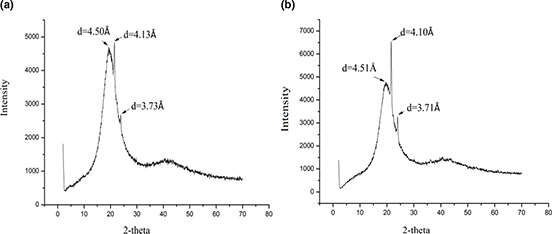

The x-ray diffraction (XRD) patterns of the oleogel samples were measured and the results are shown in Table 4 and Figure 4. The XRD patterns of gel A and gel B were very similar according to Figure 3. The peaks for gel A in the wide-angle region were at around 3.73Å – 4.50Å and the wide-angle region peaks for gel B were at around 3.71Å – 4.51Å (Table 4). Wide angle region peaks for bee wax gel and carnauba gel were very similar at around 3.73Å – 4.60Å (CB7); 3.73Å – 4.59Å (CC7) (Yılmaz & Öǧütcü 2014). Gel A contained higher amounts of phytosterol, oryzanol and fatty alcohol than gel B. The high intensity of short spacing peaks of oleogel sample A was due to the combination of various gelators such as phytosterol, fatty alcohol, oryzanol and ethyl cellulose (Dassanayake et al., 2011; Stortz and Marangoni 2014; Yang et al., 2017; Zetzl et al., 2014), which indicated a lateral packing of molecular layers. Gel B, with single gelator, presented self-shorting and rearrangement of gelator molecules because of its high intensity of long spacing peaks. In this study, the XRD diffraction of gel A was observed with peaks of RBW, UMRBOFAD and EC crystals in the β’ polymorphic form.

3.6. The FTIR spectra of oleogel samplesTOP

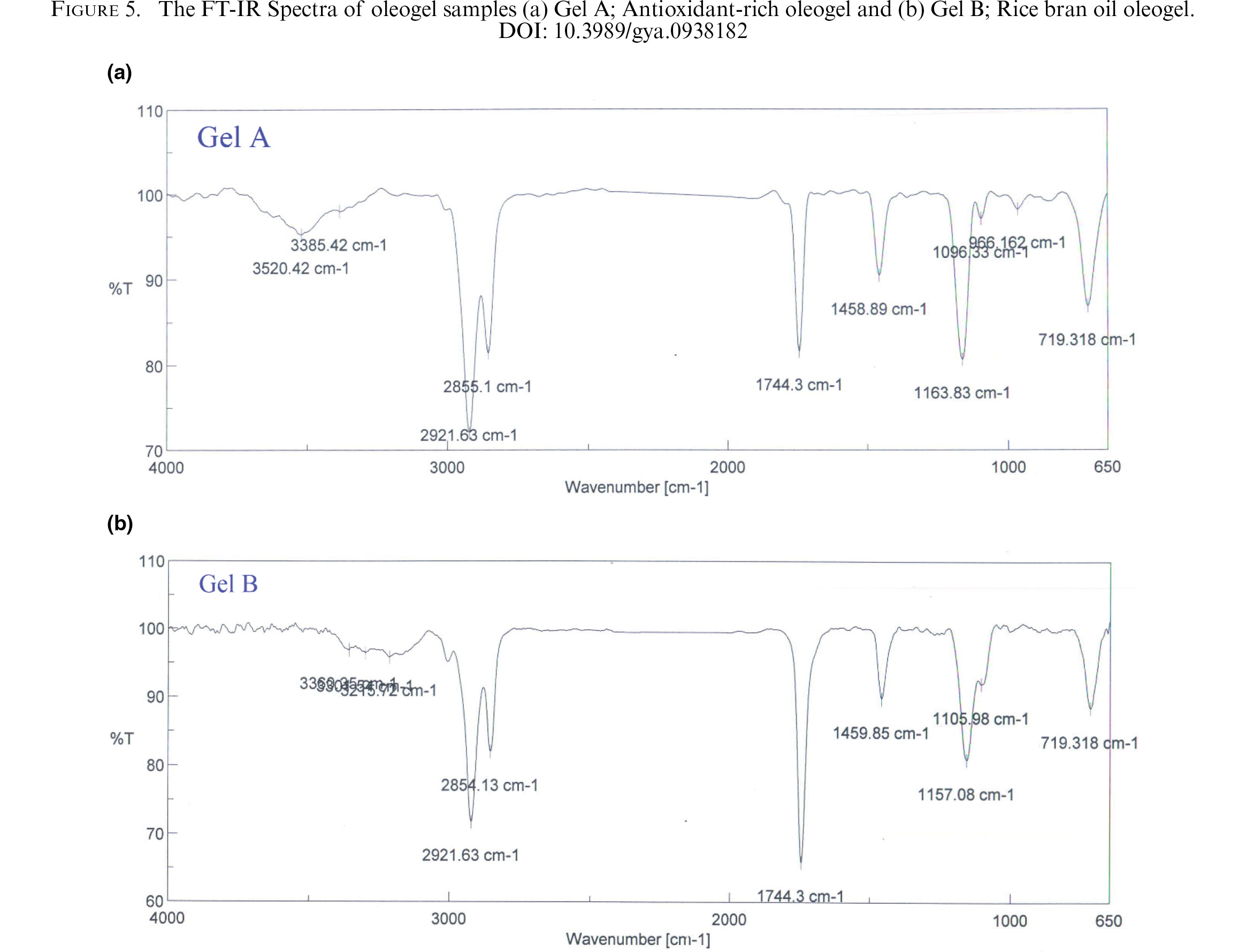

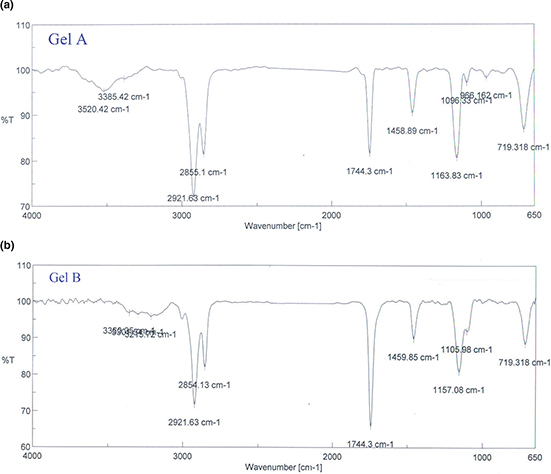

The FTIR spectra of the oleogel samples (gel A and gel B) are shown in Figure 5. The hydrogen bond formation between the molecules of the oleogel samples was analyzed by FTIR spectroscopy, which covered a 4000–650 cm⁻¹ wave range. This analysis provided information about the interaction of molecules in the oleogel samples. In view of the molecular nature of the various components present in the two oleogels, the IR spectrum was expected to be almost identical, with peaks at nearly the same wave lengths as indicated in the FTIR ­spectra. There was a spectral difference between gel A (more antioxidant-rich oleogel) and gel B at around 3,215–3,520 cm⁻¹. The FTIR spectra measurement of the β-sitosterol and γ-oryzanol-based organogel was seen at around 3,441 cm⁻¹, which was observed in sitosterol slurry as an intermolecular hydrogen bond (Yılmaz and Öǧütcü 2014). Gel A sample contained higher amounts of phytosterol and oryzanol than gel B; the FTIR spectral measurement of gel A was observed as medium-intensity band at around 3,385–3,520 cm⁻¹ due to the presence of high amounts of phytosterol and oryzanol. This mixture of phytosterol and oryzanol in gel A had a highly specific intermolecular hydrogen bond (Yılmaz and Öǧütcü 2014).

3.7. Oxidative stability of oleogel samplesTOP

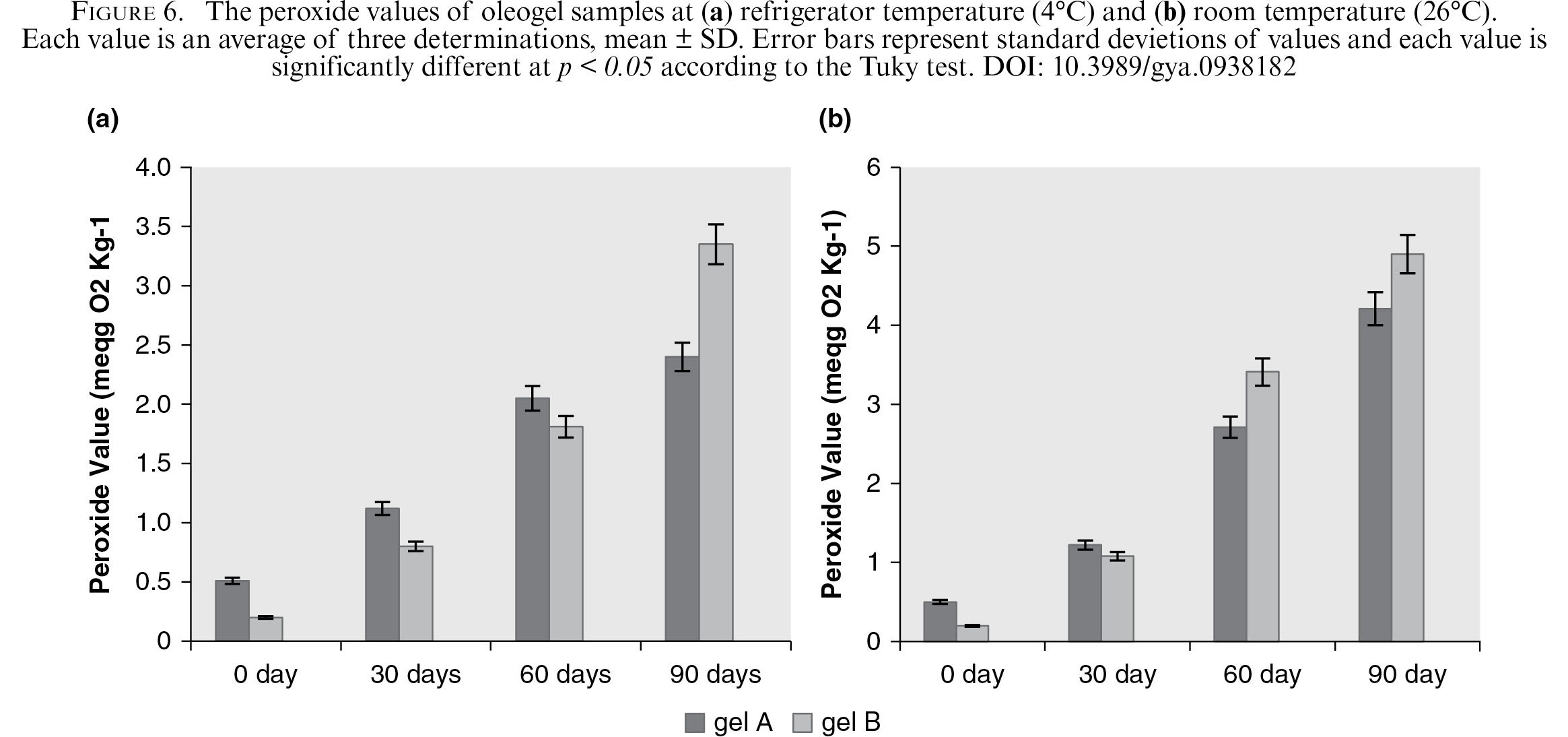

The results on the oxidative stability of the oleogel samples were more significant for storage stability from 0 day to 90 days at two different temperatures such as room temperature (26 °C) and refrigerator temperature (4 °C), as shown in Figure 6. There were slight differences in peroxide value (PV) between room temperature and ­refrigerator temperature because the oleogels were produced from stable edible oil. Figure 6 clearly demonstrates that the peroxide value for the oleogel samples stored at room temperature was always higher than the oleogel sample stored at refrigerator temperature, which was also reported previously (Öǧütcü et al., 2015; Yılmaz and Öǧütcü 2014). On day 0, the peroxide values of gel A and gel B (0.50 meq O₂·Kg⁻¹ and 0.20 meq O₂·Kg⁻¹) were observed and after 90 days the PV values of stored gel A and gel B sample were determined (2.50 meq O₂·Kg⁻¹ and 3.25 meq O₂·Kg⁻¹) at room temperature. Similarly, the peroxide value (4.25 meq O₂·Kg⁻¹) of gel A sample was slightly lower when stored for 90 days than gel B (5 meq O₂·Kg⁻¹) at refrigerator temperature because gel A is rich in tocopherols, which is an important phytochemical for the prevention of lipid peroxidation for the storage stability of vegetable oils (Ahmad Nayik et al., 2015; Chen and Bergman 2005).

3.8. DPPH and ABTS+ free radical scavenging activityTOP

The antioxidant properties of the oleogel samples were evaluated through DPPH and ABTS⁺ radical scavenging activity as shown in Table 5. These radical scavenging activities were explained as IC₅₀ Value, which is the required sample concentration for 50% inhibition of radicals (Jayathilake et al., 2016; Li et al., 2009; Pengkumsri et al., 2015). The DPPH radical-scavenging activity of gel A was higher (IC₅₀Value = 1.156 mg/ml) than gel B (IC₅₀ Value = 1.916 mg/ml) and similarly the ABTS⁺ scavenging activity of gel A was significantly higher (IC₅₀ Value = 0.051mg/ml) compared to gel B (IC₅₀ Value = 0.059mg/ml) because gel A contained higher amounts of unsaponifiable matter (γ-oryzanol, tocopherols, sterols, squalene and fatty alcohol) which is isolated from the rice bran fatty acid distillate. Antioxidant activity and storage stability declined slightly during storage even though more antioxidants like tocopherols, oryzanol, squalene and phytosterol were present in gel A, which prevents the lipid oxidation of oleogels.

4. CONCLUSIONSTOP

The present work clearly demonstrates that the unsaponifiable matters of rice bran oil fatty acid distillate (UMRBOFAD) can be gainfully utilized as an antioxidant-rich mixed gelator for making antioxidant enriched oleogel from refined rice bran oil, rice bran wax or ethyl cellulose as bulk organic phase. The oleogel products have the desired composition, morphological structure, thermal properties, viscosity, X-Ray diffraction properties, antioxidant activities and storage stabilities. Antioxidant-rich oleogels have antioxidant activity, shelf-life and cholesterol lowering capacity. They are more stable products and have better shelf-life during storage due to the antioxidant contents derived from the unsaponifiable matter from the rice bran oil fatty acid distillate. The antioxidant-rich oleogel is very important for a PUFA-rich margarine product and also for preparing healthy margarine for reducing blood cholesterol due to the presence of oryzanol, tocopherols, squalene and phytosterols.
