Determination of functional compounds in blue shark (Prionace glauca) liver oil obtained by green technology

D.N. Santos^a, F.S. Silva^a, A.B. Verde^a, G.M. Bittencourt^a and A.L. de Oliveira^{a, *}

^aLaboratório de Tecnologia de Alta Pressão e Produtos Naturais (LTAPPN), Department of Food Engineering, Faculty of Animal Science and Food Engineering, University of São Paulo (FZEA/ USP). Av. Duque de Caxias Norte, 225, Jardim Elite, Caixa Postal 23, CEP 13635-900, Pirassununga, SP, Brasil.

*Corresponding author: alelopes@usp.br

1. INTRODUCTIONTOP

The blue shark belongs to the Chondrichthyes class, Elasmobranchii subclass, and Carcharhinidae family of approximately 465 species with varied characteristics. There are considerable differences between sharks and other fish, such as in their cartilaginous skeleton and maintenance of osmotic equilibrium in the presence of urea and trimethylamine oxide in their blood and tissues (Tenuta-Filho and Macedo, 2015; Pacheco and Barrera-Arellano, 1994; Vögler et al., 2012). Their liver oil contains between 10 to 20% squalene, as well as large concentrations of triacylglycerols and vitamin A (Bartfai et al., 2000).

The blue shark (Prionace glauca) can be found in tropical and temperate waters around the world and is probably the most abundant of all sharks. Its distribution in the Atlantic Ocean spans from North America to Argentina in the west, and from Norway to South Africa in the east (Bornatowski and Schwingel, 2008; Tavares et al., 2012). It is mainly caught through secondary fishing by long lines and gill nets in fisheries aiming for tuna and swordfish (Vázquez et al., 2016).

Fishing of this species is expanding, and it was one of the most commonly-fished species in Europe in 2013, totaling more than 8,600 tons marketed as fresh and frozen fish, which are commonly processed as loins, filets, or steaks (Alves et al., 2016; Vázquez et al., 2016). In many countries, blue shark meat is consumed fresh, smoked, or salted; the skin is used for leather products; the fins are used for shark fin soup; and liver oil and fish flour are also produced (Abreu et al., 2011).

Blue shark liver oil is considered useful in the treatment of diseases resulting from impaired immune response and in the adjuvant treatment of several cancer types. In addition, the consumption of liver oil normalizes the activity of defense cells, improves neutrophil response to bacteria, and increases the total antioxidant capacity of the serum, among other effects. (Anschau and Iagher, 2011; Gironi and Maschietti, 2006; Hajimoradi et al., 2009). These and other applications are related to the oil’s composition, which is largely formed by polyunsaturated fatty acids and molecules such as squalene, alkylglycerols, and fat-soluble vitamins.

The polyunsaturated fatty acids omegas 3 and 6 also presented significant values for the majority of blue shark oils. Even so, the levels of DHA (docosahexaenoic acid) are remarkably high for all oils. Together with EPA (eicosapentaenoic acid), DHA are well known for preventing atherosclerosis, reducing blood pressure, and reducing triglyceride levels (García et al., 2006). Shapiro (2013) also mentions effects such as attenuation of different types of pain, reduction in post-myocardial infarction mortality, and inhibition of pro-inflammatory molecules, among others.

The isolation of functional components from diverse matrices is conventionally accomplished using various separation techniques, such as dual maceration, digestion, and percolation. For example, the commercial production of fish oil includes the mechanical pressing of tissues, followed by conventional extraction with an organic solvent (Lisichkov et al., 2014). Although widely applied, conventional extraction methods present problems, due to the toxicity or flammability of the solvents and the possibility of causing adverse health effects. They may also lead to the decomposition of thermolabile compounds like polyunsaturated fatty acids when high temperatures are employed during processing (Gedi et al., 2015; Ivanovs and Blumberga, 2017).

The supercritical fluid extraction (SFE) method is a promising green technology that offers several advantages over conventional methods, such as high compressibility, liquid-like density, low viscosity, and high diffusivity (Kang et al., 2017). Moreover, extraction with supercritical carbon dioxide offers new opportunities for solving separation problems, as it presents low toxicity. In addition, it is considered a non-flammable solvent, cheap, clean, and the solvation capacity of the CO₂ in the supercritical phase can be controlled through the manipulation of pressure and/or temperature, providing adequate selectivity and preventing the co-extraction of polar impurities, such as some inorganic derivatives with heavy metals (Ahmed et al., 2017; Haq et al., 2017).

The objectives of this research were to obtain and characterize blue shark liver oils obtained by supercritical technology with respect to their physical and chemical parameters, as well as the presence of compounds of interest for the food and pharmaceutical industries.

2. MATERIALS AND METHODSTOP

2.1. Extraction and characterization of blue shark liver oilTOP

Blue sharks were fished by the company Oceanus Comércio e Transporte LTDA, located at the Recife Port (PE), Brazil. Animals over 1 m in length were collected by the fishermen using the long-line method during the 15 days of the vessel’s stay at sea, in the Exclusive Economic Zone (EEZ) of Brazil, and were kept refrigerated during the fishing period. The livers were collected when the boats docked at the port and were quickly packed in an ice box, where they were kept until transportation to the laboratory. This project was appropriately registered at IBAMA (39707-1 for SISBIO).

In the laboratory, the bile vesicles were separated from the livers, which were frozen, filleted, and dried in a lyophilizer (Liotop LP1040, Liobrás, São Carlos, SP, Brazil) for 24 hours. After drying, the livers were vacuum packed in a laminated package (two pieces of liver in each) in order to eliminate oxygen and avoid contact with light, thus preserving samples for as long as possible without drastic alterations in composition.

An aliquot of the samples was used to analyze the centesimal composition, according to the norms determined by the Adolfo Lutz Institute (Zenebon et al., 2008). Moisture (method 012/IV), ash (method 018/IV), lipid (method 032/IV), fiber (method 044/IV), and protein (method 036/IV) contents were determined in triplicate, and, subsequently, the carbohydrate assays were calculated using the differences.

The commercial shark liver oil (CSLO) (Ecomer^® São Paulo, SP, Brazil) was purchased and used as a control in this research. It was kept packed in capsules of pharmaceutical gelatin, glycerin, and water in a closed container until the moment of the tests.

2.2. Supercritical extraction of the blue shark liver oilTOP

At the time of extraction, the lyophilized livers were cut into small pieces (approximately 1 cm³) and packed (15 g) into a fixed bed of 300 cm³, also filled with glass beads. The properly fitted fixed bed was set in the extractor at the time of extraction. The supercritical extractor (Thar SFC, Pittsburgh, United States) provided fine control for pressure, temperature, and CO₂ flow using equipment software (Thar Technologies Inc., SuperChrom SFC Suite v. 5.9, Pittsburgh, Pennsylvania, United States).

The extraction begain with the cooling (Thermo Scientific, Walthan, Massachusetts, USA) and compression (Thar P54, Pittsburgh, USA) of CO₂ (99.5%, Oxinitro, Pirassununga, Brazil) of the fixed bed. Inside the jacketed extractor, the system reached working pressure and temperature and the CO₂ flow was maintained as defined. The extractions were carried out for 6 h using a constant flow of 8 g CO₂/min. For this work, a statistical strategy was used with 3 replicates and a 5 × 2 factorial design, covering 5 pressures and 2 temperatures, totaling 30 trials (Table 2). The choice of pressures and temperatures was made based on a study on cobia liver published by this research group (Santos et al., 2016).

The oil yields obtained under the different operating conditions were calculated in two ways. First, the mass balance was calculated by the mass ratio, being the ratio between the initial mass of liver packed in the fixed bed and the final mass after extraction, called overall yield (OY) (eq. (1)). Second, the extraction yield (EY) was obtained from the ratio between the oil mass collected in the flask at the end of the extraction and the initial mass of liver packed inside the extractor (eq. (2)).

TOP

where:

LM_i – initial liver mass;

LM_f – final liver mass (at the end of extraction)

where:

M_oil – oil mass extracted;

LM_i – initial liver mass.

The morphology of the blue shark liver samples as well as the possible changes occurring after contact with CO₂ under supercritical conditions were visualized with scanning electron microscopy (SEM). The samples were separated before and after extraction and fixed with double-sided carbon tape on an aluminum support. Subsequently, SEM micrographs with 5kV acceleration voltage were generated (Hitachi, TM 3000, Tokyo, Japan), using varying magnifications.

2.3. Oil characterizationTOP

2.3.1. Physicochemical analysesTOP

The refractive index (RI) of the oil samples was measured in a refractometer (LAMBDA 2WAJ, ATTO Instruments Co, Tsuen Wan, Hong Kong) as a function of sodium light at 589.3 nm wavelength and at the temperatures of 25 °C and 40 °C. The calibration of the refractometer was performed with distilled water, whose refractive index is 1.3330 at 20 °C (Zenebon et al., 2008). The oil density analysis was performed in a digital benchtop densimeter (DMA 4500, Anton Paar, Graz, Austria). The oil was injected with a syringe directly into the apparatus, and the density readings were performed at 25 and 40 °C in triplicate after the stabilization of each temperature.

The determination of the oil samples’ viscosity, also performed at the same temperatures as the density analysis, was made using the AMVn Automated Microviscometer (Anton Paar, Graz, Austria). The samples were placed in a 1.8 mm calibrated glass capillary tube. The capillary tube was coupled to the apparatus, and the readings were performed in quadruplicate at each temperature under three different angles of displacement (50, 60, and 70 °C), totaling 12 measurements per sample.

To determine the acid value (as oleic acid) (AI), a titration method was used based on the previous solubilization of the sample with ethyl ether (Ecibra, São Paulo, SP, Brazil): alcohol (Panreac Química S.A.U., Barcelona, Spain) 2:1 and then titration with a standard solution of 0.01 M sodium hydroxide (Haloquímica, São Paulo, SP, Brazil) with phenolphthalein (Synth, Diadema, SP, Brazil) to determine the turning point (method 325/IV of Zenebon et al., 2008). For the determination of the peroxide value (PI), the titration method was used, where the samples were mixed with acetic acid (Synth São Paulo, Brazil), chloroform (Êxodo, São Paulo, Brazil), potassium iodide (Synth, São Paulo, Brazil), distilled and titrated water with a standard solution of sodium thiosulphate (Haloquímica, São Paulo, Brasil), and starch (Haloquímica, São Paulo, Brasil) as indicator (method 326/IV of Zenebon et al., 2008).

For the determination of the iodine value (IO), the oil samples were mixed with cyclohexane (Synth, São Paulo, Brazil) and a Wijs solution (Haloquímica, São Paulo, Brazil), potassium iodide, and distilled water. Titration was performed with a standard solution of sodium thiosulfate with a starch solution as indicator (method 329/IV of Zenebon et al., 2008). The saponification value (SV) was determined by mixing the sample with a potassium hydroxide solution (Êxodo, São Paulo, Brazil) and phenolphthalein and, then, titration with hydrochloric acid (Haloquímica, São Paulo, Brazil, method 328/IV of Zenebon et al., 2008).

2.3.2. Quantification of fatty acids TOP

The fatty acid profile was performed according to AOAC 2005 (Method 991.39) with modifications. 50 mg of sample were mixed with a 0.5 M methanolic NaOH solution (Synth, Diadema, S, Brazil) and heated in a water bath at 100 °C for 5 min. Methanolic BF3 (Sigma-Aldrich, Saint Louis, MO, USA) was added, and the mixture was heated again for 30 min. Then, 10 mL of saline solution and 1mL of hexane (Merck, Darmstadt, Germany) were added, and the mixture was stirred. The supernatent containing fatty acid methyl esters was collected and dried. The samples were diluted in hexane for injection into the chromatograph.

Injection (1 μL) analysis of the fatty acids was done using gas chromatography coupled with a mass spectrometer (QP 2010 Plus, Shimadzu, Tokyo, Japan) using an automatic injector (AOC-5000, Shimadzu, Tokyo, Japan). A capillary column with bis-cyanopropyl polysiloxane stationary phase (100 m × 0.25 mm id × 0.20 μm df, SP-2560 Supelco, Bellefonte, USA) and Helium gas at 19.5 cm/s were used. The temperature of the injector was 250 °C and the detector temperature was 260 °C. The temperature of the oven was set so as to obtain a gradient, starting at 100 °C for 1 min, at 100 °C to 195 °C at a rate of 5 °C/min and then 195 °C to 250 °C. The prior identification of the peaks was done by comparing the mass spectra of the NIST and NIST 08 libraries; and the quantification was done by external normalization, relating the area of the peaks to the standard curve of methyl meristat (Sigma-Aldrich, Sant Louis, USA). These conditions were based on AOAC methodology (method 996.05, 2005).

2.3.3. Quantification of squalene and vitamin A TOP

The quantification of squalene was performed following the methodology of the study by Lu et al., (2003), where 0.5 g of oil was mixed with 40 ml of a methanol-acetone solution (7:3, v/v). After homogenization (IKA, VG 3 S000, Washington, USA) the mixture was stored at −2 °C for 30h, and the supernatant was filtered with a 0.45 mm membrane (Whaltman, Kent, UK). The residue was washed once with 5 mL of a cooled methanol-acetone solution (7:3, v/v) at -20 °C. The filtrate was dried and re-suspended in 5 mL of acetone prior to the injection.

The conditions of the chromatographic analysis were based on the research by Brunner et al., (2009) with minimal modifications. A 5% diphenyl/95% dimethylpolysiloxane RTX-5MS column (30 m × 0.25 mm i.d. × 0.20 μm d.f.; Restek, Bellefonte, USA) and helium gas at 19.5 cm / sec were used as the stationary phase. 1.0 μL of the filtrate was injected in the splitless mode, and the temperatures of the injector, detector, and interface were 280, 300, and 300 °C, respectively. The heating gradient started at 130 °C for 2 min, 130 °C to 200 °C at a rate of 10 °C/min, 200 °C to 290 °C at 5 °C/min and held at 290 °C for 15 min. Peak identification was done via comparison of the mass spectra with the software database and also by comparing the retention time of the analyte with the standard, which was analyzed under the same conditions. Quantification was done using external normalization with concentrations of squalene (Santa Cruz, Dallas, United States).

The determination of vitamin A was performed according to the European Pharmacopoeia methodology (2004) with some modifications. 3mL of potassium hydroxide solution (50% in distilled water) and 30mL of ethanol were added to 1.0 g of oil. The mixture remained heated for 30 min and was then cooled. After being transferred to the decantation flask, 30 mL of distilled water were added. Afterwards, the system was washed three times with 50 mL of ethyl ether. The supernatent was washed four times with 50 mL of distilled water. The fraction of ethyl ether containing vitamin A (all-trans-retinol) was dried in nitrogen, and the dry fraction was re-suspended in isopropanol (Synth, São Paulo, Brazil) at a concentration of 500 ppm. The solution was submitted to a spectrophotometer reading (FEMTO, Cirrus 80ST, São Paulo, Brazil) at 325 nm. A retinol equivalent (RE), eq. (3) was used for the calculation of vitamin A content.

Vit. A (RE p/ gram) = (A_325× 1830/100m ×V) × 0.30 (3)

where:

A325 = absorbance at 325 nm;

M = sample mass (grams);

V = total volume of the solution containing 10–15 U.I. of vitamin A per mL;

1830 = conversion factor for the all-trans-retinol specific absorbance (U.I).

The results of this work are expressed as mean ± standard deviation. The averages of the results were statistically evaluated by one-way and two-way ANOVA using a Tukey post-hoc test, at a 95% significance level to detect significant differences in responses among the different treatments. Pearson’s correlation analyses (p < 0.05) were performed among the levels of squalene and CO₂ densities for each supercritical extraction.

3. RESULTS AND DISCUSSIONTOP

3.1. Characterization of blue shark liver and extraction yield of oilsTOP

The centesimal composition of the blue shark liver (Table 1) highlights the large amount of lipids, reaching almost 80% on a dry basis. This high percentage can be attributed to the low humidity (only 2%), due to the efficient lyophilization of the sample. After lipids, proteins make up a major part of the composition.

The protein matrix of high biological value, such as the shark liver protein, after being subjected to oil extraction using supercritical CO₂, can be employed as a source of protein in different processes. Among these, the enzymatic hydrolysis of these proteins for the recovery of compounds with biological activity can be noted. Enzymatic hydrolysis is considered to be a convenient method for the production of compounds that can be used in the pharmaceutical and nutraceutical fields, where various hydrolyzates of fish proteins have shown potential antioxidant, antihypertensive, antithrombotic, and antimicrobial effects (García-Moreno et al., 2014).

The results of the blue shark liver oil extractions were calculated using two equations (eq. (1) and eq. (2)). The difference between the results treated by the overall yield and the extraction yield (Table 2) results from the fraction of oil lost in the equipment line which is collected during the de-pressurizing of the system. For some conditions, it was verified that a certain amount of oil also adhered to the glass beads that filled the fixed bed. Consequently, under these conditions of lower pressures (100 and 150 bar), the extraction yield was low, as in tests 1 and 2, for example, indicating lower solubilization of the oil by supercritical CO₂. As expected, the OY was higher than the EY for all assays (Table 2).

At lower pressures, lower solubilization was observed because SFE extraction combines two different steps: firstly the compression of the raw material, which results in the oil coming out of the cellular structure, followed by the solubilization of the oil in the supercritical CO₂, which allows the extract to flow out of the extraction vessel. Indeed, at low pressures, the second step does not take place (due to low oil solubility) and the oil is not dissolved in the supercritical CO₂ and does not flow out of the extraction vessel. To overcome with this obstacle, the glass beads could have been washed with solvent and after removing the solvent the amount of oil could be quantified. But the use of organic solvents was not the aim of this work.

For the different P and T conditions applied, yield values ranged from 0 to 60.02% (Table 2). The means test showed that the yields obtained for different T at the same pressure were statistically equal. When operating pressures were increased, yields also increased. High pressures contribute to a higher density of CO₂, which gives it a higher solvency power. Therefore, the solute vapor pressure had a lower solubilization influence than the solvent density for the two T values studied. Moreover, the distance between the molecules decreased and the interaction between the oil and CO₂ intensified with increasing density, leading to greater solubility of the oil in the supercritical solvent (Sahena et al., 2010). Assuming that the maximum oil contained in this starting material was 80% (Table 1), SFE yielded 60% yield at its best condition during 6 hours of extraction, which implies the extraction of 75% of the oil.

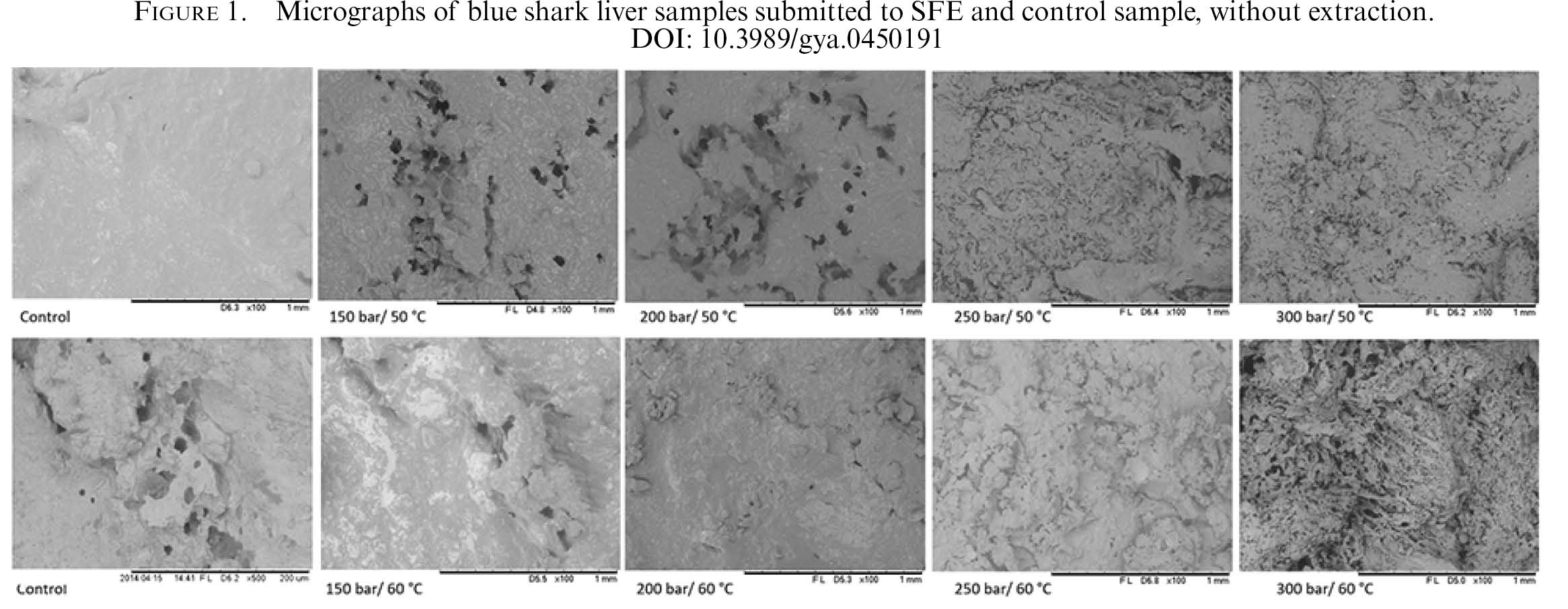

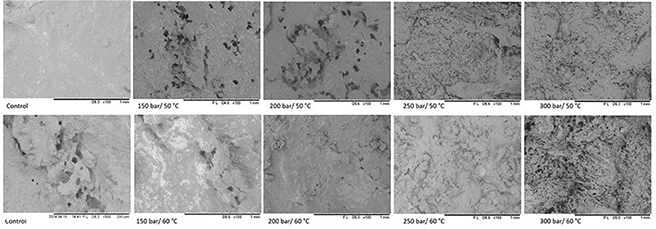

The blue shark liver structure was also analyzed before and after supercritical extraction. All blue shark liver samples submitted to SFE presented structural modifications (Fig 1). Although there was no correlation between the increase in pressure applied during extraction and the degree of tissue rupture, these factors can be correlated through this physical analysis. In other words, as the fluid applied in the extraction became moredense, greater modifications were observed in the matrix. In the study by Taher et al., (2014), it was found that the lyophilization process made the matrix (a cellular microalgae biomass) more porous and that this structural change increased the dissolution of the lipids in the supercritical fluid, contributing to a higher extraction yield. Thus, although no lyophilized or non-lyophilized matrix comparisons were made in this work, it can be inferred from the literature and applied to the blue shark liver oil extraction process. A high extraction yield and the formation of pores in the raw material (Fig. 1) were also verified after the lyophilization process was used.

3.2. Characterization of blue shark oilTOP

The physicochemical characterization of OFCA samples is presented in Tables 3 and 4. The results for the different oils analyzed are statistically close to each other, except for the refractive index values at 25 °C. Most of the parameters were similar to those found in the commercial shark liver oil sample. The only exception was viscosity, which was higher for the refined oil.

Even so, supercritical extraction without further purification steps generated oils with physicochemical patterns similar to industrially processed oils. This makes this process of obtaining oils advantageous, since subsequent purification steps, as indicated in the interpretation of these data, may not be necessary.

As expected, density (ρ) and dynamic viscosity (η) values decreased in relation to the increase in temperature (Table 3). The decrease in density with temperature occured due to the higher kinetic energy of the molecules at higher temperatures, and consequently, an increase in the volume of the substance resulted in a decrease in density (Schaschke et al., 2013).

Viscosity is a property resulting from the attraction forces between molecules that are relatively close to each other. Thus, when the kinetic energy increases (due to the increase in temperature), the molecules tend to remain together for less time, making the intermolecular forces less effective and decreasing viscosity (Canciam, 2010). In addition to temperature, other factors affect the viscosity of oils, such as the molecular weight of the components present, the melting point, and degree of unsaturation of the lipids present in the sample (Igwe, 2004).

The density values at 25 °C found for the OFCA were within the range determined by Firestone (2006) for shark liver oil, ranging from 0.917 to 0.923 g·mL⁻¹. They were also within the range imposed by the Brazilian legislation which regulates the standards of identity and quality ratio for shark liver oil as a nutritional complement (BRASIL, 1995), which indicates a range from 0.908 to 0.927 g·mL⁻¹ for this oil at 25 °C.

Many shark liver oils contain several classes of low density lipids, notably squalene and diacylglycerol ethers (DAGE) (Magnusson and Haraldsson, 2011). Squalene (density 0.86 g·mL⁻¹) and DAGE (density 0.89 g·mL⁻¹) provide substantially more buoyancy capacity to the animal in the water per unit volume of triacylglycerol (TAG) (density 0.92 g·mL⁻¹), which is the most common form of lipid storage in most animals (Wetherbee and Nichols, 2000). Thus, if the presence of these substances is linked to the decrease in oil density, this physical analysis of the oil obtained by supercritical fluid can give an indication of the presence of these compounds. This property may also indicate physicochemical adulterations, derived from the mixture of vegetable oils with oils of animal origin, for example, and, thus, constitutes an important characterization property of the sample.

The experimental values for the refractive index of the blue shark livers were similar to the values found in the study by Batista and Nunes (1992), using liver specimens from a Knifetooth dogfish (cação dente de faca) (1.472), velvet belly (1.475) and Portuguese dogfish (cação português) (1.472). The refractive indexes measured for blue-liver liver oil showed an average value of 1.4723, similar to that found by Firestone (2006) for readings at 40 °C. Anvisa (BRASIL, 1995) established a refractive index at 40 °C ranging from 1.4704 to 1.4745, which covered the measured values of the OFCA obtained via SFE.

Regarding acidity, saponification, and peroxide values, these generally indicate the qualitative state of the oil (Table 4). The acid value measures the amount of free fatty acids present in the sample. Although these are included among compounds naturally present in small amounts in oils because they may be the products of the hydrolytic degradation of triacylglycerols, their value is considered an important quality index for oils (Cho et al., 2013).

Blue shark liver oils obtained via SFE showed acidic levels (as oleic acid) between 1.1 and 2.2%. Since the Brazilian legislation limits the acidity value (AV) to 2.8% of oleic acid for shark liver oil (BRASIL, 1995), the different oils obtained through SFE are in accordance with the current legislation. Samples of shark oils obtained by other extraction methods (Bligh and Dyer, Soxhlet and baking) had acid values of 4.8, 6.3, and 4.2%, respectively (Sunarya et al., 1996), which are superior to the blue shark liver oils obtained in this research. This is another indication that the use of “clean” technology, such as SFE, is advantageous in obtaining oils with higher quality indexes, given that it does not use organic solvents or elevated temperatures in the extraction process.

The saponification value (SV) is defined as the amount of alkali required to saponify the fatty acids in a given mass of oil (Boran et al., 2006). Firestone (2006) and Anvisa (BRASIL, 1995) recommend values ranging from 170 and 190 mg KOH/g of oil as acceptable saponification values for liver oil samples. In this case, in addition to the oil obtained in condition 6, the oil from condition 9 (300 bar and 50 °C) also presented this parameter above the allowed limit (Table 4).

Lipid oxidation is the main cause of deterioration, and the hydroperoxides formed by the reaction between oxygen and unsaturated fatty acids are the primary products of this reaction. Hydroperoxides are tasteless and odorless, but they rapidly react and form aldehydes, which have a strong and unpleasant taste and odor (O’Brien, 2004). Thus, as peroxides are unstable, their measurement is limited to the initial phases of lipid oxidation because the reactions continue to occur until the termination phase, which is the third stage of the oxidative process (Ferrari, 1998).

The peroxide content (PC) in blue shark liver oil ranged from 10 to 24 meq O₂ active/kg of oil. As it is a quality parameter involved in the lipid oxidation process, the acceptable limits are stringent. The European Food Safety Authority stipulates an interval of 3 to 20 meq O₂ active/kg of crude oil, without refining (EFSA, 2010). Using this range as the basis, once again only the oil obtained in condition 6 would be considered non-standard. The Codex Alimentarius is more rigorous, adopting a maximum value of up to 5 meq O₂ active/kg of oil (FAO, 2013). Considering this limit, all oils would be in disagreement.

The iodine value (IV) of the blue shark oils presented some significant differences. However, all these are considered low. In the study by Sunarya et al., (1996), the iodine value found for fish oil was 118 to 133 g I₂/100g of oil.

The physicochemical stability attributed to the oils obtained by SFE when considering lipid degradation can be explained by the method itself. In the extraction process, the starting material must be dry, or in other words, it must have a low moisture content. The removal of water, considered a simple preparation stage for extraction, decreases the speed of the reactions that take place inside the matrix, including those related to oxidative processes (Gava, 2009).

Supercritical fluid extraction (SFE) has increasingly become an interesting technology for obtaining high quality fish oil from by-products. This approach employs moderate temperatures and provides an oxygen-free medium, which aims to reduce the oxidation of essential fatty acids during the extraction process. Additionally, it allows for the extraction of compounds selectively, such as low polarity lipids, while avoiding the co-extraction of polar impurities, such as heavy metals (Rubio-Rodriguez et al., 2012). The association of supercritical extraction with enzymatic and membrane separation processes is considered a suitable technology for the refining of fish oil, and many studies are pursuing the simplification of this method, which is limited by high costs (EFSA, 2010).

The fatty acid profile of the blue shark liver oil samples shows the diversity of the fatty acid methyl esters present. There were great differences among the fatty acid contents when different supercritical extraction conditions were used (Table 5). The mean values showed that the main fatty acids present in the samples were palmitic acid (C16:0) and oleic acid (C18:1). For blue shark samples collected in Southeastern Brazil, Pacheco and Barrera-Arellano (1994) also found C18:1 and C16:0 among the main fatty acids observed in their study. Additionally, they found C22:6 (docosahexaenoic acid), which was also present in the blue shark oils in the present study.

The fatty acid profile of commercial shark liver oil, which served as reference for this study, showed lower amounts of most fatty acids when compared to oils obtained via SFE. Several factors may explain these reduced values, such as the refining process that the oil undergoes, which ultimately extends the shelf life of the oil, but decreases the amount of fatty acids present. Fournier et al., (2007) reported that the deodorization stage of fish oil, which involves thermal treatment, constitutes the most critical phase of the refining process. Long-chain polyunsaturated fatty acids are labile molecules that can be lost through different chemical transformations during the heat treatment, and these losses involve reactions of cyclization, polymerization, and geometric isomerization.

In addition, the oil used as the control has a large amount of squalene (almost 1% of squalene, which will be discussed in section 3.3), as well as alkylglycerols or lipid ethers (manufacturer’s information), which have been widely researched for their beneficial effects, such as antineoplastic and immune system stimuli effects (Fernández et al., 2013). However, these are not quantified by the traditional method for the determination of fatty acids.

In the commercial shark liver oil (CSLO) sample, the major fatty acids were oleic and palmitic acids, as found in the work of Firestone (2006). Even at low rates for most of the fatty acids analyzed, large amounts of omega-9 MUFAs, such as 8-eicosenoic, gondolic, erucic, and nervonic acids, were observed.

For all the oils evaluated, the group of fatty acids with the highest values was the monounsaturated class, presenting values ranging from 15.74 to 45.45 g/100 g of oil. Considering the results presented by Corrêa et al., (2008), obtaining oils rich in unsaturated fatty acids was expected in the observed results. In their study on the fractionation of fish oil with CO₂SC, high separation factors were determined for short-chain fatty acids. These molecules tend to migrate to the lighter phase, rich in CO₂, and to compounds with double bonds, evidencing the affinity of CO₂ for unsaturation.

Unsaturated fatty acids are important components of cell membrane phospholipids with higher concentrations in the central nervous system. Physiologically, these fatty acids are essential for the healthy development of the brain and are of great importance for the maintenance of body homeostasis (Nemeth et al., 2014).

The levels of α-linolenic and γ-linolenic acids were very low in the analyzed oil samples (Table 5), corresponding to less than 0.5% of the total area of the peaks of all the oil chromatograms (values not shown). In the study on blue shark liver oils by Jayasinghe et al., (2012), the values found for these fatty acids were also very low. Moreover, similar levels were found for oils from sharks fished from the Atlantic and the Pacific oceans (Kang et al., 1998).

3.3. Quantification of squalene and vitamin ATOP

Blue shark liver oil contains squalene. The total ion chromatogram showed several peaks. The first set was identified as fatty acids (up to 20 min of running) and presented the peak for squalene at 32 min (Figure 2, Supplementary materials of this manuscript). Soon after squalene, the peak for cholesterol was observed, a molecule that shows structural similarity to squalene.

The extraction methodology for squalene was fractional crystallization, a method which brought the oil sample into contact with a defined proportion of methanol:acetone. According to Xu et al., (2005), fractional crystallization is known as the oldest separation method in the field of chemical engineering and is considered one of the best and cheapest methods available for the production of pure solids from impure solutions.

In the analysis of squalene, the triacylglycerols and other lipid-soluble and saponifiable components crystallized, which was not observed for squalene or other similar compounds that were solubilized in the solvent fraction and constituted the analytical fraction. As they are substances with very different retention times, they did not affect the analysis.

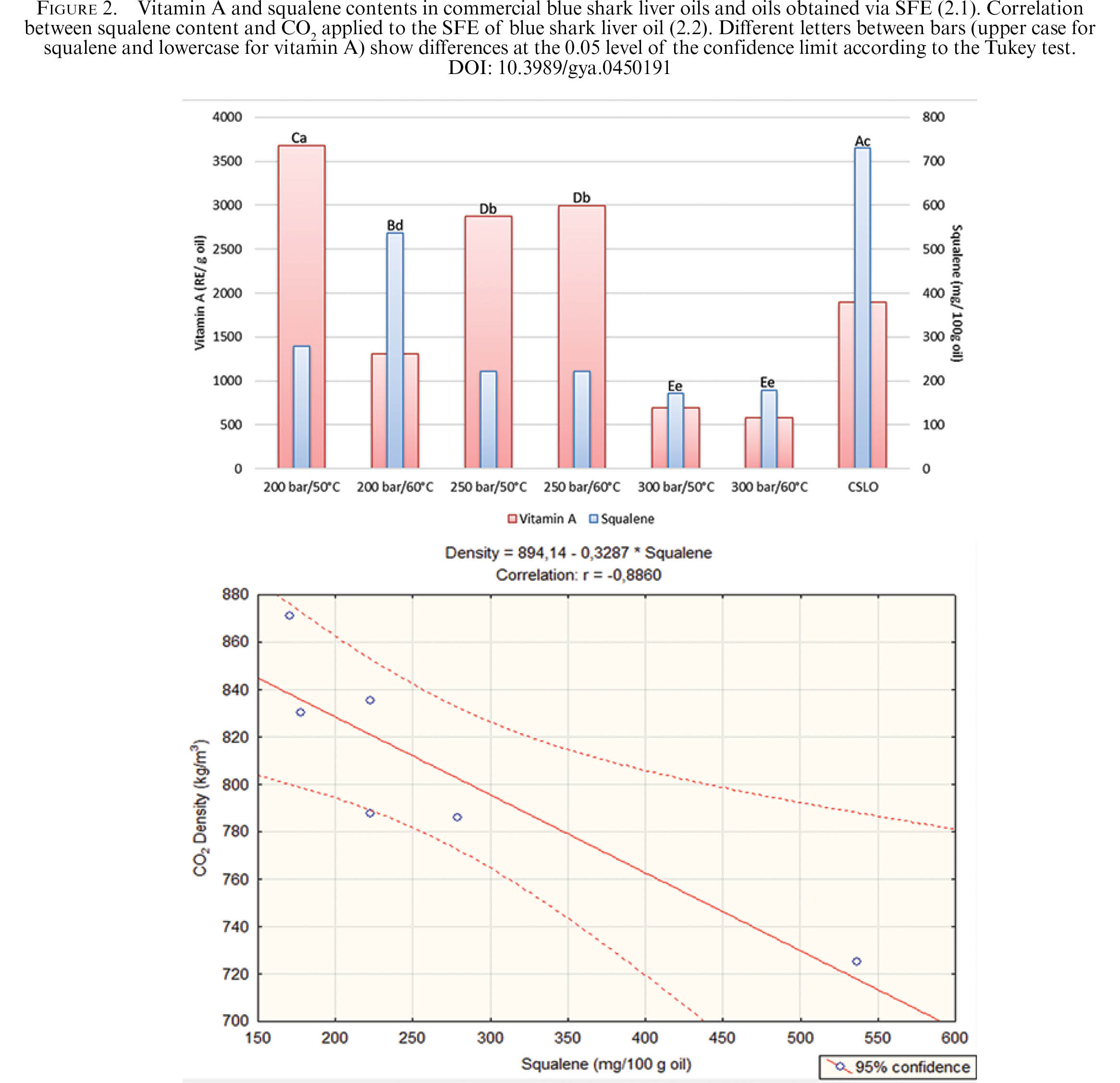

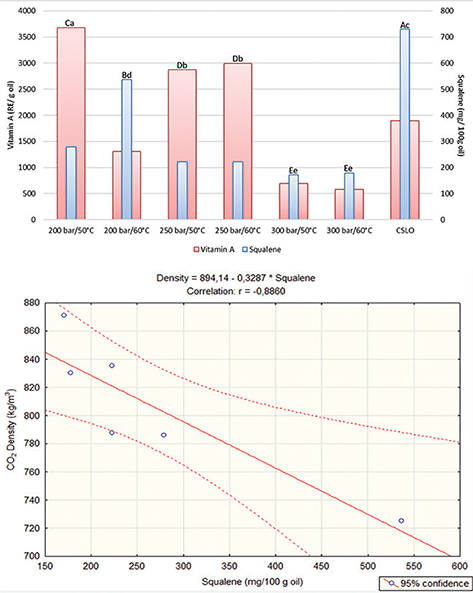

The levels of squalene varied significantly when different operating conditions were applied to the supercritical extraction of blue shark oil (Figure 2.1, results in blue bars). Commercial shark liver oil had the highest squalene content (730.91 mg/100 g of oil). Among the blue shark liver oils obtained with CO₂SC, the best results were observed when the ­lowest pressure conditions were applied, while the highest level was found at 200 bar/60 °C, with 536.99 mg/100 g of oil.

The squalene content and the CO₂ density applied to the extraction process resulted in a correlation coefficient of −0.88 (p < 0.05, Fig 2.2), which indicated that the highest levels of squalene were found when lower densities were applied to the supercritical oil extraction.

The opposite behavior was obtained in the research by Martinez-Correa et al., (2010), in which the solubility of pure squalene in CO₂SC was studied. It is worth mentioning that, while these authors studied the solubility of a pure compound, squalene was obtained from a complex sample with triacylglycerols, fat-soluble vitamins, and other components that competed for solubilization and, therefore, may have interfered in the way this single compound was solubilized by CO₂SC.

The major sources of squalene are the sharks of the family Squalidae, in which the presence of the compound is considerable, and the results expressed in academic papers are presented in percentage in relation to the total oil. For example, the research of Hernández-Pérez et al., (2002) used samples of sea shark livers, where values of up to 50.5% squalene were verified in the oil. In the study by Bakes and Nichols (1995), the presence of squalene in the oils of several sharks reached about 82% (for the Centrophorus scalpratus species). For research using the same species as in this study, Prionace glauca, squalene was not found in its oil (Ballantyne, 1997).

Currently, the majority of these species containing large amounts of squalene are threatened by extinction. Once again, this research proves relevant, as it presents data of a shark species whose populations are not threatened, and their meat has increasing market demand and size. The residues of its processing, which are known to have great nutritional value and beneficial bioactive components, are not used, meaning that a great source of fish oil is currently being wasted.

There is a great amount of variation in the levels of squalene present in shark liver oils. In some species or under certain conditions, squalene may not be present at all or may reach levels of up to 95% in the oil. Deep-sea sharks use the high contents of squalene in their livers for buoyancy purposes. The coefficient of thermal expansion of squalene allows for an easy adjustment of the shark’s weight to the actual water temperature associated with the depth at which the animal lives in the water (Pietsch and Jaeger, 2007).

Vitamin A analysis showed that different extraction conditions produced significantly different amounts of vitamin A, expressed as retinol equivalent (RE) and corresponding to 1 microgram of equivalent retinol per mL of sample (Fig 2.1, red bars). RE values among the various oils ranged from 578.98 to 3,682.01 RE/g of oil, which are considered to be very high. In commercial shark liver oil, the content found was 1,899.35 RE/g of oil. In this case, these results can be attributed to the refining process which the commercial oil is subjected to.

In the blue shark liver oil extracted by cooking methods, a value of 489 RE/g of oil was found, which was below the results of this research (Pacheco and Barrera-Arellano, 1994). The correlation between CO₂ density and amount of vitamin A in oils was not significant (95% confidence interval), indicating that other more relevant factors influenced the retinol yield.

The FAO stipulates that the minimum amount of vitamin A that fish oils must contain is 40 RE/mL of oil. Thus, it can be seen that even the OFCA obtained via SFE with the lowest values have large amounts of vitamin A. According to Resolution RDC No. 269/2005, which addresses the recommended daily intake (RDI) of protein, vitamins, and minerals of ANVISA, the RDI of vitamin A for adults is 600 RE (BRASIL, 2005). Thus, 1g of OFCA either supplies the daily demand (conditions 300 bar/50 °C and 300 bar/60 °C) or causes hypervitaminosis in the individual who consume it (other extraction conditions).

Solubility studies on vitamins in CO₂SC were carried out by Johannsen and Brunner (1997) with vitamins A, D, E, and K. In this work, the influence of temperature and density on the solubility of these components was verified, showing that the temperature solubility of all substances increased with increasing density. This behavior was not observed for vitamin A extraction from blue shark liver oil.

Turner, King and Mathiasson (2001) argued that sometimes the solubility of pure compounds cannot be integrally applied to complex samples, as is the case of blue shark liver oil. In food products, fat-soluble vitamins are found in the same system as triacylglycerols and sterols, which may, in some cases, function as CO₂-polarity modifiers and lead to different extraction conditions. Another important factor is that triacylglycerols are easily solubilized by CO₂SC and, therefore, compete with other components present in the matrix.

4. CONCLUSIONSTOP

The extraction and analysis of blue shark liver oil generated results of great importance in relation to the supercritical oil extraction yields (up to 60%), demonstrating that excellent results can be obtained even without the use of organic solvents or high temperatures. The results of the physicochemical analyses indicate that the oils obtained, although not refined, have characteristics of processed oils and still comply with Brazilian and international regulations governing the safe consumption of these products. Analysis of the active compounds showed that this matrix is rich in essential fatty acids, in addition to containing squalene (537 mg/100 of oil) and vitamin A (maximum of 3,682 retinol equivalent/g of oil).

In summary, this research shows that blue shark liver, to the best of our knowledge, is a by-product of great nutritional importance and has potential for the purification of several types of products.

ACKNOWLEDGMENTSTOP

The authors would like to thank FAPESP (State of São Paulo Research Foundation, Brazil) for financial support for the research (2012/06981­0) and for the scholarship of D. N. Santos (2012/00467-3) and A. B. Verde (2013/18347-7). The authors also thank the technician Eng. Nilson. J. Ferreira for assistance with the analyses. The authors thank Dr. Mariana Gomes do Rêgo for help during the collection of sharks.
