Cocoa olein glycerolysis with lipase Candida antarctica in a solvent free system

L.S. Zamorano^a,*, P. Calero Magaña^a, E. García Cisneros^a, A.V. Martínez^b and L.F. Martín^b

^aOleofat Trader S.L, Ciudad Agroalimentaria, Pol. Industrial La Serna, Calle C, nave 6.19, 31500 Tudela, Navarra. T +34 948 415 887.

^bAsociación de la Industria Navarra, Ctra. Pamplona 1, Edificio AIN. 31191 Cordovilla, Navarra. T +34 948 421 101, F +34 948 421 100.

*Corresponding author: lsanchez@oleofat.es

1. INTRODUCTIONTOP

Oleins are obtained as a by-product in the process of the fat splitting of soapstocks, but they have low market value because they are a mixture of free fatty acids and TAG. At least 50% of it is constituted by free fatty acids and 40% by TAG, with the remaining 10% being MAG, DAG, unsaponifiable lipids and, to a lesser extent, methyl and ethyl esters.

Oleins obtained from the fat-splitting of soapstocks have various uses, including the manufacture of animal feed (fat additive) as well as other multiple technical uses by employing olein as such or via some of their derivatives obtained by chemical transformation. The most widespread use is the manufacture of biodiesel (Ribeiro et al., 2011; Narvaez Rincón et al., 2004; Pereda Marín et al., 2003), for which the olein is subjected to a process of chemical esterification with methanol catalyzed by acids (Otadi et al., 2011) and subsequently to a process of chemical transesterification catalyzed by a strong base. As a result, free fatty acids (FFA), as well as MAG, DAG and TAG can be transformed into methyl esters (FAMEs).

MAG and DAG are biodegradable compounds classified as GRAS (Generally Recognized As Safe) by the FDA (Food Drug Administration). These molecules are used as anionic surfactants, emulsifiers and stabilizers (E471) (Camino Feltes et al., 2013) for the food industry (bakery products, dairy products, and other products that may contain milk or flour) as well as for the textile industry and the plastic and biolubricant industry (formulations of oils for use in different types of machinery). They have proven to be so versatile that MAG has even shown to have antimicrobial activity (Ramesh et al., 2017). Their production, using both chemical and enzymatic reactions, can reach 90% yields when carried out in organic solvents (hexane, toluene, chloroform, acetone, etc). The disadvantage of using this type of solvents is that, in addition to denaturing the enzymes, they are toxic, carcinogenic, flammable and not biodegradable. In addition, a further purification step for the final product is required to remove these chemicals.

The glycerolysis reaction from oleins produces oils which are rich in MAG and DAG. This process can be carried out chemically or enzymatically, with the industry favoring the chemical approach (Satriana et al., 2016). Such a process is carried out with a basic catalyst (NaOH, KOH or Ca(OH)2), at high temperatures (190-250 ºC), for 3-5 h with constant agitation. The final product resulting from the reaction under these conditions usually has the following composition: MAG 30-60%, DAG 35-50% and TAG 1-20%, with certain residual acidity. Thus, in order to achieve a concentration of over 80% MAG and DAG in the final product, a further process of molecular distillation is needed (Ramesh et al., 2017; Solaesa et al., 2016). Consequently, the current industrially implemented processes of chemical glycerolysis tend to entail costly energy demands and have additional drawbacks, such as raw material degradation and darkening of the desired product due to the use of very aggressive catalysts. When a minor degradation of raw material is required, the use of Ca(OH)₂ as a catalyst is preferred. However, although smaller, the use of this catalyst cannot prevent the degradation of a significant part of the unsaturated fatty acids (Solaesa et al., 2016; Tiankui et al., 2005), with the subsequent reduction in the potential health benefits of the oil.

Enzymatic glycerolysis has several advantages over chemical glycerolysis (Fregolente et al., 2008; Csanadi et al., 2009; Kapoor et al., 2012; Camino Feltes et al., 2012). The main ones are lower working temperatures (50-80 ºC) and a reaction pH close to neutrality (pH 5.0-6.0), both having a direct impact on the quality improvement of the obtained final products. Also, energetically speaking, the process is a less costly one that can be easily scaled up and implemented at industrial scale, generating fast economic benefits and returns. However, it also has disadvantages, with the main one being the high costs associated with the enzymatic catalyst. To give some estimation of costs, increasing the enzyme load from 0.5 to 1% doubles the process costs.

Nonetheless, enzymatic catalyst is a highly viable process leading to a final product with MAG concentrations similar to or even higher than those obtained by the chemical route with the added benefit of a less degraded product (Solaesa et al., 2016; Tiankui et al., 2005).

Lipases (E.C. 3.1.1.3) belong to the family of hydrolases, since they catalyze the hydrolysis of TAG at the lipid-water interface. In addition to their physiological roles, lipases catalyze the hydrolysis or enantio- and regio-selective synthesis of a wide variety of natural substrates, as well as carrying out esterification, interesterification and transesterification reactions in non-aqueous media. This versatility explains why this enzymatic group has a great biotechnological application in the oil industry (Fariha et al., 2005; Godfrey T, 2005; Rivera-Pérez et al., 2007), and in the production of drugs, agrochemicals, etc. The main lipases of industrial interest are produced by fungi (Candida cylidracae, Aspergillus niger, Candida rugosa, Candida antarctica, Mucor miehei, Staphylococcus aureus, Rhizopus arrhizus, etc.); whereas others are extracted from bacteria. Some are non-specific enzymes, while others act specifically on a very precise fragment of the TAG. There is also another group of lipases that can work at slightly higher temperatures (60-75 °C) namely, thermostable lipases. CALB is a non-specific enzyme capable of attacking the three positions (sn-1, 2 and 3) of the TAG molecule to produce glycerol and free fatty acids (Grazia et al., 2015). Regardless of the different features of this great family of enzymes, the great advantage of the use of lipases (for low temperature fat processing processes) lies in their ability to significantly reduce the formation of trans fats, which are formed in high amounts in homologous chemical processes (Rivera-Pérez et al., 2007).

For all the reasons mentioned above, the objective of this research is to develop an enzymatic technology in a solvent-free system (Noureddini et al., 1998; Valerio et al., 2010; Vazquez et al., 2016; Wiphum et al., 2005; Zhao et al., 2013; Ziobrowski et al., 2009), with yields close to 80% (joint content of MAG and DAG).

The reaction of any Gycerolysis can be seen in Eqs. 1-3.

Finally, it is also worth mentioning that since oleins contain a high concentration of FFA (free acids concentration can represent up to 50-70% of the olein), the typical reactions of glycerolysis (Eqs. 1 to 3) compete with the reaction between glycerol and FFA (direct esterification), resulting in the glycerolysis of oleins in a set of competing reactions (Eqs. 4 to 7). A secondary reaction of direct esterification (Eq. 5) reduces the concentration of MAG but unfortunately cannot be avoided, as they happen simultaneously. Both types of syntheses lead to a balance which shows a greater shift to the right as the temperature and reaction time increase (Chemical Glycerolysis).

Thus, when the raw material has a high acidity value, such as oleins, the composition in the final product of the glycerolysis reaction is higher in TAG (up to 15-25% of total) compared to products obtained from other sources.

In this research we have studied the enzymatic glycerolysis reaction of cocoa olein in a solvent-free medium. We will study the effect of the enzyme concentration (dose), glycerol concentration, reaction time and vacuum effect in the final composition of the product (FFA and MAG, DAG and TAG contents).

2. MATERIALS AND METHODSTOP

2.1. MaterialsTOP

The raw material used in the experiments was an olein from cocoa (Theobroma cocoa) soapstocks, obtained from OLEOFAT TRADER S.L. (Tudela – Navarra -Spain) by acid fat-splitting. Cocoa soapstocks were provided by Moner Cocoa S.A. (La Selva del Camp – Tarragona – Spain). The enzymes Lipozyme CALB and Eversa transform 2.0 were purchased from Novozymes (Bagsværd -Copenhagen). Glycerol (99.9%) was purchased from Labbox, NaOH, KOH and the solvents used for analysis (ethanol, n-hexane, diethyl ether, methanol and acetone) were from Scharlab. The HMDS+TMCS+Pyridine 3:1:9 (Sylon HTP) mix used to quantify MAG, DAG and TAG and the internal standards such as 1,2,4-butanetriol and tricaprin were purchased from Supelco (Sigma Chemical Co., St Louis, MO). The standards for the calibration curves in the GC analysis, 1-Monolarin, Diolein, Triolein and glycerol, were purchased from Larodan and the 30 mg/ml FAME mix (28 components) was purchased from Restek.

2.2 MethodsTOP

2.2.1. Enzymatic glycerolysisTOP

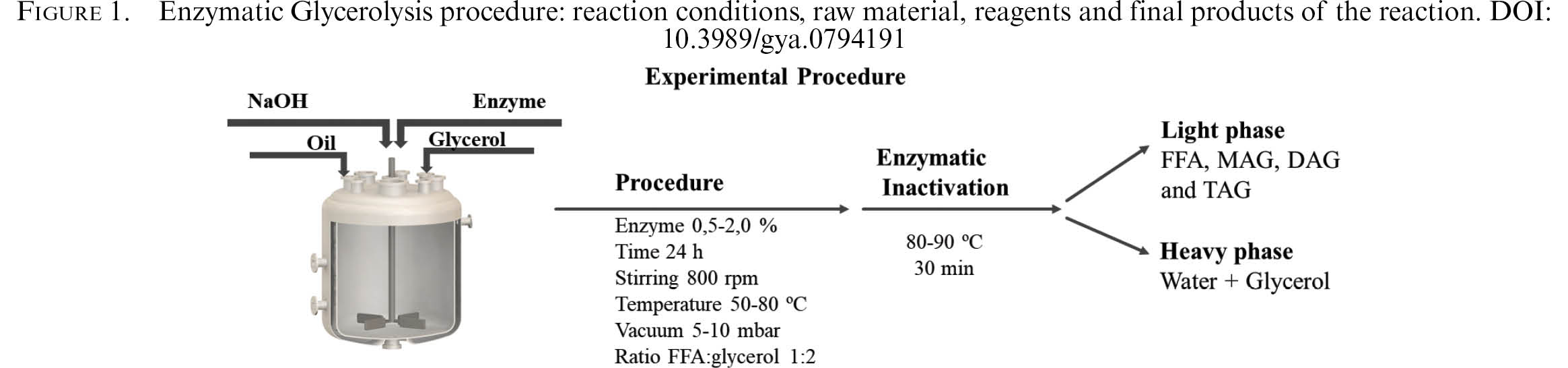

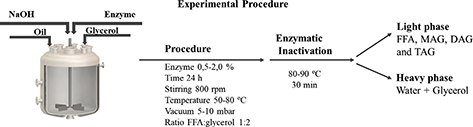

The enzymatic glycerolysis reaction was performed in a batch system (Figure 1; Table 1). Raw material (200 gr cocoa olein) was placed in the reactor and 0.8% NaOH (oil weight) was added in order to reach a pH of 5.5 (the olein had a pH of 3.88) (Table 2). After this glycerol was added up to a concentration of 7.0-46.0% (w/w), with molar ratios oil:glycerol between 1:0.5 and 1:2, depending on the composition of the desired final product.

Thus, when high doses of MAG are desired a higher dose of glycerol is needed (molar ratio oil:glycerol up to 1:1); whereas in a reaction intended for the production of TAG the molar ratio of oil:glycerol must be increased (working with a stoichiometric defect of glycerol). Finally, the enzyme Lipozyme CALB was added (0.5-3.5% of oil weight). CALB is a non-specific enzyme capable of attacking the three positions (sn-1, 2 and 3) of the TAG molecule to produce glycerol and free fatty acids.

The glycerolysis reaction was carried out at 65 ºC, for 24 h, at 800 rpm and with controlled vacuum (2-3 mbar) using a vacuum pump. The enzyme was thermally denatured at 85 ºC for 30 min, the final product was decanted after 1-2 h to separate the heavy phase, which contained the water and glycerol produced during the glycerolysis reaction. The acidity as well as the MAG, DAG and TAG profile were analyzed in the upper phase with acid base titration and a GC-FID-on-column system, respectively. In this work, all the reactions were performed in duplicate.

2.2.2. Enzymatic hydrolysisTOP

The enzymatic hydrolysis reaction was performed based on previous works in a batch system (Goswami et al., 2012). The conditions are shown in Table 1. Raw material (cocoa olein) was placed in the reactor (2000 g) then 0.8% NaOH (oil weight) was added to reach a pH of 5.5, since e olein has a pH of 3.88 (Table 2). Then water was added (50% v/v) followed by the enzyme Eversa transform 2.0 (1% of oil weight). Temperature and stirring were set at 55 ºC and 400 rpm for 24h for the hydrolysis reaction. The enzyme was thermally denatured at 85 ºC for 30 min, and the final product was decanted after 1-2 h to separate the heavy phase, which contained water and the glycerol produced during the hydrolysis reaction. Acidity was analyzed in the upper phase with acid base titration.

2.2.3. Chromatographic analyses: MAG, DAG and TAG profileTOP

The chromatographic analyses were carried out using an Agilent 6890N gas chromatograph, equipped with on-column injector and a flame ionization detector (FID). A DB-5HT capillary column (15 m x 0.32 mm i.d.) was used for the GC separation. 1 μl of sample was injected using hydrogen as carrier gas with linear velocity of 1 ml/min and flame ionization detector at 380 ºC. The column oven temperature program was 50 ºC (1 min), 15 ºC/min up to 180 ºC, 7 ºC/min up to 230 ºC, 30 ºC/min up to 380 ºC (held for 15 min); on-column injector with direct injection mode and temperature at 70 ºC (held for1 min), 20 ºC/min up to 380 ºC (held for 10.31 min). The standard mixtures and samples (100 μl to 10 mg/ml) were silylated with 100 μl MSTFA, and after 20 min, 8 ml n-heptane were added. The retention time of the first internal standard (1,2,3-butanetriol) was used to identify glycerin and the retention time of the second internal standard (tricaprin) was used to identify the mono-glycerides, diglycerides and triglycerides. Glycerin, monoolein, diolein and triolein were used to calculate the linear calibration curves.

2.2.4. Acid base titrationTOP

The acidity of the oil was determined using an acid-base titration according to ISO 660:2009 standard and using an automatic titrator (HI901 from Hanna Instruments). Oil (0.3-1.0 g) was dissolved in 100 ml of diethyl ether:ethanol 50:50 (v/v) and the sample was titrated with an ethanolic solution of KOH 0.1 N.

2.2.5. Melting pointTOP

The melting point of the oils was determined following the open capillary tube method, which was immersed in water under stirring and heating according to AOCS method Cc 3-25 (2004).

2.2.6. Determination of fatty acid compositionTOP

Fatty acid composition was analyzed by gas chromatography (GC) after methylation of the fatty acids to fatty acid methyl esters (FAMEs) using a chromatograph Varian 430 model equipped with a flame ionization detector (FID) and a Supelco SP2380 60 m x 0.25 mm x 0.2 μm capillary column. About 50 μl of oil were methylated by adding 150 μl of KOH 2N-methanol in a glass tube. The mixture was stirred for 30 seconds and 1 ml of hexane was added. The process conditions were: N₂ as a carrier gas with 0.9 ml/min flow, FID at 250 ºC, injector (1:100 split ratio) at 250 ºC and injection volume of 1 μl. The column temperature was programmed to 2 min at 60 ºC followed by an increase to 240 ºC at 8 ºC/min. The peaks of individual fatty acids were identified by comparing the retention times of known mixtures of fatty acid standards (FAME mix (28 components) injected in similar conditions. The results were expressed as percentages in relation to the total fatty acids.

2.2.7. Determination of unsaponifiable matterTOP

To determine the degree of unsaponifiable matter, a method of extraction with diethyl ether was used (ISO 3596:2002). Oil (5 g) was saponified with 50 ml of KOH 1M (65 ºC, 300-400 rpm, 1h) and subsequently washed with 100 ml of distilled water and 100 ml of diethyl ether. The organic phase was washed with distilled water (3 x 40 ml), KOH 0.5M (3 x 40 ml) and once again distilled water (3 x 40 ml), after which the diethyl ether was evaporated on a rotary evaporator at 50 ºC. The quantity of unsaponifiable matter was calculated by weight.

3. RESULTS AND DISCUSSIONTOP

3.1. Raw material: cocoa oleinTOP

Cocoa olein results from the acid fat-splitting with H2SO₄ of cocoa soapstocks. Likewise, cocoa soapstocks are obtained when cocoa oil is refined using a chemical neutralization with NaOH in order to reduce the acidity in the cocoa oil. Cocoa soapstocks are light brown, they smell like chocolate and they are solid at room temperature, with a pH over 12.0. The composition and free fatty acid profile of the cocoa olein were determined (Table 2).

3.2. Effect of the enzyme concentration in the glycerolysis reactionTOP

Enzymes require a minimum amount of water to maintain their structure and flexibility. Moreover, water content is necessary because these enzymes act at the oil-water interface. Since the raw material contained 1.1% of water (Table 2), which was considered sufficient for the reaction to run successfully based on the working specifications set for lipases (Table 1), further amounts of water were not added to the reaction mixtures.

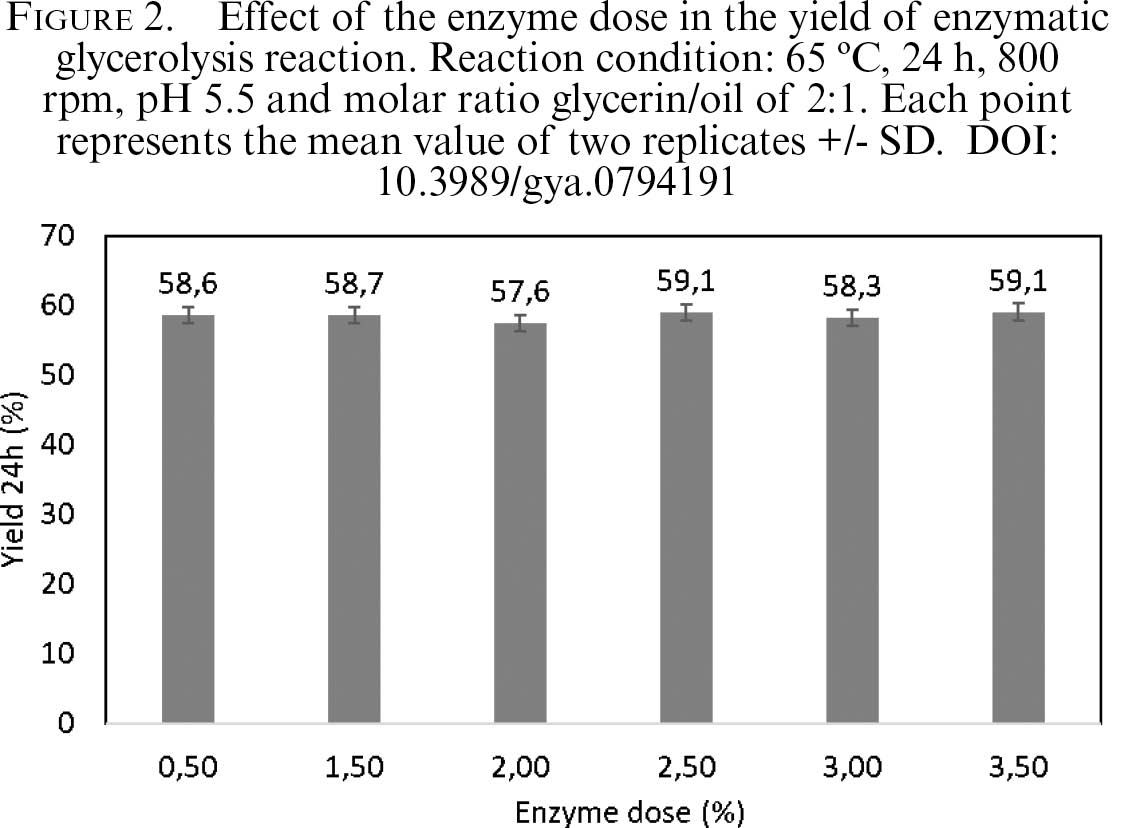

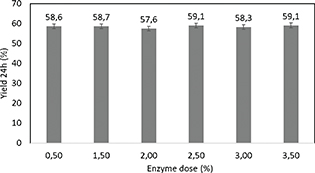

In this experiment, an average performance of 58.6% ± 0.6 was found for all experimental conditions with enzyme concentrations ranging from 0.5 to 3.5%, which suggested that the yield of the enzymatic glycerolysis did not seem to depend on the dose of the enzyme (Figure 2). Based on these results, in the following set of experiments the enzyme dose was kept between 0.5-1.0% so as to reduce the costs of industrial processing. The amount of water measured in the final products was 2.7% ± 0.3.

Even in the presence of small amounts of water in the glycerolysis reaction medium, unwanted hydrolysis reactions must be considered (Solaesa et al., 2016). Taking into account that enzymatic glycerolysis produces up to 3 equivalents of water (equations 4 to 7), working at low pressure would favor the formation of MAG, DAG and TAG as water would be removed from the reaction medium as vapor.

In good agreement with this, when the enzymatic glycerolysis reaction was carried out under vacuum (2-3 mbar, enzyme concentration between 0.5-1.0% (oil weight)), the efficiency of the reaction increased by up to > 90% (Table 3) showing the beneficial effect of vacuum in the glycerolysis reaction. As for the enzyme dosage, increasing from 0.5 to 1.0% improved the reaction yield a further 5% (from 90.3 to 95.1%) generating an oil with an acidity below 2.5%. Humidity was determined in the final reaction product at less than 0.1%.

3.3. Effect of glycerol in enzymatic glycerolysisTOP

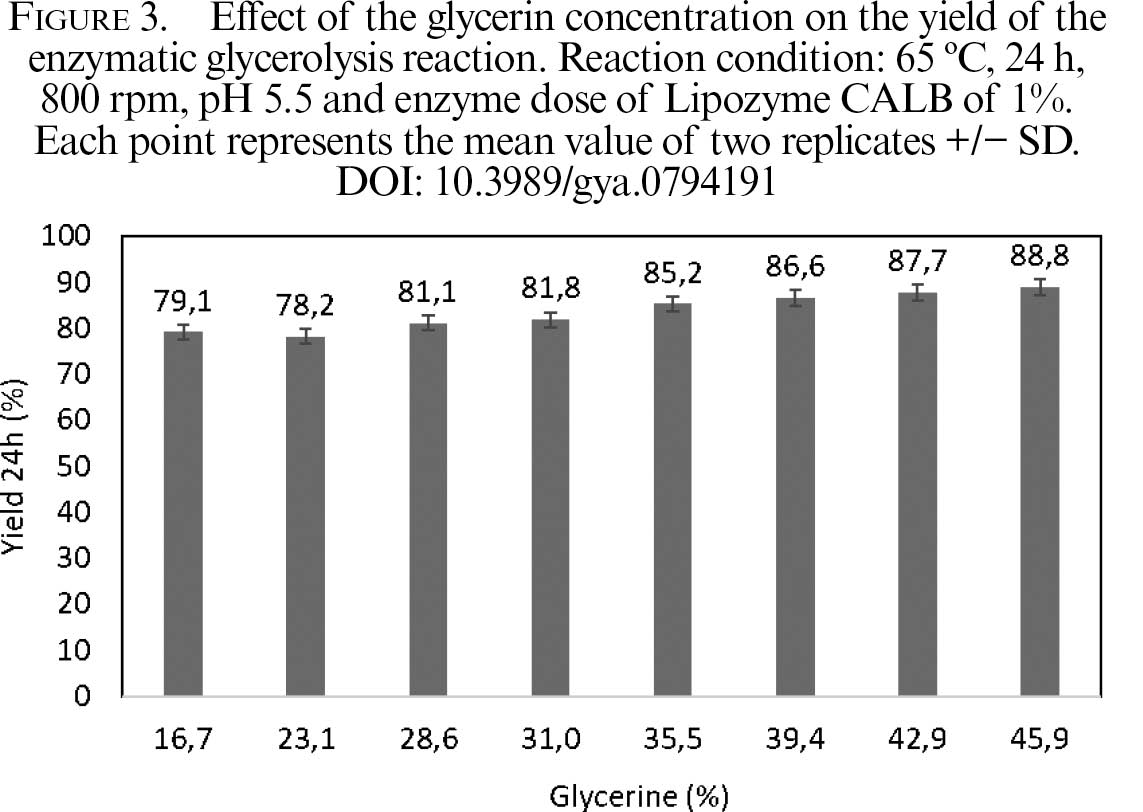

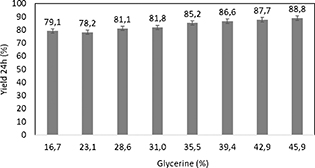

As can be observed in Figure 3, the yield of the enzymatic glycerolysis depended on the quantity of glycerol added, and ranged from 79 (using 16.7% of glycerol) to 89% (using 45.9% of glycerol). In all conditions studied the acidity value was lower than 10%.

When vacuum was applied (2-3 mbar), the reaction progressed favorably and acidity values below 7.0% were reached in all cases, while yields higher than 85% were obtained (Table 4). Humidity in the very final product was determined to be less than 0.1%, reaching a similar acidity value (less than 7) in this group of experiments. As previously discussed in section 2.2, the MAG, DAG and TAG profiles were conditioned by the amount of glycerol used in the reaction medium (Table 4).

In the selected working conditions for this group of experiments glycerol was in stoichiometric defect with respect to FFA. Not surprisingly, in these working conditions MAG formation was favored, reaching the highest conversion at 9.2% glycerol (molar ratio 0.6:1; glycerol:FFA). In this set of experiments (molar ratios glycerol:oil of 0.5:1 (7.0%), 0.6:1 (9.2%) y 0.75:1 (11.2%)), TAG concentration was higher for lower concentrations of glycerol, which suggested that the content of MAG and DAG increased as TAG content decreased.

3.4. Time period of the enzymatic glycerolysis reactionTOP

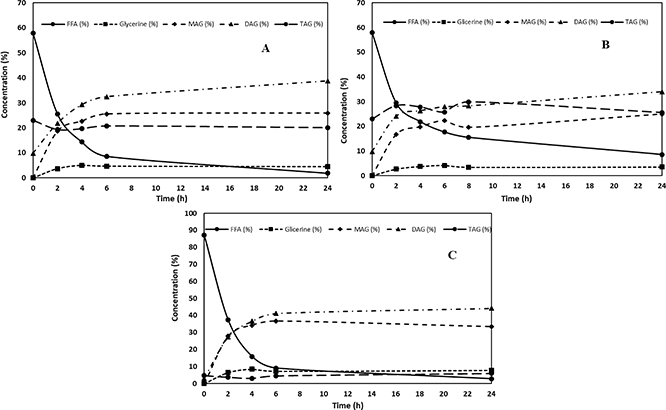

Samples were taken at 2, 4, 6 and 24 h, following the procedure described by Choong (Choong et al., 2018). Time periods were studied for three different reactions: the first one with a molar ratio of oil:glycerol 1:2 (Figure 4A), the second with a molar ratio of oil:glycerol 1:1 (Figure 4B) and the last one using hydrolyzed cocoa olein as raw material (Figure 4C). The reaction conditions are described in detail in section 2.2. The composition of the hydrolyzed olein was 87.2% FFA, 0% MAG, 3.1% DAG, 4.7% TAG and pH 5.0. The enzymatic hydrolysis reaction had a yield of up to 80%.

As previously stated, increasing the amount of glycerol in the reaction medium favored the formation of MAG and DAG (Table 5). When the raw material used for the enzymatic glycerolysis reaction was a material with high acidity and low TAG content (such as hydrolyzed cocoa olein) a final product with a high quantity of MAG and DAG (77%) was obtained.

It is important to highlight that although the enzymatic glycerolysis reaction is usually a long process (24 h), when cocoa olein was used as raw material the reaction was completed in only 6-8 h, regardless of the composition of the raw material (cocoa olein or hydrolyzed cocoa olein). This is noteworthy since previous studies on enzymatic glycerolysis reported longer reaction times (20-72 h) (Table 6).

4. CONCLUSIONSTOP

The free lipase B of Candida antarctica was used in the glycerolysis of cocoa olein and produced an oil enriched in MAG and DAG in a solvent-free system. It was found that the maximum yield was reached when the reaction was carried out at low pressure (2-3 mbar) and at 65 °C, with an enzyme dose of 1% and a molar oil:glycerol ratio of 1:2. In addition, FFA enrichment of cocoa olein, used as raw material, yielded an improvement in the MAG/DAG ratio which went from MAG/DAG = 26/39% to MAG/DAG = 33/44%. Finally, we also observed a remarkable reduction in reaction time compared to the typical enzymatic processes described for this kind of reactions (Table 6).

The combination of shorter reaction times with decreasing prices of enzymes could pave the way for the scale up and industrialization of these processes for the valorization of by-products such as sunflower, soybean, olive, rapeseed and cocoa oleins from soapstocks.

ACKNOWLEDGMENTSTOP

This work was performed within the framework of the project financially supported by the Gobierno de Navarra with action number 0011-1365-2017-000040 with title “Industrial glycerolysis of oleaginous by-products catalyzed by enzymes to obtain monoglycerides (OLEOENZYGLY)”. The authors wish to thank Novozymes for the enzymes used in this study.
