Preparation and characterization of oleogels with tallow and partially hydrolyzed tallow as organogelators

2.1. Materials

Refined-winterized sunflower oil (Biryağ, Trakya Birlik, Tekirdağ, Turkey), melted-filtered bovine body tallow fat (local store), saturated monoglyceride (Monomuls^® 90-35 Saturated Monoglyceride, BASF Co., Illertissen, Germany), and a mono-palmitate + di-palmitate mixture (Veser Kimya, İstanbul, Turkey) were used in the study. All solvents and chemicals were of analytical grade and purchased either from Sigma Chem. Co. (St. Louis, MO, USA) or Merck (Darmstadt, Germany).

2.2. Partial hydrolysis of tallow fat

A teflon-lined stainless steel autoclave (100 ml) was used for tallow hydrolysis. Melted tallow fat:deionized water (1:2, v/v) was put into the autoclave and then sealed. The autoclave was heated under an autogeneous pressure at 200 °C for 4 h. After cooling down to room temperature, the partially hydrolyzed mixture was analyzed for free fatty acids (FFA) according to the method of Ca 5a-40 (AOCS, 1998AOCS. 1998. Official Methods and Recommended Practices of the American Oil Chemists’ Society, 5th Edn, AOCS Press, Champaigne 1998, IL.). The FFA was 48.5%, and the mixture was successfully washed with hot water (water: tallow, 1:1, v/v) until the FFA was reduced to 1.5%. Although not used for any purpose in this study, the free fatty acids could be valorized as soapstock or animal feed. Then, the partially hydrolyzed tallow fat was crystallized at room temperature and washed several times with cold water. Finally, it was heated to 110 °C to evaporate all water before cooling down to ambient temperature to get the partially hydrolyzed tallow fat. The initial tallow fat and partially hydrolyzed tallow fat were used as the new organogelators in this study. Both were creamy-white, odorless, solid products.

2.3. Preparation of the oleogels

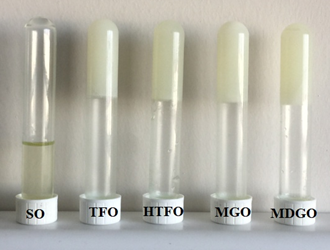

Oleogels were prepared by mixing known portions of the organogelators and sunflower oil (SO) at 60 °C. First, the minimum gelling concentration (MGC) of tallow fat (TF) as the organogelator was determined by adding the serial proportion into the oil (SO:TF, from 95:5 to 60:40, w/w). It was determined that TF forms a stable gel at a 30% addition level (SO:TF, 70:30, w/w). Below that level, the oleogel was not stable and semi-liquid. Similarly, the MGC of the partially hydrolyzed tallow fat (HTF) was determined as 10%. The oleogels of monoglyceride and monoglyceride+diglyceride mixture were prepared at the same addition level (10%) for comparison. For all oleogels, after preparing the SO and organogelator mixtures, the beakers were put into a water bath (60 °C) and shaken. After complete melting, the mixtures were put into plastic cups and tubes. After cooling to ambient temperature, the prepared oleogels stayed in a refrigerator overnight. The next day, the samples were taken from the refrigerator and kept at ambient temperature. After stabilizing 24 h at room temperature, the analyses were started. During the analyses, the oleogels were kept at ambient temperature as well. The following abbreviations are used thoroughout the paper for the prepared oleogels: tallow fat oleogel (at 30% addition level) (TFO), partially hydrolyzed tallow fat oleogel (HTFO), monoglyceride oleogel (MGO), and monoglyceride+diglyceride mixture oleogel (MDGO).

2.4. Fatty acid composition analysis

The fatty acid compositions of sunflower oil (SO), tallow fat (TF), partially hydrolyzed tallow fat (HTF) and the oleogels prepared with tallow fat (TFO), hydrolyzed tallow fat (HTFO), monoglyceride (MGO), and mono- and diglyceride mixture (MDGO) organogelators were determined. Fatty acid methyl esters were prepared according to method Ce 2-66 (AOCS, 1998AOCS. 1998. Official Methods and Recommended Practices of the American Oil Chemists’ Society, 5th Edn, AOCS Press, Champaigne 1998, IL.) and quantified by a Gas Chromatograph (Agilent Technologies 7890B, Palo Alto, CA, USA) equipped with a flame ionization detector (FID) (Agilent Technologies, Palo Alto, CA, USA), and HP 88 capillary column (100 m×0.25mm ID×0.2µm film thickness, J&W Scientific Co, CA, USA). The oven was set to 120 °C for 1 min, 175 °C (10 °C/min) for 10 min, 210 °C (5 °C/min) for 5 min and 230 °C (5 °C/min) for 5 min. One µL injection volume, 1:50 split ratio, 2 ml/min flow rate with H₂ carrier gas, and 250 and 280 °C injector and detector temperatures, respectively, were used in the analysis. Fatty acid methyl esters were quantified by co-chromatography with FAME mixture standards (37-components, C4-C24, Supelco, Bellefonte, PA, USA).

2.5. Physico-chemical analyses of the oleogels

The gel formatin time (GFT) was determined by following the modified method of Dassanayake et al., (2009)Dassanayake LSK, Kodali DR, Ueno S, Sato K. 2009. Physical properties of rice bran wax in bulk and organogels. J. Am. Oil Chem. Soc. 86, 1163-1173. https://doi.org/10.1007/s11746-009-1464-6 . First, the stock oleogels were melted completely in a water bath, and then 10 ml of each melted oleogel were placed into glass tubes. The tubes were kept for 0.5 h at 70 °C in the water bath for temperature equilibration. All the tubes were taken from the water bath to ambient temperature (set to 20 °C) for gel formation. Meanwhile, the time elapsed was recorded. The tubes were then rotated 90° and if no flow was observed, it was considered as formed gel and the time was recorded as GFT.

The method of Da Pieve et al., (2010)Da Pieve S, Calligaris S, Co E, Nicoli MC, Marangoni AG. 2010. Shear nanostructuring of monoglyceride organogels. Food Biophys. 5, 211-217. https://doi.org/10.1007/s11483-010-9162-3 was adapted for the oil binding capacity (OBC) analysis. Empty Eppendorf tubes were weighed (a) and then 1 ml of each completely melted organogel sample was placed into the tube, and left for 1 h for organogel formation in the refrigerator. After the formation of the oleogels, the tubes were carefully weighed (b) again and centrifuged at 9167 xg for 15 min at 20 °C. Then, the tubes were turned over on a filter paper and left for 3 min for excess oil to drain. Finally, the tubes were weighed (c). The oil binding capacity (% OBC) was calculated by the equation given below.

The solid fat content of the oleogels was determined following the ISO 8292 method (ISO, 2012ISO. 2008. Animal and vegetable fats and oils-Determination of solid fat content by pulsed NMR-Part 2: Indirect method. ISO/TC 34/SC 11, On-line version.) with a Bruker Nuclear Magnetic Resonance (NMR) spectrometer (The Minispec, Bruker Optics, Inc.). The measurements were performed at 20 and 35 °C. Instrument calibrations were done with 0, 31 and 73.5% solid fat containing standard solutions. The results were expressed as percent solid fat content.

The color of the organogel samples was measured on a Minolta CR-400 colorimeter (Konica Minolta Sensing, Osaka, Japan) with CIE lab standards, and the L, a* and b* values were recorded.

The free fatty acids (FFA) and peroxide values (PV) of the oils and oleogels were determined by the method of Ca 5a-40 and Cd 8-53 (AOCS, 1998AOCS. 1998. Official Methods and Recommended Practices of the American Oil Chemists’ Society, 5th Edn, AOCS Press, Champaigne 1998, IL.), respectively. FFA was calculated over the major fatty acid determined from the fatty acid composition analysis for each sample, and PV was given as miliequivalent O₂ per kg sample.

2.6. Thermal analysis of the oleogels

The crystallization and melting onset and peak temperatures and enthalpies of the oleogel samples were measured with a Perkin-Elmer 4000 Series Differential Scanning Calorimetry (Groningen, The Netherlands). The instrument was calibrated with Indium and Zinc. 5-10 mg of oleogel samples were weighed into aluminum pans and sealed hermetically. The temperature program was set to heat from 20 °C to 100 °C at 10 °C/min; then cool the samples to -30 °C at 10 °C/min and hold for 3 min at that temperature for full crystal formation and a final heating to 100 °C at 10 °C/min. The Pyris 1 Manager Software of the instrument was used for the calculations. All samples were analyzed at least in duplicate (Yilmaz et al., 2015Yılmaz E, Öğütcü M, Güneser O. 2015. Influence of storage on physico-chemical and volatile features of enriched and aromatized wax organogels. J. Am. Oil Chem. Soc. 92, 1429-1443. https://doi.org/10.1007/s11746-015-2719-z ).

2.7. Polarized light microscopy of the oleogels

Polarized light microscope pictures (PLM) of the oleogel samples were taken with an Olympus BX51 polarized light microscope (Olympus Optical Co., Ltd., Japan) with 10x ocular and 4x lens attached, and equipped with a CCD color video camera (Canon) at room temperature (Yilmaz et al., 2015Yılmaz E, Öğütcü M, Güneser O. 2015. Influence of storage on physico-chemical and volatile features of enriched and aromatized wax organogels. J. Am. Oil Chem. Soc. 92, 1429-1443. https://doi.org/10.1007/s11746-015-2719-z ).

2.8. X-ray diffraction analysis of the oleogels

X-ray diffraction (XRD) patterns of the oleogels were assessed with a PANalytical Empyrean model (The Netherlands) X-ray diffractometer. Radiation was applied at a scanning rate of 0.02/0.6 (sec) within a 2.0-50° (2θ) range under 45 kV and 40 mA CuKα (λ = 1.54056 Å). Data analysis was completed with X’Pert HighScore Plus software (Malvern Panalytical Ltd., Royston, UK) (Yilmaz et al., 2015Yılmaz E, Öğütcü M, Güneser O. 2015. Influence of storage on physico-chemical and volatile features of enriched and aromatized wax organogels. J. Am. Oil Chem. Soc. 92, 1429-1443. https://doi.org/10.1007/s11746-015-2719-z ).

2.9. Rheological analyses of the oleogels

Rheological analyses of the samples were performed with a DHR 2 rheometer (TA Instruments, USA) using plate-plate cross hatched geometry (Φ = 40 mm, gap 0.9 ± 0.1 mm). Temperature control was maintained with a Peltier system (± 0.1 °C) under the lower plate. For each oleogel sample, amplitude sweeps (strain = 0.01 - 100%) were performed at 10 °C with 1 Hz frequency to determine the linear viscoelastic region (LVR). After determining the strain values within the LVR, frequency sweep tests were performed for each sample at 10 °C, 0.02-0.26% strain range and frequencies from 0.1 to 100 Hz, and the storage (G’) ve loss (G’’) moduli were determined. For amplitude, frequency and time sweep tests, the 10 °C constant temperature was selected because at that temperature, the oleogels were totally solid and comparison of their rheological behaviors was easier to make. Furthermore, temperature sweep tests were carried out to observe the effect of increasing temperatures on the flow behavior.

Time sweep tests for each sample were also done at 10 °C with 1 Hz frequency and strains in the LVR, and strains below (LVR_strain ≥ Strain) and above (LVR_strain≤Strain) linear viscoelastic region. Time sweep was applied as 180 s for the first region, 180 s for the second region, and 900 s for the third region.

Finally, a temperature ramp test was carried out from 0 °C to 60 °C at 1 °C/min at 1 Hz frequency in LVR. The soak time was 120 s. All samples were tested three times and the results were presented as the average values.

2.10. Statistical analysis

The production of the oleogels was replicated two times, and each replicate sample was analyzed at least twice for each test. The results were presented as mean values with standard deviations. The Analysis of Variance (ANOVA) with mean comparisons by Tukey’s test was completed by Minitab v.16.1 software (Minitab, 2010Minitab. 2010. Minitab Statistical Software (Version 16.1). Minitab, Inc., State College, Pennsylvania, US.). The level of confidence was set at 95%.

3.1. Physico-chemical properties

The common physico-chemical properties of the oleogels and stock fats are presented in Table 1. Gel formation times (GFT) of the oleogels were significantly different. While TFO formed gels after the longest period (35 min), the formation of MDGO took only 0.34 min. In our previous studies (Yilmaz et al., 2015Yılmaz E, Öğütcü M, Güneser O. 2015. Influence of storage on physico-chemical and volatile features of enriched and aromatized wax organogels. J. Am. Oil Chem. Soc. 92, 1429-1443. https://doi.org/10.1007/s11746-015-2719-z ; Öğütcü and Yılmaz, 2015Öğütcü M, Yılmaz E. 2015. Characterization of hazelnut oil oleogels prepared with sunflower and carnauba waxes. Int. J. Food Prop. 18, 1741-1755. https://doi.org/10.1080/10942912.2014.933352 ), it was quite clear that different organogelator formed stable oleogels at various times. This outcome was expected since the crystalline network forming molecules were different. In MDGO and MGO, there were only mono-palmitate and mono- and di-palmitate mixtures; while in TF and HTF, there were diverse types of tri-, di-, and mono-glyceride mixtures.

The solid fat contents (SFC%) of the oleogels were measured at 20 and 35 °C (Table 1). There were slight but significant differences among the samples. The highest SFC was determined in the TFO at both temperatures, while the lowest value was in the MGO sample. Since the same stock oil (SO) was used in the creation of the oleogel, this difference was attributed to the added organogelators. Also, while creating HTFO, MGO, and MDGO, only 10% of the gelators were added to create a stable gel; whereas 30% of tallow fat was added into the TFO to get the stable gel. Hence, this proportion difference may lead to the SFC difference. Since the main advantages of the oleogels were stated as the lower content of saturated fatty acids and zero content of trans fatty acids (Co and Marangoni, 2012Co ED, Marangoni AG. 2012. Organogels: An alternative edible oil-structuring method. J. Am. Oil Chem. Soc. 89, 749-780. https://doi.org/10.1007/s11746-012-2049-3 ; Patel, 2018Patel AR. 2018. Oil structuring: concepts, overview and future perspectives, in Ashok R. Patel (Ed.), Edible Oil Structuring: Concept, Methods and Applications, Royal Soc. Chem., Chambridge, UK, 3-24.), lower SFC is preferred in oleogels. In other words, if an organogelator provides no extra saturated or trans fatty acids, it is preferred. In this case, TF by itself was not a good organogelator since it formed stable oleogels only at the 30% addition level, at which the saturated fatty acid content of the resulting oleogel was also increased. Partially hydrolyzed tallow fat (HTF), on the other hand, yielded stable oleogel at a 10% addition level, at which the saturated fatty acid content of the resulting oleogel was not significantly enhanced. Since it is cheaper, edible, legally permitted and sensorially acceptable, it might be a better alternative as organogelator.

The oil binding capacity (OBC) values of the oleogels were well above 99% for all samples, and not significantly different. This is a very important finding which indicates the presence of well-formed and stable gels. Clearly, with the organogelators used, almost all liquid oil was bound or entrapped. Quite similar results with wax gelators (Yilmaz et al., 2015Yılmaz E, Öğütcü M, Güneser O. 2015. Influence of storage on physico-chemical and volatile features of enriched and aromatized wax organogels. J. Am. Oil Chem. Soc. 92, 1429-1443. https://doi.org/10.1007/s11746-015-2719-z ), fatty acid and fatty alcohol gelators (Bot and Flöter, 2018Bot A, Flöter E. 2018. Structuring edible oil phases with fatty acids and alcohols, in Ashok R. Patel (Ed.), Edible Oil Structuring: Concept, Methods and Applications, Royal Soc. Chem., Chambridge, UK, 95-105.), ethyl cellulose gelator (Mattice and Marangoni, 2018Mattice KD, Marangoni AG. 2018. New insights into wax crystal networks in oleogels, in Ashok R. Patel (Ed.), Edible Oil Structuring: Concept, Methods and Applications, Royal Soc. Chem., Chambridge, UK, 71-94.), and others (Toro-Vasquez et al., 2018Toro-Vasquez JE, Charo-Alonso MA, Alvarez-Mitre, FM. 2018. Gelation properties of gelator molecules derived from 12-hydroxystearic acid, in Ashok R. Patel (Ed.), Edible Oil Structuring: Concept, Methods and Applications, Royal Soc. Chem., Chambridge, UK, 106-134.; Patel, 2018Patel AR. 2018. Oil structuring: concepts, overview and future perspectives, in Ashok R. Patel (Ed.), Edible Oil Structuring: Concept, Methods and Applications, Royal Soc. Chem., Chambridge, UK, 3-24.) were found in the literature.

The instrumental color values of the samples were also measured (Table 1). The L values of SO and TF were significantly different, and melted tallow fat was quite luminous, but their a* values were not statistically different. The yellow color (b* value) of SO was significantly different from TF. When the oleogels were compared among themselves, the most luminous sample was MDGO. The a* value (redness-greenness) was not significantly different among the oleogels; while the b* value (yellowness-blueness) was different. MDGO and MGO were yellow-toned samples; while the TFO sample had some blueness. The oleogels can be seen in Figure 1. It is well known from the oleogel literature that the color of an oleogel is mainly determined by the stock oils used and the color and addition level of the organogelators used (Patel, 2018Patel AR. 2018. Oil structuring: concepts, overview and future perspectives, in Ashok R. Patel (Ed.), Edible Oil Structuring: Concept, Methods and Applications, Royal Soc. Chem., Chambridge, UK, 3-24.).

Two chemical properties, free fatty acidity (FFA) and peroxide value (PV), were also measured (Table 1). Both values were determined in the stock liquid oil (SO), tallow fat (TF), and partially hydrolyzed tallow fat (HTF), which were used in oleogel preparations. Both values were higher in TF and HTF than those in the SO, but in all samples, the values were below the edible vegetable oil codex standards (Codex, 2017Codex. 2017. Codex Alimentarius, International Food Standards, Standard for named vegetable oils, Codex Stan 210-1999.), which states 0.6 mgKOH/g acid value and 10 meqO₂/kg PV as limit values. When the oleogels were compared among themselves for FFA value, TFO and HTFO had slightly higher (0.85 and 0.71%) values than those of the MGO and MDGO (0.56%), respectively. This was an expected result since the mono- and di-glycerides used as gelators were pure substances. But all oleogel samples were fairly acceptable for FFA according to the edible oil codex. On the other hand, except for the MDGO sample (9.70 meqO₂/kg), the PV of all samples exceeded the codex limit. This might be due to the presence of heat and air during oleogel preparation, which might have caused oil oxidation. Hence, vacuum or nitrogen atmospher and antioxidant addition could be suggested during oleogel production like all other oleogels reported in the literature.

The fatty acid composition of the oils/fats used as stock materials and the prepared oleogels were also measured, and the results are presented in Table 2. Four main fatty acids in the SO and five main fatty acids in TF were determined. Both composition data mainly concur with the current literature (Codex, 2017Codex. 2017. Codex Alimentarius, International Food Standards, Standard for named vegetable oils, Codex Stan 210-1999.; Love, 1996Love JA. 1996. Animal fats, in Y.H. Hui (Ed.), Bailey’s Industrial Oil & Fat Products, Vol. 1, Wiley-Intersience Pub, New York, US, 1-18.). After the partial hydrolysis and consequent washing of the free fatty acids of the TF, the HTF was obtained, and its fatty acid composition analysis indicated the presence of three fatty acids. Compared to TF, the proportion of palmitic acid was enhanced significantly (77.95%) in the HTF; while myristic and linoleic acids could not be quantified. Further, significant decreases in the stearic and oleic acids were quantified in HTF. When the oleogels were compared, it was observed that the total saturated fatty acid contents of TFO (22.50%), MGO (26.66%) and MDGO (33.89%) were significantly higher than that of the HTFO (15.60%). This could be considered as a promising result in terms of nutritional perspective. Also, it is clear that the content of total saturated fatty acids is not the only factor governing oleogel formation. In fact, the presence of non-polar and polar groups on the same molecule like mono- and di-glycerides made them more efficient as organogelator (Patel, 2018Patel AR. 2018. Oil structuring: concepts, overview and future perspectives, in Ashok R. Patel (Ed.), Edible Oil Structuring: Concept, Methods and Applications, Royal Soc. Chem., Chambridge, UK, 3-24.). HTFO, MGO, and MDGO had only 10% organogelator added, but TFO had 30% organogelator added to obtain oleogels. Hence, TFO could not be accepted as oleogel, but rather it could be claimed as a blend of sunflower oil and tallow fat. Further, there was no beefy flavor or any off odor in TFO and HTFO. Overall, partially hydrolyzed tallow fat could be an effective organogelator compared to pure commercial mono- and di-glycerides. Since it did not enhance saturated fatty acid content significantly, and it is a much cheaper and more readily available material, this proposed partial hydrolysis mechanism could be used to obtain an organogelator to be applied in foods.

3.2. Thermal properties

The thermal properties of oleogels are very important quality parameters to evaluate their suitability for edible applications. It was indicated that melting and crystallization temperatures and ranges are one of the most common quality parameters for commercial margarine, shortenings, and other semi-solid fat products (Chrysam, 1996Chrysam MM. 1996. Margarines and Spreads, in Y.H. Hui (Ed.), Bailey’s Industrial Oil & Fat Products, Vol. 3, Wiley-Intersience Pub, New York, US, 65-114.). Different product types (table spreads, kitchen margarines, tube margarine, shortenings, cake/batter fats, etc.) are expected to have certain thermal behaviors. Furthermore, there is a usually a well-documented correlation between the thermal behavior and SFC of the known commercial solid/semi-solid fat products. High quality spreads or kitchen margarines are expected to melt quickly in the mouth to yield a cooling effect with no lingering greasiness (O’Brien, 2008O’Brien RD. 2008. Fats and Oils: Formulating and Processing for Applications. CRC Press, New York, US. ; Chrysam, 1996Chrysam MM. 1996. Margarines and Spreads, in Y.H. Hui (Ed.), Bailey’s Industrial Oil & Fat Products, Vol. 3, Wiley-Intersience Pub, New York, US, 65-114.). Oleogels could be used to prepare margarine-like products and shortenings, and could even be applied themselves as spreadable fats (Öğütcü and Yılmaz, 2015Öğütcü M, Yılmaz E. 2015. Characterization of hazelnut oil oleogels prepared with sunflower and carnauba waxes. Int. J. Food Prop. 18, 1741-1755. https://doi.org/10.1080/10942912.2014.933352 ). As seen in Table 1, it was obvious that oleogel products did not have high SFC, as expected, but they certainly had plastic consistency at ambient temperature. This situation is the-well known (Co and Marangoni, 2012Co ED, Marangoni AG. 2012. Organogels: An alternative edible oil-structuring method. J. Am. Oil Chem. Soc. 89, 749-780. https://doi.org/10.1007/s11746-012-2049-3 ) main advantage of oleogels. Hence, it is essential to determine the crystallization and melting ranges, peak temperatures and ethalpies. The thermal cycling technique (Dassanayake et al., 2009Dassanayake LSK, Kodali DR, Ueno S, Sato K. 2009. Physical properties of rice bran wax in bulk and organogels. J. Am. Oil Chem. Soc. 86, 1163-1173. https://doi.org/10.1007/s11746-009-1464-6 ; Öğütcü and Yılmaz, 2015Öğütcü M, Yılmaz E. 2015. Characterization of hazelnut oil oleogels prepared with sunflower and carnauba waxes. Int. J. Food Prop. 18, 1741-1755. https://doi.org/10.1080/10942912.2014.933352 ) was used to get the full range of thermal behavior for both the organogelators used and the oleogels produced (Table 3).

The crystallization and melting onset and peak temperatures of the sunflower oil (SO) as stock oil for the gels, tallow fat (TF), partially hydrolyzed tallow fat (HTF), monoglyceride (MG), mono+diglyceride (MDG) as the organogelators, and the oleogels produced are presented in Table 3. SO, started to crystallize at -16 °C, and TF started at 11.67 °C. Similarly, these two organogelators had peak melting temperatures of 28.66 and 15.69 °C, respectively. Both MG and MDG had two fractions within themselves with different crystallization and melting temperatures, and both samples were similar in their thermal values. All oleogel samples (TFO, HTFO, MGO, MDGO) had two fractions presenting different thermal ranges. For crystallization and peak melting temperatures, HTFO was more similar to MGO and MDGO than to TFO. The peak melting temperatures of MGO and MDGO were 54.56 and 54.83 °C for the main fraction and 13.57 and 16.25 °C for the minor fraction, respectively. HTFO showed values of 12.39 and 47.11 °C for peak melting temperature. Clearly, HTFO totally melted at around 47 °C, which seemed suitable for food product applications. The crystallization and melting profiles presented in Table 3 showed that HTFO could be used in margarine or spread formulations, like the monoglyceride oleogels used previously (Da Pieve et al., 2010Da Pieve S, Calligaris S, Co E, Nicoli MC, Marangoni AG. 2010. Shear nanostructuring of monoglyceride organogels. Food Biophys. 5, 211-217. https://doi.org/10.1007/s11483-010-9162-3 ; Ögütcü and Yilmaz, 2015Yılmaz E, Öğütcü M, Güneser O. 2015. Influence of storage on physico-chemical and volatile features of enriched and aromatized wax organogels. J. Am. Oil Chem. Soc. 92, 1429-1443. https://doi.org/10.1007/s11746-015-2719-z ). The SFC data presented in Table 1 for HTFO was consistent with DSC data where the sample had only around 5-10% solid fat at 25 to 35 °C, but was in solid (gelled) consistency, and completely melted at around 47 °C. The difference between melting onset and peak temperatures showed the melting range, and HTFO had a melting range of around 10-15 degrees, like MGO and MDGO. On the other hand, the peak melting temperature of HTFO (47.11 °C) was lower than those of the MGO (54.65 °C) and MDGO (54.83 °C). For margarine and similar products, a narrower melting range closer to body temperature is preferred in order to produce a cooling sensation in the mouth to help taste buds perceive food flavor (Chrysam, 1996Chrysam MM. 1996. Margarines and Spreads, in Y.H. Hui (Ed.), Bailey’s Industrial Oil & Fat Products, Vol. 3, Wiley-Intersience Pub, New York, US, 65-114.). In this respect, HTFO seems a better candidate for edible applications.

3.3. Microstructural properties

The polarized light microscopy (PLM) images of the oleogels are presented in Figure 2. Clearly, the crystalline structures of TFO and HTFO were similar but they were different from MGO and MDGO. In fact, all images indicated the presence of some aggregates, but the aggregates were quite large in MGO and MDGO. In a previous study (Öğütcü and Yılmaz, 2015Yılmaz E, Öğütcü M, Güneser O. 2015. Influence of storage on physico-chemical and volatile features of enriched and aromatized wax organogels. J. Am. Oil Chem. Soc. 92, 1429-1443. https://doi.org/10.1007/s11746-015-2719-z ), hazelnut oil oleogels prepared with monoglyceride showed spherulitic or rosette-like crystalline patterns. Further, Kesselman and Shimoni (2007)Kesselman E, Shimoni E. 2007. Imaging of oil/monoglyceride networks by polarizing near-field scanning optical microscopy. Food Biophys. 2, 117-123. https://doi.org/10.1007/s11483-007-9038-3 published spherulitic crystals for corn oil-monoglyceride oleogels. The results confirmed that MGO and MDGO had spherulitic aggregate type crystals. In one study (Viriato et al., 2018Viriato RLS, Queiros MS, da Gama MAS, Ribeiro APB, Gigante ML. 2018. Milk fat as a structuring agent of plastic lipid bases. Food Res. Int. 111, 120-129. https://doi.org/10.1016/j.foodres.2018.05.015 ), anhydrous milk fat was used as the organogelator to produce sunflower oil oleogels. Their PLM studies indicated crystals with long, fine needles of the spherulite type. Generally speaking, the crystal structure of an oleogel depends on the kind, purity and addition level of the organogelator, as well as the type of stock oil and process conditions (cooling rate, shear application, presence of other additives, etc.) as discussed (Mattice and Marangoni, 2018Mattice KD, Marangoni AG. 2018. New insights into wax crystal networks in oleogels, in Ashok R. Patel (Ed.), Edible Oil Structuring: Concept, Methods and Applications, Royal Soc. Chem., Chambridge, UK, 71-94.). In this study, the small, fine crystalline aggregates observed in the HTFO (Figure 2b) sample indicated that amphiphilic di- and mono-glyceride mixtures present in the HTF could provide enough junction zones within the non-polar oil medium to yield the crystal lattice, where the mobile liquid oil was trapped. There were some aggregates in the TFO as well (Figure 2a), but since these were most probably the crystals of solid tallow triglycerides, they may not provide enough network (due to the absence of junction zones) to trap liquid oil at the 10% addition level, but could only provide enough solid surface for the oil to adhere at the 30% addition level. Overall, the partial hydrolysis of solid fat to provide higher melting fractions of di- and mono-glyceride mixtures might be quite helpful for creating potential organogelators.

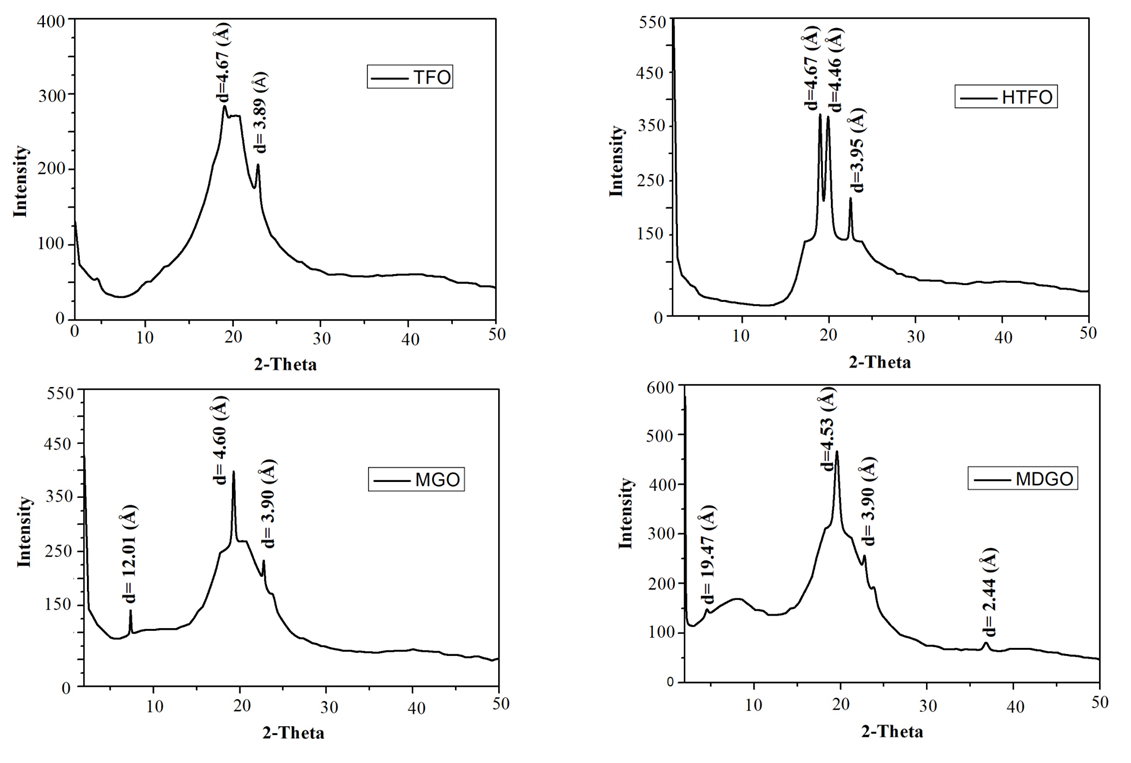

The X-ray diffraction patterns of the oleogels are presented in Figure 3. The wide angle region peaks of all four samples were quite similar to each other and were around 4.46-4.67 Å and 3.89-3.95 Å, respectively. It was discussed (Stahl et al., 2017Stahl MA, Buscato MHM, Grimaldi R. 2017. Low sat-structured fats enriched in α-linolenic acid: physicochemical properties and crystallization characteristics. J. Food Sci. Technol. 54, 3391-3403. https://doi.org/10.1007/s13197-017-2780-8 ) that short spacings between fatty acid chains in solid lipids were in the α-form if they were around 4.15 Å, and the β’ form were around 3.8-4.2 Å. Hence, the oleogels could be the β’ type polymorph. Furthermore, small angle peaks at around 19.21-19.47 Å were found in the samples. There was a peak at around 43.29 Å for only the MDGO sample, which might indicate the interplanar distance between the mono- and di-glyceride layers with a lamella of 43 Å. The data indicated that all crystallines in the oleogel samples could be β’ polymorphs with an orthorhombic-perpendicular subcell (O_⊥) structure. Similar findings were reported for cod liver oil-monoglyceride organogels (Da Pieve et al., 2010Da Pieve S, Calligaris S, Co E, Nicoli MC, Marangoni AG. 2010. Shear nanostructuring of monoglyceride organogels. Food Biophys. 5, 211-217. https://doi.org/10.1007/s11483-010-9162-3 ) and wax organogels (Szydłowska-Czerniak et al., 2005Szydłowska-Czerniak A, Karlovits G, Lach M, Szłyk E. 2005. X-ray diffraction and differential scanning calorimetry studies of β’-β transitions in fat mixtures. Food Chem. 92, 133-141. https://doi.org/10.1016/j.foodchem.2004.07.010 ). In addition, visual inspection by eye revealed that the oleogels were very smooth, homogeneous and creamy in texture (Figure 1).

3.4. Rheological properties

All rheological measurements were carried out within the linear viscoelastic region (LVR), beyond which the structure of the sample was destroyed. To determine the LVR, each sample was first tested by an amplitute sweep test at 10 °C, 1 Hz frequency with 0.01-100% strain. The LVR strain values determined were 0.26, 0.16, 0.11 and 0.023% for TFO, HTFO, MGO and MDGO, respectively. The amplitute sweep tests also indicated that the gel structure could be destroyed at around 8, 50, 50, and 5 Pa oscillatory shear strain values for TFO, HTFO, MGO and MDGO, respectively. At those shear strain values, the cross-over points were reached, at which the gelled consistency was lost.

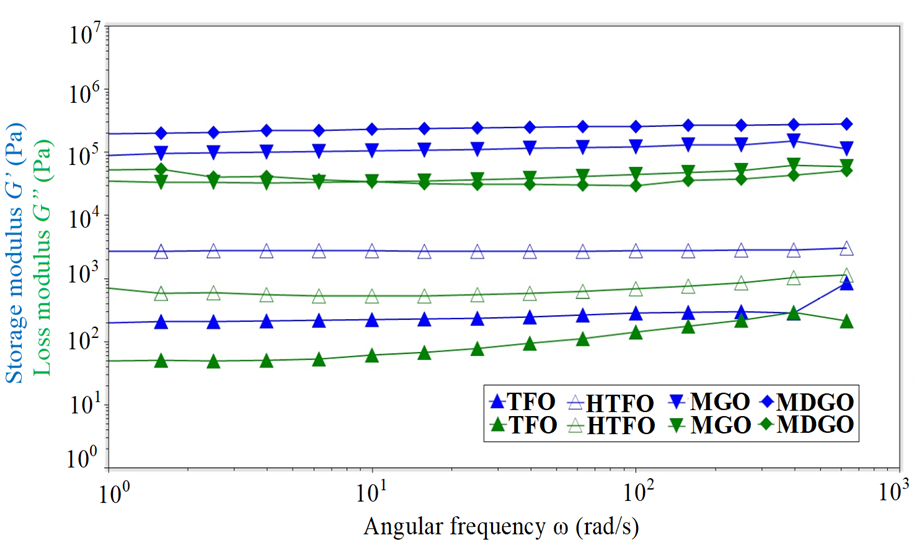

A frequency sweep test was performed within the LVR region at 10 °C, and frequencies from 0.1 to 100 Hz. In this test, oscillation frequency increased stepwise while keeping the amplitute constant. Frequency sweep tests can help to understand the time-dependent behavior of a sample in the non-destructive deformation range. The results of the measurements are presented in Figure 4. For all four samples, and within all the frequency ranges, storage moduli (G´) were always higher than those of the loss moduli (G´´). This means that during the storage period, the gel structure was stable in all samples. Phase segregation or settling should not develop during the storage period of these oleogels. Further storage modulus (G´) values of HTFO were between 3.000-5.000 Pa throughout the applied angular frequency region of 0-1000 rad/s and were significantly higher than those of the TFO sample, which were between 100-300 Pa. This indicates that HTFO had a stronger gel structure. This situation is probably the result of a network formation by the amphiphilic mono- and di-glycerides present in the HTF. Within the oil medium, amphiphilic molecules could create some junction zones for thermodynamic stability, and this yields the network that traps the liquid oil. Since TF forms oleogel due to its higher melting point triglycerides only, its gel is less strong than the HTF gel. When the storage modulus (G´) of HTFO (around 3.000 Pa) is compared to the storage modulus (G´) values of MGO (around 80.0000 Pa) and MDGO (around 110.000 Pa), it could be clearly observed that MGO and MDGO are much stronger gels. Overall, saturated mono- and di-glycerides were much better organogelators than saturated tri-glycerides. Hence, any solid fat stock could be partially hydrolyzed to its mono- and di-glycerides to get an effective organogelator.

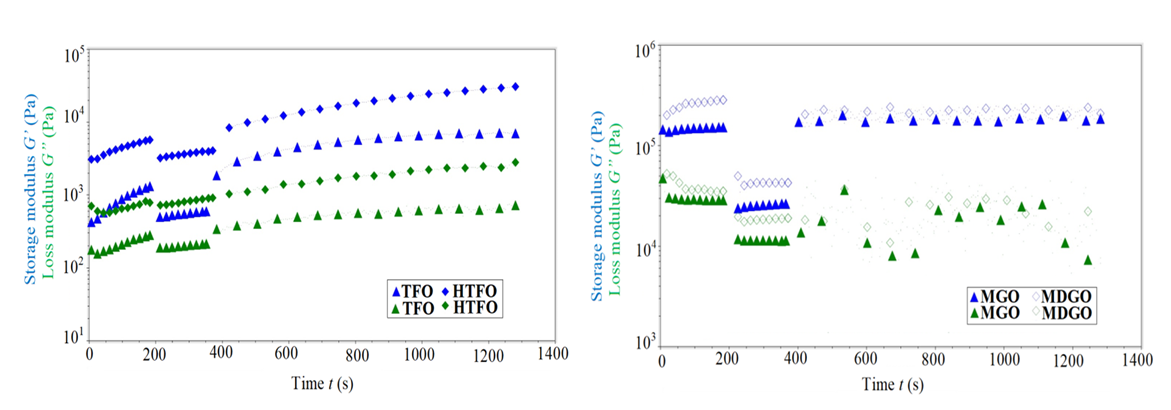

In order to observe the time-dependent viscoelastic behavior of the oleogel samples, time-sweep tests were performed with shearing under dynamic mechanical conditions, or under constant amplitute and frequency (1 Hz) at 10 °C. Three time regions were tested with preset oscillation so as to simulate the behavior at rest (first region). A strain at LVR was applied with 1 Hz frequency for 180 sec to simulate structural breakdown or stronger shear. A strain higher than LVR (LVR_l >>) was applied with 1 Hz frequency for 180 sec, and finally to simulate structural regeneration at rest, a very low shear (LVRs <<) was applied with 1 Hz frequency for 900 sec. The results of the measurements are presented in Figure 5. In all samples at first region (very low shear to simulate resting behavior), the storage modulus (G´) was higher than the loss modulus (G´´), and this indicates that all samples are gel structured. Once a strong shear was applied in the second region (simulate structural breakdown), both moduli decreased significantly as expected; hence, enough deformation occurred. Afterwards, in the third regeneration at the rest region with very low shear, both moduli increased again to their original levels observed in the first region. This means that a structural reformation or regeneration developed. Hence all four samples are truly gel, and all have mechanical regeneration ability. For oleogels, this ability is very important, and during product applications, for example, food formulation mixing processes, the deformed structure regenerated itself once mechanical force was removed. Similar thixotropic recovery was shown for shellac oleogels (Patel and Dewettinck, 2015Patel AR, Dewettinck K. 2015. Comparative evaluation of structured oil systems: shellac oleogel, HPMC oleogel and HIPE gel. Eur. J. Lipid Sci. Technol. 117, 1772-1781. https://doi.org/10.1002/ejlt.201400553 ).

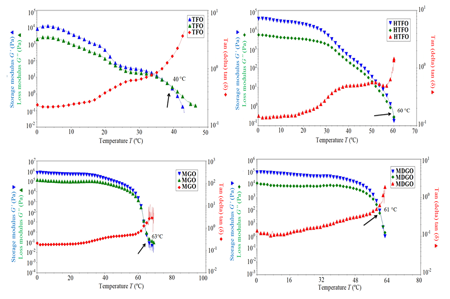

Lastly, a temperature-ramp test was carried out to observe the viscoelastic behavior under constant amplitute and frequency (Figure 6). All samples kept their gelled structure until the G´ and G´´ crossed at around 40 °C for TFO, 60 °C for HTFO, 63 °C for MGO and 61 °C for the MDGO sample. The peak melting temperature values of the same samples by DSC (Table 3) were 37.54, 47.11, 54.65 and 54.83 °C, respectively. Obviously, peak melting temperatures were lower than those of the temperatures measured at the cross-over point (Figure 6). This might be due to the applied force during the rheologic measurement. There probably were some junction zones in the oleogel samples even after melting, at which the rheometer could still recognize some strength until the cross-over point reached at slightly higher temperatures. Clearly, HTFO was more stable until higher temperatures than TFO and better resembled MGO. This finding indicated that the partial hydrolysis of tallow fat yielded better properties as an organogelator. Both TFO and HTFO started to soften at around 20 and 30 °C, but retained their gelled consistency until around 40 and 60 °C, respectively. Although these temperatures were lower than those of the MGO and MDGO samples, they could still provide enough thermal stability for food applications.
