1. INTRODUCTION
⌅The olive tree (Olea europaea L.) constitutes an economic and social resource for the development of the populations of the zones where it is cultivated. The growing demand for olive oil and table olives has created favorable conditions for a more efficient expansion of its cultivation, accompanied in many countries by specific development programs (Fernandez Escobar et al., 2013Fernandez Escobar R, de la Rosa R, Leon L. 2013. Evolution and sustainability of the olive production systems. Options Méditerranéennes. Séries A Mediterr. Semin. 106, 11-41.). In Morocco, the olive sector is supported by the Green Morocco Plan launched in 2008. Recent statistics provided by the Moroccan agriculture department (2019) show that olive orchards cover about 1.1 million ha, distributed in irrigated lowlands at 39%, mountain areas at 36% and rainfed areas at 25%. Moreover, Morocco occupies one of the top positions among exporters of table olives in the world. According to the Ministry of Agriculture and Maritime Fisheries, during the 2013/2014 season, the domestic production was in the order of 1,6 million tons of olives, including 120,000 tons of table olives for the same period (7.6% total olive production) (Anon, 2016Anon. 2016. International olive council. Conclusions IOC Conf. COP22. Available at: http://www.internationaloliveoil.org/news/view/686-year-2016news/787-conclusions-of-the-ioc-conference-at-cop22?lang=fr_FR [Accessed July 20, 2017].).
Table olives, which are the most widespread fermented vegetables in Mediterranean countries, have a great economic significance as a food commodity. Their high nutritional value, the content in bioactive compounds, dietary fibers, fatty acid composition and antioxidants make table olives a valuable functional food (Campus et al., 2018Campus M, Degirmencioglu N, Comunian R. 2018. Technologies and trends to improve table olive quality and safety. Front. Microbiol. 9. https://doi.org/10.3389/fmicb.2018.00617 ). Green table olives are considered the most popular fermented vegetable commodity in Morocco. They constitute a major agro-industrial sector in the country’s economic development (Rokni et al., 2015Rokni Y, Ghabbour N, Chihib NE, Thonart P, Asehraou A. 2015. Physico-chemical and microbiological characterization of the natural fermentation of moroccan picholine green olives variety. J. Mater. Environ. Sci. 6, 1740-1751.).
Olives are usually harvested at different stages of maturity and then processed to eliminate the bitter taste due to the glucoside named oleuropein. The green table olive de-bittering process can be accomplished in two ways: a) The Spanish-style method, i.e. using a lye treatment prior to fermentation, and b) the natural method (Sánchez Gómez et al., 2006Sánchez Gómez AH, García García P, Rejano Navarro L. 2006a. Trends in table olive production Elaboration of table olives. Grasas Aceites 57 (1), 86-94. https://doi.org/10.3989/gya.2006.v57.i1.24 ). The Spanish style (the most common conventional preparation), consists of an alkaline treatment with sodium hydroxide, followed by several water washings of the fruits to remove residual lye. Then, the fermentation is continued in the brine from an initial salt concentration of 10-11% to reach the value of 5-6% of NaCl at equilibrium. The Californian style is quite distinct from that used for any other style of table olive, as there is no fermentation step. In this method, olives are subjected to a lye treatment (0,5 to 2% NaOH), followed by darkening with ferrous gluconate or ferrous lactate. Then, the olives are bottled or canned in brine and pasteurized or sterilized (Colmagro et al., 2001Colmagro S, Collins G, Sedgley M. 2001. Processing Technology of the Table Olive. in Jules J, (Ed.) Horticultural Reviews. John Wiley and Sons, Inc, pp. 235-242. https://doi.org/10.1002/9780470650783.ch5 ; Marsilio et al., 2001Marsilio V, Campestre C, Lanza B. 2001. Phenolic compounds change during California-style ripe olive processing. Food Chem. 74, 55-60. https://doi.org/10.1016/S0308-8146(00)00338-1 ). In the other hand, the natural method, also known as “Greek style”, does not require any lye treatment of the fruit, which is placed directly into the brine (8-14% NaCl and pH between 4.0 and 4.2), where fermentation takes place (Colmagro et al., 2001Colmagro S, Collins G, Sedgley M. 2001. Processing Technology of the Table Olive. in Jules J, (Ed.) Horticultural Reviews. John Wiley and Sons, Inc, pp. 235-242. https://doi.org/10.1002/9780470650783.ch5 ). In this case, the hydrolysis of oleuropein is attributed to the enzymatic reaction of ß-glucosidase and esterase produced by the microorganisms (Amer et al., 2017Amer A, Faiz ul-Hassan N, Kashfa B, Aasia B. 2017. Microbial β-Glucosidase: Sources, Production and Applications. J. Appl. Env. Microbiol 5, 31-46. https://doi.org/10.12691/JAEM-5-1-4 ).
Among the main lactic acid fermented vegetable products, i.e. cucumbers, cabbages and olives, Spanish-style green-olives are the most economically important in Morocco. This method is the most widely used for making green olives on an industrial scale. It is based on the alkaline treatment of olives to eliminate oleuropein, the agent responsible for the bitterness of the fruits of the olive tree (Ramírez et al., 2017Ramírez E, Medina E, García P, Brenes M, Romero C. 2017. Optimization of the natural debittering of table olives. LWT - Food Sci. Technol. 77, 308-313. https://doi.org/10.1016/j.lwt.2016.11.071 ). After de-bittering, the olives undergo successive washes to remove residual lye. The treatment consists generally of (a) lye treatment 1.5 à 2% NaOH for 8-12 h at 24-25 °C; (b) washing by tap water for 14-15 h in two or three soakings, and (c) brining in 10-12% NaCl (El-Khaloui and Nouri, 2007El-Khaloui M, Nouri A. 2007. Procédés d’élaboration des olives de table à base des variétés Picholine marocaine et Dahbia. Transfert de Technologie en Agriculture 037, 77-80.; Chemonics International, 2007Chemonics International, Inc. 2007. Guide De Bonnes Pratiques De Fabrication Des Olives De Table, Agriculture and Agrobusiness Intégrés, USAID-Maroc, Repport n. 071, pp.1-42.).
Although the Spanish-style method is a fast process, it presents some drawbacks as well for the producer (lye and washing water expenses), for the consumer (risk of the chemical residues and the deterioration of the nutritional value of the treated olives) (Shahidi and Kiritsakis, 2017Shahidi F, Kiritsakis A eds. 2017. Olives and Olive Oil as Functional Foods, John Wiley & Sons, Ltd, Chichester, UK. https://doi.org/10.1002/9781119135340 ) and for the environment (releases of high quantities of wastewater of high organic matter, high phenolic content, high salinity and conductivity). Indeed, this process causes a strong degradation of oleuropein, which constitutes a significant loss in the nutritional value of de-bittered olives (Rokni et al., 2015Rokni Y, Ghabbour N, Chihib NE, Thonart P, Asehraou A. 2015. Physico-chemical and microbiological characterization of the natural fermentation of moroccan picholine green olives variety. J. Mater. Environ. Sci. 6, 1740-1751.). Recently, several sources reported the possibility of use of unauthorized acids by producers such as sulfuric acid to quickly neutralize the lye residue after the de-bittering of olives. This is done in order to reduce the time and cost of washing and obtain more profit (Faid, 2018Faid M. (n.d.). Beware of eating red olives / Mohamed Faid - YouTube. Retrieved April 6, 2020, from https://www.youtube.com/watch?v=yJoUDDsy-c0&t=75s ). Hence, it could be important to further develop the sector by using natural table olives to overcome the drawbacks mentioned above. Natural table olives are harvested at the green-yellow stage, or fully ripened, previously washed and graded, then submerged into NaCl solutions (6-10% w/v), where fermentation takes place, mainly due to the metabolism of autochthonous microbiota (Campus et al., 2018Campus M, Degirmencioglu N, Comunian R. 2018. Technologies and trends to improve table olive quality and safety. Front. Microbiol. 9. https://doi.org/10.3389/fmicb.2018.00617 ). Yeasts and LAB control the progress of fermentation since they are more sensitive to salt concentration and the acidification of brines which are determined by metabolic activity exerted mainly by LAB (Campus et al., 2018Campus M, Degirmencioglu N, Comunian R. 2018. Technologies and trends to improve table olive quality and safety. Front. Microbiol. 9. https://doi.org/10.3389/fmicb.2018.00617 ). On the other hand, acetic acid bacteria (AAB) can also be associated with olives and olive products, in which they can play several roles (Kavroulakis and Ntougias, 2011Kavroulakis N, Ntougias S. 2011. Bacterial and β-proteobacterial diversity in Olea europaea var. mastoidis- and O. europaea var. koroneiki-generated olive mill wastewaters: Influence of cultivation and harvesting practice on bacterial community structure. World J. Microb. Biotechnol. 27 (1), 57-66. https://doi.org/10.1007/s11274-010-0426-3 ; Valero et al., 2017Valero A, Medina E, Arroyo-López FN. 2017. Microbial hazards and their implications in the production of table olives. in Singh O V, (Ed.) Foodborne Pathogens and Antibiotic Resistance. John Wiley & Sons, Inc, pp. 119-138. https://doi.org/10.1002/9781119139188.ch5 ). Acetobacter pasteurianus is one of the acetic acid bacteria (AAB) which have the capacity to incompletely oxidize ethanol as a substrate to produce acetic acid. For this reason, AAB are often involved, either directly or indirectly, in the fermentation of food and drinks (Cleenwerck and De Vos, 2008Cleenwerck I, De Vos P. 2008. Polyphasic taxonomy of acetic acid bacteria: an overview of the currently applied methodology. Int. J. Food Microbiol. 125, 2-14). It has been perfectly established that producers of table olives use organic acids, such as lactic, citric and also acetic acid, in order to favor the rapid start of fermentation and avoid the excessive increase in pH at the beginning of fermentation (Degirmencioglu, 2016Degirmencioglu N. 2016. Modern Techniques in the Production of Table Olives. in Boskou D, Clodoveo ML, (Ed.) Products from Olive Tree. IntechOpen, pp. 215-234. https://doi.org/10.5772/64988 ). It has also been reported that vinegar may be added to the brine solution to preserve the olives, adjust the pH, and impart a particular flavor (Colmagro, 2001Colmagro S, Collins G, Sedgley M. 2001. Processing Technology of the Table Olive. in Jules J, (Ed.) Horticultural Reviews. John Wiley and Sons, Inc, pp. 235-242. https://doi.org/10.1002/9780470650783.ch5 ). Thus, following our research, it seemed appropriate to consider three species of microorganisms: Lactobacillus plantarum S1, Saccharomyces cerevisiae LD01 and Acetobacter pasteurianus KU710511 CV01 isolated from Morocco (Mounir et al., 2016aMounir M, Belgrire M, Lahnaoui S, Hamouda A, Thonart P, Delvigne F, Ismaili Alaoui M. 2016a. Maîtrise de la fermentation alcoolique sous stress éthanolique, thermique et osmotique de la souche Saccharomyces cerevisiae YSDN1 en vue de la préparation du vinaigre de fruits. Rev. Marocaine Sci. Agron. Vétérinaires 4, 86-95.; Mounir et al., 2016bMounir M, Shafiei R, Zarmehrkhorshid R, Hamouda A, Thonart P, Delvigne F, Ismaili Alaoui M. 2016b. Optimization of biomass production of Acetobacter pasteurianus KU710511 as a potential starter for fruit vinegar production. African J. Biotechnol. 15, 1429-1441. https://doi.org/10.5897/AJB2016.15323 ; Mounir et al., 2016cMounir M, Shafiei R, Zarmehrkhorshid R, Hamouda A, Ismaili Alaoui M, Thonart P. 2016c. Simultaneous production of acetic and gluconic acids by a thermotolerant Acetobacter strain during acetous fermentation in a bioreactor. J. Biosci. Bioeng. 121, 166-171. https://doi.org/10.1016/j.jbiosc.2015.06.005 ; Mounir et al., 2018Mounir M, Fauconnier ML, Afechtal M, Thonart P, Ismaili Alaoui M, Delvigne F. 2018. Aroma profile of pilot plant-scale produced fruit vinegar using a thermo-tolerant Acetobacter pasteurianus strain isolated from Moroccan cactus. Acetic Acid Bact. 7, 1-11. https://doi.org/10.4081/aab.2018.7312 )
The overall objective of our work was to develop a method for the preparation of natural table olives using locally selected microorganisms and without resorting to the usual techniques. This objective involves optimizing the synergy conditions between the selected microorganisms. To do this, ten tests were carried out (on washed and sorted olives) so that we could study the effect of the de-bittering, the effect of inoculation by yeasts, the effect of the substitution of organic acids with vinegar, the effect of the substitution of organic acids with acetic bacteria and finally the effect of alternating aeration. The monitoring of physicochemical and microbiological parameters and organoleptic evaluation were carried out to judge the quality of the olives produced.
2. MATERIALS AND METHODS
⌅2.1. Olives and microorganisms
⌅The olives used in our study were turning color olives of the Picholine Marocaine variety, collected from the region of Beni Mellal-Khenif (central Morocco), renowned for olive growing. The olives were kept in tap water during transport from the places where they were collected to the laboratory to avoid degradation. The microorganisms chosen to carry out this study were: a) Acetobacter pasteurianus KU710511 (CV01) isolated by Mounir et al., (2016c)Mounir M, Shafiei R, Zarmehrkhorshid R, Hamouda A, Ismaili Alaoui M, Thonart P. 2016c. Simultaneous production of acetic and gluconic acids by a thermotolerant Acetobacter strain during acetous fermentation in a bioreactor. J. Biosci. Bioeng. 121, 166-171. https://doi.org/10.1016/j.jbiosc.2015.06.005 from cactus; b) Lactobacillus plantarum S1 isolated by Mounir et al., from olive brine in 2016Mounir M, Belgrire M, Lahnaoui S, Hamouda A, Thonart P, Delvigne F, Ismaili Alaoui M. 2016a. Maîtrise de la fermentation alcoolique sous stress éthanolique, thermique et osmotique de la souche Saccharomyces cerevisiae YSDN1 en vue de la préparation du vinaigre de fruits. Rev. Marocaine Sci. Agron. Vétérinaires 4, 86-95.; and c) Saccharomyces cerevisiae LD01 isolated from Bouslikhen variety dates by Mounir et al., (2016a)Mounir M, Belgrire M, Lahnaoui S, Hamouda A, Thonart P, Delvigne F, Ismaili Alaoui M. 2016a. Maîtrise de la fermentation alcoolique sous stress éthanolique, thermique et osmotique de la souche Saccharomyces cerevisiae YSDN1 en vue de la préparation du vinaigre de fruits. Rev. Marocaine Sci. Agron. Vétérinaires 4, 86-95..
2.2. Criteria for physico-chemical parameters
⌅In order to compare the effect of aeration on the quality and duration of the fermentation process, two types of fermentation (aerobic and anaerobic) were studied. In addition, optimal conditions for the synergy among the three strains selected for this study (LAB, yeast and AAB) were assessed. Aerobic fermentation was achieved by introducing a central column into the vessel containing the brine and olives and through which the air bubbles were introduced to evacuate the CO2 produced during fermentation (Sánchez Gómez et al., 2006Sánchez Gómez AH, García García P, Rejano Navarro L. 2006a. Trends in table olive production Elaboration of table olives. Grasas Aceites 57 (1), 86-94. https://doi.org/10.3989/gya.2006.v57.i1.24 ). According to Sánchez Gómez et al., (2006)Sánchez Gómez AH, García García P, Rejano Navarro L. 2006a. Trends in table olive production Elaboration of table olives. Grasas Aceites 57 (1), 86-94. https://doi.org/10.3989/gya.2006.v57.i1.24 , LAB grow under these conditions only when the salt concentration is less than 8%.
Due to bubbling air, the flow was controlled by a flowmeter adapted to the air inlet of a fermenter. Usually, the flow is fixed on the basis of past experience. When the active fermentation is complete (3-4 months), aeration is necessary only if the CO2 concentration and brine volume increase during the treatment (Sánchez Gómez et al., 2006Sánchez Gómez AH, García García P, Rejano Navarro L. 2006a. Trends in table olive production Elaboration of table olives. Grasas Aceites 57 (1), 86-94. https://doi.org/10.3989/gya.2006.v57.i1.24 ).
2.3. Implementation of the tests
⌅The olives were first washed and sorted to remove any damaged fruits. The experimental design was set up to study the effect of de-bittering, the effect of inoculation by yeasts, the effect of acid substitution with vinegar, the effect of acid substitution with acetic bacteria, and finally the effect of alternating aeration. The tests were compared to the conditions used in the industry and to those of artisanal fermentations in order to have a basis for comparison as described by (Kailis and Harris, 2007Kailis S, Harris DJ. 2007. Producing table olives, Landlinks Press. https://doi.org/10.1071/9780643094383 ; El-Khaloui and Rahmani, 2012El-Khaloui M, Rahmani M. 2012. Ypicité des préparations traditionnelles d’olives de table dans la province d’Ouazzane. Transfert de Technologie en Agriculture 197, 1-5.) (Table 1). The tests were carried out separately in glass vessels with one kg of olives brined in 2 liters of brine. Before inoculation into pilot fermentations, S. cerevisiae LD01 were grown in YPD broth at 30 °C aerobically for 48 h and L. plantarum S1 were grown in MRS broth at 30 °C aerobically for 24-36 h. YPD had the following composition: glucose 20 g; casein peptone 10 g; yeast extract 5 g and 1000 ml of distilled water. 100 mg of chloramphenicol were added to the medium to inhibit bacterial growth (Beuchat 1992Beuchat LR. 1992. Media for detecting and enumerating yeasts and moulds. Int. J. Food Microbiol. 17, 145-158. https://doi.org/10.1016/0168-1605(92)90112-G ). GYEA medium was used to cultivate the AAB strain and was composed of 20 g/L glucose, 5 g/L yeast extract, 5 g/L peptone of casein, 3% (w/v) ethanol and 1% (w/v) acetic acid (Mounir et al., 2016cMounir M, Shafiei R, Zarmehrkhorshid R, Hamouda A, Ismaili Alaoui M, Thonart P. 2016c. Simultaneous production of acetic and gluconic acids by a thermotolerant Acetobacter strain during acetous fermentation in a bioreactor. J. Biosci. Bioeng. 121, 166-171. https://doi.org/10.1016/j.jbiosc.2015.06.005 ). The cells were then collected by centrifugation at 13000 rpm at 4 °C and washed twice in saline solution (0.85% NaCl) (Zaragoza et al., 2017Zaragoza J, Bendiks Z, Tyler C, Kable ME, Williams TR, Luchkovska Y, Chow E, Boundy-Mills K, Marco ML. 2017. Effects of Exogenous Yeast and Bacteria on the Microbial Population Dynamics and Outcomes of Olive Fermentations. MSphere 2, 1-14. https://doi.org/10.1128/mSphere.00315-16 ). The yeast and bacteria cells were adjusted to 109 cells/ml prior to inoculation into the olive brines. Then, the brine was inoculated to reach an estimated 105-106 cells/mL of each strain (inoculation with about 0.75% of seed cultures).
Code | Test name | Conditions | References |
---|---|---|---|
A | Industrial test |
| |
B | Traditional test | El-Khaloui and Rahmani 2012El-Khaloui M, Rahmani M. 2012. Ypicité des préparations traditionnelles d’olives de table dans la province d’Ouazzane. Transfert de Technologie en Agriculture 197, 1-5. | |
C | L1VS |
| |
D | L1V |
| |
E | L2V |
| |
F | L2VS |
| |
G | L3V |
| |
H | L3VS |
| |
I | L4V |
| |
J | L4VS |
|
2.3.1. Effect of de-bittering and vinegar suppletion on the fermentation process
⌅In this part of the experiment, the aim was to study the effect of lye treatment under anaerobic conditions as well as the effect of the acidification of the medium by the addition of 6% date vinegar. Samples were incubated at 30 °C. The lye treatment consisted of immersing the olives in a NaOH solution (2%-3.5% w/v), which penetrates up to two-thirds of the olive flesh (Fan and Hansen 2012Fan L, Hansen LT. 2012. Fermentation and biopreservation of plant-based foods with lactic acid bacteria. Handb. Plant-Based Fermented Food Beverage Technol. Second Ed., 35-48. https://doi.org/10.1201/b12055-5 ). The lye treatment was followed by several water washings of the fruits with tap water to remove the residual lye and then the fermentation continued in the brine with 10.6% of NaCl under a pH adjusted to 3.5 using vinegar. Then the samples were divided into two groups: a group seeded both by L. plantarum S1 LAB strain (0.75%) and S. cerevisiae LD01 strain (0.75%) (Zaragoza et al., 2017Zaragoza J, Bendiks Z, Tyler C, Kable ME, Williams TR, Luchkovska Y, Chow E, Boundy-Mills K, Marco ML. 2017. Effects of Exogenous Yeast and Bacteria on the Microbial Population Dynamics and Outcomes of Olive Fermentations. MSphere 2, 1-14. https://doi.org/10.1128/mSphere.00315-16 ) and a group seeded solely by the LAB strain (0.75%). A control test was designed by reproducing the same conditions described previously except for the lye treatment.
2.3.2. Effect of inoculation with Acetobacter pasteurianus KU710511 AAB strain under alternated aeration conditions
⌅The purpose of this part of the study is to highlight the effect of alternating aeration (aeration by air bubbling for eight hours a day) on the synergy among the three microorganisms used (LAB, AAB and yeast), investigated in vitro (in 6% brine) with different fermentation media (Table 1). The first assay was conducted under the optimal conditions of Acetobacter pasteurianus KU710511 AAB strain, namely: ethanol: 28.18 g/L acetic acid: 10.12 g/L, glucose 15.15 g/l and pH: 5.33 as reported by Mounir et al., (2016c)Mounir M, Shafiei R, Zarmehrkhorshid R, Hamouda A, Ismaili Alaoui M, Thonart P. 2016c. Simultaneous production of acetic and gluconic acids by a thermotolerant Acetobacter strain during acetous fermentation in a bioreactor. J. Biosci. Bioeng. 121, 166-171. https://doi.org/10.1016/j.jbiosc.2015.06.005 . The second assay was designed to ensure the optimal growth conditions of the Saccharomyces cerevisiae LD01 strain. The growth of the yeast strain was favored by the supplementation of the culture medium with glucose at a rate of 3 g/L.
2.4. Fermentation monitoring
⌅2.4.1. Physico-chemical analysis
⌅pH: was determined using a pH-meter “Eutech pH 1500”, next to a benzene beak. The pH was measured directly in the fermentation brine by rinsing the electrode with sterile distilled water between each of two determinations.
Titratable acidity : It was expressed as a percentage of lactic acid in the broth. It was determined by acid base titration using N/9 sodium hydroxide solution in the presence of phenolphthalein as a colored indicator.
Determination of chloride : NaCl content was determined by titration of the concentration of the chloride ion in the brine according to Mohr’s method (Sheen and Kahler 1938Sheen HT, Kahler HL. 1938. Effect of ions on Mohr method for chloride determination. Ind. Eng. Chem. Anal. Ed. 10, 628-629. https://doi.org/10.1021/ac50127a004 ).
Determination of oleuropein : Prior to chromatographic analysis, the samples were prepared as follows: 1.5 g of olive flesh were mixed with 20 ml of an 80:20 (v/v) solution of methanol/water. The mixture was homogenized and then centrifuged at 3000 rpm for 5 min. The supernatant was then filtered through a filter paper and then passed through a 0.2 μm supplementary filter. 20 μl of the extract were then injected into the HPLC following a method inspired by Tayoub et al., (2012)Tayoub G, Sulaiman H, Hassan AH, Alorfi M. 2012. Determination of Oleuropein in leaves and fruits of some Syrian olive varieties. Int. J. Med. Aromat. Plants 2, 428-433.. Briefly, chromatographic separation was carried out with an LC system coupled to a diode array detector (DAD), using a reversed phase C18 column (250 × 4.6, 3.5 μm) at 35 °C. The mobile phase was a mixture of water, acetonitrile and formic acid in the following proportions, respectively (84.6: 15: 0.4). The flow rate of the mobile phase was 1 ml/min for an injection volume of 20 μL, with UV detection at 240 nm.
2.4.2. Microbiological analysis
⌅LAB, yeasts and AAB were counted using MRS (De MAN et al., 1960Man JC de, Rogosa M, Sharpe ME. 1960. A edium for the cultivation of Lactobacilli. J. Appl. Bacteriol. 23, 130-135. https://doi.org/10.1111/j.1365-2672.1960.tb00188.x ), YPD (Mounir et al., 2016a)Mounir M, Belgrire M, Lahnaoui S, Hamouda A, Thonart P, Delvigne F, Ismaili Alaoui M. 2016a. Maîtrise de la fermentation alcoolique sous stress éthanolique, thermique et osmotique de la souche Saccharomyces cerevisiae YSDN1 en vue de la préparation du vinaigre de fruits. Rev. Marocaine Sci. Agron. Vétérinaires 4, 86-95. and GYEA (Mounir et al., 2016cMounir M, Shafiei R, Zarmehrkhorshid R, Hamouda A, Ismaili Alaoui M, Thonart P. 2016c. Simultaneous production of acetic and gluconic acids by a thermotolerant Acetobacter strain during acetous fermentation in a bioreactor. J. Biosci. Bioeng. 121, 166-171. https://doi.org/10.1016/j.jbiosc.2015.06.005 ) culture media, respectively. Enumeration was done after 24-48 hours incubation, by counting petri dishes with a number of colonies between 30 and 300.
2.5. Sensory evaluation of olives
⌅Sensory analysis was carried out on olive samples three days after the end of the experiment in order to classify them. Criteria such as external appearance, texture, odor and flavor were evaluated (Table 2). The sensory evaluation was carried out by a panel of 15 tasters composed of professors and students initiated into sensory food analysis (9 females, 6 males at 23-51 years of age), who consumed fermented table olives frequently. Before starting the evaluation, the panelists received a 2-h training session for the sensory evaluation of table olive products and the necessary explanations to carry out this part of the study. All samples were coded with random 3-digit numbers. Pieces of bread were used to restore the taste by reducing the bitter and acidic sensations between two tastings. Each consumer was provided with thirty plates (10 trials with 3 repetitions each) individually and separately, containing five fruits of each treatment of table olive (Rababah et al., 2019Rababah T. 2019. Sensory properties of green table olives prepared by different fermentation processes. CYTA - J. Food 17, 997-1005. https://doi.org/10.1080/19476337.2019.1693430 ). The sensory evaluation was facilitated using the answer sheet presented in the supplementary file 1.
Attribute | Level | Code * |
---|---|---|
External appearance | Good | AEB |
Normal | AEM | |
Bad | AEV | |
Firmness | Good | FM |
Normal | FN | |
Bad | FD | |
Odor | Good | OB |
Normal | OM | |
Bad | OV | |
Salty flavor | Good | SB |
Normal | SM | |
Bad | SV | |
Bitterness | Good | AmB |
Normal | AmM | |
Bad | AmV | |
Altered flavor | Good | AlB |
Normal | Alm | |
Bad | AlV |
* The code represents an abbreviation taking into account the nature of the sensory evaluation attribute and its level: AEB, AEM and AEV, good, normal and bad external appearance, respectively; FM, FN and FD, good, normal and bad firmness, respectively; OB, OM and OV, good, normal and bad odor, respectively; SB, SM and SB, good, normal and bad salty flavor, respectively; AmB, AmM and AmV, good, normal and bad bitterness, respectively; AlB, Alm and AlV, slightly, moderately and formally altered flavor
2.6. Statistical analysis of the results
⌅XLSTAT software (2018.3 version) was used to perform a Factorial Correspondence Analysis (FCA) on the sensory analysis results. FCA aims to study the connection or the correspondence between the qualitative characteristics of a contingency table through graphical representations. To do this, ten products noted A to J were prepared using different combinations (Table 1). To evaluate the quality among these products six attributes were used with three levels for each one (good, medium and bad) as depicted in Table 2.
3. RESULTS
⌅From more than 60 isolates, three microbial strains were selected to carry out experiments aimed at the preparation of natural table olives. These strains, namely : Lactobacillus plantarum S1, Saccharomyces cerevisiae LD01 and Acetobacter pasteurianus KU710511 (CV01) were identified using biochemical and molecular techniques and characterized in previous studies (Mounir et al., 2018Mounir M, Fauconnier ML, Afechtal M, Thonart P, Ismaili Alaoui M, Delvigne F. 2018. Aroma profile of pilot plant-scale produced fruit vinegar using a thermo-tolerant Acetobacter pasteurianus strain isolated from Moroccan cactus. Acetic Acid Bact. 7, 1-11. https://doi.org/10.4081/aab.2018.7312 ; Mounir et al., 2016aMounir M, Belgrire M, Lahnaoui S, Hamouda A, Thonart P, Delvigne F, Ismaili Alaoui M. 2016a. Maîtrise de la fermentation alcoolique sous stress éthanolique, thermique et osmotique de la souche Saccharomyces cerevisiae YSDN1 en vue de la préparation du vinaigre de fruits. Rev. Marocaine Sci. Agron. Vétérinaires 4, 86-95.; Mounir et al., 2016bMounir M, Shafiei R, Zarmehrkhorshid R, Hamouda A, Thonart P, Delvigne F, Ismaili Alaoui M. 2016b. Optimization of biomass production of Acetobacter pasteurianus KU710511 as a potential starter for fruit vinegar production. African J. Biotechnol. 15, 1429-1441. https://doi.org/10.5897/AJB2016.15323 ; Mounir et al., 2016cMounir M, Shafiei R, Zarmehrkhorshid R, Hamouda A, Ismaili Alaoui M, Thonart P. 2016c. Simultaneous production of acetic and gluconic acids by a thermotolerant Acetobacter strain during acetous fermentation in a bioreactor. J. Biosci. Bioeng. 121, 166-171. https://doi.org/10.1016/j.jbiosc.2015.06.005 ) The determination of chloride, titratable acidity, pH, and counts of LAB, yeasts and AAB were carried out using the methods described in the Material and methods section. Then, samples were presented to tasters to evaluate their organoleptic quality.

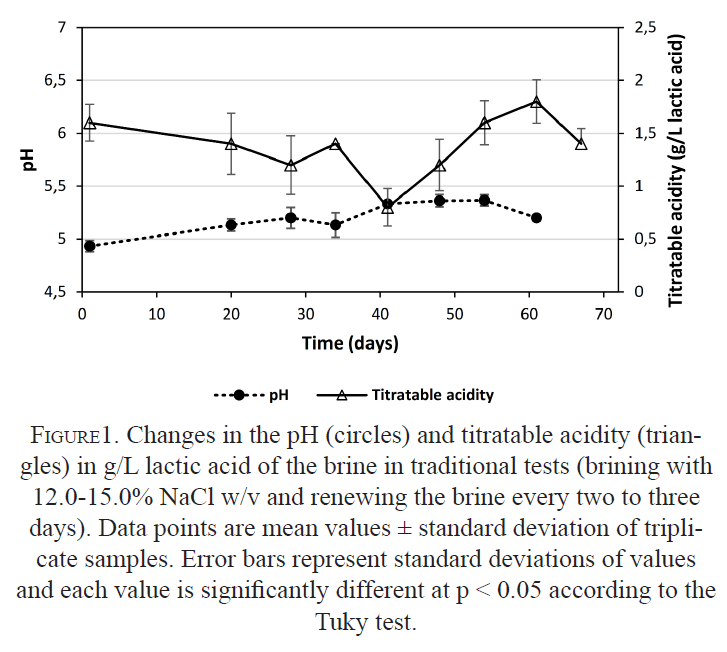

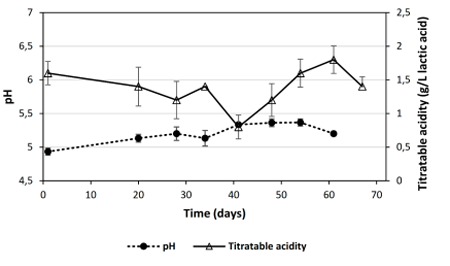

The Figure 1 shows that the pH of the traditional test remained between 5 and 5.5 throughout the experiment, with three relatively high values observed between the 40th and 55th day of the experiment. On the other hand, the titratable acidity, expressed in grams of lactic acid per liter started with an acidity of 1.7 at the beginning of the experiment, and gradually decreased to 0.09 g/l, as noted in the 40th day. Then it started to increase continuously to reach 1.75 in the last days of the experiment.

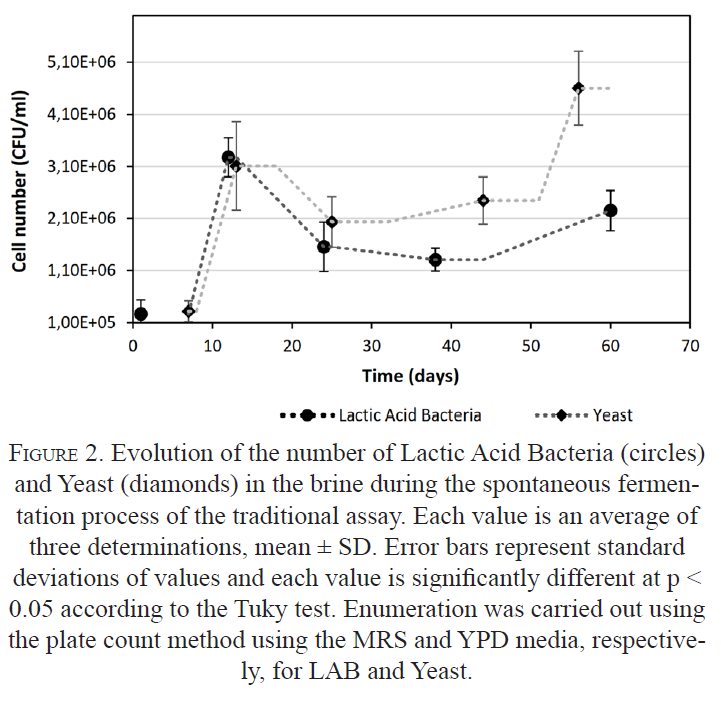

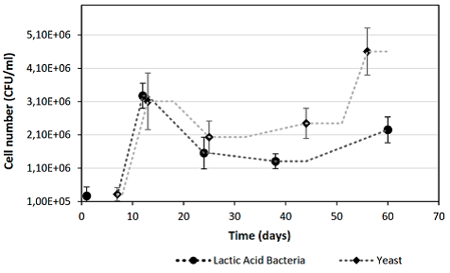

Figure 2 shows the evolution of the number of Lactic Acid Bacteria and Yeast in the brine during the spontaneous fermentation process of the traditional assay. This figure reveals that the evolution pattern of the concentration of the two types of microorganisms was similar. The two groups of microorganisms had an average value of 3.2·105 CFU/ml during the first days of the experiment. The graph also shows that the concentration of the two groups changed by increasing to exceed 3·106 CFU/mL on the 12th day, and decreased to around 2·106 CFU/mL between the 12th and 23th days. After that, the number of cells continued to increase slightly for the LAB strains; while the increase was much more significant for the yeast strains on the last 10 days to reach 4.7·106 CFU/mL at the end of the experiment.
3.1. Effect of de-bittering and vinegar suppletion on the fermentation process
⌅In this part of the study, de-bettering was performed with sodium hydroxide and two successive washes. After that, date vinegar, produced with the S. cerevisiae LD01 yeast strain along with the L. plantarum S1 LAB strain, was added to the 10.6% (w/v) NaCl brine, all anaerobically. Then, three flasks were inoculated with the LAB strain only and three others were inoculated both with the LAB and yeast strains. This test was not seeded by the AAB strain, so we did not count it.

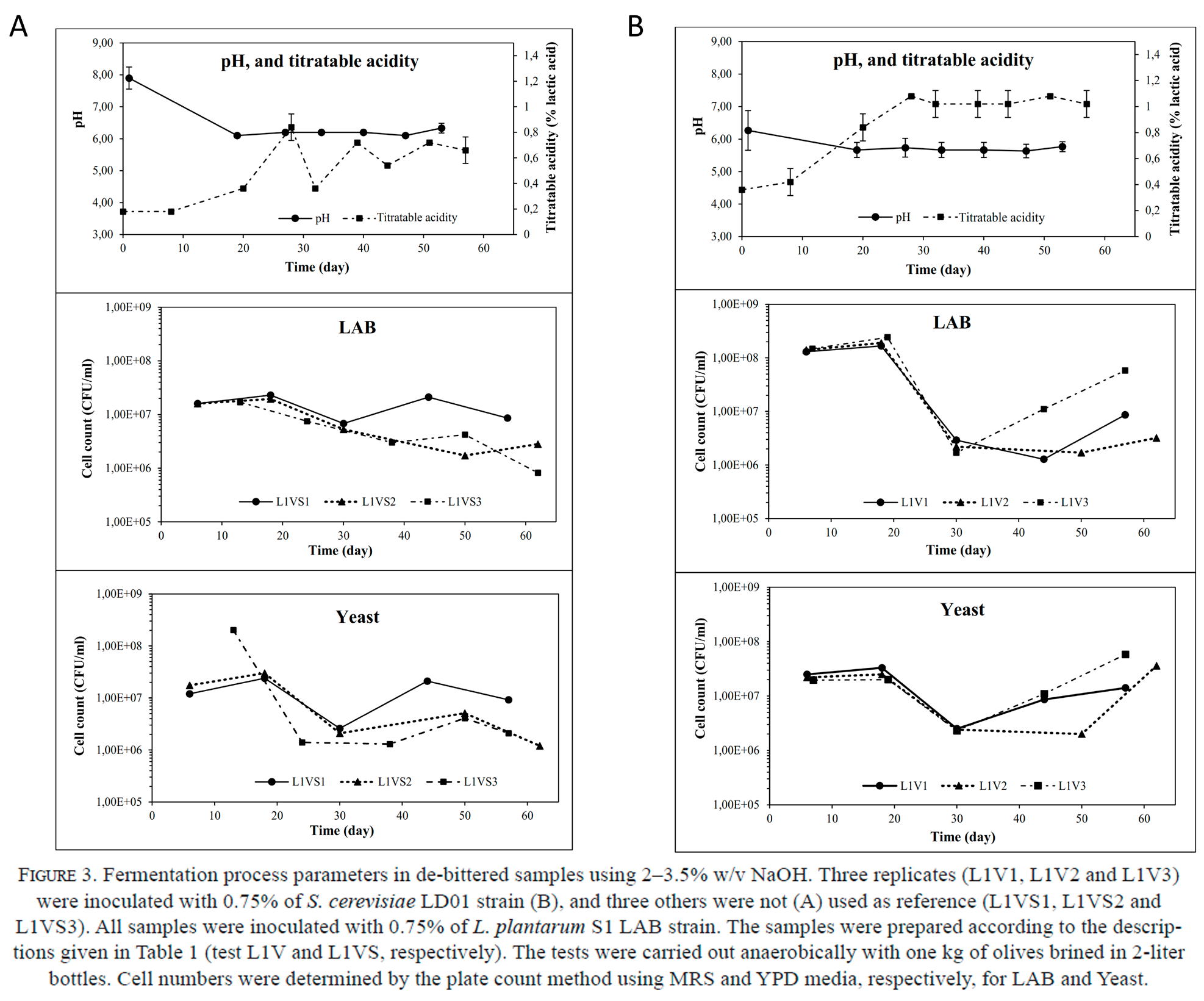

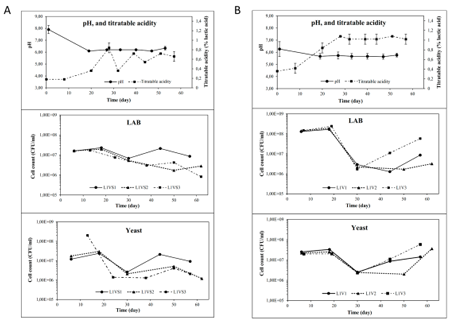

Figure 3 shows the effect of de-bittering on fermentation process parameters with and without inoculation with the S. cerevisiae strain. As can be seen from the graphs in Figure 3.A, the titratable acidity for samples not seeded by the S. cerevisiae strain was 0.2 g/L at the beginning of the experiment, then gradually increased to 0.8 g/L lactic acid on the 27th day and then varied at around 0.67 g/l until the end of the experiment. For inoculated samples with the S. cerevisiae strain (Figure 3.B), the pH started with a value of 6.2 at the beginning of the fermentation cycle, then the pH stabilized at 5.8. The titratable acidity started with a value of 0.4 g/L lactic acid and it then gradually increased from the 8th day to around 1 g/L to be stabilized at this value afterwards. In this assay, the microbial count of the three repetitions monitored separately showed the same trend, especially during the first thirty days. The average of the initial values for the LAB strain in inoculated samples (Figure 3.B) was quite high (1.4· 108 CFU/mL), and a very slight increase was observed up to the 18th day followed by a sudden drop until the 30th day to be close to a concentration of 106 CFU/ml. A slight increase occurred during the last 30 days to reach a maximum value of 5.8 107 CFU/ml for the third repetition and around 5.9·106 CFU/mL for the other two replicates (Figure 3.B).
On the other hand, Figure 3.B shows that the S. cerevisiae LD01 strain experienced similar growth for the 3 replicates, with an average concentration of 2.2·107 CFU/mL, which remained more or less stable until the 20th day, followed by a decrease in concentration to arrive at 2.4·106 CFU/mL. After that, the three repetitions experienced an increase in concentration with slopes that differed between each repetition to reach the end of the experiment at an average value of 3.6 107 CFU/mL. However, Figure 3.A shows that the LAB strain had an average growth value of 107 CFU/mL at the beginning of the experiment, with a concentration of 2·108 CFU/mL on the 13th day for the third repetition. The concentration remained approximately at an average of 5 106 CFU/mL, then dropped slightly for the 3 samples to reach 9·106, 1.2·106 and 2.1·106 CFU/mL for the three repetitions, respectively. Figure 3.A also shows that the yeast concentration of the first repetition showed an overall decrease from 1.65·107 CFU/mL to reach 8.6·106, 2.80·106 and 8.2·105 CFU/mL, repetitively, for repetitions 1, 2 and 3.

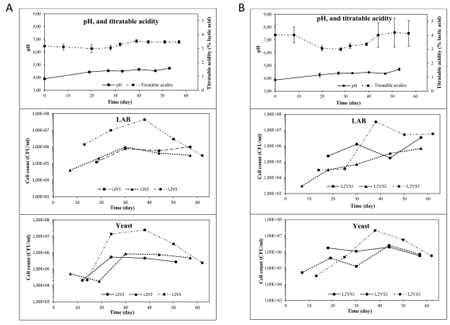

The second experiment was conducted with acidification of the brine with 10.6% (m/v) date vinegar produced in the lab using the selected yeast and AAB strains. The fermentation was carried out under anaerobic conditions. Three flasks were inoculated with the LAB strain (L2V1, L2V2 and L2V3) and three others were inoculated with the LAB and yeast strains (L2VS1, L2VS2, L2VS3). Microbiological counting of this test gave no results for lactic acid bacteria and yeasts during the first days of the experiment.

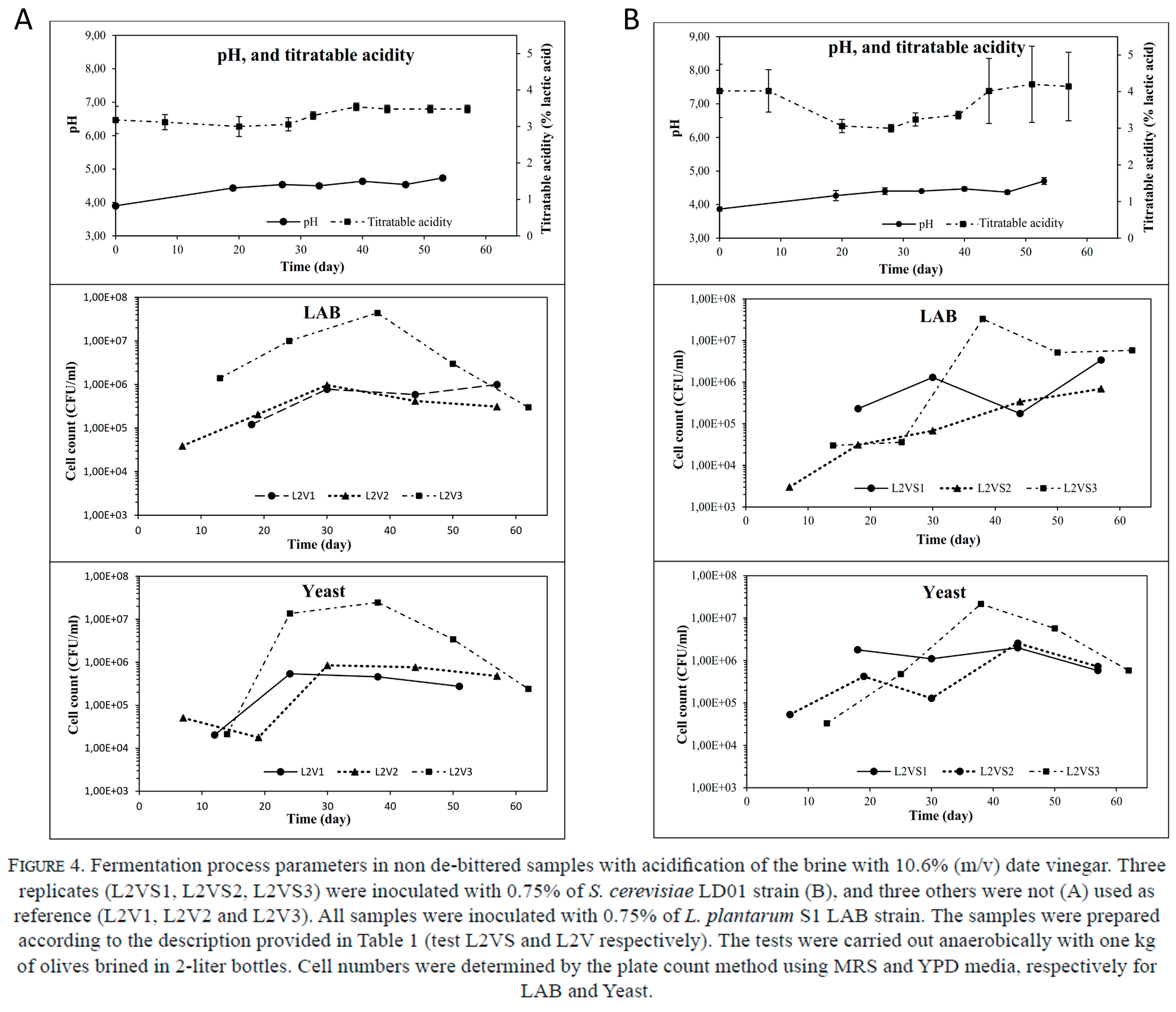

In samples not inoculated with S. cerevisiae (Figure 4.A), the starting pH was 3.9, which was adjusted by the addition of vinegar, then the pH increased to an average value of 4.5 on the 19th day. Then, from the 20th day, the pH fluctuated between 4.5 and 5 until the end of the experiment. For titratable acidity, the average starting value was 3.18 g/L lactic acid, and it then slightly decreased until the 28th day with 3.00 g/l and then stabilized at an average value of 3.50 g/l. For microbial growth, the curves obtained for the three repetitions did not keep the same pace. However, we noticed that there was a slightly positive effect on the growth of LAB but an insignificant effect on the growth of endogenous yeasts (Figure 4).
3.2. Alternated aeration effect on microbial growth in the brine of naturally fermented olives
⌅The olives of this test were prepared in brine at 6% (w/v) NaCl under the optimal conditions of A. pasteurianus KU710511 strain with alternating aeration at a rate of 0.2xV/h and 8 hours per day. Three flasks were seeded with LAB and AAB strains (L3V1, L3V2, L3V3) and three others with LAB, AAB and the yeast strains (L3VS1, L3VS2, L3VS3).

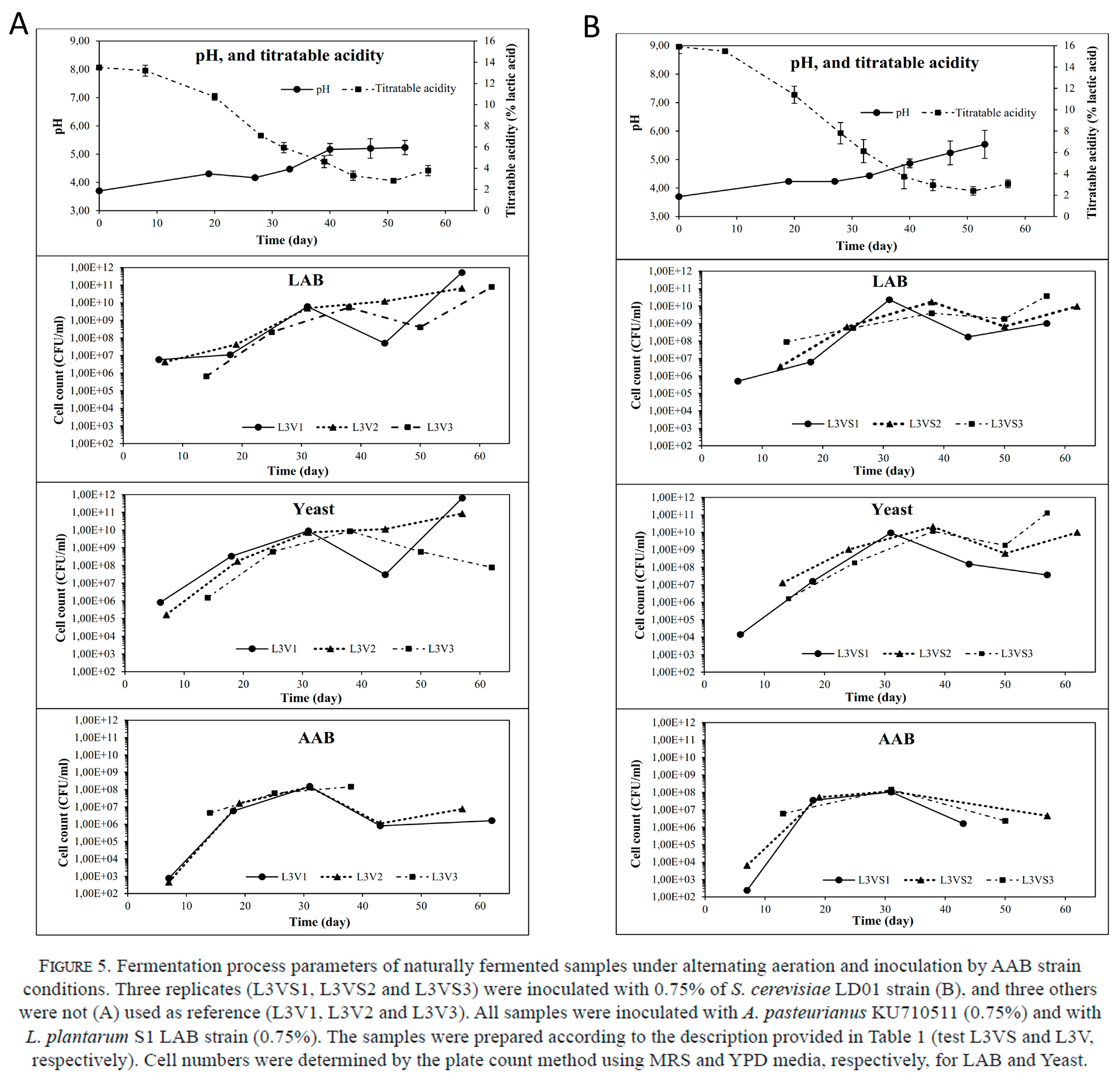

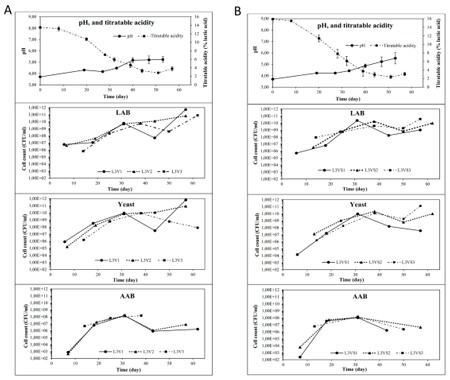

A shown in Figure 5A, the pH was around 3.9 during the first 28 days, and increased substantially to be stabilized at around 5.2 from day 40. The acidity started with an average value of 13.5 g/L of lactic acid and dropped significantly and stabilized at an average of 3 g/L. The pH was around 3.9 during the first 28 days for samples that were inoculated with the yeast strain (Figure 5.B), and increased significantly to about 5.5 by the end of the experiment. The acidity started with an average value of 16 g/L of lactic acid and dropped significantly and stabilized at an average value of 2.9.
We also noted that during the first days of the experiment, the yeasts showed an average growth of 8.35·105 CFU/mL and then increased to around 8·109 CFU/mL. Subsequently, the yeasts of L3V1 fell to 3·107 CFU/mL on the 44th day, increasing to 6.4·1011 CFU/mL 13 days later. Those of L3V2 continued their progressive rise to arrive at 8.5 1010 UFC/mL towards the end (57th day). L3V3 peaked on the 38th day at 8.7·109 and dropped to 7.8·107 CFU/mL on day 62. Whereas, the LAB strain exhibited a growth of approximately 5·106 CFU/ml at the beginning of the experiment, then gradually increased to an average value of 2.21·1011 CFU/mL towards the end of the experiment with an intermediate increase at around 5.8·109 CFU/mL on day 31 for L3V1 and on day 38 for L3V3. On the other hand, the AAB strain started at very low concentrations (about 103 CFU/mL), and subsequently increased to around 108 CFU/mL by the 30th day. Subsequently, the concentration decreased to be stable at 5·106 CFU/mL from the 42nd day to the end of the experiment.
However, Figure 5B shows that the yeast strain showed a growth of 1.4·104 CFU/mL for the L3VS1 test at day 6. As for the L3VS2 and L3VS3 repetitions, the first determination made on the 13th day gave an average of 7.2·106 CFU/mL. Subsequently, the L3VS2 and L3VS3 replicates ranged from around 5·109 CFU/mL; while L3VS1, after reaching a maximum of 9.3 109 CFU/ml, gradually decreased to 3.7·107 CFU/mL at the 57th day. The LAB strain had a cell concentration of approximately 5·105 CFU/mL at the beginning of the experiment, then gradually increased to an average value of approximately 1.62·1010 CFU/mL towards the end of the experiment with an intermediate increase to around 1.5·1010 CFU/mL on the 36th day. Finally, the AAB strain started at very low concentrations (about 103), and subsequently increased to around 108 by the 30th day. Subsequently the concentration decreased to be stable at 3.5·106 CFU/mL towards the end of the experiment.
3.3. Organoleptic evaluation of produced olives

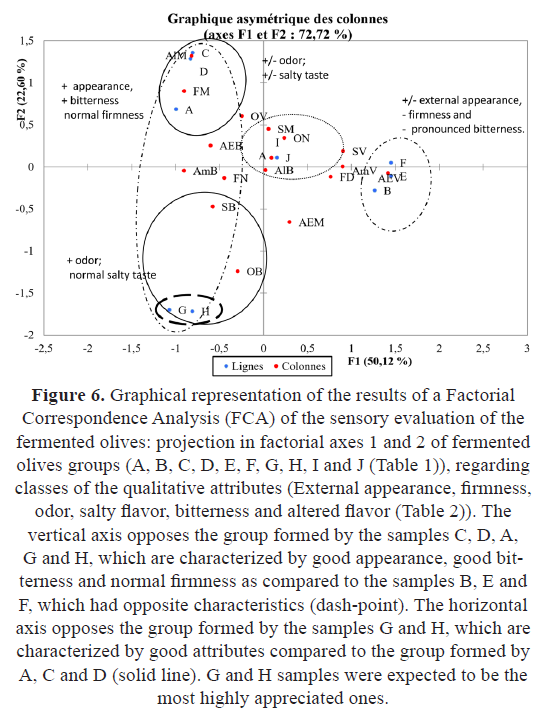

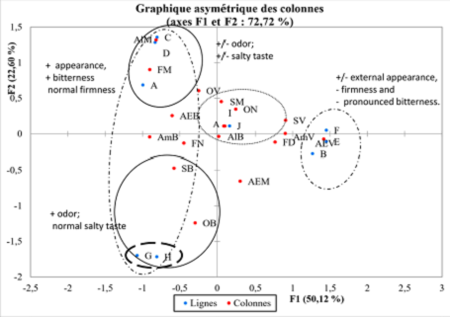

⌅The contingency table (supplementary file 2) contains the frequencies of the tasters who noted the different quality criteria of the samples by classifying them as “good”, “medium” or “bad”. Criteria were then subjected to Factorial Correspondence Analysis. The calculation of eigenvalues indicates that the variation shares explained by axis 1 and axis 2 were 50.1% and 22.6%, respectively. The main plane constituted by these two axes therefore alone accounted for 72.7% of the total variation of the cloud of points (Figure 6). The projection of the line points (10 samples) and the column points (quality criteria) in the main plane is shown in Figure 6. Examination of this figure indicates that:
The vertical axis F2 opposes the group formed by the samples C, D, A, G and H characterized by good appearance, good bitterness and quite normal firmness to the samples B, E and F, which have opposite characteristics, namely a normal to bad external appearance, a hard firmness and a quite pronounced bitterness. The horizontal axis F1 opposes the group formed by the samples G and H, characterized by a good smell and a normal salty flavor compared to the group formed by A, C and D, which is characterized by a normal to bad odor and a medium to bad salty flavor. Samples I and J were close to the center and are therefore not very well presented by this plan. However, it can be said that they have good appearance with a good smell to bad, fairly strong bitterness and hard firmness.
4. DISCUSSION
⌅In this study, four different combinations were applied to the “Picholine marocaine” olive variety using indigenous strains, namely Lactobacillus plantarum S1, Saccharomyces cerevisiae LD01 and Acetobacter pasteurianus KU710511 (CV01).
First, we noted that the greater or lesser variability between the repetitions of the same test at the level of the microbiological characteristics can be due to the moment of analysis. Since these were not carried out at the same time for the three repetitions (considering our human and material resources), we opted for the separation of repetitions over time by taking all the necessary precautions (operator, material and environment effects).
The traditional test was the only one where the brine was changed regularly (every three days), which may explain the variability in the microbiological results of the three repetitions, and also the fact that the pH alternatively varied from around 5.3 throughout the experiment. This behavior was also observed for titratable acidity. We also noted that the increase in microbial count, both for LAB and yeast strains, was not very pronounced since after a first value of about 2·105 CFU/mL there was an increase to reach 106 CFU/mL, then there was stagnation around this value throughout the experiment.
Results found by Zaragoza et al., (2017)Zaragoza J, Bendiks Z, Tyler C, Kable ME, Williams TR, Luchkovska Y, Chow E, Boundy-Mills K, Marco ML. 2017. Effects of Exogenous Yeast and Bacteria on the Microbial Population Dynamics and Outcomes of Olive Fermentations. MSphere 2, 1-14. https://doi.org/10.1128/mSphere.00315-16 revealed that the introduction of exogenous spoilage yeast and LAB into olive fermentations caused significant but distinct alterations in the numbers and diversity of microbes associated with the olives and brines. According to the microbial evolution of tests 1 and 2 (Table 1), we noted that the acidity had a more severe effect on the microbial concentration than the basicity, indeed this concentration was very weak or even null in the first days of experiment for test 2 (supplemented by vinegar). Whereas for test 1, where pH values were around 6 to 7 (because of NaOH residues), the population was relatively high and even reached 108 CFU/mL at the beginning of the experiment but dropped gradually after a few days.
We also noted that alternate aeration increased the concentration of the LAB and the yeast strains, since for the anaerobic tests, it did not exceed 107 CFU/ml; whereas for tests 3 and 4 (alternating aeration) it reached 1011 CFU/mL. A possible relationship between LAB and yeasts during the fermentation of olives in brine was reported by (Heperkan 2013Heperkan D. 2013. Microbiota of table olive fermentations and criteria of selection for their use as starters. Front. Microbiol. 4, 1-11. https://doi.org/10.3389/fmicb.2013.00143 ). In addition to the LAB usually used in this kind of fermentation, the use of Saccharomyces cerevisiae yeast as a starter is justified by the role that it can play in the fermentation of olives by producing ethanol, ethylacetate, acetaldehyde and other compounds responsible for the development of olive flavors (Ciafardini and Zullo, 2019Ciafardini G, Zullo BA. 2019. Use of selected yeast starter cultures in industrial-scale processing of brined Taggiasca black table olives. Food Microbiol. 80, 103250. https://doi.org/10.1016/j.fm.2019.103250 ; Fernandez Escobar et al., 2013Fernandez Escobar R, de la Rosa R, Leon L. 2013. Evolution and sustainability of the olive production systems. Options Méditerranéennes. Séries A Mediterr. Semin. 106, 11-41.).
On the other hand, it was demonstrated that fermentation in altered aeration mode, served to modify the metabolic pathway of L. plantarum by promoting the conversion of lactate into acetate (Bobillo and Marshall 1991Bobillo M, Marshall VM. 1991. Effect of salt and culture aeration on lactate and acetate production by Lactobacillus plantarum. Food Microbiol. 8, 153-160. https://doi.org/10.1016/0740-0020(91)90008-P ). Indeed, acetic acid can inhibit the growth of gram-negative strains which are responsible for the degradation of table olives during storage (Makras and De Vuyst 2006Makras L, De Vuyst L. 2006. The in vitro inhibition of Gram-negative pathogenic bacteria by bifidobacteria is caused by the production of organic acids. Int. Dairy J. 16, 1049-1057. https://doi.org/10.1016/j.idairyj.2005.09.006 ). In addition, this process allowed us to use lower concentrations of NaCl (6% w/v) compared to the concentrations used in anaerobic fermentations (10 to 15% w/v). Reducing salt in the processing of olives is always a goal. In fact, a diet that is low in sodium and high in potassium and calcium is recommended to lower blood pressure and to protect against osteoporosis, colon cancer, and cardiovascular diseases (Degirmencioglu, 2016Degirmencioglu N. 2016. Modern Techniques in the Production of Table Olives. in Boskou D, Clodoveo ML, (Ed.) Products from Olive Tree. IntechOpen, pp. 215-234. https://doi.org/10.5772/64988 ).
The combination of alternating aeration, the use of optimal growth conditions of the AAB strain and the chosen NaCl concentration served to create a synergy among the three strains which led to the elaboration of table olives with very good organoleptic quality and in a fairly short time (40 days).
On the other hand, for test 4, the use of alternating aeration with the same NaCl concentration as test 3 was not sufficient to obtain good olives after 60 days of fermentation. This finding suggests that this trial required more time, despite the high LAB and yeast populations (of the same order of magnitude as in test 3), suggesting that the AAB strain plays a vital role in the success of fermentation by creating the synergy necessary to obtain table olives with good sensory quality in a relatively short time. Indeed, aerobic fermentation is generally used to avoid the appearance of a deterioration called “gaseous pockets” which is manifested by the swelling of the skin caused by accumulation of gas under the epidermis of the olive (Lanza 2013Lanza B. 2013. Abnormal fermentations in table-olive processing: Microbial origin and sensory evaluation. Front. Microbiol. 4, 1-7. https://doi.org/10.3389/fmicb.2013.00091 ). In addition, AAB strain could adjust the acidity of the medium and thus promote the onset of fermentation by providing yeasts and lactic acid bacteria with favorable conditions for their development by continuously eliminating the ethanol produced by the yeast and thus maintaining an acceptable level of pH by producing acetic acid (Hammoucha and Taleb, 2017Hammoucha J, Taleb O. 2017. Contribution à l’amélioration des conditions de fermentation des olives de table. Institut Agronomique et Vétérinaire Hassan II, Rabat. Maroc).
Concerning the industrial test, lye de-bettering resulted in olives without bitterness and a good appearance, although the texture was judged as normal to soft. On the other hand, the L3V test led to both a very good taste, a normal texture and a salinity which was very much appreciated compared to the industrial test.
5. CONCLUSION
⌅The objective of the work was to contribute to the development of a method for the preparation of natural table olives using locally selected microorganisms and without resorting to chemical additives. The effects of the parameters, essentially inoculation with Lactobacillus plantarum S1, Saccharomyces cerevisiae LD01 and Acetobacter pasteurianus KU710511 strains and alternating aeration were assessed. The samples were inoculated with pure suspensions of these microorganisms and then monitored over time using the plate count method. Only molecular analyses could provide accurate data on the survival of the selected starters during fermentation, but the inoculated tests by selected strains most likely contributed to reach those CFU/ml numbers as they were inoculated in a high number at the beginning of the fermentations.
It has been reported previously that acetic acid, the main product of oxidative fermentation by AAB in ethanol, is a compound that has a positive correlation with the growth of yeasts and could have an accelerating effect on LAB growth (Pino et al., 2018Pino A, De Angelis MD, Todaro A, Van Hoorde KV, Randazzo CL, Caggia C. 2018. Fermentation of Nocellara Etnea table olives by functional starter cultures at different low salt concentrations. Front. Microbiol. 9. https://doi.org/10.3389/fmicb.2018.01125 ). The results obtained served to confirm that the aerobic fermentation normally used for the elimination of the deterioration of table olives due to “gas pockets” can also be used to create the conditions necessary for the introduction of the acetic acid bacteria which are strict aerobes in the fermentation process of the olives. In addition, alternated aeration conditions allowed for increasing the cell biomass during fermentation and the use of a lower concentration of NaCl compared to anaerobic fermentation.
The microbiological, physicochemical and sensory analyses carried out demonstrated the possibility of introducing a new process for producing natural table olives. In this method, we used a starter composed of two strains, namely Acetobacter pasteurianus KU710511 (CV01) and Lactobacillus plantarum S1 under the optimal conditions of AAB growth as reported by Mounir et al., (2016b)Mounir M, Shafiei R, Zarmehrkhorshid R, Hamouda A, Thonart P, Delvigne F, Ismaili Alaoui M. 2016b. Optimization of biomass production of Acetobacter pasteurianus KU710511 as a potential starter for fruit vinegar production. African J. Biotechnol. 15, 1429-1441. https://doi.org/10.5897/AJB2016.15323 with 6% NaCl and alternating aeration of 8 hours/day.
