Application of MOFs and natural clays for removal of MCPD and GEs from edible oils

2.1. Materials

The seven different MOFs used in this study were synthesized and characterized in our laboratory. These MOFs were as follows: titanium (IV) butoxide-terephthalate MOF (Ti-MOF), synthesized according to Vlasova et al., (2016)Vlasova EA, Yakimov SA, Naidenko EV, Kudrik EV, Makarov SV. 2016. Application of metal-organic frameworks for purification of vegetable oils. Food Chem. 190, 103-109. http://dx.doi.org/10.1016/j.foodchem.2015.05.078.; gamma-cyclodextrine-potassium hydroxide MOF (γ-CD-MOF), synthesized by the method described in Moussa et al., (2016)Moussa Z, Hmadeh M, Abiad MG, Dib OH, Patra D. 2016. Encapsulation of curcumin in cyclodextrin-metal organic frameworks: Dissociation of loaded CD-MOFs enhances stability of curcumin. Food Chem. 212, 485-494. https://doi.org/10.1016/j.foodchem.2016.06.013.; chrome nitrate-terephthalate MOF (Cr-MOF), synthesized by the method of Li et al. (2015)Li N, Zhang L, Nian L, Cao B, Wang Z, Lei L, Yang X, Sui J, Zhang H, Yu A. 2015. Dispersive micro-solid-phase extraction of herbicides in vegetable oil with metal-organic framework MIL-101. J. Agric. Food Chem. 63, 2154-2161. https://doi.org/10.1021/jf505760y.; aluminum chlorate-terephthalate MOF (Al-MOF), synthesized by the method of Ma et al. (2014)Ma Y, Lin J, Xue Y, Li J, Huang Y, Tang C. 2014. Acid-assisted hydro thermal synthesis and adsorption properties of high-specific-surface metal-organic frameworks. Mater. Lett. 132, 90-93. https://doi.org/10.1016/j.matlet.2014.06.025.; zinc nitrate-2,5-furandicarboxylicacid MOF (Zn-MOF), synthesized according to Bu et al. (2012)Bu F, Lin Q, Zhai Q, Wang L, Wu T, Zheng S-T, Bu X, Feng P. 2012. Two zeolite-type frameworks in one metal-organic framework with Zn24@Zn104 cube-in-sodalite architecture. Angew. Chem. Int. Ed. Engl. 51, 8538-8541. https://doi.org/10.1002/anie.201203425.; magnesium-MOF (Mg-MOF), synthesized by the method described in Spanopoulos et al., (2015)Spanopoulos I, Bratsos I, Tampaxis C, Kourtellaris A, Tasiopoulos A, Charalambopoulou G, Steriotis TA, Trikalitis PN. 2015. Enhanced gas-sorption properties of a high surface area, ultramicroporous magnesium formate. Cryst. Eng. Comm. 17, 532-539. https://doi.org/10.1039/C4CE01667J.; and zinc-2-methylimidazole zeolitic-type MOF (ZIF-8-MOF), synthesized according to Park et al. (2006)Park KS, Ni Z, Cote AP, Choi JY, Huang R, Uribe-Romo FJ, Chae HK, O’Keeffe M, Yaghi O. 2006. Exceptional chemical and thermal stability of zeolitic ımidazolate frameworks. Proc. Natl. Acad. Sci. 103, 10186-10191. https://doi.org/10.1073/pnas.0602439103.. After synthesis, these MOFs were placed into amber-colored glasses and stored at room temperature throughout the study. The abbreviated MOF names given in parentheses are used throughout the paper.

The commercial pre-activated bleaching earth (CBE) was provided by the Trakya Birlik Oil Processing Factory (Tekirdağ, Turkey); natural zeolite and natural kaolin clay were provided by the Türkzeolit Mining Ind. and Trade. Inc. (Istanbul, Turkey); and natural sepiolite was provided Anadolu Industrial Mine Inc. (Istanbul, Turkey). Extra virgin olive oil and commercial palm oils were bought from Komili Oil (Balıkesir, Turkey) and Besler Oil Factory (Istanbul, Turkey), respectively. Glycidyl palmitate (99.1%, High Purity Compounds, Cunnersdorf, Germany), glycidyl stearate (96.5%, High Purity Compounds, Cunnersdorf, Germany) and 3-MCPD (98%, Sigma- Aldrich, St. Louis, USA) were purchased. All chemicals, solvents, and standards used in the analyses were of analytical or chromatographic grade and purchased from Sigma (St. Louis, MO, USA), Merck Co. (Darmstadt, Germany) and local stores.

2.2. Characterization of the adsorbents

The surface areas and pore properties of the adsorbents were determined using a Quantachrome Nova 4000E instrument (Quantachrome Instruments, Boynton Beach, FL, USA) with nitrogen gas and the Brunauer-Emmett-Teller (BET) and Langmuir models (Moussa et al., 2016Moussa Z, Hmadeh M, Abiad MG, Dib OH, Patra D. 2016. Encapsulation of curcumin in cyclodextrin-metal organic frameworks: Dissociation of loaded CD-MOFs enhances stability of curcumin. Food Chem. 212, 485-494. https://doi.org/10.1016/j.foodchem.2016.06.013.).

The morphologies of the adsorbents were determined with a JSM-7100F (JEOL, Japan) scanning electron microscope (SEM). First of all, samples were placed onto a specimen holder carbon band with double-sided scotch tape. Then, they were coated with Au-Pd (80-20%) under vacuum (0.8 mbar) and 10 mA voltage using a Quorum coating device. Finally, samples were examined under accelerated voltage of 15 kV and 150-15,000-fold magnifications (Peerajit et al., 2012Peerajit P, Chiewchan N, Devahastin S. 2012. Effects of pretreatment methods on health-related functional properties of high dietary fibre powder from lime residues. Food Chem. 132, 1891-1898. https://doi.org/10.1016/j.foodchem.2011.12.022.).

The X-ray diffraction (XRD) patterns of the samples were determined using a PANalytical Empyrean model (Netherland) X-ray diffractometer under 40 kV and 40 mA CuKa (λ = 0.1546 nm), within the range of 4-40º at a scanning rate of 0.02-0.6 (sec^-1).

2.3. Preparation of the model oil

First, active silica gel was added to extra virgin olive oil (EVOO) at a ratio of 0.5:1 (w/w), stirred at 50 ºC for 3 hours, and filtered with filter paper (Whatman no. 1 filter paper, 11 μ pore, 125 mm diameter) for the removal of naturally-present impurities from the EVOO. Then, 3-MCPD, glycidyl palmitate and glycidyl stearate were added to this oil at a ratio of 125 mg/kg, 72 mg/kg and 72 mg/kg, respectively. Finally, this model oil was placed into amber-colored glass bottles and stored in a cool, dark place for the duration of the study.

2.4. Adsorbent treatments of the model oil

15 g of model oil was weighed for each treatment, and each of the adsorbents was added into the oils at a ratio of 3% (w/w). They were then shaken in an incubator (Certomat IS, Sartorius Stedium Biotech, Germany) at 95 ºC for 1 h. Finally, the treated oils were filtered through a Whatman no. 1 filter paper (11 μ pore, 125 mm diameter), placed into amber-colored glass bottles, and stored in a refrigerator in the dark for the duration of the study.

2.5. 3-MPCD and GEs analyses of the treated oils

The amounts of 3-MPCD and GEs in the samples were measured according to the AOCS Cd 29c-13 Method (AOCS, 2017AOCS. 2017. AOCS official method Cd 29c-13, 2- and 3-MCPD fatty acid esters and glycidol fatty acid esters in edible oils and fats by GC/MS, in Official Methods and Recommended Practices of the American Oil Chemists’ Society 7 ^th Edition. AOCS Press, USA.). The analysis was carried out with a GC-MS (GC/MS-QP2010, Shimadzu Co., Nishinokyo, Japan) equipped with a Rxi-5MS column (30m x 0.25mm ID x 0.25µm film thickness, Restek Co.). The working conditions of the GC were as follows: splitless, 2 µl injection volume, 0.83 ml/min flow rate, 250 °C inlet temperature and helium as carrier gas. The oven temperature program was as follows: held at 100 °C for 1 min, increased to 160 °C (20 °C/min) and held at that temperature for 1 min, increased to 180 °C (4 °C/min), then to 330 °C (30 °C/min) and held at that temperature for 4.70 min. The working conditions of the MS detector were as follows: 200 °C ion source temperature, 280 °C interface temperature, 5 min solvent-cutoff-time. 3-MCPD-d5 was used as internal standard.

2.6. Effects of the process parameters on the adsorption treatment

As a result of the analyses, Ti-MOF and kaolin were selected as the best MOF and natural clay for removing 3-MPCD and GEs, respectively. With these two adsorbents, the effects of adsorbent addition level (0.5%, 1.5%, 3.0%, 6.0%), treatment temperature (25 °C, 50 °C, 95 °C, 150 °C) and time (15, 45, 60, 120 min) were evaluated under the same treatment conditions described in the adsorbent treatments of the model oil section. After treatment, the 3-MPCD and GE contents in the treated and control samples were measured and the best process parameters were determined.

2.7. Adsorbent treatments of commercial palm oils

Finally, Ti-MOF and kaolin were used under the best treatment conditions (6.0%, 95 °C, 120 min), for the removal of 3-MCPD and GEs from commercial palm oil samples (RBD: Refined, Bleached and Deodorized; DEO: Deodorized), which are natural sources of these contaminants. After the treatments, the 3-MPCD and GE contents in the treated and control samples were measured.

2.8. Statistical analysis

The whole study was repeated twice. Each analysis for each replicate was done in triplicate. The collected data were analyzed using one-way ANOVA and treatment groups were compared with Tukey’s tests. Minitab Ver. 16.1.1 (Minitab, 2010Minitab. 2010. Minitab statistical software (version 16.1.1). Minitab Inc. State College, Pennsylvania.) and SPSS (SPSS, 1994SPSS. 1994. SPSS professional statistics 10.1. Chicago, IL, USA.) package software programs were used for statistical analyses. There was a minimum 95% level of confidence in this study.

3.1. Structural properties of the adsorbents

The surface areas and pore properties of MOFs and natural clays are shown in Table 1. Surface area and pore volume are important parameters which affect the treatment efficiency of adsorbents. Clearly, there is a great variation among the adsorbents in terms of surface area values. The highest surface area was measured for Al-MOF (1415.53 m²/g), while the lowest value was for γ-CD-MOF (4.55 m²/g). There is also a great variation among the adsorbents in terms of pore volumes. The highest pore volume was measured for γ-CD-MOF (1.24 cm³/g), while the lowest value was for kaolin (0.03 cm³/g). As a result, it can be said that γ-CD-MOF and kaolin seem insufficient for utilization as adsorbents because of their low surface area values. In one study, the surface areas of Zn-MOF, Al-MOF and Ti-MOF were found to be 380, 1196 and 1310 m²/g and the pore volumes were measured at 0.29, 0.76 and 0.97 cm³/g, respectively (Vlasova et al., 2016Vlasova EA, Yakimov SA, Naidenko EV, Kudrik EV, Makarov SV. 2016. Application of metal-organic frameworks for purification of vegetable oils. Food Chem. 190, 103-109. http://dx.doi.org/10.1016/j.foodchem.2015.05.078.). In the study of Ahn et al. (2020)Ahn Y, Choi S, Kwak S-Y. 2020. Remarkable effect of deprotonation on adsorption of 3-MCPD and glycidol on carboxylated Fe-MIL-88s. J. Environ. Chem. Eng. 8, 104456. https://doi.org/10.1016/j.jece.2020.104456., the surface areas of different versions of Fe-MIL-88 MOF varied between 2.58 and 13.74 m²/g. In a review, the structural properties of different MOF types were listed and it was observed that the surface areas varied between 46 and 2222 m²/g (Du et al., 2018Du W, Bai Y-L, Xu J, Zhao H, Zhang L, Li X, Zhang J. 2018. Advanced metal-organic frameworks (MOFs) and their derived electrode materials for supercapacitors. J. Power Sources 402, 281-295. https://doi.org/10.1016/j.jpowsour.2018.09.023.). Obviously, there are significant differences among MOF types in terms of surface areas and pore properties. These differences are even observed in the same MOF types synthesized in different studies. Overall, it was clear that the surface areas and pore properties of adsorbents depend on ligand type, synthesis conditions and the modifications applied.

The SEM images of MOFs and natural clays are presented in Figure 1. Obviously, the morphological properties of the adsorbents are different from each other. Ti-MOF has clustered spheres, Al-MOF has needle-like crystals, Zn-MOF has cubic crystals and ZIF-8-MOF has hexagonal crystals. Besides these certain geometric shapes, there are also amorphous bulk structures. In one study, the morphology of Ti-MOF was determined as ovoidal or flat-cubed with round corners, like in our study (Xiao et al., 2019Xiao H, Zhang W, Yao Q, Huang L, Chen L, Boury B, Chen Z. 2019. Zn-free MOFs like MIL-53(Al) and MIL-125(Ti) for the preparation of defect-rich, ultrafine ZnO nanosheets with high photocatalytic performance. Appl. Catal. B. 244, 719-731. https://doi.org/10.1016/j.apcatb.2018.11.026.). In the study of Fallah and Sohrabnezhad (2019)Fallah M, Sohrabnezhad S. 2019. Study of synthesis of mordenite zeolite/MIL-101 (Cr) metal-organic framework compounds with various methods as bi-functional adsorbent. Adv. Powder Technol. 30, 336-346. https://doi.org/10.1016/j.apt.2018.11.011., the SEM image of Cr-MOF was similar to the one in this study. In the study of Lee et al., (2015)Lee HJ, We J, Kim JO, Kim D, Cha W, Lee E, Sohn J, Oh M. 2015. Morphological and structural evolutions of metal-organic framework particles from amorphous spheres to crystalline hexagonal rods. Angew. Chem. Int. Ed. Engl. 54, 10564-10568. https://doi.org/10.1002/anie.201504873. MOFs with different morphologies from amorphous spheres to crystalline hexagonal rods were presented. Naturally, there is a great variation among the adsorbents in terms of morphological properties.

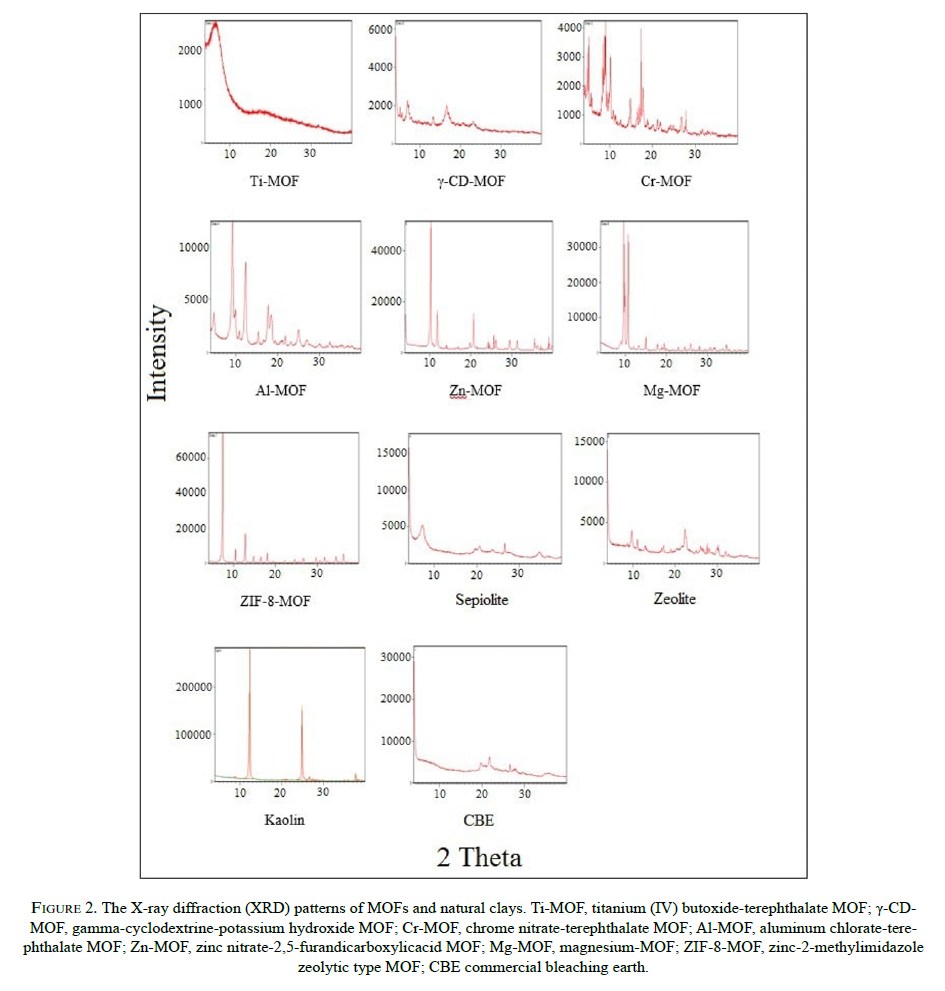

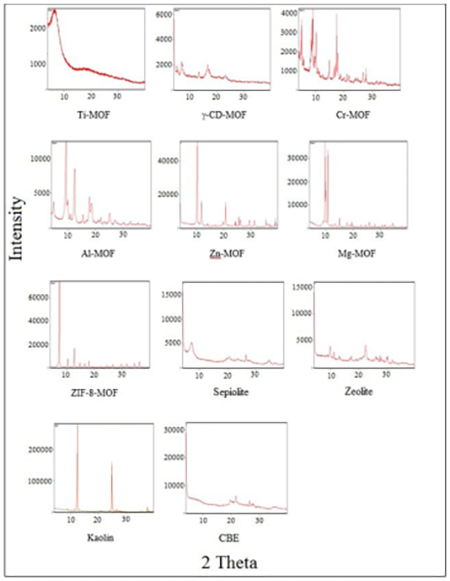

X-ray diffraction (XRD) patterns of the adsorbents are presented in Figure 2. This analysis provides information about the crystal structures of solids. In the study of Vlasova et al. (2016)Vlasova EA, Yakimov SA, Naidenko EV, Kudrik EV, Makarov SV. 2016. Application of metal-organic frameworks for purification of vegetable oils. Food Chem. 190, 103-109. http://dx.doi.org/10.1016/j.foodchem.2015.05.078., the XRD patterns of Al, Zn, and Ti-MOF were obtained. A major peak was observed at about 4-6° for Ti-MOF and the same peak was also detected in this study. In addition to this peak, there were two peaks at around 11 and 18° in the study of Vlasova et al. (2016)Vlasova EA, Yakimov SA, Naidenko EV, Kudrik EV, Makarov SV. 2016. Application of metal-organic frameworks for purification of vegetable oils. Food Chem. 190, 103-109. http://dx.doi.org/10.1016/j.foodchem.2015.05.078., but not detected in this study. The XRD patterns of Zn-MOF and Al-MOF in this study were also similar to that study. In another study, the XRD patterns of γ-CD-MOF were presented (Moussa et al., 2016Moussa Z, Hmadeh M, Abiad MG, Dib OH, Patra D. 2016. Encapsulation of curcumin in cyclodextrin-metal organic frameworks: Dissociation of loaded CD-MOFs enhances stability of curcumin. Food Chem. 212, 485-494. https://doi.org/10.1016/j.foodchem.2016.06.013.). Although there were some differences, similar peaks were observed for γ-CD-MOF in our study. According to Li et al., (2015)Li N, Zhang L, Nian L, Cao B, Wang Z, Lei L, Yang X, Sui J, Zhang H, Yu A. 2015. Dispersive micro-solid-phase extraction of herbicides in vegetable oil with metal-organic framework MIL-101. J. Agric. Food Chem. 63, 2154-2161. https://doi.org/10.1021/jf505760y., Cr-MOF showed peaks at around 3°, 5°, 6°, 9°, 10° and 17° and similar peaks were also observed in our study. The XRD patterns for ZIF-8-MOF were presented in the study of Park et al. (2006)Park KS, Ni Z, Cote AP, Choi JY, Huang R, Uribe-Romo FJ, Chae HK, O’Keeffe M, Yaghi O. 2006. Exceptional chemical and thermal stability of zeolitic ımidazolate frameworks. Proc. Natl. Acad. Sci. 103, 10186-10191. https://doi.org/10.1073/pnas.0602439103. and it was very similar to this study. Although there are some slight differences, the results generally concur with the literature. The determined peaks in the samples indicate that they all included certain types of crystal structures. In addition, the XRD patterns of natural clays indicate the presence of some amorphous structure besides crystallinity.

3.2. 3-MCPD and GE contents in the treated model oil samples

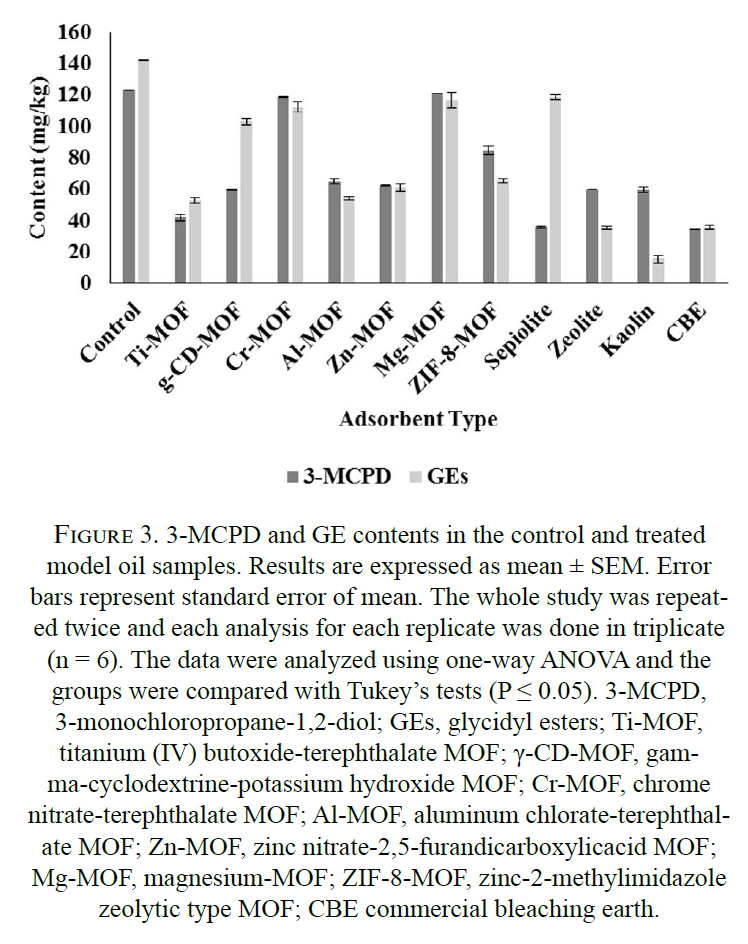

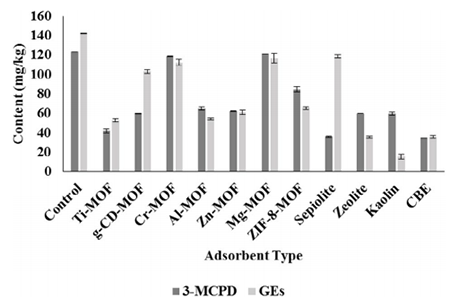

The 3-MCPD and GEs contents of the samples after the adsorbent treatments, and the removal, based on the calculation over the control sample, are presented in Figure 3. In the control (not treated with any adsorbent) oil sample, 3-MCPD and GE contents were determined as 123.51 mg/kg and 142.44 mg/kg, respectively. These contents were lower than the added amounts, probably because of losses during operation or the level of purity of the added compounds. These differences do not matter because the removal was calculated over these control values. Among MOFs, the highest removal was observed for Ti-MOF (65.97% and 62.95%) for 3-MCPD and GEs. Among natural clays, CBE yielded the lowest remaining 3-MCPD (71.86% reduction), and kaolin yielded the lowest remaining GEs (89.09% reduction). Obviously, there is a variation among the adsorbents in terms of removal. Although the mechanism of the interaction between adsorbent and 3-MCPD/GEs is not investigated in this study, it is thought that selective adsorption of 3-MCPD and GEs from oils mostly depends on the presence of high affinity groups in adsorbents and structural properties (pore size, specific volume, surface area etc.).

In another study, activated bleaching earth was used to remove glycidyl esters from diacylglycerol oils and it was observed that glycidyl esters in varying amounts were reduced to the limit of quantification value (0.1 mg/kg) (Shimizu et al., 2012Shimizu M, Moriwaki J, Shiiba D, Nohara H, Kudo N, Katsuragi Y. 2012. Elimination of glycidyl palmitate in diolein by treatment with activated bleaching earth. J. Oleo Sci. 61, 23-28. https://doi.org/10.5650/jos.61.23.). In addition, a glycerol diolate model oil system containing glycidyl palmitate was used to investigate the elimination mechanism and it was determined that the elimination of glycidyl esters by activated bleaching earth occurs by transformation rather than adsorption. In another study, acid-washed oil-palm-wood-based activated carbon was investigated for the removal of glycidyl palmitate from a hexadecane solution, as a model oil system, and it was observed that removal can reach up to 95% depending on process conditions (Cheng et al., 2017bCheng W, Liu G, Wang X, Han L. 2017b. Adsorption removal of glycidyl esters from palm oil and oil model solution by using acid-washed oil palm wood-based activated carbon: kinetic and mechanism study. J. Agric. Food Chem. 65, 9753-9762. https://doi.org/10.1021/acs.jafc.7b03121.). In a study about MOF treatment, carboxylated and deprotonated Fe-MIL-88s with different ligand types were used for the removal of 3-MCPD and glycidol from model media (isopropyl alcohol/toluene, 1:1, w/w) and removal reached up to 95%, depending on process conditions and MOF type (Ahn et al., 2020Ahn Y, Choi S, Kwak S-Y. 2020. Remarkable effect of deprotonation on adsorption of 3-MCPD and glycidol on carboxylated Fe-MIL-88s. J. Environ. Chem. Eng. 8, 104456. https://doi.org/10.1016/j.jece.2020.104456.). Generally, higher removal was achieved in these studies compared to the present study. In the study of Ahn et al. (2020)Ahn Y, Choi S, Kwak S-Y. 2020. Remarkable effect of deprotonation on adsorption of 3-MCPD and glycidol on carboxylated Fe-MIL-88s. J. Environ. Chem. Eng. 8, 104456. https://doi.org/10.1016/j.jece.2020.104456., the adsorption mechanism of 3-MCPD and glycidol was investigated and they found that carboxylated Fe-MIL-88s had higher adsorption capacity for both 3-MCPD and glycidol compared to non-functionalized MOFs, probably due to the esterification of 3-MCPD and glycidol with deprotonated carboxyl groups. It is obvious that in addition to the structural properties of the adsorbents, the functional groups on the surface were also effective. This also explains why the kaolin and Ti-MOF used in this study were more effective despite having a lower surface area than some other absorbents.

The MOFs and natural clays used in our study showed good potential for the removal of 3-MCPD and GEs, and the efficiency of the treatment can be improved by adding some functional groups onto the surface of the adsorbents and optimizing the process conditions.

3.3. Effects of the treatment parameters

Ti-MOF and kaolin were selected as the best performing adsorbents among MOFs and natural clays, respectively, to investigate the effects of adsorbent addition levels, treatment temperatures and treatment times.

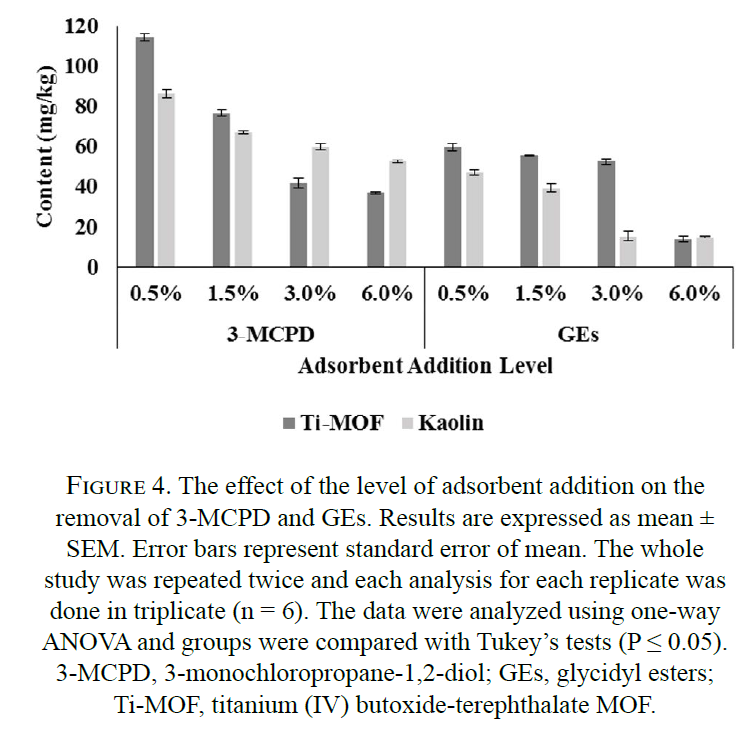

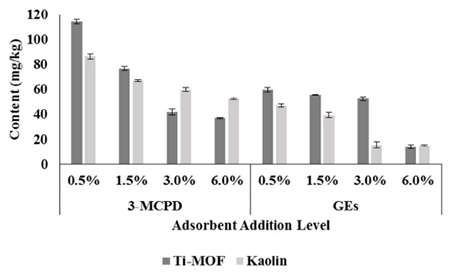

Figure 4 presents the effect of the level of adsorbent addition (0.5%, 1.5%, 3.0%, 6.0%) on the removal of 3-MCPD and GEs with the two selected adsorbents at 95 °C treatment temperature and 60 min treatment time. As the addition level increased, the removal of 3-MCPD and GEs increased for both adsorbents. Therefore, higher adsorbent addition levels could be used for more efficient 3-MCPD and GEs removal, but the cost of the adsorbent must also be considered.

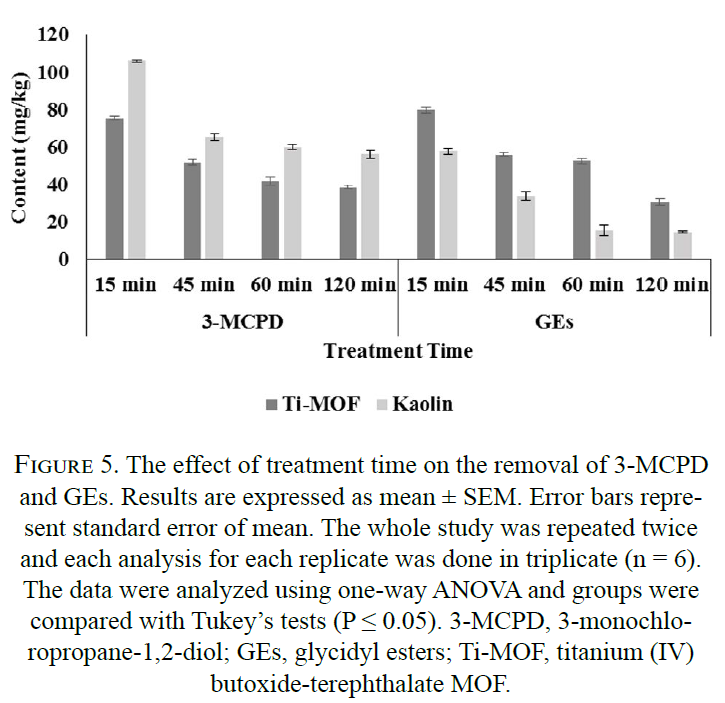

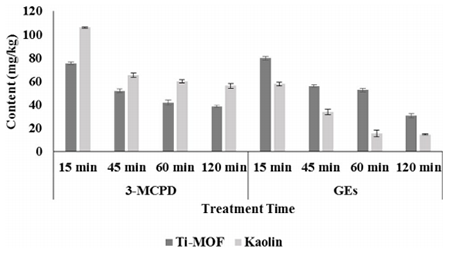

The effect of treatment time (15, 45, 60 and 120 min) on the removal of 3-MCPD and GEs at 95 °C treatment temperature and 3.0% adsorbent addition level is shown in Figure 5. Clearly, the removal of 3-MCPD and GEs increased for both adsorbents with the increase in treatment time. Hence, the effectiveness of the treatment can be improved by increasing treatment time but the processing price should also be considered.

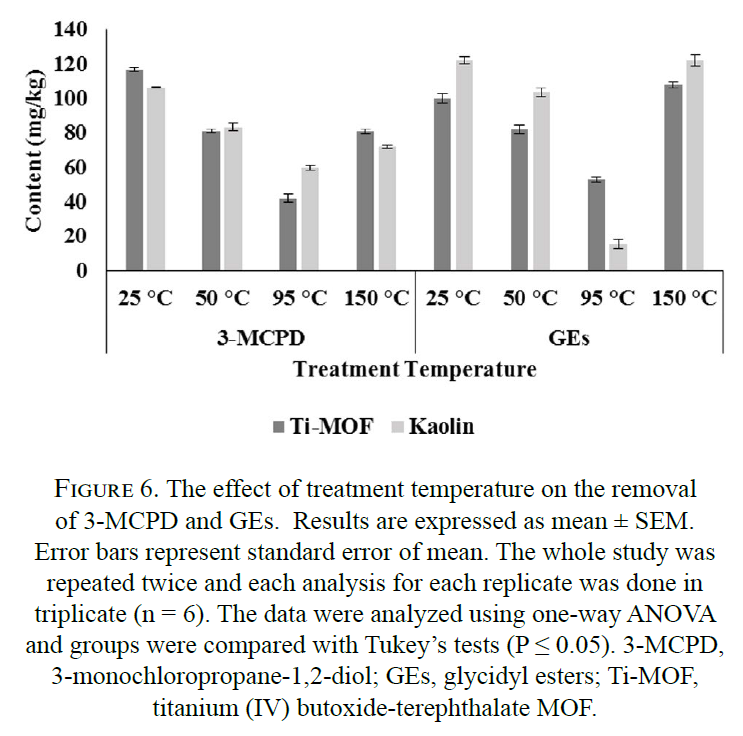

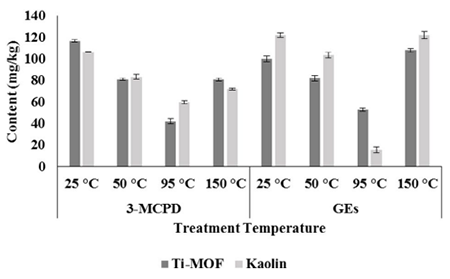

Figure 6 shows the effect of treatment temperature (25 °C, 50 °C, 95 °C, 150 °C) on the removal of 3-MCPD and GEs with 3.0% adsorbent addition level and 60 min treatment time. The highest removal was obtained at 95 °C and it was observed that the removal decreased at lower and higher treatment temperatures. It is thought that at lower temperatures, the solubilities of 3-MCPD and GEs were not enough to penetrate into the adsorbents or kinetic energy was not enough for adsorption; while at higher temperatures, adsorbent affinity decreased or adsorbed contaminants dissolved back into the oil with increasing solubility and kinetic energy. As a result, 6.0% adsorbent level, 95 °C treatment temperature and 120 min treatment time were selected as the best treatment conditions for Ti-MOF and kaolin.

In one study, inorganic adsorbent materials were used to remove 3-MCPD esters and related substances from palm oil and the effects of process parameters on the efficiency of the treatment were investigated with the two most promising adsorbent materials (Strijowski et al., 2011Strijowski U, Heinz V, Franke K. 2011. Removal of 3-MCPD esters and related substances after refining by adsorbent material. Eur. J. Lipid Sci. Technol. 113, 387-392. https://doi.org/10.1002/ejlt.201000323.). It was determined that as adsorbent level increased, the removal of the contaminants increased for both adsorbents. It was also observed that increasing treatment temperature and time improved the efficiency of synthetic magnesium silicate, while calcinated zeolite was not affected by these parameters. In another study, carboxylated and deprotonated Fe-MIL-88s with different ligand types were used for the removal of 3-MCPD and glycidol from model media (isopropyl alcohol/toluene, 1:1, w/w) (Ahn et al., 2020Ahn Y, Choi S, Kwak S-Y. 2020. Remarkable effect of deprotonation on adsorption of 3-MCPD and glycidol on carboxylated Fe-MIL-88s. J. Environ. Chem. Eng. 8, 104456. https://doi.org/10.1016/j.jece.2020.104456.). It was observed that the removal of 3-MCPD and glycidol increased as adsorbent level, treatment temperature and time increased. Although there are some slight differences, the results generally concur with the literature.

3.4. Removal of 3-MCPD and GEs from palm oil

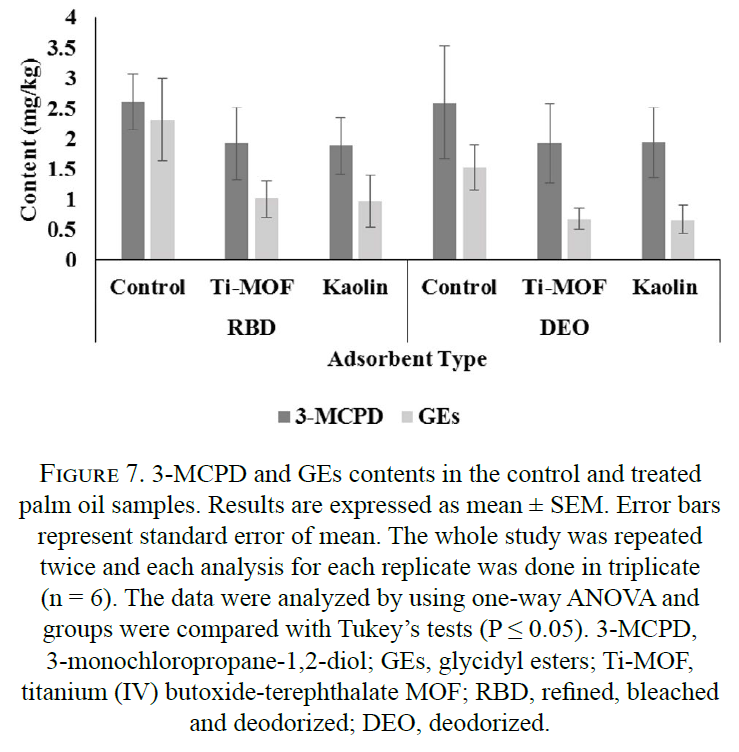

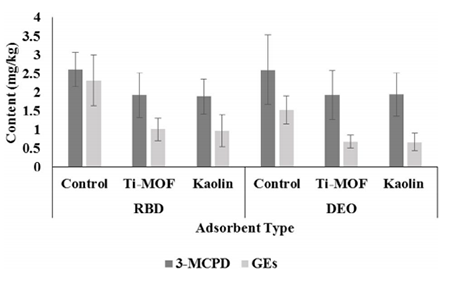

RBD and DEO palm oils were treated with Ti-MOF and kaolin for the removal of 3-MCPD and GEs, and the results are presented in Figure 7. Clearly, there are no significant differences in terms of removal between Ti-MOF and kaolin for both RBD and DEO palm oils. In RBD palm oil, the removal of 3-MCPD and GEs was measured at 26 and 56% for Ti-MOF and 28 and 58% for kaolin, respectively. In DEO palm oil, the levels of 3-MCPD and GEs were reduced by 26 and 56% with Ti-MOF and 25 and 56% with kaolin, respectively. It is obvious that these values are lower than the removal in the model oil system but this is a quite expected result because commercial palm oil is a more complex system than model oil.

In one study, nine different commercially-available inorganic adsorbent materials were investigated for the removal of 3-MCPD esters and related substances from palm oil (Strijowski et al., 2011Strijowski U, Heinz V, Franke K. 2011. Removal of 3-MCPD esters and related substances after refining by adsorbent material. Eur. J. Lipid Sci. Technol. 113, 387-392. https://doi.org/10.1002/ejlt.201000323.). Among all adsorbents, calcinated zeolite and the silicon calcium silicate were selected as the most promising adsorbents whose removal reached up to 40%. In another study, the carboxylated and deprotonated form of Fe-MIL-88-BDC, which is a type of MOF, was used for the removal of 3-MCPD and glycidyl ester from refined palm oil and both of these contaminants were reduced by 90% (Ahn et al., 2020Ahn Y, Choi S, Kwak S-Y. 2020. Remarkable effect of deprotonation on adsorption of 3-MCPD and glycidol on carboxylated Fe-MIL-88s. J. Environ. Chem. Eng. 8, 104456. https://doi.org/10.1016/j.jece.2020.104456.). It is thought that the efficiency of the treatment in our study should be improved by modifying the adsorbents.
