1. INTRODUCTION
⌅The production of ‘premium’ olive oil depends to a large extent on the quality of the harvested fruit (García and Yousfi, 2006García JM, Yousfi K. 2006. The postharvest of mill olives. Grasas Aceites 57, 16-24. htpps://doi.org/10.3989/gya.2006.v57.i1.18 ; Ferguson, 2006Ferguson L. 2006. Trends in olive fruit handling previous to its industrial transformation. Grasas Aceites 57, 9-15. https://doi.org/10.3989/gya.2006.v57.i1.17 ; Rallo et al., 2018Rallo L, Díez CM, Morales-Silero A, Miho H, Priego-Capote F, Rallo P. 2018. Quality of olives: A focus on agricultural preharvest factors. Sci. Hortic. 233, 491-509. https://doi.org/10.1016/j.scienta.2017.12.034 ; Faminiani, 2020Faminiani F, Farinelli D, Urbani S, Al Hariri R, Paoletti A, Rosati A. 2020. Harvesting system and fruit storage affect basic quality parameters and phenolic and volatile compounds of oils from intensive and super-intensive olive orchards. Sci. Hortic. 263, 1-14. https://doi.org/10.1016/j.scienta.2019.109045 ). The mechanical harvesting of olives on an industrial scale differs when compared to manual picking with nets and sticks, as thousands of cooperatives in Spain still do (Junta de Andalucía, 2015Junta de Andalucía. Consejeria de Agricultura, Pesca y Desarrollo Rural. (2015). Análisis de las plantaciones de Oliver en Andalucía. Año 2015. Encuestra sobre Superficies y Rendimientos de Cultivos en España (ESYRCE); Sola-Guirado et al., 2014Sola-Guirado RR, Castro-García S, Blanco-Roldán GL, Jiménez-Jiménez F, Castillo-Ruiz FJ, Gil-Ribes JA. 2014. Traditional olive tree response to oil olive harvesting technologies. Biosys.t Eng. 118, 186-193. https://doi.org/10.1016/j.biosystemseng.2013.12.007 ). The degree of damage caused and the time elapsed from harvesting to storage prior to grinding stands out as crucial factors (Yousfi et al., 2012Yousfi K, Weiland CM, García JM. 2012. Effect of Harvesting System and Fruit Cold Storage on Virgen Olive Oil Chemical Composition and Quality of Superintensive Cultivated ‘Arbequina’ Olives. J. Sci. Food Agric. 60, 4743-4750. https://doi.org/10.1021/jf300331q ; Dag et al., 2012Dag A, Boim S, Sobotin Y, Zipori I. 2012. Effect of Mechanically Harvested Olive Storage Temperature and Duration on Oil Quality. Horttechnology 22, 528-533. https://doi.org/10.21273/HORTTECH.22.4.5281 ; Morales-Silero and García, 2015Morales-Silero A, García JM. 2015. Impact assessment of mechanical harvest on fruit physiology and consequences on oil physicochemical and sensory quality from ‘Manzanilla de Sevilla’ and ‘Manzanilla Cacereña’ super-high-density hedgerows. A preliminary study. J. Sci. Food Agric. 95, 2445-2453. https://doi.org/10.1002/jsfa.6971 ; Faminiani et al., 2020Faminiani F, Farinelli D, Urbani S, Al Hariri R, Paoletti A, Rosati A. 2020. Harvesting system and fruit storage affect basic quality parameters and phenolic and volatile compounds of oils from intensive and super-intensive olive orchards. Sci. Hortic. 263, 1-14. https://doi.org/10.1016/j.scienta.2019.109045 ). Moreover, the post-harvest conditions do vary along with the kind of harvesting employed as well as the processing and storing conditions at the mill (García and Yousfi, 2006García JM, Yousfi K. 2006. The postharvest of mill olives. Grasas Aceites 57, 16-24. htpps://doi.org/10.3989/gya.2006.v57.i1.18 ; García and Yousfi, 2011García JM, Yousfi K. 2011. Alternativas al aumento de la capacidad de molturación para evitar el deterioro del Aceite de Oliva Virgen. Mercacei 68, 245-251.).
To obtain ‘premium’ olive oils, small producers face additional challenges in this respect, especially when they do not possess a proper mill. Besides the fact that they need to look for an efficient and affordable harvesting method that guarantees the least damaged fruit possible, such as manual inverted umbrellas, they ought to take into account the particular conditions that are imposed by the mill they are working with and especially the minimum quantity per batch requested (Plasquy et al., 2019Plasquy E, Sola-Guiraldo RR, Florido MC, García JM, Blanco-Roldán G. 2019. Evaluation of a Manual Olive Fruit Recolector for Small Producers. Res. Agric. Eng. 65, 105-111. https://doi.org/10.17221/18/2019-RAE ). The characteristics of the mill, and especially its production capacity, define the time and the way olives are piled up, risking fermentation processes that compromise the final quality of the extracted oil (García and Yousfi, 2006García JM, Yousfi K. 2006. The postharvest of mill olives. Grasas Aceites 57, 16-24. htpps://doi.org/10.3989/gya.2006.v57.i1.18 , García and Yousfi, 2011García JM, Yousfi K. 2011. Alternativas al aumento de la capacidad de molturación para evitar el deterioro del Aceite de Oliva Virgen. Mercacei 68, 245-251.). When this amount cannot be picked in one day, storage becomes inevitable.
Temporary cold storage at the farm could be a possible solution for maintaining a high product quality but comes along with specific problems. Several works clarified that the storage of olives at 5 °C for up to 4 weeks does significantly reduce the risk of fruit deterioration and subsequently olive oil defects (García et al., 1996García JM, Gutiérrez F, Barrera MJ, Albi MA. 1996. Storage of Mill Olives on an Industrial Scale. J. Sci. Food Agric. 44, 590-593. https://doi.org/10.1021/jf950479s ; Kiritsakis et al., 1998Kiritsakis A, Nanos GD, Polymenopoulos Z, Thomai T, Sfakiotakis EM. 1998. Effect of Fruit Storage Conditions on Olive Oil Quality. J. Am. Oil Chem. Soc. 75, 721-724. https://doi.org/10.1007/s11746-998-0212-7 ; Canet and García, 1999Canet M, García JM. 1999. Repercusión de la frigoconservación de la aceituna de molino en el proceso de producción de aceite de oliva virgen. Grasas Aceites 50, 181-184.; Clodoveo et al., 2006Clodoveo ML, Delcuratolo D, Gomes T, Colelli G. 2006. Effect of different temperatures and storage atmospheres on Coratina olive oil quality. Food Chem. 102, 571-576. http://doi.org/10.1016/j.foodchem.2006.05.035 ; Kalua et al., 2008Kalua CM, Bedgood DR, Bishop AG, Prenzler PD. 2008. Changes in Virgen Olive Oil Quality during Low-Temperature Fruit Storage. J. Agric. Food Chem. 56, 2415-2422. https://doi.org/10.1021/jf073027b ). However, cold storage procedures imply the use of small boxes that can contain 40 kg at the most and ideally 20 kg of olives, instead of agricultural containers, or bins, with a capacity of 400 kg.
Empirical studies and simulations of the cooling process of fresh fruits and vegetables revealed complex interactions between the thermophysical properties of the commodity (heat generation due to respiration, specific heat and thermal conductivity), the kind of packaging and palletization, flow field parameters such as airflow rate and cooling temperature, and the accessibility of the cooling air to the produce (Becker et al., 1996Becker BR, Misra A, Fricke BA. 1996. Bulk refrigeration of fruits and vegetables. Part 1: theoretical considerations of heat and mass transfer. HVACR Research 2, 122-134. https://doi.org/10.1080/10789669.1996.10391338 ; Brosnan and Sun, 2001Brosnan T, Sun DW. 2001. Precooling techniques and applications for horticultural products. A review. Int. J. Refrig .24, 154-170. https://doi.org/10.1016/S0140-7007(00)00017-7 ; Reading et al., 2016Redding GP, Yang A, Shim YM, Olatunji J, East A. 2016. A review of the use and design of produce simulators for horticultural forced-air cooling studies. J. Food En.g 190, 80-93. http://doi.org/10.1016/j.jfoodeng.2016.06.014 ; Mercier et al., 2017Mercier S, Villeneuve S, Mondor M, Uysal I. 2017. Time-Temperature Management Along the Food Cold Chain: A review of Recent Developments. Compr. Rev. Food Sci. Food Saf. 16, 647-667. http://doi.org/10.1111/1541-4337.12269 ; Plasquy et al., 2021Plasquy E, García JM, Florido MC, Sola-Guirado RR. 2021. Estimation of the Cooling Rate of Six Olive Cultivars Using Thermal Imaging. Agriculture 11, 164. https://doi.org/10.3390/agriculture11020164 ). It is well documented that fruit respiration involves the oxidation of sugars to produce carbon dioxide, water, and heat while at the same time, the respiration rate is itself a function of the commodity’s temperature (Kader, 1985Kader A. 1985. An overview of the physiological and biochemical basis of CA effects on fresh horticultural crops, in Fourth Nat. Contr. Atm. Res. Conf., North Carolina State University, pp. 1-9. https://hortscans.ces.ncsu.edu/library/all/doc_id/399/ ; Becker et al., 1996Becker BR, Misra A, Fricke BA. 1996. Bulk refrigeration of fruits and vegetables. Part 1: theoretical considerations of heat and mass transfer. HVACR Research 2, 122-134. https://doi.org/10.1080/10789669.1996.10391338 , García et al., 1995García P, Brenes M, Romero C, Garrido A. 1995. Respiration and physicochemical changes in harvested olive fruit. J. Hortic. Sci. 70, 925-933). García et al. (1994)García JM, Gutiérrez F, Castellano JM, Perdiguero S, Morilla A, Albi MA. 1994. Storage of Olives destined for oil extraction. Acta Hortic. 368, 673-681. https://doi.org/10.17660/ActaHortic.1994.368.80 and García and Yousfi (2006)García JM, Yousfi K. 2006. The postharvest of mill olives. Grasas Aceites 57, 16-24. htpps://doi.org/10.3989/gya.2006.v57.i1.18 reported that the inner part of a container of olives maintained its initial temperature while stored at 5 °C. As a consequence, the fruit respiration and accompanying heat production induced a self-reinforcing process that rapidly led to a severe deterioration process and the growth of decay-producing microorganisms.
Although most manual or semi-mechanical methods make use of small boxes to collect the fruit after harvesting, the further handling of a large number of boxes leads to large logistic problems once dealing with several tons of olives and especially when cold storage forms a crucial step in maintaining fruit quality. By applying a pre-cooling treatment to the olives manually harvested in the boxes before dumping them into a container for conservation at 5 °C, high-quality oils could be obtained. To explore this possibility, two experiments were set up. The first one monitored the evolution of the internal temperature of a container of 400 kg with or without a pre-cooling treatment at 5 °C and compared the effect of bulk storage at 5 °C on the quality parameters of the extracted oil up to 14 days. A second experiment probed the effects of a short cooling treatment at -18 °C to lower the fruit temperature rapidly to 5 °C. During the following 14 days’ storage period at 5 °C, the presence of chilling injuries and quality defects were assessed. The results of the first experiment were used to implement concrete modifications in a family-run olive farm.
2. MATERIALS AND METHODS
⌅2.1. Fruit and storing
⌅Olives of the ‘Picual’ cultivar were harvested with a manual inverted umbrella (MIU) and branch shakers in the ‘Del Cetino’ plantation in Bollullos del Condado (Huelva, Spain) during the second week of October, 2018. The fruit was healthy and presented optimal ripening characteristics (color index between 1.5 and 2.0). The fruit was collected in perforated plastic boxes (30 x 50 x 40 cm), able to contain a maximum of 20 kg. 50 boxes were recollected, and on the same day transported to the experimental mill of the Instituto de la Grasa (CSIC) in Sevilla in approximately one hour. Upon arrival, the olives were mechanically cleaned of leaves and small twigs but not washed at the outdoor facilities of the experimental mill. The batch of cleaned but dry olives provided the necessary amount of fruit for the two experiments. Minor bruises were produced during the cleaning treatment and passage onto various conveyor belts. The cooling installations were situated within the Research Center and comprised two cooling refrigeration rooms set at 5 °C (± 1 °C), and one freezing room at -18 °C (± 1 °C).
2.2. Trials
⌅2.2.1. Experiment 1

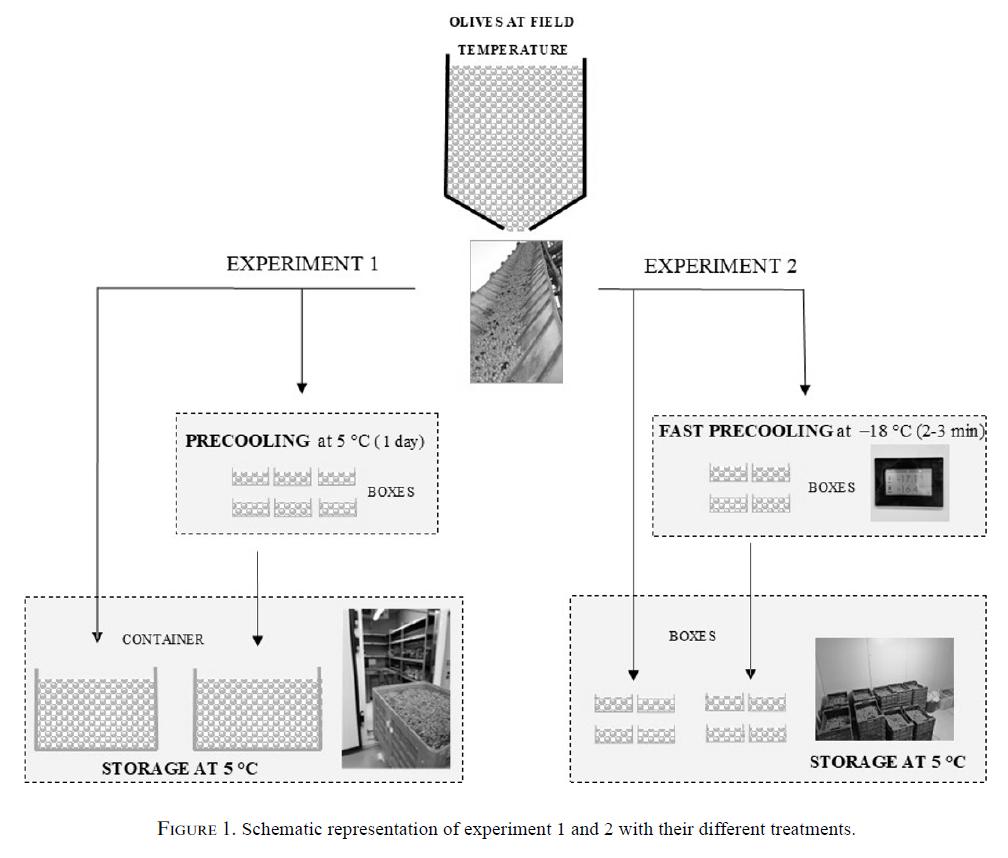

⌅The goal of the experiment was to evaluate the effects of a pre-cooling treatment on the internal temperature of olive containers and the quality of the subsequently extracted oil over 14 days (Figure 1).
Two vented bulk bin containers (100 x 120 x 80 cm; volume of 670 L) were used, each with a capacity of 380 kg olives. One container was filled with fruit at field temperature (FT) immediately after the cleaning procedure. The second container was filled the next day after the olives underwent a preliminary treatment (PC). This treatment consisted of bringing the temperature of the olives to 5 °C by storing the fruit in half-filled boxes (± 10 kg) in a cooling room up to the next day. After controlling that the temperature of the fruit attained 5 °C, the container was filled with the pre-cooled olives.

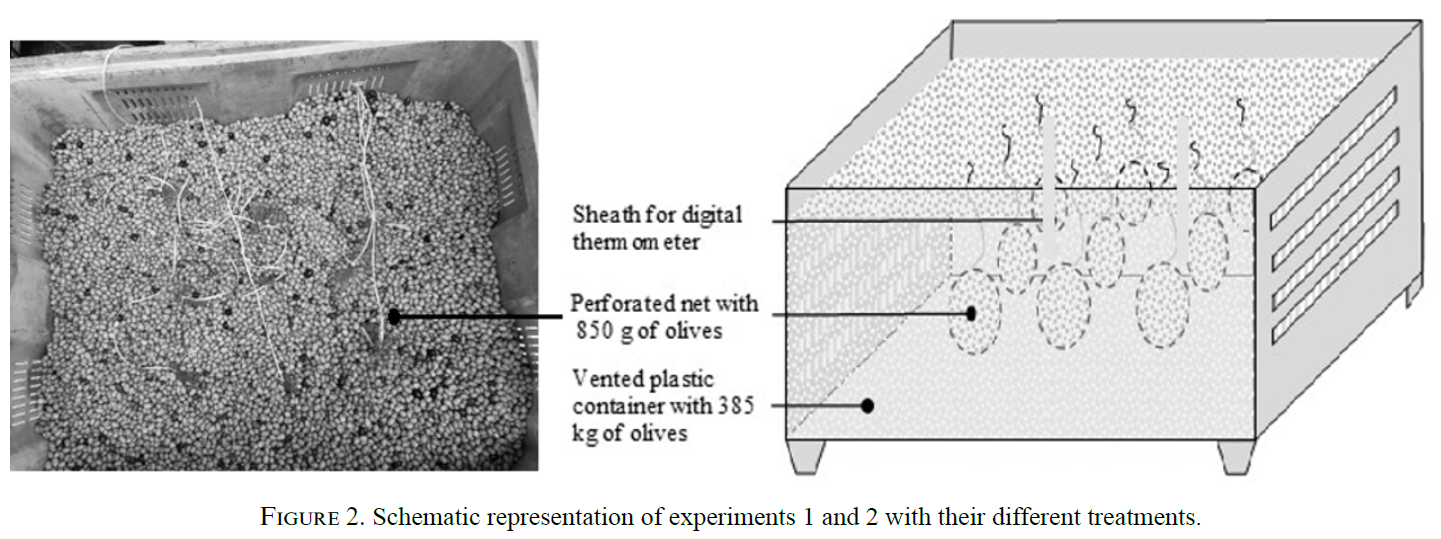

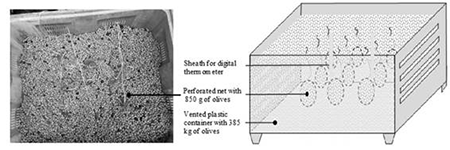

To facilitate the withdrawal of similar samples of olives at a future moment in time, nine plastic nets, each filled with 850 g of olives, were buried within the fruit in each container, evenly distributed, halfway up the height and at the same distance from each other (3 x 3 units) (Figure 2). Every net had a long drawstring attached to facilitate its location and pulling out when needed. To enable the measurement of the internal temperature in each of the containers, two hollow tubes were used as a sheath and situated along the middle ax, at 1/3 of each of the smaller sides.
The cooling room at 5 °C (± 1 °C) was accommodated to store the two containers side by side. One container filled with olive fruit with a field temperature of 18 °C was placed inside once the nets and sheaths were in place. The next day, a second container, filled with pre-cooled fruit at 5 °C was brought inside (Figure 1).
The temperature was measured with a digital thermometer (precision of 0.1 °C) with a wired probe that was glided into the sheaths. The measurement took place every 24 hours, twice, for 14 days.
On day 0, three samples of 750 g of olives were taken from the FT container and the boxes in the pre-cooling treatment, both before entering the cooling room. On days 4, 8, and 14, three nets of olives were pulled out of each container and used to extract oil. Olive oil was physically extracted following the Abencor method as described below, nitrogenized, and stored at -18 °C until analysis.
2.2.2. Experiment 2
⌅The goal of the experiment was to evaluate the effect of a fast-cooling procedure before the cool storage of olives on the quality of the extracted oil (Figure 1).
Two ventilated plastic boxes, each filled with 10 kg olives were placed in a cooling room at 5 °C (+/- 1°C) to attain the same temperature at a slow rate (SR). Four boxes, each filled with 5 kg olives were placed in a freezer room at -18 °C for the time necessary for the fruit to attain a temperature of 5 °C. This cooling process at a fast rate (FR) was continuously monitored with an IR thermometer. The desired temperature was attained after 3 minutes and then the 4 boxes were brought immediately to the cooling room at 5 °C, where the content of 2 boxes was brought together into one.
On days 0, 4, 8, and 14, three olive samples of 750 g were taken from both the SR and the FR-boxes. 100 olives from each sample were visually examined for the presence of ‘chilling injuries’. Virgin olive oil from each of the samples was extracted following the Abencor method, nitrogenized, and stored at -18 °C until analysis.
2.3. Extraction method and sample conservation
⌅The oil was extracted following the procedures for extraction with an Abencor installation (Martinez et al., 1975Martinez SJ, Muñoz AE, Alba MJ, RA Lanzón RA. 1975. Informe sobre utilizacion del Analizador de Rendimientos “Abencor”. Grasas Aceites 26, 379-385.). Individual samples of 750 g olives were crushed in a hammer mill. 600 g of the resulted paste was weighted in a stainless-steel casserole pot and malaxated in the thermoblender for 30 min at 30 °C. Centrifugation was performed at 1372 G for 1 min. The liquid obtained was placed in a graduated 500-mL test tube for separating the aqueous phase from the lipids. The olive oil was taken using a Pasteur pipette, filtered with filter paper, and placed in an amber glass bottle of 125 ml, filled with nitrogen, and frozen at -18 °C until further examination.
2.4. Physicochemical analysis
⌅The physicochemical analysis consisted of the measurement of the following parameters: Titratable acidity (Free Fatty Acid, FFA), peroxide index (PI) value, and the extinction coefficients at 232 and 270 nm (K232 and K270). The analysis followed the guidelines of the official analytical methods (EEC, 1991EEC. 1991. Commission Regulation No. 2568/91 on the characteristics of olive oil and olive-residue oil and on the relevant methods of analysis. Off. J. Eur. Comm. L248, 1-83.). The selected parameters are a crucial part of the internationally established quality standards for olive oil and essential for evaluating the quality of the extracted oils (Conte et al., 2020Conte L, Bendini A, Valli E, Lucci P, Moret L, Manquet A, Lacoste P, Brereton D, García González L, Moreda W, Gallina Toschi T. 2020. Olive oil quality and authenticity: A review of current EU legislation, standards, relevant methods of analyses, their drawbacks and recommendations for the future. Trends Food Sci. Technol. 105, 483- 493. https://doi.org/10.3989/gya.1999.v50.i3.653 ).
2.5. Statistical analysis
⌅A statistical data analysis of temperature data and physicochemical parameters for both experiments was performed using PASW Statistics 18.0 (SPSS). The effects of 2 treatments at each storage time (ST) were determined by one-way ANOVA.
2.6. Implementation strategy
⌅It was agreed and planned that the outcome of the experiments would be used to adjust the actual working and storage procedures at the farm as far as the results would lead to expect an amelioration of the logistics without jeopardizing the quality of fruit.
3. RESULTS
⌅3.1. Effect of pre-cooling (experiment 1)

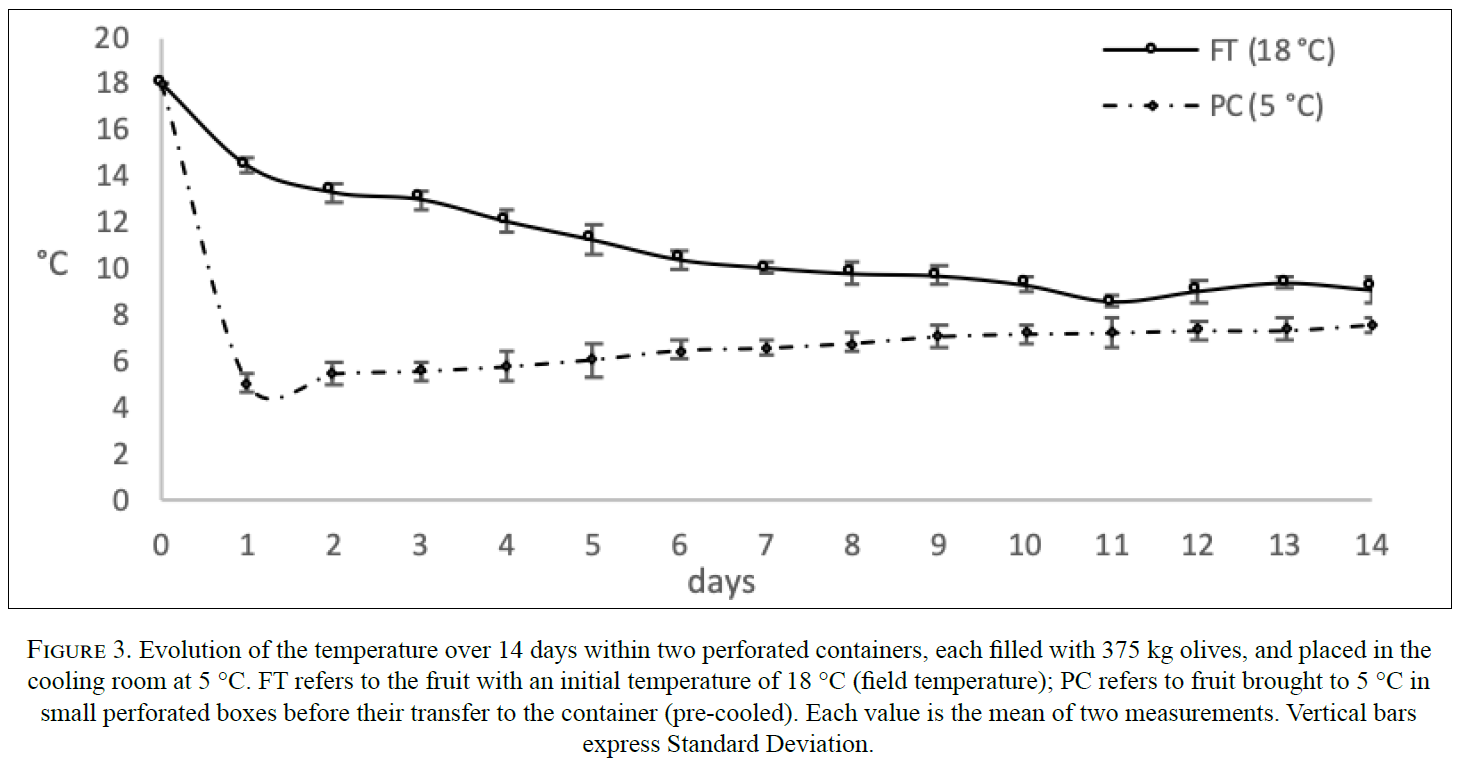

⌅The evolution of the internal temperature of both containers was characterized by the profile shown in Figure 3. In the container with the olive fruit at a field temperature (FT), the mean internal temperature descended towards 10 °C during the first week, after which a more stabilized period set in with temperatures that oscillated between 8.8 and 9.5 °C up to the end of the measurement. Within the first week, a more pronounced cooling was observed during the first two days in which the temperature descended from 18 °C to 13°C. The evolution of the temperature in the container with pre-cooled fruit (PC) followed an inverse trajectory. On day 1, the measurements confirmed that the desired internal temperature of 5 °C was present once the container was filled with the fruit. From day 2, a slow but uninterrupted temperature rise set in, amounting to 7.6 °C on day 14. As this rise was almost linear, no flattening the curve tendencies were observable between day 2 and day 14.
In both treatments (FT and PC), none of the examined parameters attained a level that would lead to losing the quality level ‘Extra Virgen Olive Oil (EVOO)’ (Table 1). For the measured acidity, indicating straightforwardly the degree of oil deterioration, the values stayed far below the established maximum level of 0.8% FFA (expressed as oleic acid). Nevertheless, there was a significant difference between both treatments as well as a significant effect of storage time. The significant effect of the interaction between the cooling method (CM) and the storage time (ST) underlined that the effects of applying a pre-cooling treatment increased with storage time. This effect was more prominent in the container filled with fruit at field temperature (FT), where a significant increase was detected at 14 days of storage compared to the other storage times. The olives that underwent a pre-cooling treatment in small boxes (PC), did not experience a significant increase in the acidity level after 14 days of storage compared to the previous ones. The PI values as well as those obtained for K232 and K270 were not influenced in a significant way, either by the CM or the ST.
| Cooling Method (CM) | Storage Time (ST) (days) | FFA (% oleic acid) |
PI (meq O2/kg oil) |
K232 | K270 |
|---|---|---|---|---|---|
| FT | 0 | 0.15 ± 0.00 b‡ | 6.83 ± 0.85 | 1.69 ± 0.13 | 0.17 ± 0.01 |
| 4 | 0.14 ± 0.00 b | 7.26 ± 1.56 | 1.75 ± 0.24 | 0.16 ± 0.01 | |
| 8 | 0.15 ± 0.01 b | 6.66 ± 0.66 | 1.71 ± 0.05 | 0.16 ± 0.01 | |
| 14 | 0.18 ± 0.01 a | 9.21 ± 1.30 | 1.92 ± 0.26 | 0.16 ± 0.01 | |
| PC† | 0 | 0.15 ± 0.00 | 6.83 ± 0.85 | 1.69 ± 0.13 | 0.17 ± 0.01 |
| 4 | 0.13 ± 0.01 | 7.92 ± 1.16 | 1.76 ± 0.15 | 0.15 ± 0.01 | |
| 8 | 0.15 ± 0.01 | 7.12 ± 0.89 | 1.77 ± 0.12 | 0.15 ± 0.01 | |
| 14 | 0.14 ± 0.00 | 7.90 ± 1.76 | 1.73 ± 0.05 | 0.16 ± 0.01 | |
| CM | 0.011* | 0.926 | 0.617 | 0.144 | |
| ST | 0.006** | 0.076 | 0.520 | 0.005** | |
| CM × ST | 0.011* | 0.493 | 0.571 | 0.826 |
†
The pre-cooling treatment consisted of keeping 10 kg of olives in boxes
at 5 °C overnight to guarantee that the fruit attainted an internal
temperature of 5 °C before filling the plastic container with 375 kg.
The container without treatment was filled with olives at a field
temperature of 18 °C (FT). The storage temperature was 5 °C.
‡ In each
variable, the values of different treatments followed by different
letters are significantly different according to the Tuckey test (P <
0.05). The absence of letters means no significant effect due to
treatment according to one-way ANOVA (P < 0.05). Each value is the
mean ± SD of 3 replicates. Significant levels of the factors CM, ST and
CM × ST * p < 0.05, ** p < 0.01.
3.2. Effect of rapid cooling treatment (experiment 2)
⌅Visual examination of triplicate samples of 100 olives at each of the different storage times did not show damages that could be attributed to ‘chilling injuries’ in any of the treatment tested (data not shown).
Subjecting the olives to a rapid cooling at -18 °C for a short time to obtain the desired temperature of 5 °C did not lead to an overall worsening of the examined physicochemical quality parameters (Table 2). No significant differences were observable in the acidity or the K232 and K270. Only the measured PI showed an effect on the speed of cooling (SC). On the other hand, the effect of the ST was significant in all the variables. At punctual storage times, there was a significant difference between the two obtained values. This was the case on day 0 concerning the K270 and, for the level of FFA, on day 4. These slightly deviated results do not influence the overall appreciation of the results.
| Storage time (ST) (days) | Speed of cooling (SC) | FFA (% oleic acid) |
PI (meq O2/kg oil) |
K232 | K270 |
|---|---|---|---|---|---|
| 0 | SC | 0.14 ± 0.01 | 11.97 ± 0.29 | 1.88 ± 0.20 | 0.21 ± 0.01 a† |
| FC | 0.13 ± 0.01 | 9.87 ± 1.49 | 1.89 ± 0.02 | 0.19 ± 0.01 b | |
| 4 | SC | 0.14 ± 0.00 a | 14.83 ± 0.45 | 1.69 ± 0.06 | 0.19 ± 0.01 |
| FC | 0.12 ± 0.00 b | 13.05 ± 1.87 | 1.82 ± 0.07 | 0.19 ± 0.01 | |
| 8 | SC | 0.14 ± 0.01 | 13.89 ± 1.30 | 1.76 ± 0.07 | 0.19 ± 0.00 |
| FC | 0.14 ± 0.01 | 11.21 ± 1.49 | 1.82 ± 0.07 | 0.18 ± 0.00 | |
| 14 | SC | 0.15 ± 0.00 | 9.90 ± 1.82 | 1.70 ± 0.07 | 0.19 ± 0.01 |
| FC | 0.15± 0.01 | 10.20 ± 0.68 | 1.70 ± 0.12 | 0.20 ± 0.01 | |
| ST | 0.032* | 0.000*** | 0.034 | 0.009** | |
| SC | 0.162 | 0.010** | 0.245 | 0.051 | |
| ST × SC | 0.271 | 0.257 | 0.661 | 0.011* |
† In each variable, the values for different treatments followed by different letters are significantly different according to the Tuckey test (P < 0.05). The absence of letters means no significant effect due to treatment according to one-way ANOVA (P < 0.05). Each value is the mean ± SD of 3 replicates. Significant levels of the factors ST, SC and ST × SC * p < 0.05, ** p < 0.01; *** p < 0.001.
Finally, it is worth mentioning that the visible bruises that were caused during the cleaning procedure did not produce any problematic rise in any of the examined parameters.
3.3. Implementation
⌅The obtained results were promising for the integration of a pre-cooling procedure as a valuable intermediate step before storage in bins. The filling level of the boxes used during harvesting was reduced to 2/3 to maximize the evacuation of the field heat within each box during the pre-cooling treatment. The filled boxes were transferred to the cooling room on a very regular basis and whenever 20 boxes were filled. The boxes were placed on pallets and pilled with sufficient space to optimize the airflow between them. The temperature was set at 5 °C (± 1 °C). The next morning, the cooled olives in these boxes were transferred to the presented bins. The emptied boxes were reused during the following picking day.
This procedure was carried out in the harvesting campaigns of 2018 and 2019. Bins were filled and stored within the cooling room. Several of them were stacked on top of each other to make the best use of space. The temperature of the olives in the containers was monitored with a digital thermometer as well as an IR thermometer. The first filled bins were stored for up to 7 days, as the picking had to be postponed for several days due to bad weather. The internal temperature climbed to 7 °C on the day of transport to the mill. Minor problems arose during storage as the capacity of the existing cooling installation was not designed to store such an amount of fruit. The fact that the olives came in in small batches made it possible to remove the field heat over the time of a day and night, although the formation of ice on the slats of the evaporator was inevitable and needed to be removed daily by blowing warm air over it.
The physicochemical characteristics of the obtained oils were analyzed and revealed a high-quality profile for both years (Table 3). The organoleptic quality was not tested by an official sensory panel, but the obtained prizes in various international competitions (New York International Olive Oil Contest 2018: Gold; 2019: Silver; Japanese Olive Oil Contest 2019: Gold; Premio Mezquita de Córdoba 2018: Gold; 2019: Gold) convincingly illustrated their exceptional quality over both years.
| Harvesting | FFA (% oleic acid) |
PI (meq O2/kg oil) |
K232 | K270 | Delta K | |||
|---|---|---|---|---|---|---|---|---|
| Year | Amount of bins |
kg | Max. storage (days) |
|||||
| 2018 | 10 | 3.583 | 7† | 0.13 | 6.6 | 1.65 | 0.16 | < 0.01 |
| 2019 | 13 | 4.721 | 5 | 0.11 | 5.7 | 1.75 | 0.17 | < 0.01 |
† The picking was postponed for three days due to bad wather
4. DISCUSSION
⌅The evolution of the internal temperature showed that instead of a continuous increase in temperature up to even 25 °C, as was reported by García et al. (1994)García JM, Gutiérrez F, Castellano JM, Perdiguero S, Morilla A, Albi MA. 1994. Storage of Olives destined for oil extraction. Acta Hortic. 368, 673-681. https://doi.org/10.17660/ActaHortic.1994.368.80 and García and Yousfi (2006)García JM, Yousfi K. 2006. The postharvest of mill olives. Grasas Aceites 57, 16-24. htpps://doi.org/10.3989/gya.2006.v57.i1.18 , a steady decrease was observed. Some parameters such as the degree of maturity, the degree of damage due to harvesting, and the cooling conditions in which they were kept, come to the fore as possible factors to explain these differences (data not shown). Proper control of the internal temperature was obtained, even without a pre-cooling treatment, and with even better results when the storage of a bulk container started with pre-cooled olives.
Experiment 1 demonstrated that the internal temperature did not rise by more than a few degrees over 2 weeks. As the environment stayed constant at 5 °C, the parameters for the convection stayed the same as well as those for the heat conduction dynamics within the container. It can thus be hypothesized that the excess of energy was generated by the fruit itself. The initial temperature of 5 °C inhibited the respiration of the fruit to a large extent, although it could not impede that over 14 days the heat generated by the respiration exceeded the heat that dissipated from the container by way of transmission or by radiation. In this respect, the results support the assumption of Redding et al. (2016)Redding GP, Yang A, Shim YM, Olatunji J, East A. 2016. A review of the use and design of produce simulators for horticultural forced-air cooling studies. J. Food En.g 190, 80-93. http://doi.org/10.1016/j.jfoodeng.2016.06.014 that respiratory heat does have a significant contribution when the (pre)-cooling process is extended.
The vulnerability of olives for chilling injuries is well known and well documented (Kader, 1985Kader A. 1985. An overview of the physiological and biochemical basis of CA effects on fresh horticultural crops, in Fourth Nat. Contr. Atm. Res. Conf., North Carolina State University, pp. 1-9. https://hortscans.ces.ncsu.edu/library/all/doc_id/399/ ). The development of these injuries takes place over an extended storage time and at temperatures below 5 °C. The results of this experiment showed that exposing the olives to a room temperature as low as -18 °C for less than 3 minutes did not cause injuries to the fruit or deterioration to the oil subsequently extracted. The required cooling time of 3 minutes was in line with the observations published by Plasquy et al. (2021)Plasquy E, García JM, Florido MC, Sola-Guirado RR. 2021. Estimation of the Cooling Rate of Six Olive Cultivars Using Thermal Imaging. Agriculture 11, 164. https://doi.org/10.3390/agriculture11020164 , who documented the cooling rate of 6 varieties, including the Picual c.v. used in this experiment.
A detailed comparison with the data as published by Garcia et al. (1994)García JM, Gutiérrez F, Castellano JM, Perdiguero S, Morilla A, Albi MA. 1994. Storage of Olives destined for oil extraction. Acta Hortic. 368, 673-681. https://doi.org/10.17660/ActaHortic.1994.368.80 was complicated as neither the intactness nor the state of ripening of the fruit was reported. However, the fact that the FT samples did not present excessive acidity levels indicated that additional factors must have exerted a detrimental effect on the fruit and consequently on the quality level of the extracted oil. It must be pointed out that the field temperature of 18 °C is rather low compared the daytime temperatures that can be experienced at the start of the harvesting campaign. Dealing with fruit at temperatures above 25 °C is far from unusual and do caution that more research is needed to document the evolution of the temperature of stored olives in containers.
The respiration rate of fruit increases at higher temperatures and as a consequence so does the respiration heat (Becker et al., 1996Becker BR, Misra A, Fricke BA. 1996. Bulk refrigeration of fruits and vegetables. Part 1: theoretical considerations of heat and mass transfer. HVACR Research 2, 122-134. https://doi.org/10.1080/10789669.1996.10391338 ). The results of Garcia et al. (1994)García JM, Gutiérrez F, Castellano JM, Perdiguero S, Morilla A, Albi MA. 1994. Storage of Olives destined for oil extraction. Acta Hortic. 368, 673-681. https://doi.org/10.17660/ActaHortic.1994.368.80 illustrated that once a given threshold temperature is reached, room cooling, even at 5 °C, becomes insufficient to lower the heat load. This experiment showed that this limit must be above 18 °C. However, further empirical research and modeling are needed to determine at what temperature storage in 400-kg containers becomes critical if not impossible.
Pre-cooling is since long recognized as critical in guaranteeing the quality of fresh fruit and vegetables. Removing the field heat does lead to a drastic reduction in the respiration rate and hence a decline in the deterioration as well (Brosnan and Sun, 2001Brosnan T, Sun DW. 2001. Precooling techniques and applications for horticultural products. A review. Int. J. Refrig .24, 154-170. https://doi.org/10.1016/S0140-7007(00)00017-7 ). The implementation of the experiment illustrated that this technique can be successfully realized at a small scale to optimize cold storage. To what extent the proposed solution can be introduced on a larger scale will depend on the creativity to adapt existing systems to the specific conditions of the olive harvest. The obtained results showed that it is worthwhile to undertake such an endeavor.
5. CONCLUSIONS
⌅The results indicated that olives of the ‘Picual’ variety, stored in containers of 400 kg at an initial temperature of 18 °C, can be kept at 5 °C for 14 days without significant signs of deterioration. Applying a pre-cooling treatment by bringing the fruit temperature to 5 °C before their storage in these containers resulted in a lower internal temperature during the storage time. The slight increase in temperature over time indicated that the respiration of the fruit substantially contributed to the internal heat production, although without provoking substantial deteriorations. Pre-cooling the olives in a fast way did not cause ‘chilling injuries’ nor did it affect the quality parameters of the extracted oil. The pre-cooling treatment offered a workable and affordable solution for the producer and could be successfully implemented as an integral part of the recollection process on the farm. Both experiments raised the expectation that the storage of olives in bin containers be further examined to clarify the vulnerability of the different cultivars and the impact of greater temperature gradients. At the same time, it seems recommendable to explore the possibilities of a fast pre-cooling process in greater depth and at the level of the farm to obtain the desired temperature before olive storage in container bins in a more efficient way.
